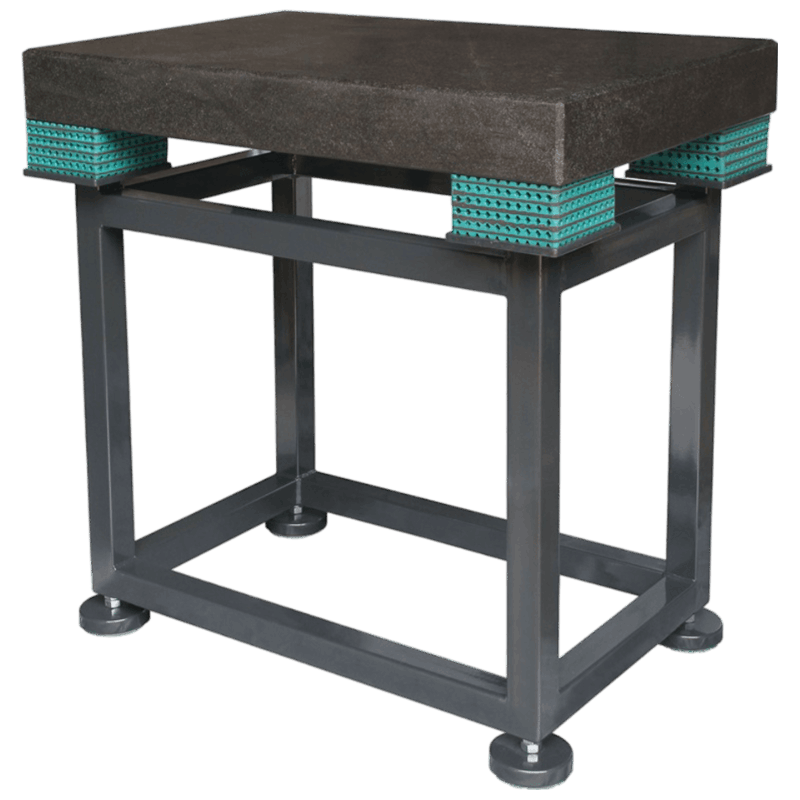

Anti Vibration Table With Elastomeric Vibration Isolation, Series-DIT-E

Anti Vibration Table With Elastomeric Vibration Isolation With Granite Top, Series DIT-E-GN

Product

Anti Vibration Table With Elastomeric Vibration Isolation With Granite Top, Series DIT-E-GN

Description

Dynemech Anti Vibration Tables - Series DITE-GN are ideal for Testing / Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets. These Anti-Vibration Tables have a Granite Surface Plate with Grade-00/Grade-1 accuracy for very precise measuring accuracies. We can select up-to five layers of insulation plate depending upon the vibrations present in the Testing Laboratory. These Vibration Tables provide the most economical solution where high frequency vibrations need to be removed. The passive vibrations from nearby motors and other heavy machinery is reduced by 65-70%. The vibration isolation efficiency of these tables can be further increased by placing more than 2 layers of our Dp insulation Sheets. Five layers of DP exhibits a natural frequency of 7-8 Hz. which damps most of the incoming frequencies above 20 Hz.

Application

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)	Natural Frequency At Max Load (Hz)
DIT-E-GN-01	upto 250	500	500	80	7-8'
DIT-E-GN-01-S1	upto 250	630	630	80	7-8'
DIT-E-GN-02	upto 450	750	500	80	7-8'
DIT-E-GN-03	upto 1250	900	600	100	7-8'
DIT-E-GN-04	upto 1250	1000	800	150	7-8
DIT-E-GN-05	upto 1250	1200	1000	150	7-8
DIT-E-GN-06	upto 1500	1800	1500	150	7-8

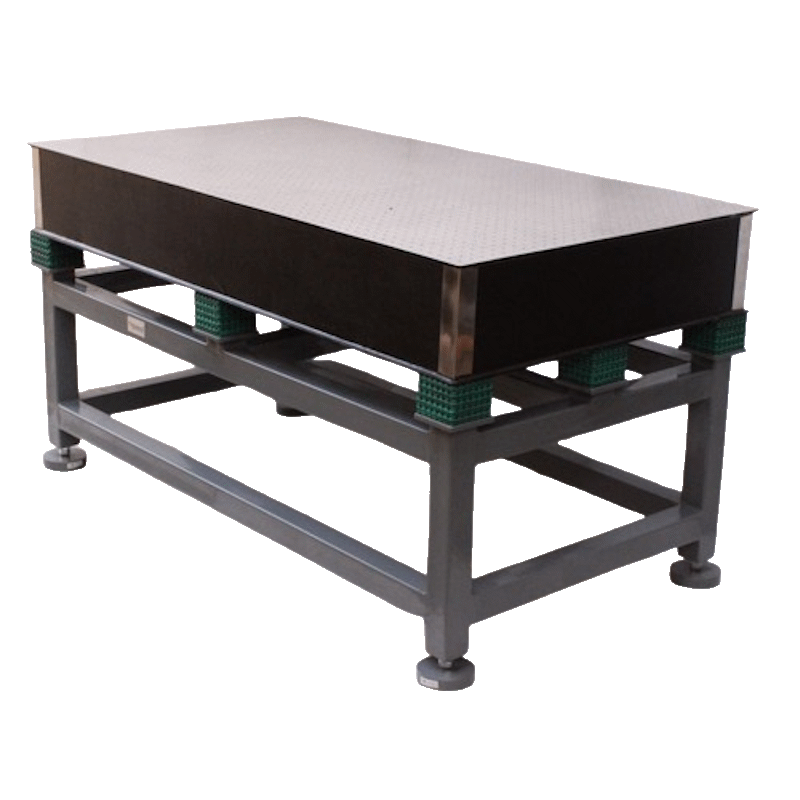

Anti Vibration Table With Elastomeric Vibration Isolation With Honeycomb Breadboard, Series DIT-E-HC

Product

Anti Vibration Table With Elastomeric Vibration Isolation With Honeycomb Breadboard, Series DIT-E-HC

Description

Dynemech Anti Vibration Tables - Series DIT-E-HC are ideal for Testing / Quality Laboratories with having optical instruments. The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets. These Anti-Vibration Tables have a Honeycomb table top. We can select up-to five layers of insulation plate depending upon the vibrations present in the Testing Laboratory.

Application

Used in optical industries, for mounting optical assemblies

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Height (Mm)	Honeycomb Tabletop Thickness (Mm)
DIT-E-HC-01-75759	upto 450	750	750	900	100
DIT-E-HC-02-90609	upto 500	900	600	900	100
DIT-E-HC-03-1008090	upto 600	1000	800	900	100
DIT-E-HC-04-12010090	upto 700	1200	1000	900	150
DIT-E-HC-05-15012090	upto 800	1500	1200	900	150
DIT-E-HC-06-18012090	upto 850	1800	1200	900	150
DIT-E-HC-07-24015090	upto 1000	2400	1500	900	200

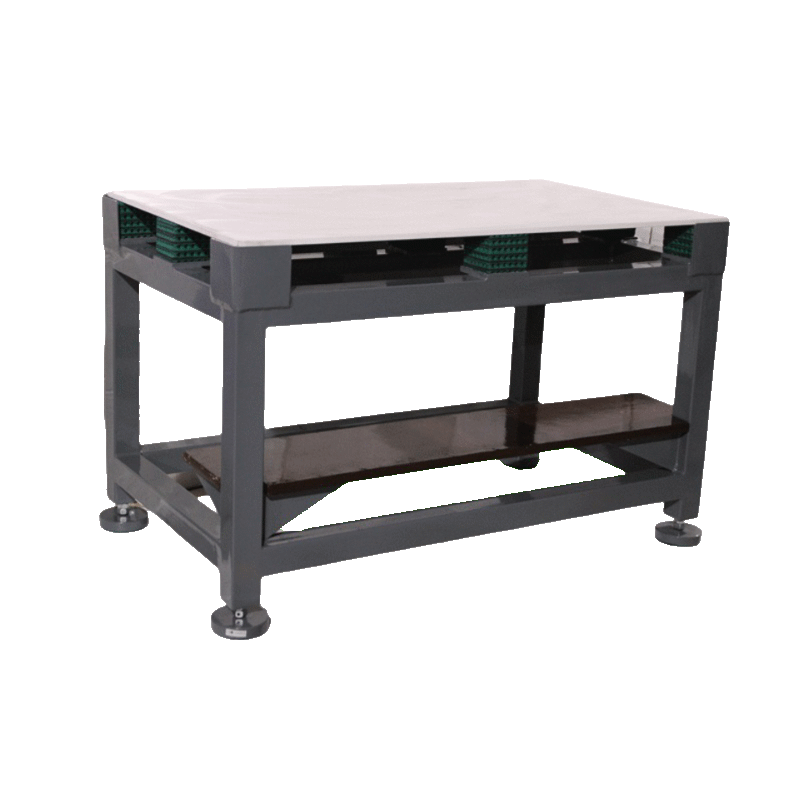

Anti Vibration Table With Elastomeric Vibration Isolation With Corian Marble Top, Series DIT-E-CM

Product

Anti Vibration Table With Elastomeric Vibration Isolation With Corian Marble Top, Series DIT-E-CM

Description

Dynemech Anti Vibration Tables - Series DIT-E-CM has a corian marble table top. High degree of vibration can be damped with the help of Dp Elastomeric sheets. We can select up-to five layers of insulation plate depending upon the vibrations present in the Testing Laboratory.

Application

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Height (Mm)	Natural Frequency At Max Load (Hz)	Corian Marble Tabletop Thickness (Mm)	Height	Natural Frequency At Max Load	Vibration Isolation Efficiency	Levelling	Height Adjustment
DIT-E-CM-01	upto 100	500	500	800-1000	7-8	12	800-1000	—	—	—	—
DIT-E-CM-02	upto 150	630	630	800-1000	7-8	12	800-1000	—	—	—	—
DIT-E-CM-03	upto 200	750	500	800-1000	7-8	24	800-1000	—	—	—	—
DIT-E-CM-04	upto 300	900	600	800-1000	7-8	24	800-1000	—	—	—	—
DIT-E-CM-05	upto 400	1000	800	800-1000	7-8	24	800-1000	—	—	—	—
DIT-E-CM-06	upto 450	1200	1000	800-1000	7-8	24	800-1000	7-8	65-70%	—	—
DIT-E-CM-07	upto 500	1800	1500	800-1000	7-8	24	—	—	65-70%	with the help of bottom DLM Mounts	8mm

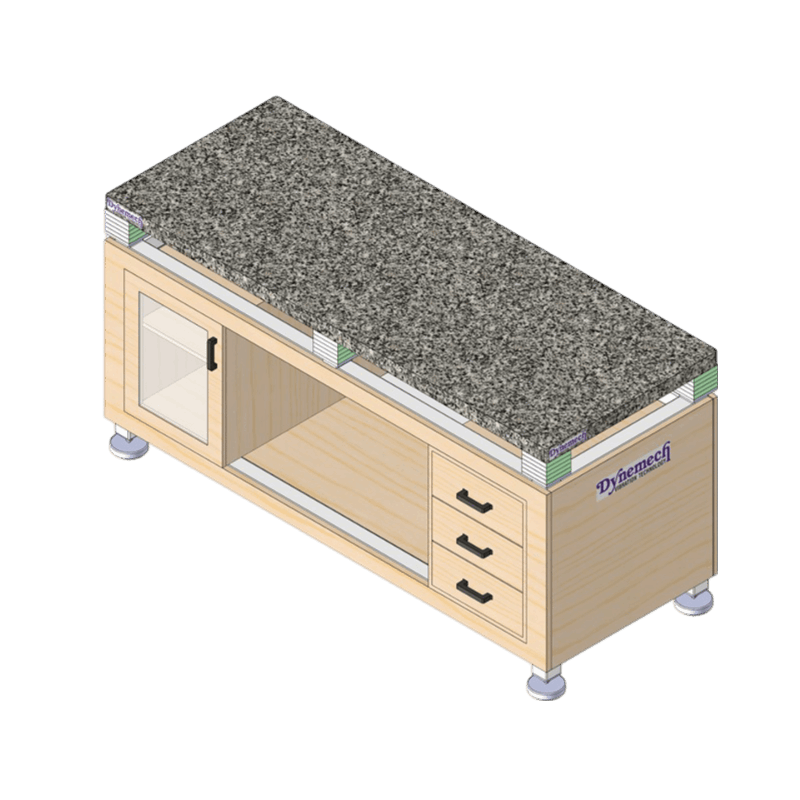

Anti Vibration Table, Elastomeric Isolation With Wooden Pu Coated Outer Frame, Series DIT-E-W

Product

Anti Vibration Table, Elastomeric Isolation With Wooden Pu Coated Outer Frame, Series DIT-E-W

Description

Dynemech Anti-Vibration Table Series DIT-E-W is suitable for all types of measuring and testing equipment used in the labs and clean rooms. This table has an outer PU coated wooden outer body. A low carbon steel powder coated outer frame provides sturdiness to the structure of the table. The vibrations are isolated using Double-Layered Dp Elastomeric Vibration Isolation Sheets. We can select up-to five layers of vibration insulation plate depending upon the vibrations present, significantly reducing vibrations in the range of 70-95% depending upon the frequency of the incoming vibrations. These tables have a levelling adjustable leg. The first stage levelling is done by rotating the nut, the level of the granite top can be maintained using precision spirit level/electronic level gauge. The top is made from a heavy granite slab which ensures rigidity and keeps the system stable and ensures lower natural frequency and high damping efficiency. The flatness accuracy of these granites is of grade '0' or '00' depending upon the application. The top surface of the granite slab is velvet finish to ensure smooth and lustrous finish. The frame of the table is made from the structural steel having grade IS 2062. Powder coating on the frame is done to maintain corrosion free service life of the table. The vibration isolation is achieved at 2 stages. The first stage is in the legs where the anti-vibration pads are assembled in the levelling leg which damps medium to high frequency vibrations. The second level of vibration isolation is achieved in 5 layered stacks of a special profiled vibration insulation plates. This stack of the vibration insulation plate is tuned to low natural frequency and damps most of the incoming vibrations above 15 Hz. Optional sturdy castor wheels are also provided for heavy versions for easy relocation of the table. Keyboard, CPU and monitor stands, Drawers and cabinets can also be accommodated in these tables as per the application requirements. These tables undergo a modern manufacturing process and rigorous testing before being supplied to customers. The entire process is carried out in our dedicated in-house facility.

Application

<span style="font-weight: 400;">The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by vibrations; In Laboratories and Research Facilities for accurate chemical analysis, food sample testing, sensitive scientific research, in pharmaceuticals, food and beverage & chemical industries; in Semiconductor Manufacturing and R&D; in Weighing Experiments and Scientific Analysis</span>

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)	Natural Frequency At Max Load (Hz)	Height (Mm)
DIT-E-W-01	upto 250	500	500	80	7-8	—
DIT-E-W-01-s1	upto 250	630	630	80	7-8	—
DIT-E-W-02	upto-450	750	500	80	7-8	—
DIT-E-W-03	upto-1250	900	600	100	7-8	—
DIT-E-W-04	upto-1250	1000	800	150	7-8	—
DIT-E-W-05	upto 1250	1200	1000	150	7-8	800-1000
DIT-E-W-06	upto 1500	1800	1500	150	7-8	800-1000

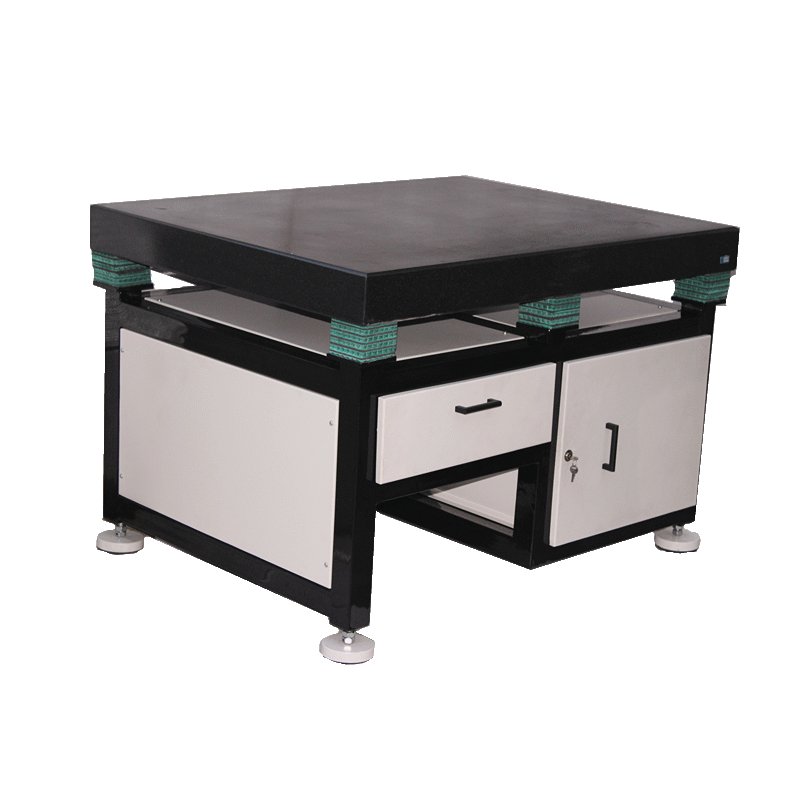

Anti Vibration Table With Elastomeric Isolation With Steel Cabinets And Supports-Granite Top, Series DIT-E-CDG

Product

Anti Vibration Table With Elastomeric Isolation With Steel Cabinets And Supports-Granite Top, Series DIT-E-CDG

Description

Dynemech Anti-Vibration Table Series DIT-E-CDG is suitable for all types of measuring and testing equipment used in the labs and clean rooms. This table has an outer PU coated wooden outer body. A low carbon steel powder coated outer frame provide sturdiness to the structure of the table. The vibrations are isolated using Double-Layered Dp Elastomeric Vibration Isolation Sheets. We can select up-to five layers of vibration insulation plate depending upon the vibrations present, significantly reducing vibrations in the range of 70-95% depending upon the frequency of the incoming vibrations. The top is made from a heavy granite slab which ensures rigidity and keeps the system stable and ensures lower natural frequency and high damping efficiency. The flatness accuracy of these granites is of grade ‘0’ or ‘00’ depending upon the application. The top surface of the granite slab is velvet finish to ensure smooth and lustrous finish. Also available in Corian marble top. Optional sturdy castor wheels are also provided for heavy versions for easy relocation of the table. Keyboard, CPU and monitor stands, Drawers and cabinets can also be accommodated in these tables as per the application requirements. The frame of the table is made from the structural steel having grade IS2062.Monitor stand, drawers, CPU space is provided as per the customer’s requirement. The body of the table is Powder coated to achieve corrosion free service life of the table. The vibration isolation is achieved at 2 stages. The first stage is in the legs where the anti-vibration pads are assembled in the levelling leg which damps medium to high frequency vibrations. The second level of vibration isola on is achieved in 5 layered stacks of a special profiled vibration insula on plates. This stack of the vibration insula on plate is tuned to low natural frequency and damps most of the incoming vibrations above 15 Hz. These tables undergo a modern manufacturing process and rigorous tes ng before being supplied to customers. The entire process is carried out in our dedicated in-house facility.

Application

The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by vibrations; In Laboratories and Research Facilities for accurate chemical analysis, food sample testing, sensitive scientific research, in pharmaceuticals, food and beverage & chemical industries; in Semiconductor Manufacturing and R&D; in Weighing Experiments and Scientific Analysis

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)	Height (Mm)	Natural Frequency At Max Load (Hz)
DIT-E-CDG-01	upto 250	500	500	80	—	—
DIT-E-CDG-01-S1	upto 250	630	630	80	—	—
DIT-E-CDG-02	upto 450	750	500	80	—	—
DIT-E-CDG-03	upto-1250	900	600	100	—	—
DIT-E-CDG-04	upto-1250	1000	800	150	—	—
DIT-E-CDG-05	upto 1250	1000	800	150	800-1000	7-8
DIT-E-CDG-06	upto 1250	1200	1000	150	800-1000	7-8
DIT-E-CDG-07	upto 1500	1800	1500	200	800-1000	7-8

Anti Vibration Table With Elastomeric Isolation With Steel Cabinets, Supports & Ss Top, Series DIT-E-CDSS

Product

Anti Vibration Table With Elastomeric Isolation With Steel Cabinets, Supports & Ss Top, Series DIT-E-CDSS

Description

Dynemech anti-vibration table Series DIT-E-CD SS is suitable for all types of measuring and testing equipment used in the labs and clean rooms. The body of the table is made from low carbon steel powder coated outer frame provide sturdiness to the structure of the table. The natural frequency of this table is in the range of 1.5-2.0 Hz which damps out most of the vibrations above 3 Hz. Available self-levelling accuracy options are +/- 0.010 and +/- 0.10 with minimum se ng me, depending upon the application requirement. These tables have a levelling adjustable leg. The first stage levelling is done by rotating the nut, the level of the granite top can be maintained using precision spirit level/electronic level gauge. The top is made from a heavy granite slab which ensures rigidity and keeps the system stable and ensures lower natural frequency and high damping efficiency. The flatness accuracy of these granites is of grade ‘0’ or ‘00’ depending upon the application. The top surface of the granite slab is velvet finish to ensure smooth and lustrous finish. The frame of the table is made from the structural steel having grade IS 2062. Monitor stand, drawers, CPU space is provided as per the customer’s requirement. The body of the table is Powder coated to achieve corrosion free service life of the table. Optional sturdy castor wheels are also provided for heavy versions for easy relocation of the table. Keyboard, CPU and monitor stands, Drawers and cabinets can also be accommodated in these tables as per the application requirements. The vibration isolation is achieved at 2 stages. The first stage is in the legs where the anti-vibration pads are assembled in the levelling leg which damps medium to high frequency vibrations. Optional sturdy castor wheels are also provided for heavy versions for easy relocation of the table. These tables undergo a modern manufacturing process and rigorous testing before being supplied to customers. The entire process is carried out in our dedicated in-house facility.

Application

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)	Natural Frequency At Max Load (Hz)
DIT-E-CDSS-01	upto 250	500	500	80	1.5-2.0
DIT-E-CDSS-02	upto 250	630	630	80	1.5-2.0
DIT-E-CDSS-03	upto 450	750	500	80	1.5-2.0
DIT-E-CDSS-04	upto-1250	900	600	100	1.5-2.0
DIT-E-CDSS-05	upto-1250	1000	800	150	1.5-2.0
DIT-E-CDSS-06	upto-1250	1200	1000	150	1.5-2.0
DIT-E-CDSS-07	upto-1500	1800	1500	200	1.5-2.0

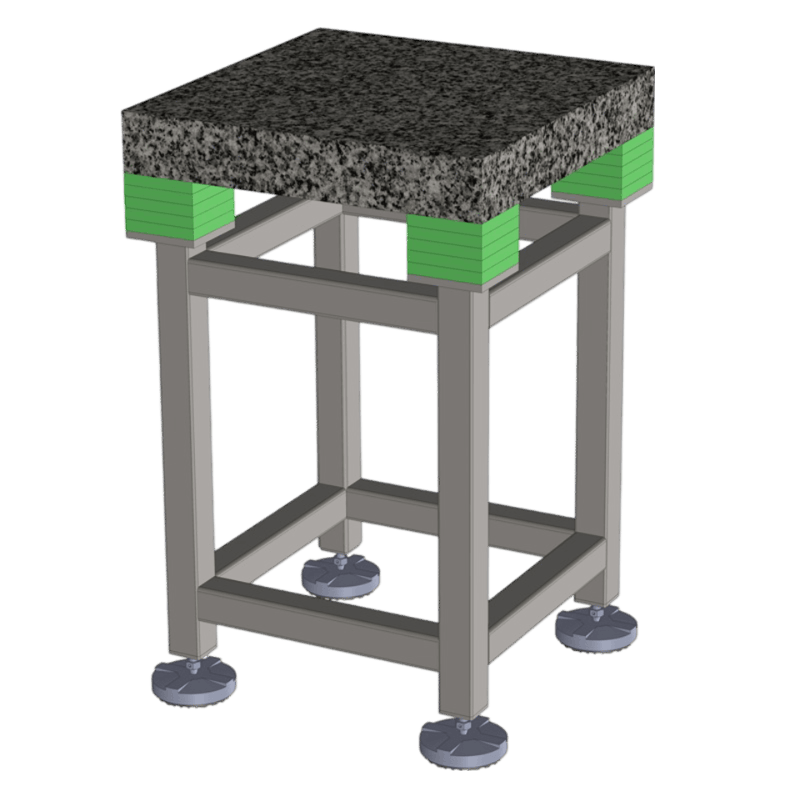

Anti Vibration Table, Elastomeric Isolation With Stainless Steel Table Frame, Series DIT-E-SFG

Product

Anti Vibration Table, Elastomeric Isolation With Stainless Steel Table Frame, Series DIT-E-SFG

Description

Table Series DIT-E-SFG is suitable for all types of measuring and testing equipment used in the labs and clean rooms. These tables have a levelling adjustable leg. By rotating the nut, the level of the granite top can be maintained using precision spirit level/electronic level gauge. The vibrations are isolated using Double-Layered Dp Elastomeric Vibration Isola on Sheets. We can select up-to five layers of vibration insula on plate depending upon the vibrations present, significantly reducing vibrations in the range of 70-95% depending upon the frequency of the incoming vibrations. The top is made from a heavy granite slab which ensures rigidity and keeps the system stable and ensures lower natural frequency and high damping efficiency. The flatness accuracy of these granites is of grade ‘0’ or ‘00’ depending upon the application. The top surface of the granite slab is velvet finish to ensure smooth and lustrous finish. The frame of the table is made from the Nonmagnetic SS grade SS304. Lustrous finish is provided to the frame by fine abrasion polishing. Such stainless-steel body makes them resist all biological and chemical a ack. The vibration isolation is achieved at 2 stages. The first stage is in the legs where the anti-vibration pads are assembled in the levelling leg which damps medium to high frequency vibrations. The second level of vibration isolation is achieved in 5 layered stacks of a special profiled vibration insula on plates. This stack of the vibration insula on plate is tuned to low natural frequency and damps most of the incoming vibrations above 15 Hz. Optional sturdy castor wheels are also provided for heavy versions for easy relocation of the table. Keyboard, CPU and monitor stands. Drawers and cabinets can also be accommodated in these tables as per the application requirements. These tables undergo a modern manufacturing process and rigorous testing before being supplied to customers. The entire process is carried out in our dedicated in-house facility.

Application

The Vibration Isolated Table (VIT) finds usage in critical areas in medical and foodgrade industries where reading accuracy of instruments like Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by Vibrations

Documents

Download Datasheet

Model	Load (Kg)	Length (Mm)	Width (Mm)	Height (Mm)	Granite Table Top Thickness (Mm)	Natural Frequency At Max Load (Hz)
DIT-E-SFG-01	upto 250	500	500	800-1000	80	7-8 Hz
DIT-E-SFG-02	upto 250	630	630	800-1000	80	7-8 Hz
DIT-E-SFG-03	upto 450	750	500	800-1000	100	7-8 Hz
DIT-E-SFG-04	upto 1250	900	600	800-1000	150	7-8 Hz
DIT-E-SFG-05	upto 1250	1000	800	800-1000	150	7-8
DIT-E-SFG-06	upto 1250	1200	1000	800-1000	150	7-8
DIT-E-SFG-07	upto 1500	1800	1500	800-1000	150	7-8

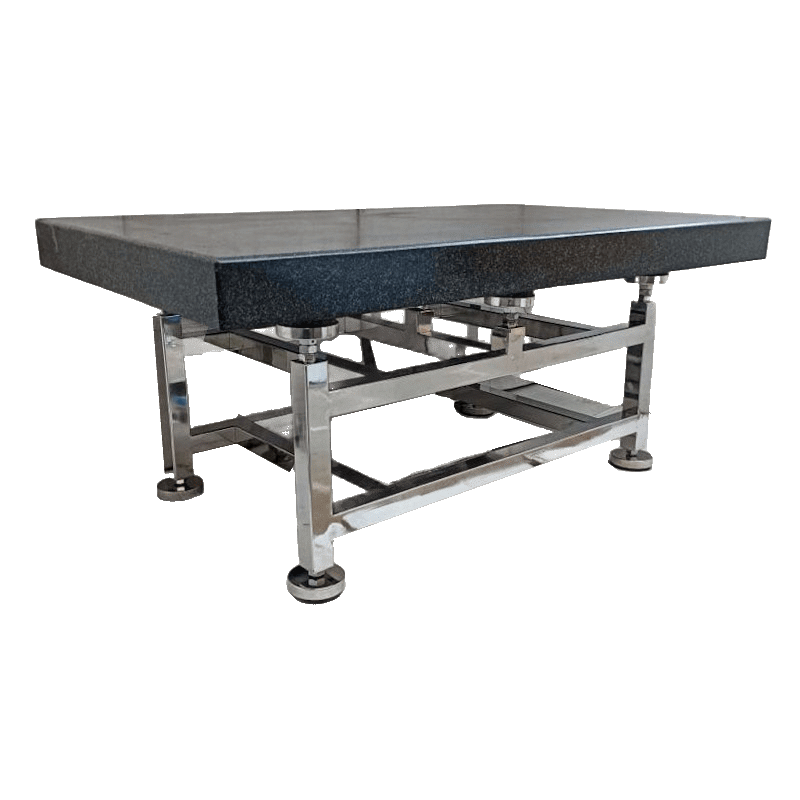

Anti Vibration Table, Elastomeric Isolation With Two Stage Levelling & Vibration Isolation, Series DIT-E-LDLM

Product

Anti Vibration Table, Elastomeric Isolation With Two Stage Levelling & Vibration Isolation, Series DIT-E-LDLM

Description

Dynemech Anti-Vibration Table Series DIT-E-LDLM is suitable for all types of measuring and testing equipment used in the labs and clean rooms. These tables have a levelling adjustable leg. By rotating the nut, the level of the granite top can be maintained using precision spirit level/electronic level gauge. This levelling adjustment leg ensures the rigid placement of the frame on the ground. The second stage levelling is done using inverted DLM mounts between the frame top and the granite slab base. The nut of the inverted DLM is adjusted so that the granite rests securely on all contact points and there is no movement of the granite over the frame. The top is made from a heavy granite slab which ensures rigidity and keeps the system stable and ensures lower natural frequency and high damping efficiency. The flatness accuracy of these granites is of grade ‘0’ or ‘00’ depending upon the application. The top surface of the granite slab is velvet finish to ensure smooth and lustrous finish. The frame of the table is made from the structural steel having grade IS 2062. Powder coating on the frame is done to maintain corrosion free service life of the table. The vibration isolation is achieved at 2 stages. The first stage is in the legs where the anti-vibration pads are assembled in the levelling leg which damps medium to high frequency vibrations. The second level of vibration isolation is achieved by using inverted DLM which also house single or double stack of DP1 vibration insula on plate which is tuned to low natural frequency and damps most of the incoming vibrations above 15 Hz. Optional sturdy castor wheels are also provided for heavy versions for easy relocation of the table. Keyboard, CPU and monitor stands. Drawers and cabinets can also be accommodated in these tables as per the application requirements. These tables undergo a modern manufacturing process and rigorous testing before being supplied to customers. The entire process is carried out in our dedicated in-house facility.

Application

<ul> <li>Precision Instruments: Balances, Galvanometers, Electronic Microscopes, Atomic Absorption Spectrophotometers.</li> <li>Laboratories: Chemical analysis, food sample testing, scientific research.</li> <li>Industries: Pharmaceuticals, Food and Beverage, Chemicals.</li> <li>Semiconductor Manufacturing: Precision and accuracy in R&D.</li> <li>Weighing Experiments: High-precision balances and measuring instruments.</li> <li>Scientific Applications: Metrology Equipment, Thermogravimetric Analysis (TGA) , Digital Hardness Testers, High Resolution Microscopes, Surface Roughness Testers.</li> </ul>

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)	Height (Mm)
DIT-E-LDLM-01	upto 250	500	500	80	—
DIT-E-LDLM-01-s1	upto 250	630	630	80	—
DIT-E-LDLM-02	upto-450	750	500	80	—
DIT-E-LDLM-03	upto-1250	900	600	100	—
DIT-E-LDLM-04	upto-1250	1000	800	150	—
DIT-E-LDLM-05	upto 1250	1200	1000	150	800-1000
DIT-E-LDLM-06	upto 1500	1800	1500	150	800-1000

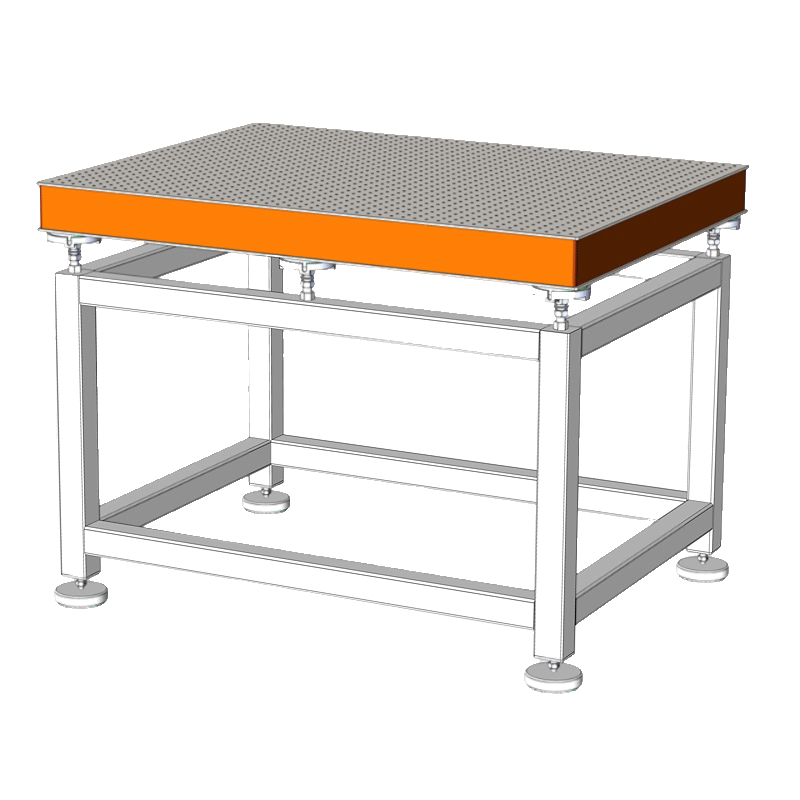

Anti Vibration Table, Elastomeric Isolation With Two Stage Levelling & Vibration Isolation And Honeycomb Top, Series DIT-E-LDLM-HC

Product

Anti Vibration Table, Elastomeric Isolation With Two Stage Levelling & Vibration Isolation And Honeycomb Top, Series DIT-E-LDLM-HC

Description

Dynemech anti-vibration table Series DIT-E-LDLM-HC is suitable for all types of measuring and testing equipment used in the labs and clean rooms. These tables have a levelling adjustable leg. By rotating the nut, the level of the granite top can be maintained using precision spirit level/electronic level gauge. This levelling adjustment leg ensures the rigid placement of the frame on the ground. The second stage levelling is done using inverted DLM mounts between the frame top and the granite slab base. The nut of the inverted DLM is adjusted so that the granite rests securely on all contact points and there is no movement of the granite over the frame.
The tabletop is a honeycomb tabletop. The core of this tabletop is composed of hexagon cells which provides remarkable strength to weight ratio ensuring a robust and stable surface which is light weight and easier to handle. The core is sandwiched between two layers of high-quality material such as SS 304 or Magnetic SS. The frame of the table is made from the structural steel having grade IS 2062. Powder coating on the frame is done to maintain corrosion free service life of the table. The vibration isolation is achieved at 2 stages. The first stage is in the legs where the anti-vibration pads are assembled in the levelling leg which damps medium to high frequency vibrations. The second level of vibration isolation is achieved by using inverted DLM which also house single or double stack of DP1 vibration insula on plate which is tuned to low natural frequency and damps most of the incoming vibrations above 15 Hz. Optional sturdy castor wheels are also provided for heavy versions for easy relocation of the table. Keyboard, CPU and monitor stands,. Drawers and cabinets can also be accommodated in these tables as per the application requirements.
These tables undergo a modern manufacturing process and rigorous testing before being supplied to customers. The entire process is carried out in our dedicated inhouse facility.

Application

<ul> <li>Precision Instruments: Balances, Galvanometers, Electronic Microscopes, Atomic Absorption Spectrophotometers</li> <li>Laboratories: Chemical analysis, food sample testing, scientific research</li> <li>Industries: Pharmaceuticals, Food and Beverage, Chemicals</li> <li>Semiconductor Manufacturing: Precision and accuracy in R&D</li> <li>Weighing Experiments: High-precision balances and measuring instruments</li> <li>Scientific Applications: Metrology Equipment, Thermogravimetric Analysis (TGA) , Digital Hardness Testers, High Resolution Microscopes, Surface Roughness Testers</li> </ul>

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Height (Mm)	Honeycomb Tabletop Thickness (Mm)
DITE-LDLM-HC-01	upto 400	500	500	900	80
DITE-LDLM-HC-01-s1	upto 400	630	630	900	80
DITE-LDLM-HC-02	upto-850	750	500	900	80
DITE-LDLM-HC-03	upto-1150	900	600	900	100
DITE-LDLM-HC-04	upto-1250	1000	800	900	100
DITE-LDLM-HC-05	upto-1250	1200	1000	900	150
DITE-LDLM-HC-06	upto-1250	1500	900	900	150
DITE-LDLM-HC-07	upto-1250	1800	1200	900	200

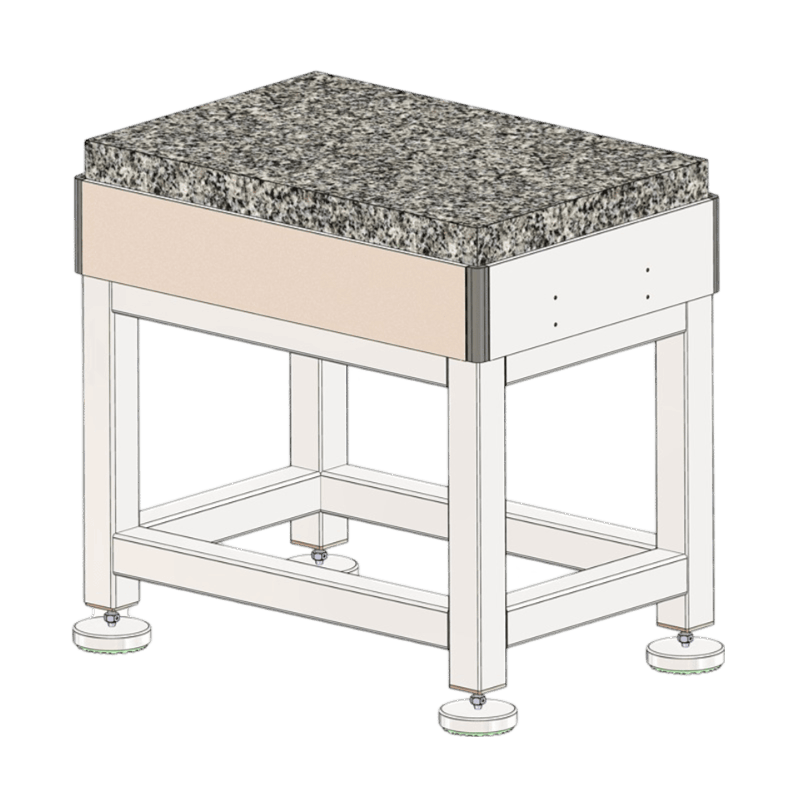

Anti Vibration Table, Elastomeric Vibration Isolation With Granite Tabletop & Wrap Around Plate, Series DIT-E-WAG

Product

Anti Vibration Table, Elastomeric Vibration Isolation With Granite Tabletop & Wrap Around Plate, Series DIT-E-WAG

Description

Dynemech Anti-Vibration Table Series DIT-E-WAG is suitable for all types of measuring and testing equipment used in the labs and clean rooms. These tables have a levelling adjustable leg. By rotating the nut, the level of the granite top can be maintained using precision spirit level/electronic level gauge. The top is made from a heavy granite slab which ensures rigidity and keeps the system stable and ensures lower natural frequency and high damping efficiency. The flatness accuracy of these granites is of grade ‘0’ or ‘00’ depending upon the application. The top surface of the granite slab is velvet finish to ensure smooth and lustrous finish. The frame of the table is made from the structural steel having grade IS 2062. Powder coating on the frame is done to maintain corrosion free service life of the table. A wrap-around cover is installed along the periphery to encase the insula on plates and give the table a sleek, finished appearance. The vibration isolation is achieved at 2 stages. The first stage is in the legs where the anti-vibration pads are assembled in the levelling leg which damps medium to high frequency vibrations. The second level of vibration isolation is achieved in 5 layered stacks of a special profiled vibration insula on plates. This stack of the vibration insula on plate is tuned to low natural frequency and damps most of the incoming vibrations above 15 Hz. Optional sturdy castor wheels are also provided for heavy versions for easy relocation of the table. Keyboard, CPU and monitor stands,. Drawers and cabinets can also be accommodated in these tables as per the application requirements. These tables undergo a modern manufacturing process and rigorous testing before being supplied to customers. The entire process is carried out in our dedicated in-house facility.

Application

<ul> <li>Precision Instruments: Balances, Galvanometers, Electronic Microscopes, Atomic Absorption Spectrophotometers</li> <li>Laboratories: Chemical analysis, food sample testing, scientific research</li> <li>Industries: Pharmaceuticals, Food and Beverage, Chemicals</li> <li>Semiconductor Manufacturing: Precision and accuracy in R&D</li> <li>Weighing Experiments: High-precision balances and measuring instruments</li> <li>Scientific Applications: Metrology Equipment, Thermogravimetric Analysis (TGA), Digital Hardness Testers, High Resolution Microscopes, Surface Roughness Testers</li> </ul>

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Height (Mm)	Granite Table Top Thickness (Mm)
DIT-E-WAG-01	upto 250	500	500	900	80
DIT-E-WAG-01-S1	upto 250	630	630	900	80
DIT-E-WAG-02	upto-450	750	500	900	80
DIT-E-WAG-03	upto-1250	900	600	900	100
DIT-E-WAG-04	upto-1250	1000	800	900	150
DIT-E-WAG-05	upto 1250	1200	1000	900	150
DIT-E-WAG-06	upto 1500	1800	1500	900	150

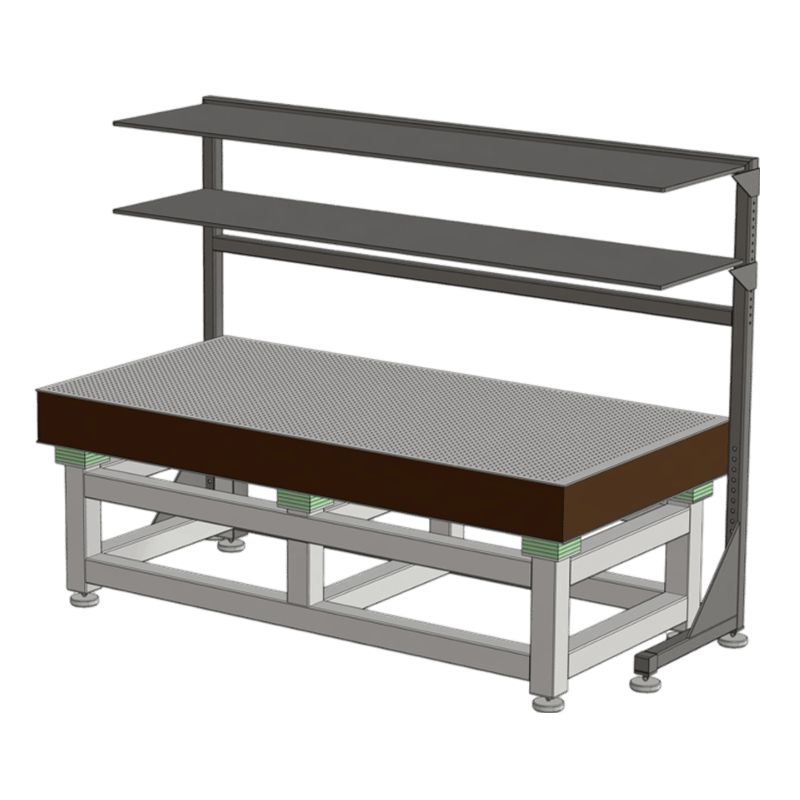

Anti Vibration Table, Elastomeric Vibration Isolation With Granite Tabletop & Top Storage, Series DIT-E-GSR

Product

Anti Vibration Table, Elastomeric Vibration Isolation With Granite Tabletop & Top Storage, Series DIT-E-GSR

Description

Dynemech Anti-Vibration Table Series DIT-E-GSR is suitable for all types of measuring and testing equipment used in the labs and clean rooms. These tables have a levelling adjustable leg. By rota ng the nut, the level of the granite top can be maintained using precision spirit level/electronic level gauge. The top is made from a heavy granite slab which ensures rigidity and keeps the system stable and ensures lower natural frequency and high damping efficiency. The flatness accuracy of these granites is of grade ‘0’ or ‘00’ depending upon the application. The top surface of the granite slab is velvet finish to ensure smooth and lustrous finish. The frame of the table is made from the structural steel having grade IS 2062. Powder coating on the frame is done to maintain corrosion free service life of the table. A wrap-around cover is installed along the periphery to encase the insula on plates and give the table a sleek, finished appearance. The vibration isolation is achieved at 2 stages. The first stage is in the legs where the anti-vibration pads are assembled in the levelling leg which damps medium to high frequency vibrations. The second level of vibration isolation is achieved in 5 layered stacks of a special profiled vibration insula on plates. This stack of the vibration insula on plate is tuned to low natural frequency and damps most of the incoming vibrations above 15 Hz. Optional sturdy castor wheels are also provided for heavy versions for easy relocation of the table. Keyboard, CPU and monitor stands,. Drawers and cabinets can also be accommodated in these tables as per the application requirements. These tables undergo a modern manufacturing process and rigorous testing before being supplied to customers. The entire process is carried out in our dedicated in-house facility.

Application

<ul> <li>Precision Instruments: Balances, Galvanometers, Electronic Microscopes, Atomic Absorption Spectrophotometers</li> <li>Laboratories: Chemical analysis, food sample testing, scientific research</li> <li>Industries: Pharmaceuticals, Food and Beverage, Chemicals</li> <li>Semiconductor Manufacturing: Precision and accuracy in R&D</li> <li>Weighing Experiments: High-precision balances and measuring instruments</li> <li>Scientific Applications: Metrology Equipment, Thermogravimetric Analysis (TGA), Digital Hardness Testers, High Resolution Microscopes, Surface Roughness Testers</li> </ul>

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Height (Mm)	Granite Table Top Thickness (Mm)
DIT-E-GSR-01	upto 250	500	500	900	80
DIT-E-GSR-01/S1	upto 250	630	630	900	200
DIT-E-GSR-02	upto 450	750	500	900	80
DIT-E-GSR-03	upto 1250	900	600	900	100
DIT-E-GSR-04	upto 1250	1000	800	900	150
DIT-E-GSR-05	upto 1250	1200	1000	900	150
DIT-E-GSR-06	upto 1500	1800	1500	900	150

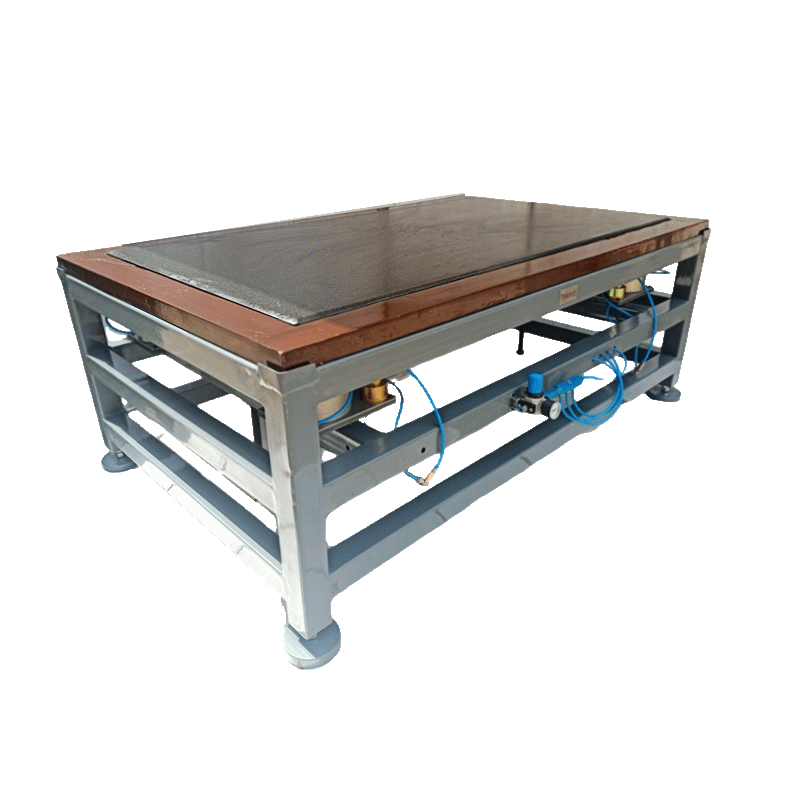

Anti Vibration Table, Elastomeric Vibration Isolation With Granite Isolated Payload Area In Wooden Table Top Frame, Series DIT-E-GPW

Product

Anti Vibration Table, Elastomeric Vibration Isolation With Granite Isolated Payload Area In Wooden Table Top Frame, Series DIT-E-GPW

Description

Dynemech anti-vibration table series DIT-E-GPW is suitable for all types of measuring and testing equipment used in the labs and clean rooms. The body of the table is made from low carbon steel powder coated outer frame provide sturdiness to the structure of the table. The natural frequency of this table is in the range of 1-1.5 Hz which damps out most of the vibrations above 3 Hz. Available self-levelling accuracy options are +/- 0.010 and +/- 0.10 with minimum setting time, depending upon the application requirement. These tables have a levelling adjustable leg. The first stage levelling is done by rotating the nut, the level of the granite top can be maintained using precision spirit level/electronic level gauge. The top is made from a heavy granite slab which ensures rigidity and keeps the system stable and ensures lower natural frequency and high damping efficiency. The flatness accuracy of these granites is of grade ‘0’ or ‘00’ depending upon the application. The top surface of the granite slab is velvet finish to ensure smooth and lustrous finish. The frame of the table is made from the structural steel having grade IS 2062.Monitor stand, drawers, CPU space is provided as per the customer’s requirement. The body of the table is Powder coated to achieve corrosion free service life of the table. Optional sturdy castor wheels are also provided for heavy versions for easy relocation of the table. Keyboard, CPU and monitor stands, Drawers and cabinets can also be accommodated in these tables as per the application requirements. The vibration isolation is achieved at 2 stages. The first stage is in the legs where the anti-vibration pads are assembled in the levelling leg which damps medium to high frequency vibrations. The second level of vibration isolation is achieved by the membrane air springs which isolates a wide low to high frequency range of the incoming vibrations. The isolated area is separated from the outer area and is supported in dependently from the ground. Any disturbance to the outer area will not affect the readings in the isolated area. Optional sturdy castor wheels are also provided for heavy versions for easy relocation of the table. Keyboard, CPU and monitor stands,. Drawers and cabinets can also be accommodated in these tables as per the application requirements. Optional sturdy castor wheels are also provided for heavy versions for easy relocation of the table. These tables undergo a modern manufacturing process and rigorous testing before being supplied to customers. The entire process is carried out in our dedicated in-house facility.

Application

The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by vibrations ; In Laboratories and Research Facilities for accurate chemical analysis, food sample testing, sensitive scientific research , in pharmaceuticals, food and beverage & chemical industries; in Semiconductor Manufacturing and R&D ; in Weighing Experiments and Scientific Analysis

Documents

Download Catalogue

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-E-GPW-01	upto 400	500	500	80
DIT-E-GPW-01-s1	upto 400	630	630	80
DIT-E-GPW-02	upto 850	750	500	100
DIT-E-GPW-03	upto-1150	900	600	150
DIT-E-GPW-04	upto-1250	1000	800	150
DIT-E-GPW-05	upto-1250	1200	1000	150
DIT-E-GPW-06	upto-1500	1800	1500	200

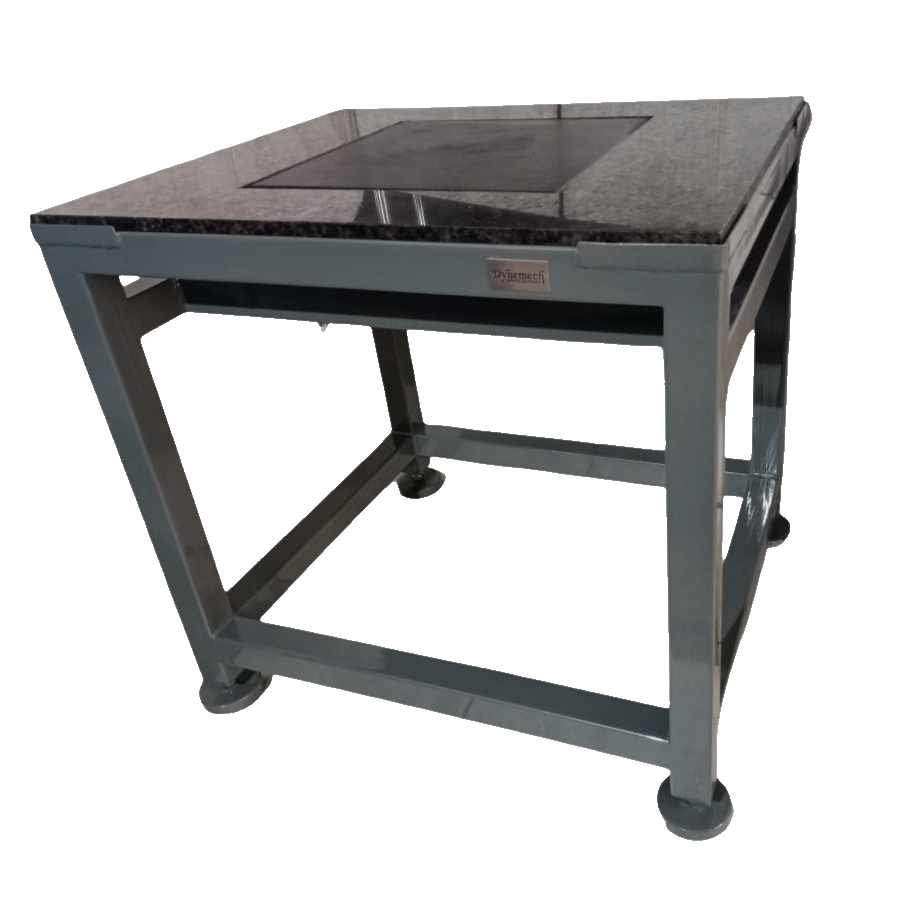

Anti Vibration Table, Elastomeric Vibration Isolation With Granite Isolated Payload Area In Granite Table Top, Series DIT-E-GPG

Product

Anti Vibration Table, Elastomeric Vibration Isolation With Granite Isolated Payload Area In Granite Table Top, Series DIT-E-GPG

Description

Dynemech Anti-Vibration Table Series DITE-E-GPG is suitable for all types of measuring and testing equipment used in the labs and clean rooms. These tables have a levelling adjustable leg. By rotating the nut, the level of the granite top can be maintained using precision spirit level/electronic level gauge. The top is made from a heavy granite slab which ensures rigidity and keeps the system stable and ensures lower natural frequency and high damping efficiency. The flatness accuracy of these granites is of grade ‘0’ or ‘00’ depending upon the application. The top surface of the granite slab is velvet finish to ensure smooth and lustrous finish. The frame of the table is made from the structural steel having grade IS 2062. Powder coating on the frame is done to maintain corrosion free service life of the table. The vibration isolation is achieved at 2 stages. The first stage is in the legs where the anti-vibration pads are assembled in the levelling leg which damps medium to high frequency vibrations. The second level of vibration isolation is achieved by DP1 layer of special profiled vibration insulation plates. This stack of the vibration insulation plate is tuned to low natural frequency and damps most of the incoming vibrations above 15-20 Hz. The isolated area is separated from the outer area and is supported in dependently from the ground. Any disturbance to the outer area will not affect the readings in the isolated area. Optional sturdy castor wheels are also provided for heavy versions for easy relocation of the table. Keyboard, CPU and monitor stands,. Drawers and cabinets can also be accommodated in these tables as per the application requirements. These tables undergo a modern manufacturing process and rigorous testing before being supplied to customers. The entire process is carried out in our dedicated inhouse facility.

Application

<ul> <li>Precision Instruments: Balances, Galvanometers, Electronic Microscopes, Atomic Absorption Spectrophotometers</li> <li>Laboratories: Chemical analysis, food sample testing, scientific research</li> <li>Industries: Pharmaceuticals, Food and Beverage, Chemicals</li> <li>Semiconductor Manufacturing: Precision and accuracy in R&D</li> <li>Weighing Experiments: High-precision balances and measuring instruments</li> <li>Scientific Applications: Metrology Equipment, Thermogravimetric Analysis (TGA), Digital Hardness Testers, High Resolution Microscopes, Surface Roughness Testers</li> </ul>

Documents

Download Datasheet

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-E-GPG-01	upto 250	500	500	80
DIT-E-GPG-01-s1	upto 250	630	630	80
DIT-E-GPG-02	upto-450	750	500	80
DIT-E-GPG-03	upto-1250	900	600	100
DIT-E-GPG-04	upto-1250	1000	800	150
DIT-E-GPG-05	upto-1250	1200	1000	150
DIT-E-GPG-06	upto-1500	1800	1500	150

Anti Vibration Table, Elastomeric Vibration Isolation With 2 Stage Payload Area Isolated Table, Series DIT-E-PALM

Product

Anti Vibration Table, Elastomeric Vibration Isolation With 2 Stage Payload Area Isolated Table, Series DIT-E-PALM

Description

Elastomeric anti vibration table with top honeycomb. Multilayer of special profile elastomeric material is used for low frequency vibration isolation. Isolated Payload area is separated from the external table.

Application

Weighing Balances, Height Gauges, Dial Gauges Etc.

Model	Load (Kg)	Length (Mm)	Width (Mm)	Granite Table Top Thickness (Mm)
DIT-E-PALM-01	upto 250	500	500	80
DIT-E-PALM-01-s1	upto 250	630	630	80
DIT-E-PALM-02	upto-450	750	500	80
DIT-E-PALM-03	upto-1250	900	600	100
DIT-E-PALM-04	upto-1250	1000	800	150
DIT-E-PALM-05	upto-1250	1200	1000	150
DIT-E-PALM-06	upto-1500	1800	1500	150
