Precision Levelling Mounts
VHS
Product
VHS
Description
VHS Festofix Leveling Wedge Mounts are useful in leveling and aligning machinery to very strict tolerances and make it possible to vary adjustments at any time, even under maximum loads.
Benefits include:
• Built-in compensation for uneven areas in foundations and machine bases.
These benefits make the VHS series festofix levelling wedges the "state-of-the-art" anchoring/alignment system
Note :- Please select dimensions "G" or "F" at the time of Order.
Application
For the levelling, Adjustments & fixation of large machinery and other heavy equipment like boilers, turbines, generators, long-bedded lathes etc.
Documents
| Model | Recommended Load (Kg/Pc) | Max Load (Kg/Pc) | L (Mm) | L1 (Mm) | B (Mm) | H Capital (Mm) | D (Mm) | H (Mm) | F Capital (Mm) | G Capital | A (Mm) | Sw1 | Sw2 | E1 | E2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VHS-I-FG | 1000 | 9000 | 170 | 91 | 108 | 60 | 75 | 5 | 17 | M12 | 12 | 19 | 10 | 12.7 | 26 |
| VHS-II-FG | 2000 | 12000 | 175 | 93 | 120 | 75 | 75 | 5 | 21 | M20 | 15 | 19 | 10 | 12.7 | 26 |
| VHS-III-FG | 4000 | 24000 | 220 | 118 | 150 | 98 | 88 | 6 | 25 | M24 | 23 | 19 | 10 | 18 | 32 |
| VHS-IV-FG | 6000 | 36000 | 280 | 160 | 180 | 116 | 105 | 8 | 31 | M30 | 25 | 32 | 18 | 24 | 38 |
| VHS-V-FG | 12000 | 70000 | 350 | 180 | 230 | 138 | 145 | 10 | 37 | M36 | 35 | 32 | 18 | 28 | 46 |
VHS-LA
Product
VHS-LA
Description
VHS-LA series mounts provides precision levelling to the machine. The leveling is possible even after grouting the outer body of this mount. A slight horizontal alignment of long bedded machines is possible using this mount.
Note -Please select dimensions "G" or "F" at the time of Order.
Documents
| Model | Recommended Load (Kg/Pc) | Max Load (Kg/Pc) | L (Mm) | L1 (Mm) | B (Mm) | H Capital (Mm) | D (Mm) | H (Mm) | F (Mm) | G Capital | A (Mm) | Sw1 | Sw2 | E1 | E2 | Total Height With Lateral Adjuster H1 (Mm) | Lateral Adjuster Bolt Size Sw3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VHS-LA-1-FG | 1000 | 9000 | 170 | 91 | 108 | 60 | 75 | 5 | 17 | M12 | 12 | 19 | 10 | 12.7 | 26 | 100 | m16 |
| VHS-LA-2-FG | 2000 | 12000 | 175 | 93 | 120 | 75 | 75 | 5 | 21 | M20 | 15 | 19 | 10 | 12.7 | 26 | 125 | m16 |
| VHS-LA-3-FG | 4000 | 24000 | 220 | 118 | 150 | 98 | 88 | 6 | 25 | M24 | 23 | 19 | 10 | 18 | 32 | 150 | m20 |
| VHS-LA-4-FG | 6000 | 36000 | 280 | 160 | 180 | 116 | 105 | 8 | 31 | M30 | 25 | 32 | 18 | 24 | 38 | 165 | M20 |
| VHS-LA-5-FG | 12000 | 70000 | 350 | 180 | 230 | 138 | 145 | 10 | 37 | M36 | 35 | 32 | 18 | 28 | 46 | 185 | M20 |

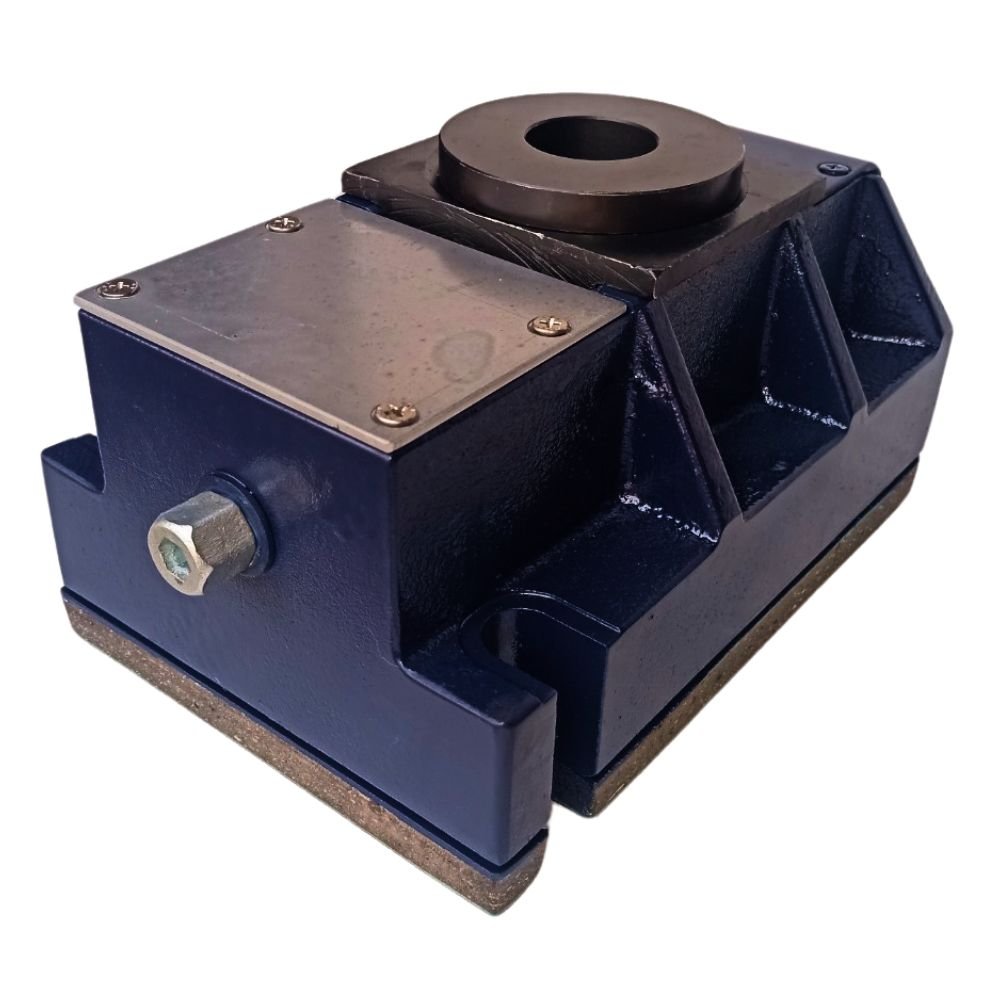

VHS3-M-SP2
Product
VHS3-M-SP2
Documents
| Model | Recommended Load (Kg/Pc) | Max Load (Kg/Pc) | L (Mm) | L1 (Mm) | B (Mm) | H Capital (Mm) | D (Mm) | H (Mm) | G Capital | Sw1 | Sw2 | E1 | E2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VHS3-M-SP2 | 4000 | 24000 | 250 | 138 | 170 | 140 | 88 | 10 | M24 | 19 | 10 | 20 | 32 |

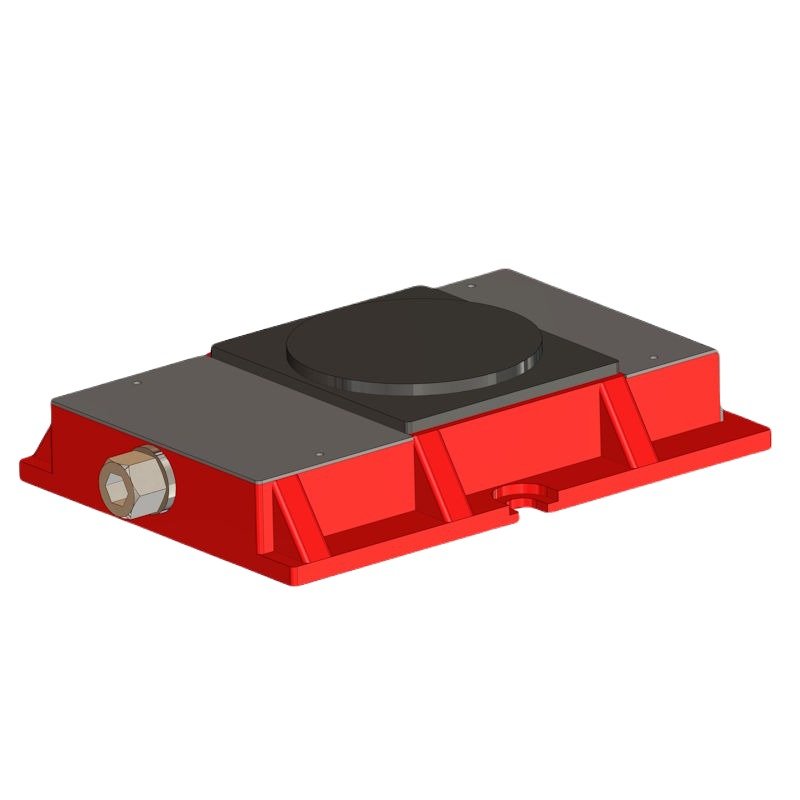

VHS-V-SP1-SG
Product
VHS-V-SP1-SG
Documents
| Model | Recommended Load Knpc | Max Load Knpc | L (Mm) | L1 (Mm) | B (Mm) | H Capital (Mm) | D (Mm) | H (Mm) | Sw1 | Sw2 |
|---|---|---|---|---|---|---|---|---|---|---|
| VHS-V-SP1-SG | 130 | 450 | 350 | 175 | 250 | 70 | 155 | 15 | 32 | 18 |
