Sandwich Mounts
DMS1
Product
DMS1
Description
The sandwich mounts comprise one or more layers of elastomer bonded to flat steel plates. They are designed to withstand very high compressive loads. These mounts have large supporting surface area and are slim. These mounts can also be stacked to achieve lower natural frequencies.
Documents
| Model | Max Load Capacity (Kg/Pc) | L X B (Mm) | C X D (Mm) | Cc (Mm) | H (Mm) | L (Mm) | Bolt G | D | Thickness Of Steel Plate |
|---|---|---|---|---|---|---|---|---|---|
| DMS1-A-M8x1.25x18 | 40 | 88x41 | 57x41 | 72 | 38 | 18 | M8 | 8 | 4 |
| DMS1-B-M8x1.25x18 | 50 | 88x41 | 57x41 | 72 | 38 | 18 | M8 | 8 | 4 |
| DMS1-C-M8x1.25x18 | 75 | 88x41 | 57x41 | 72 | 38 | 18 | M8 | 8 | 4 |
| DMS1-D-M8x1.25x18 | 120 | 88x41 | 57x41 | 72 | 38 | 18 | M8 | 8 | 4 |
| DMS1-E-M8x1.25x18 | 150 | 88x41 | 57x41 | 72 | 38 | 18 | M8 | 8 | 4 |
DMS2
Product
DMS2
Description
The sandwich mounts comprise one or more layers of elastomer bonded to flat steel plates. They are designed to withstand very high compressive loads. These mounts have large supporting surface area and are slim. These mounts can also be stacked to achieve lower natural frequencies.
Documents
DMS2-SP1
Product
DMS2-SP1
Description
The sandwich mounts comprise one or more layers of elastomer bonded to flat steel plates. They are designed to withstand very high compressive loads. These mounts have large supporting surface area and are slim. These mounts can also be stacked to achieve lower natural frequencies.
Documents
| Model | Max Load Capacity (Kg/Pc) | L X B (Mm) | C X D (Mm) | Cc (Mm) | H (Mm) | D | Thickness Of Steel Plate |
|---|---|---|---|---|---|---|---|
| DMS2-A-SP1 | 140 | 110x60 | 110x60 | 89 | 43 | 12 | 6 |
| DMS2-B-SP1 | 270 | 110x60 | 110x60 | 89 | 43 | 12 | 6 |
| DMS2-C-SP1 | 450 | 110x60 | 110x60 | 89 | 43 | 12 | 6 |
| DMS2-D-SP1 | 600 | 110x60 | 110x60 | 89 | 43 | 12 | 6 |
| DMS2-E-SP1 | 850 | 110x60 | 110x60 | 89 | 43 | 12 | 6 |
DSM
Product
DSM
Documents
| Model | Max Load Capacity (Kg/Pc) | Cc (Mm) | Length L (Mm) | Width B (Mm) | Height H (Mm) | Thru Hole (Mm) | G |
|---|---|---|---|---|---|---|---|
| DSM-240/50 | 4500 | 180 | 240 | 50 | 40 | 20 | — |
| DSM-250/75-M12x1.75 | 3500 | 150 | 250 | 75 | 75 | — | M12x1.75 |
DMS-3-36
Product
DMS-3-36
Documents
| Model | Max Load Capacity (Kg/Pc) | Cc (Mm) | Length L (Mm) | Width B (Mm) | Height H (Mm) | Thread Size |
|---|---|---|---|---|---|---|
| DMS 3.36 | 900 | 158 | 184 | 75 | 36 | M12x1.5 |
BUFFER BLOCK
Product
BUFFER BLOCK
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H (Mm) | Natural Frequency At Max Load (Hz) | Coefficient Of Friction |
|---|---|---|---|---|---|---|
| DMS1-10856 | 2300 | 100 | 85 | 60 | 7 | 0.8 |
BUFFER STOPPER
Product
BUFFER STOPPER
Documents
| Model | L X B (Mm) | Cc (Mm) | H (Mm) | Load Capacity (Kg/Pc) | D (Mm) | D Capital (Mm) |
|---|---|---|---|---|---|---|
| DSC 60-45 SP1 | 80 | 63 | 56 | 200 | 6 | 60 |

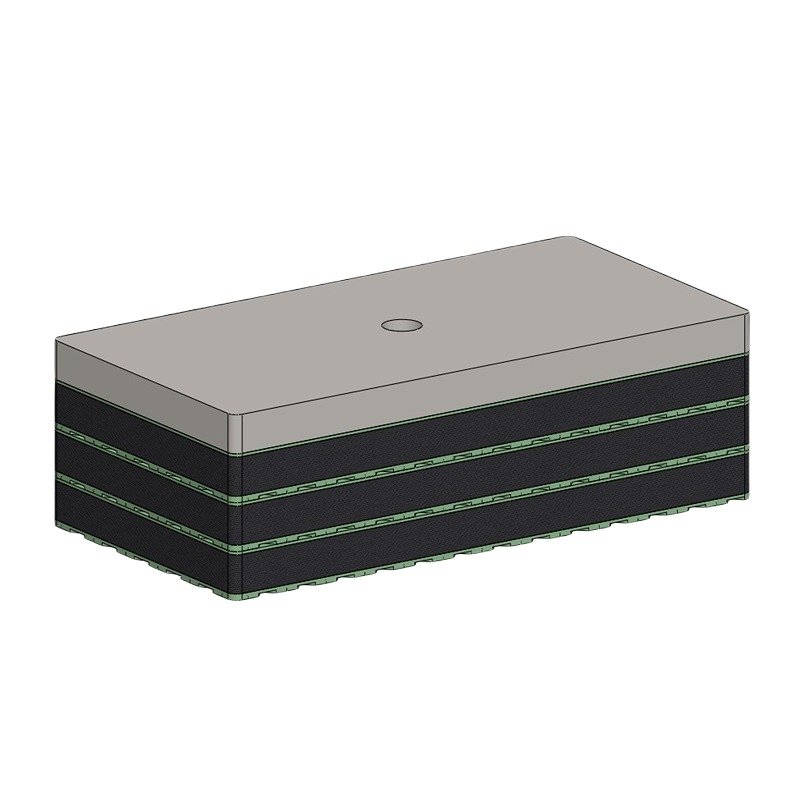

DU-3L-MS
Product
DU-3L-MS
Description
The sandwich mounts comprise one or more layers of elastomer bonded to flat steel plates. They are designed to withstand very high compressive loads. These mounts have large supporting surface area and are slim. These mounts can also be stacked to achieve lower natural frequencies.
Documents
| Model | Max Load Capacity (Kg/Pc) | H (Mm) | L (Mm) | Bolt G | W (Mm) |
|---|---|---|---|---|---|
| Du-3L-MS | 1580 | 57 | 185 | M14 | 95 |
DSM5-4040
Product
DSM5-4040
Documents
| Model | Length (Mm) | Width (Mm) | Height (Mm) | Load (Kg/Pc) | Deflection Under Load (Mm) |
|---|---|---|---|---|---|
| DSM5-4040 | 400 | 400 | 100 | 1800 | 3.5-4.0 |
DSM4-150.85
Product
DSM4-150.85
Documents
| Model | Cc (Mm) | H (Mm) | D | Load (Kg/Pc) | A (Mm) | B (Mm) |
|---|---|---|---|---|---|---|
| DSM4-150.85 | 110 | 98 | 12 | 2000 | 150 | 85 |
DSMR
Product
DSMR
Documents
| Model | Cc (Mm) | H (Mm) | L (Mm) | D | B (Mm) | Load Capacity (Kg) | G |
|---|---|---|---|---|---|---|---|
| DSMR-2 | 108 | 50 | 133 | 13 | 64 | 544 | M10x1.5 |
