High Precision Levelling & Alignment
DFL1-S1-SP1
Product

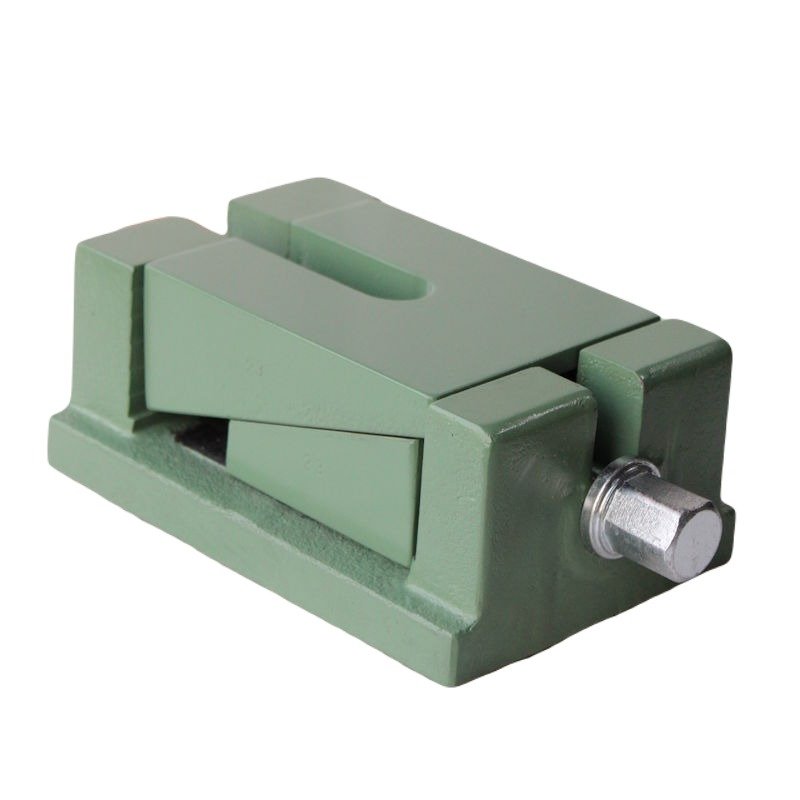

DFL1-S1-SP1
Description
The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H (Mm) | Max Torque Value Nm | Adjustment Range (Mm) |
|---|---|---|---|---|---|---|
| DFL1-S1-SP1 | 8000 | 207 | 142 | 86 | 454 | 13 |
DFL1-S1-SP1-300
Product
DFL1-S1-SP1-300
Description
The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H (Mm) | Adjustment Range (Mm) |
|---|---|---|---|---|---|
| DFL1-S1-SP1-300 | 8000 | 207 | 142 | 300 | 13 |
DFL1-S1-SP1 WITH INSULATION PLATE
Product
DFL1-S1-SP1 WITH INSULATION PLATE
Description
The DFL series mounts are made from a high grade casting body with insulation plate. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H (Mm) | Adjustment Range (Mm) |
|---|---|---|---|---|---|
| DFL1-S1-SP1-H | 12000 | 207 | 142 | 101 | 13 |
DFL2-S1
Product
DFL2-S1
Description
The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H (Mm) | Max Torque Value Nm | Adjustment Range (Mm) |
|---|---|---|---|---|---|---|
| DFL2-S1 | 4000 | 255 | 155 | 73 | 216 | 5 |
DFL1-S3
Product
DFL1-S3
Description
The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H (Mm) | Max Torque Value Nm | Adjustment Range (Mm) |
|---|---|---|---|---|---|---|
| DFL1-S3 | 12200 | 188 | 140 | 68.5 | 603 | 6 |
DFL4
Product

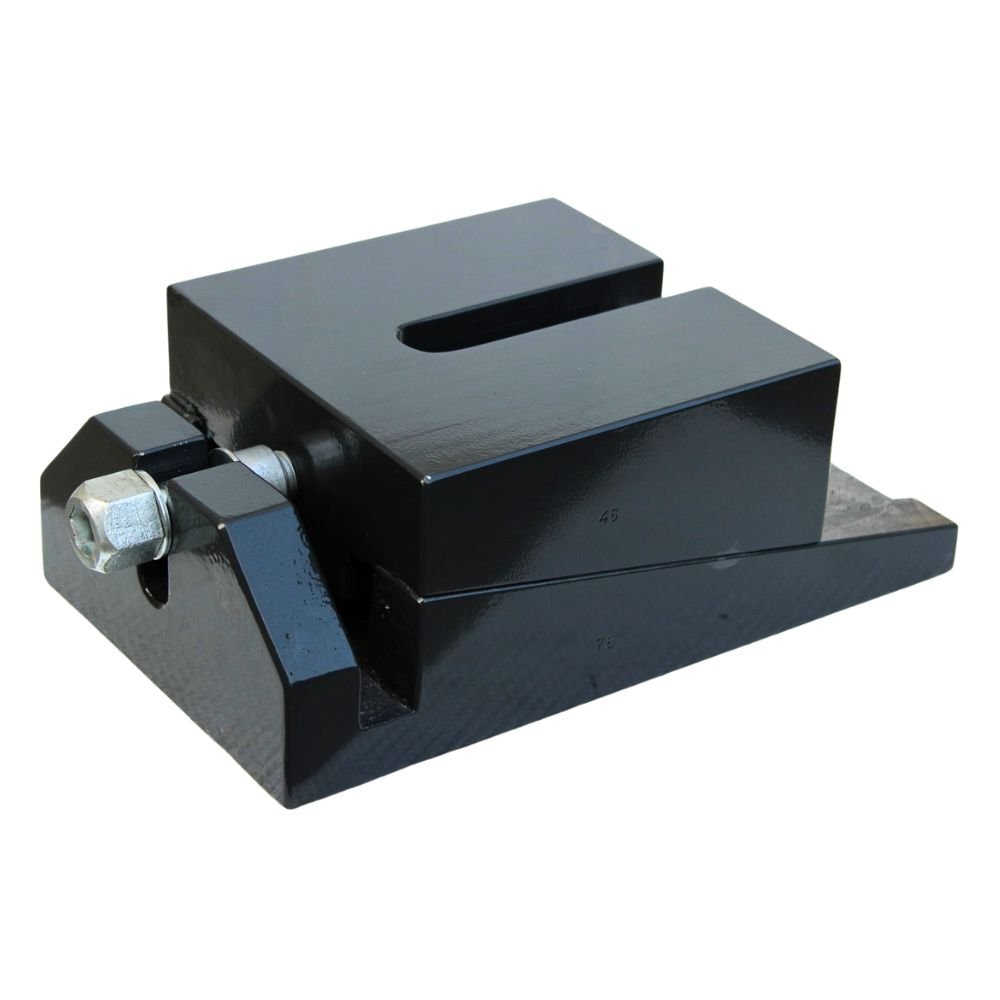

DFL4
Description
The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H (Mm) | Max Torque Value Nm | Adjustment Range (Mm) |
|---|---|---|---|---|---|---|
| DFL4 | 17000 | 340 | 200 | 113 | 1090 | 15 |
DFL3-S2
Product
DFL3-S2
Description
The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H (Mm) | Max Torque Value Nm | Adjustment Range (Mm) |
|---|---|---|---|---|---|---|
| DFL3-S2 | 20000 | 315 | 150 | 140 | 1748 | 8 |
