Vibration Mounts India

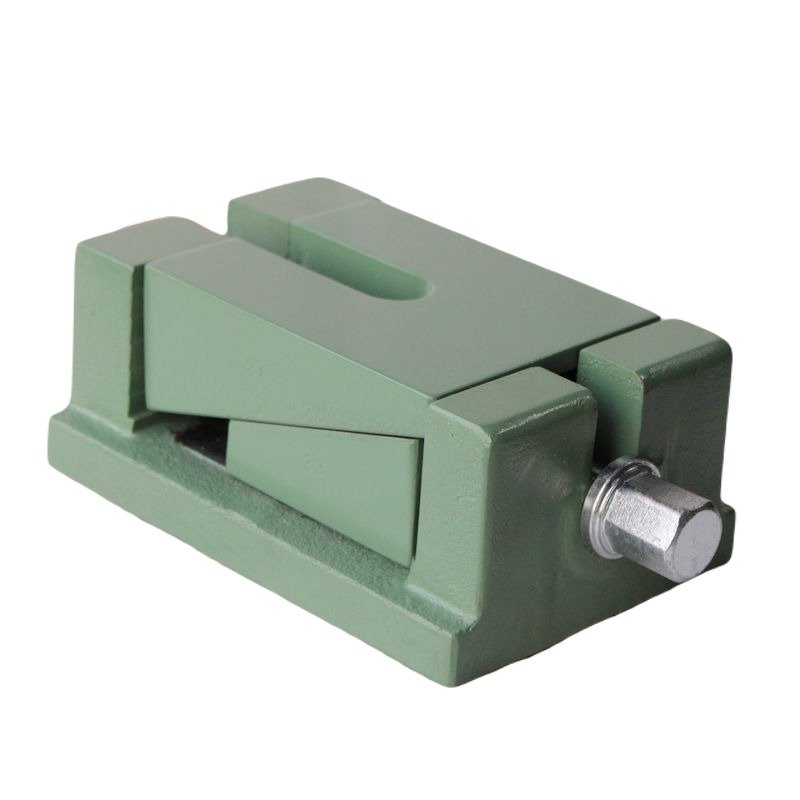

DFL1-S1-SP1

Model

Description

The DFL series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grounting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.

Technical Data

Load Capacity (Kg/pc)
8000
Length L mm
207
Width B mm
142
Height H mm
86
Max. Torque value (N.m)
454
Adjustment Range mm
13
