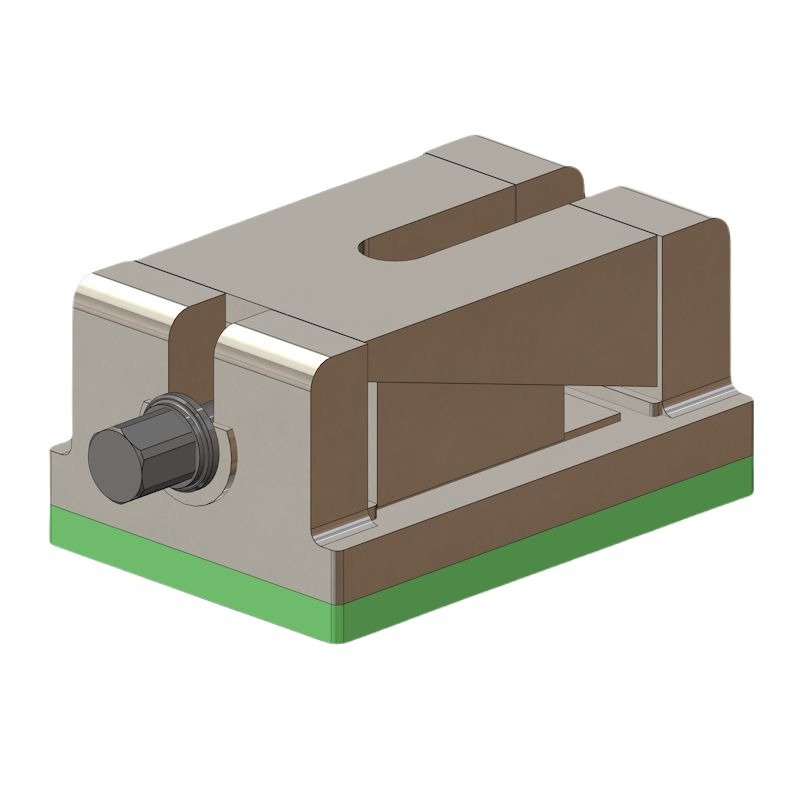

DFL1-S1-SP1-H
The DFL series mounts are made from a high grade casting body with insulation plate. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grouting bolts are fixed in the foundation. Suitable for VTL, long bedded CNC machines, large boring machines, plano miller etc.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Load Capacity (Kg/Pc) | 12000 |
| Length L (Mm) | 207 |
| Width B (Mm) | 142 |
| Height H (Mm) | 101 |
| Adjustment Range (Mm) | 13 |
