DIT-E-CDG-03
Model

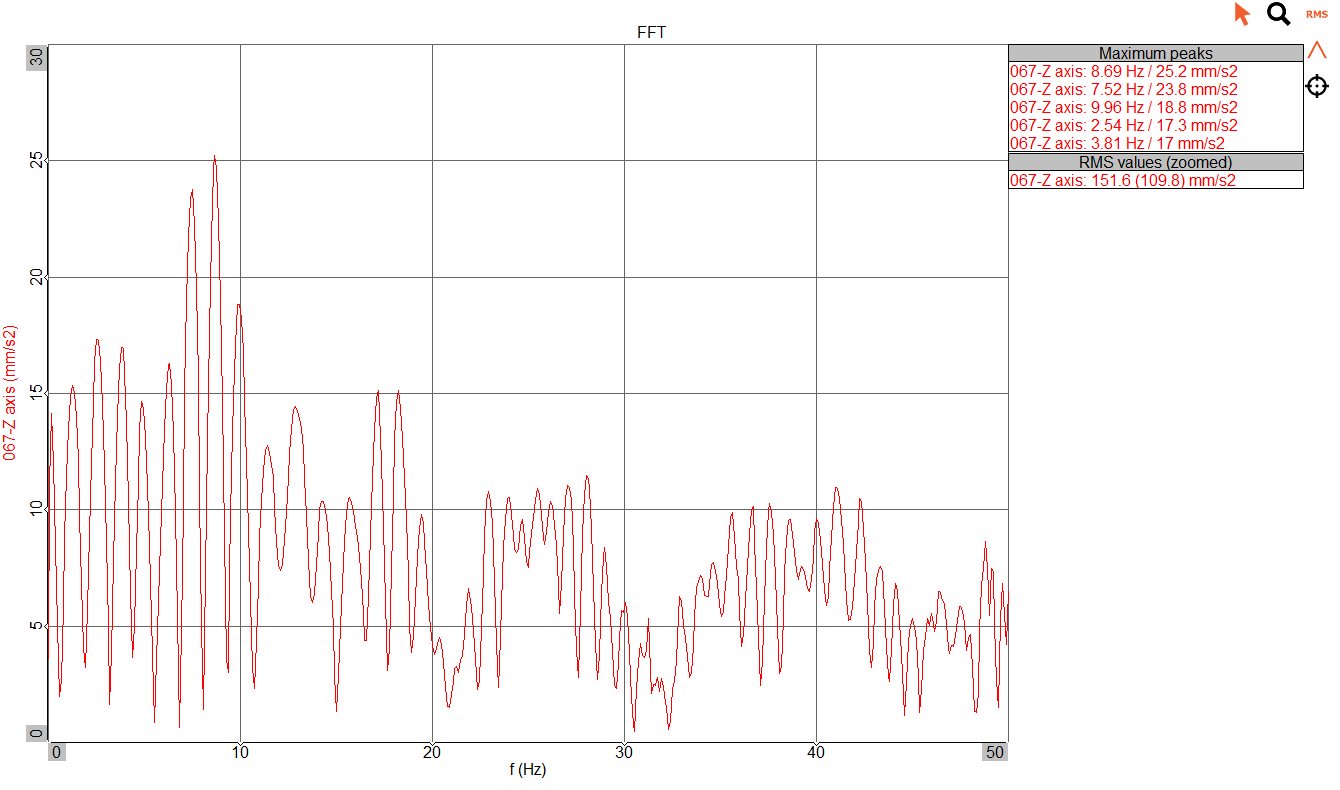

Graph

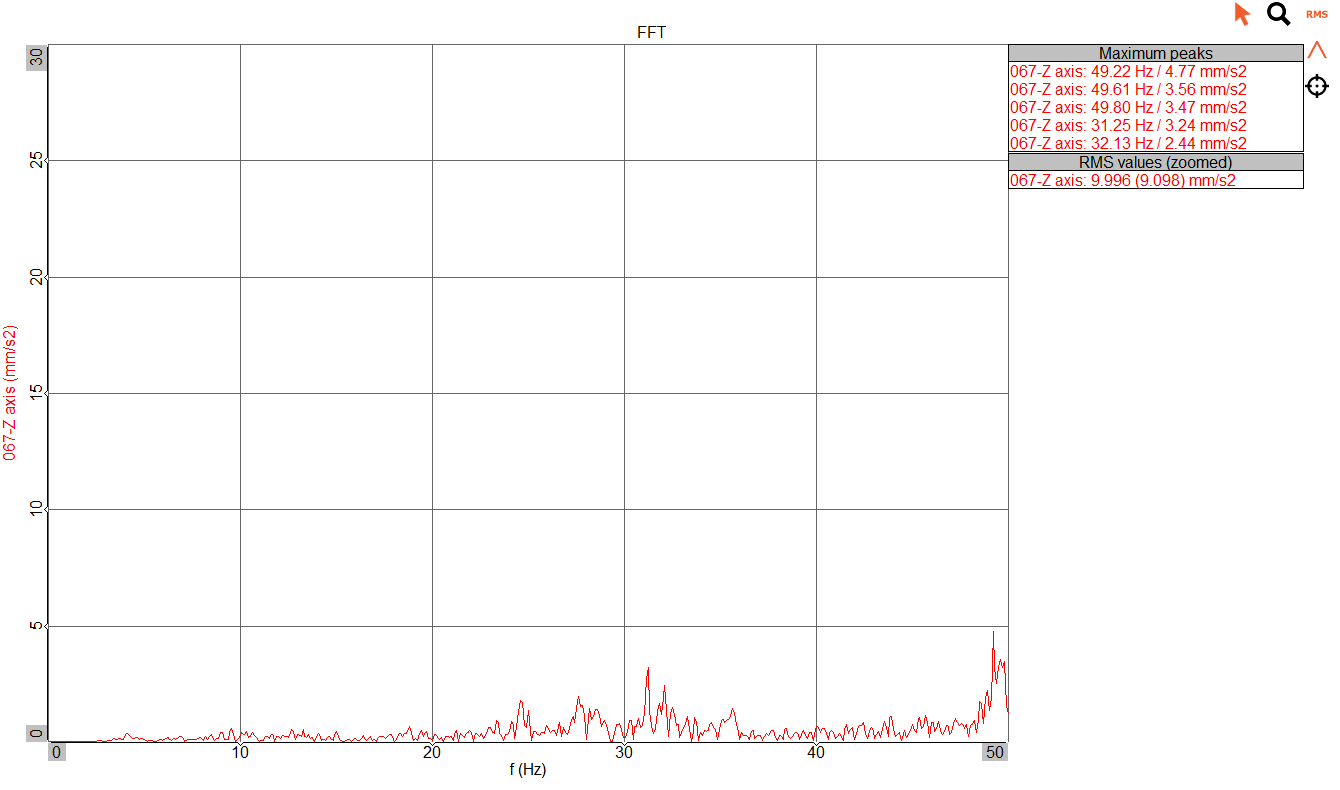

Graph
Description

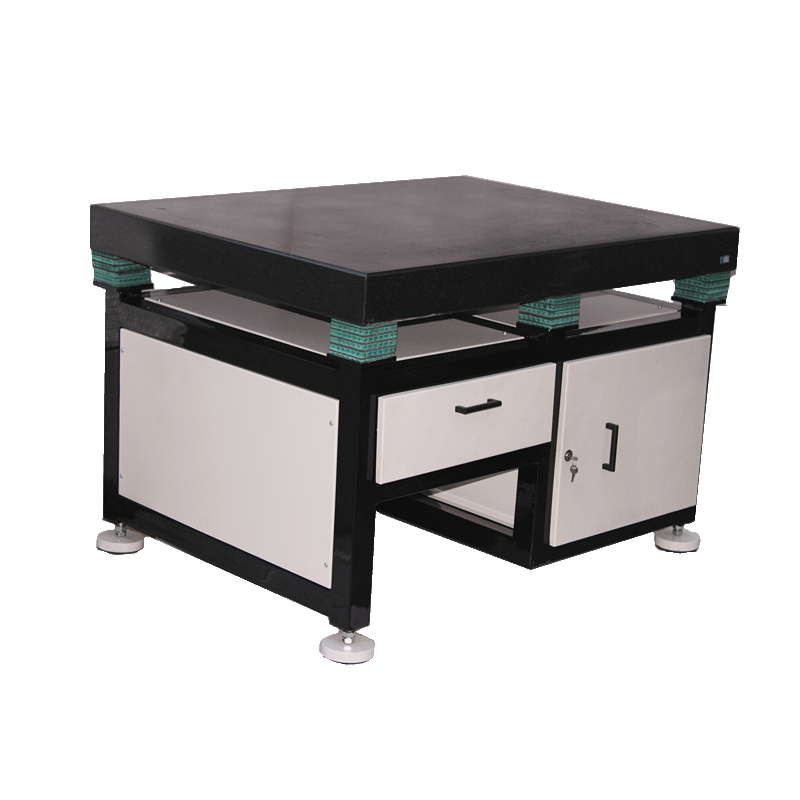

Dynemech Anti Vibration Tables - Series DIT-E-CDG has a sheet metal closed cabinet design. The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets. These Anti-Vibration Tables have Granite Surface Plate with Grade-00/Grade-1 accuracy for very precise measuring accuracies. These Vibration Tables provide the most economical solution where high frequency vibrations need to be removed.
Application:
The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by Vibrations
Technical Data
Model Catologue
Load (Kg)
upto-1250
Length (mm)
900
Width (mm)
600
Granite Table Top Thickness (Mm)
100
Other Technical Specification
Elastomeric Leg Specification
Levelling
with the help of bottom DLM mounts.
Height Adjustment
8mm
Natural frequency at Max. load
7-8 Hz
Vibration Isolation Efficiency
65-70 %
