DIT-E-SFG-03
Model

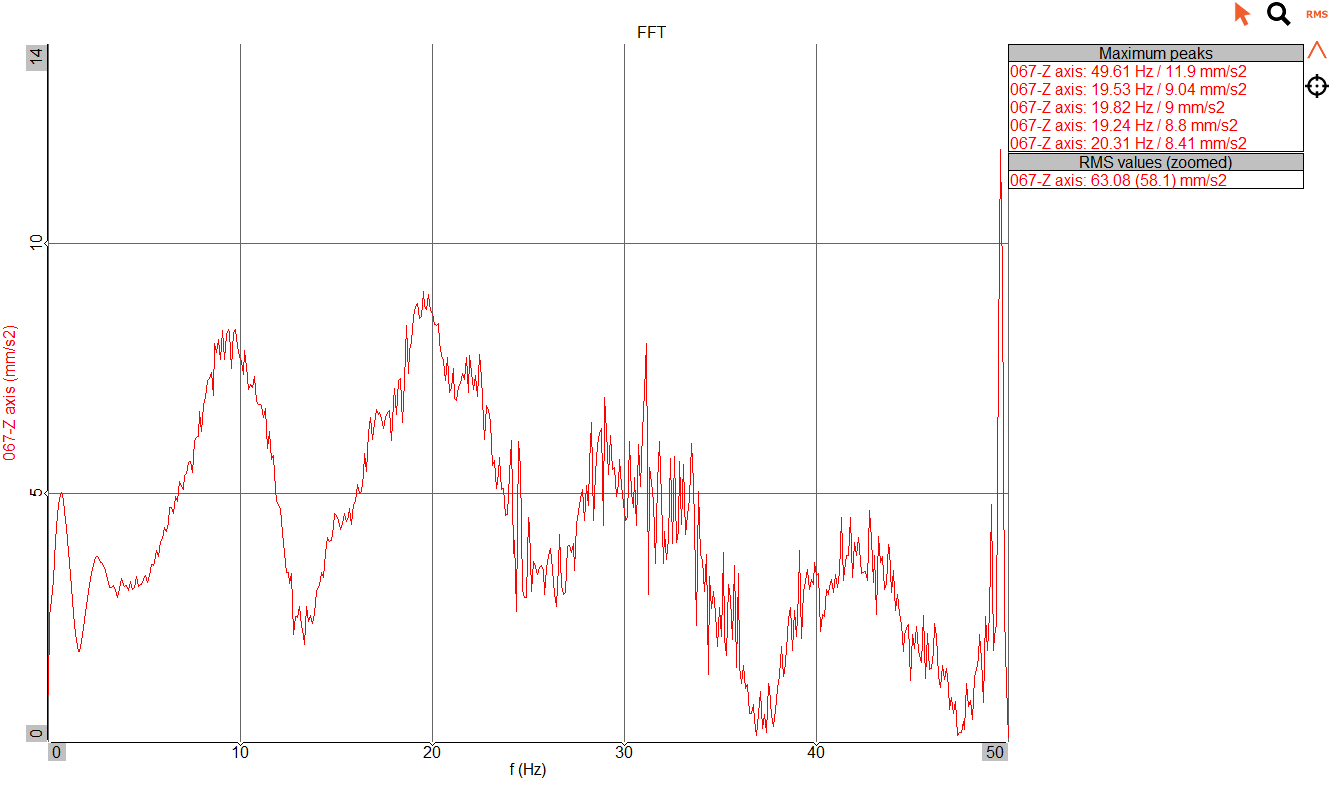

Graph

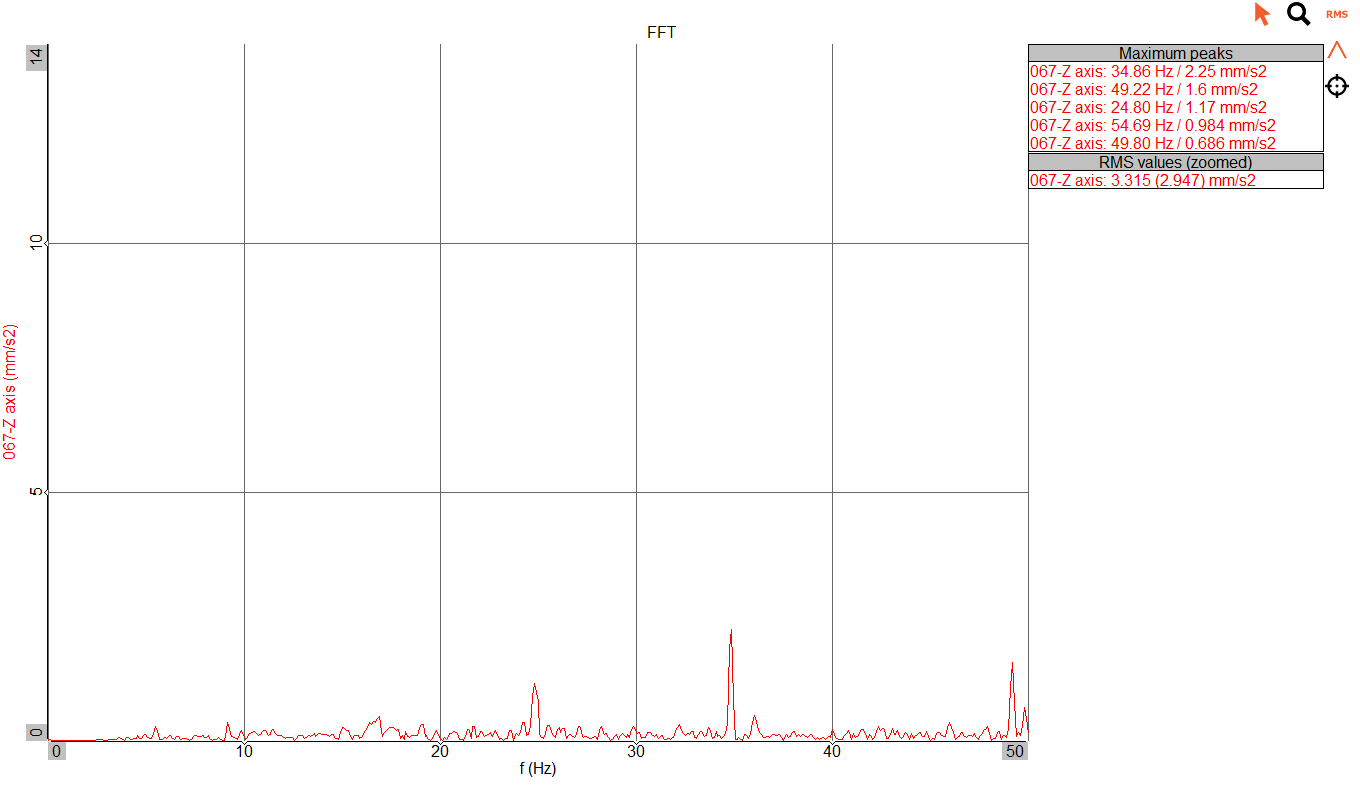

Graph
Description

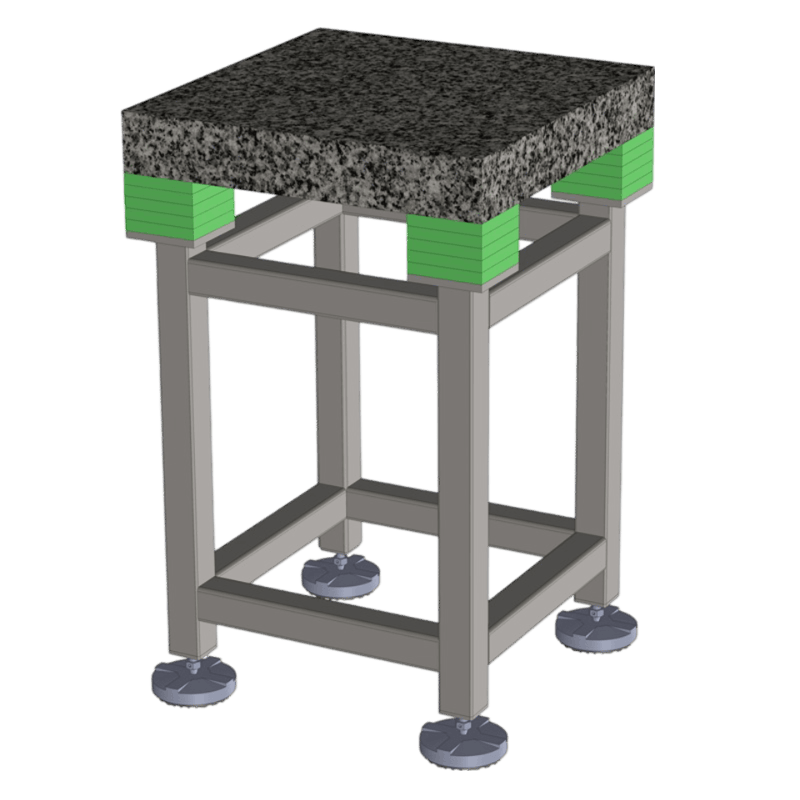

Dynemech Anti Vibration Tables - Series DIT-E-SFG are ideal for Testing / Quality Laboratories located in medical/food-grade industries as the table is having a stainless steel frame. The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets. Granite Surface Plate with Grade-00/Grade-1 accuracy for very precise measuring accuracies. We can select up-to five layers of insulation plate depending upon the vibrations present in the Testing Laboratory. These Vibration Tables provide the most economical solution where high frequency vibrations need to be removed.
Application:
The Vibration Isolated Table (VIT) finds usage in critical areas in medical and foodgrade industries where reading accuracy of instruments like Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by Vibrations
Technical Data
Model Catologue
Load (Kg)
upto-1250
Length (mm)
900
Width (mm)
600
Granite Table Top Thickness (Mm)
100
Natural Frequency At Max. Load (Hz)
7-8 Hz
Other Technical Specification
Elastomeric Leg Specification
Levelling
with the help of bottom DLM mounts.
Height Adjustment
8mm
Frame
Stainless Steel
Vibration Isolation Efficiency
65-70 %
