DIT-E-PALM-05
Model

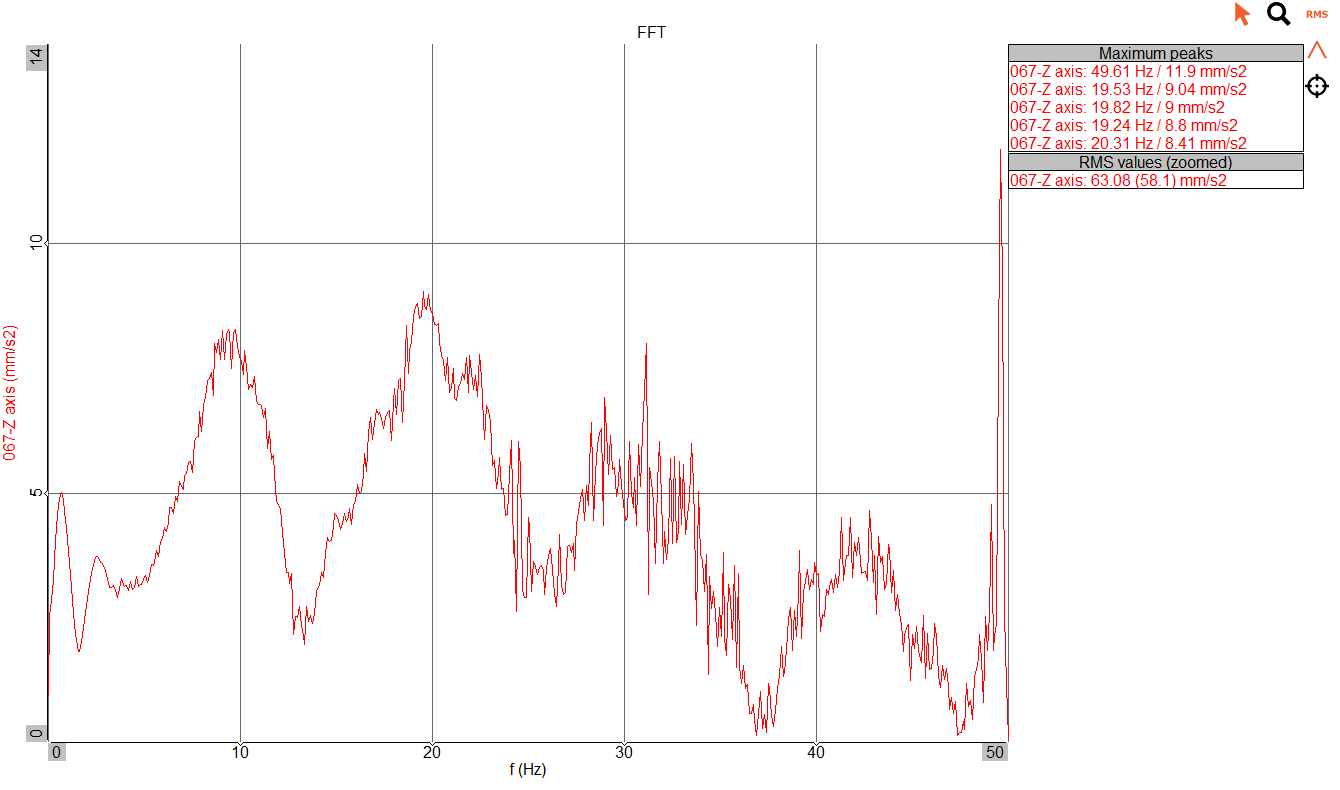

Graph

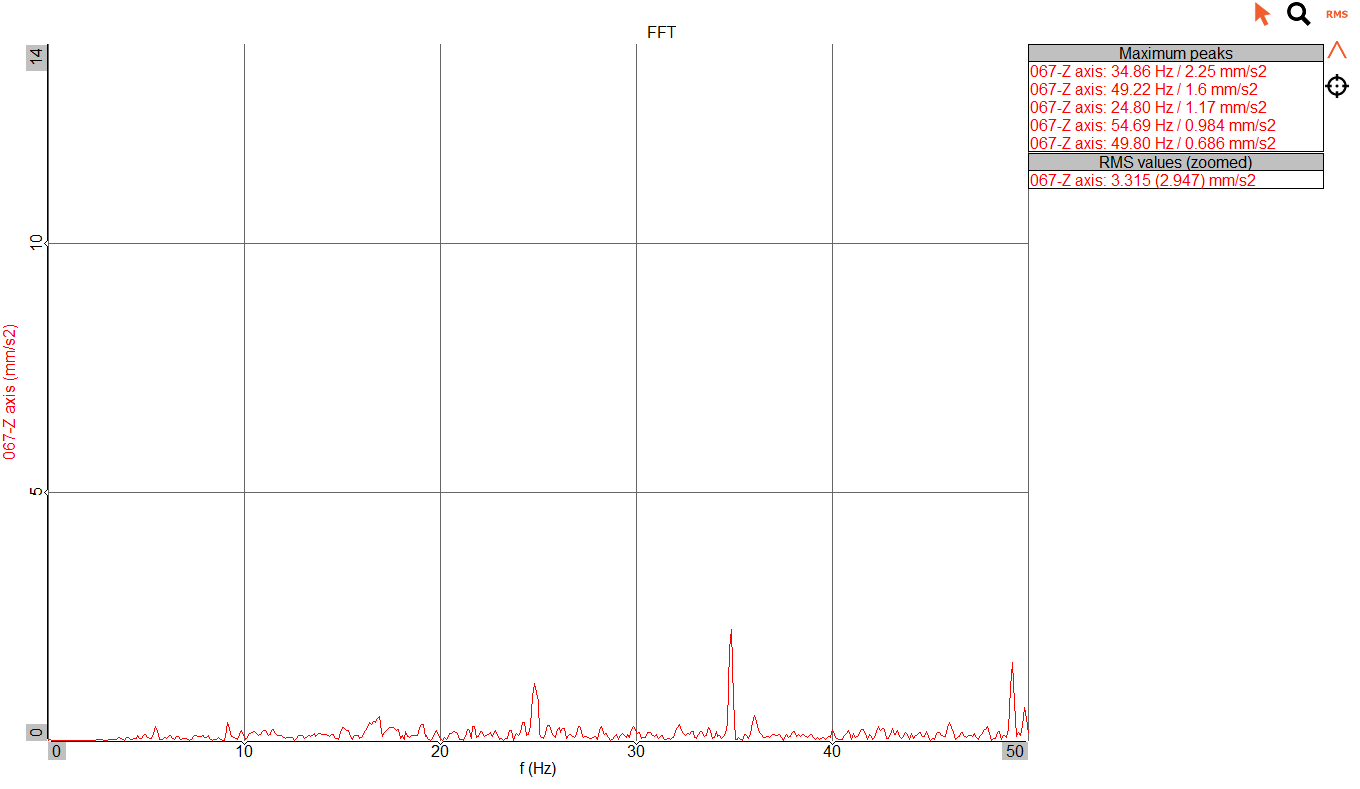

Graph
Description

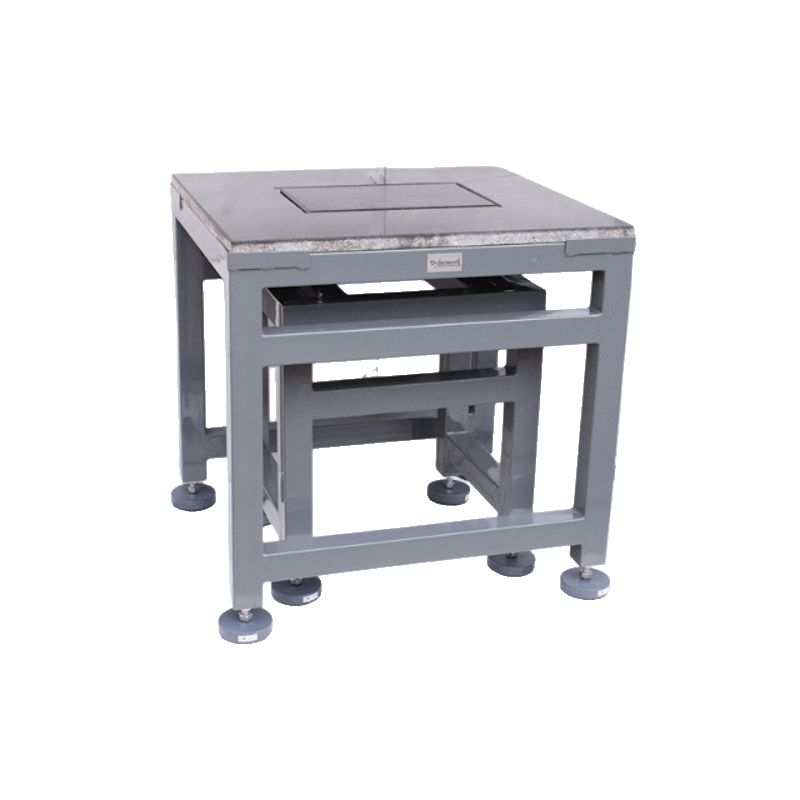

Elastomeric anti vibration table with top honeycomb. Multilayer of special profile elastomeric material is used for low frequency vibration isolation. Isolated Payload area is separated from the external table.
Application:
Weighing Balances, Height Gauges, Dial Gauges Etc.
Technical Data
Load (Kg)
upto-1250
Length (mm)
1200
Width (mm)
1000
Granite Table Top Thickness (Mm)
150
Other Technical Specification
Elastomeric Leg Specification
Levelling
with the help of bottom DLM mounts
Height Adjustment
8mm
Natural frequency at Max. load
7-8 Hz
Vibration Isolation Efficiency
65-70 %
