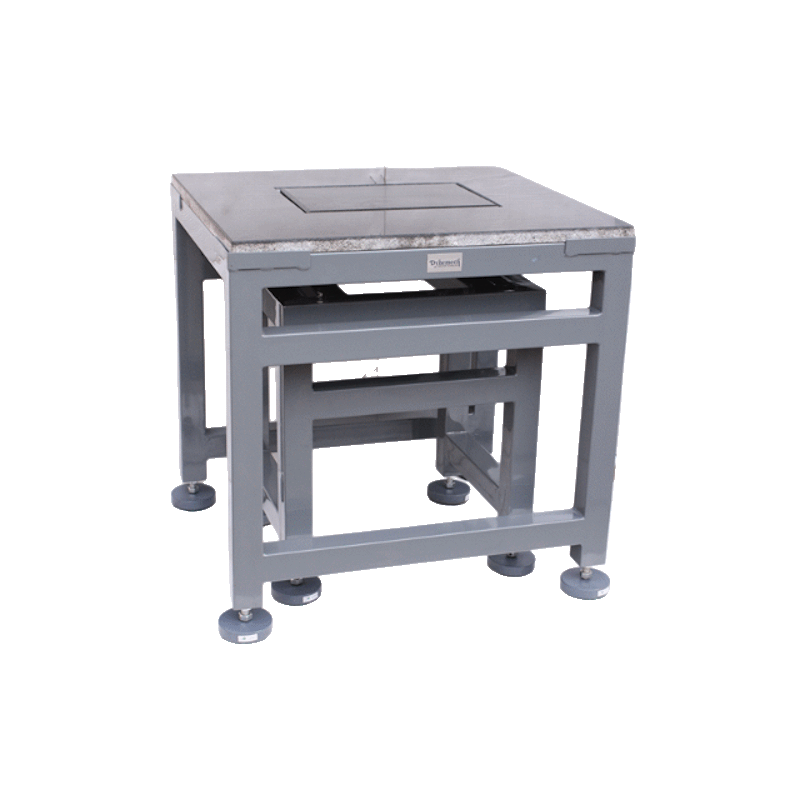

Anti Vibration Table, Elastomeric Vibration Isolation With 2 Stage Payload Area Isolated Table, Series DIT-E-PALM
Elastomeric anti vibration table with top honeycomb. Multilayer of special profile elastomeric material is used for low frequency vibration isolation. Isolated Payload area is separated from the external table.
Application
Weighing Balances, Height Gauges, Dial Gauges Etc.
7 Models
| Model | Load (Kg) | Length (Mm) | Width (Mm) | Granite Table Top Thickness (Mm) |
|---|---|---|---|---|
| DIT-E-PALM-01 | upto 250 | 500 | 500 | 80 |
| DIT-E-PALM-01-s1 | upto 250 | 630 | 630 | 80 |
| DIT-E-PALM-02 | upto-450 | 750 | 500 | 80 |
| DIT-E-PALM-03 | upto-1250 | 900 | 600 | 100 |
| DIT-E-PALM-04 | upto-1250 | 1000 | 800 | 150 |
| DIT-E-PALM-05 | upto-1250 | 1200 | 1000 | 150 |
| DIT-E-PALM-06 | upto-1500 | 1800 | 1500 | 150 |
