DIT-E-CM-01
Model

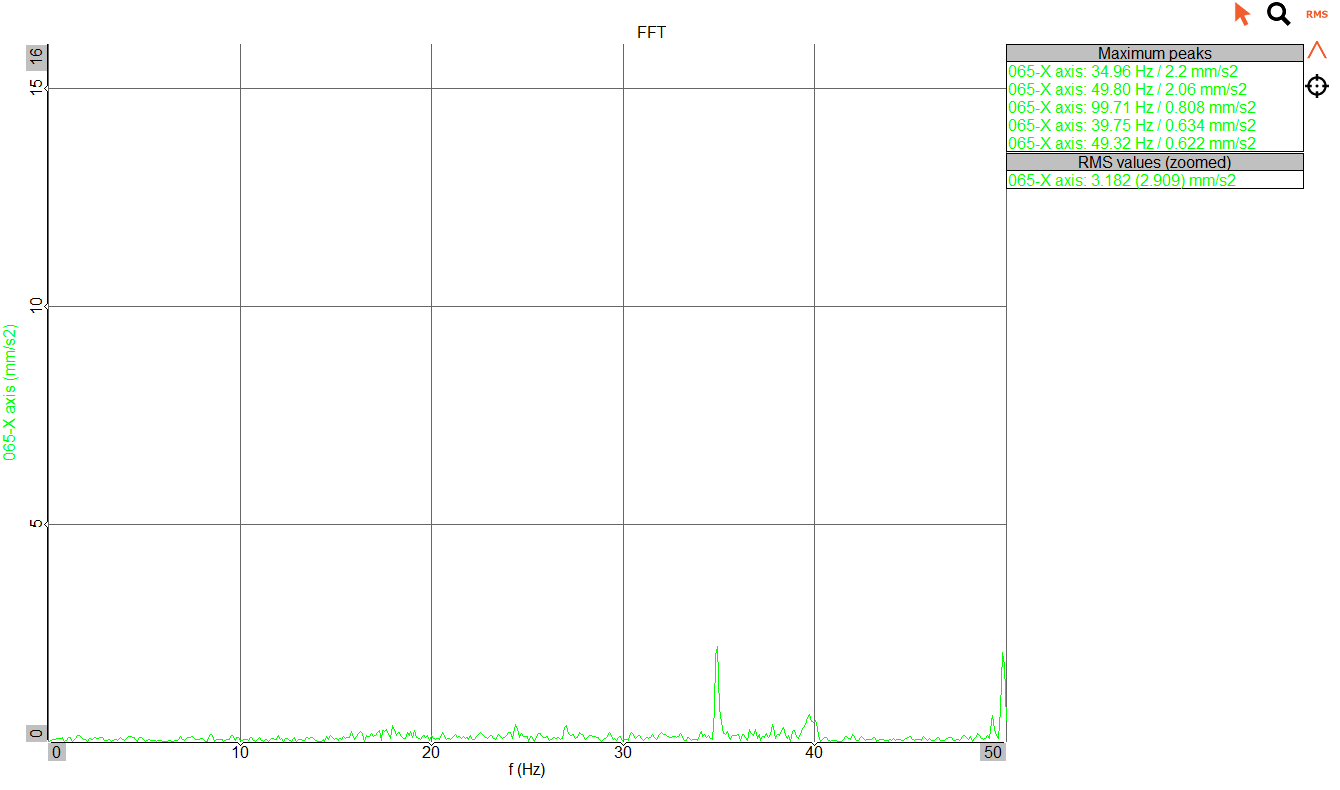

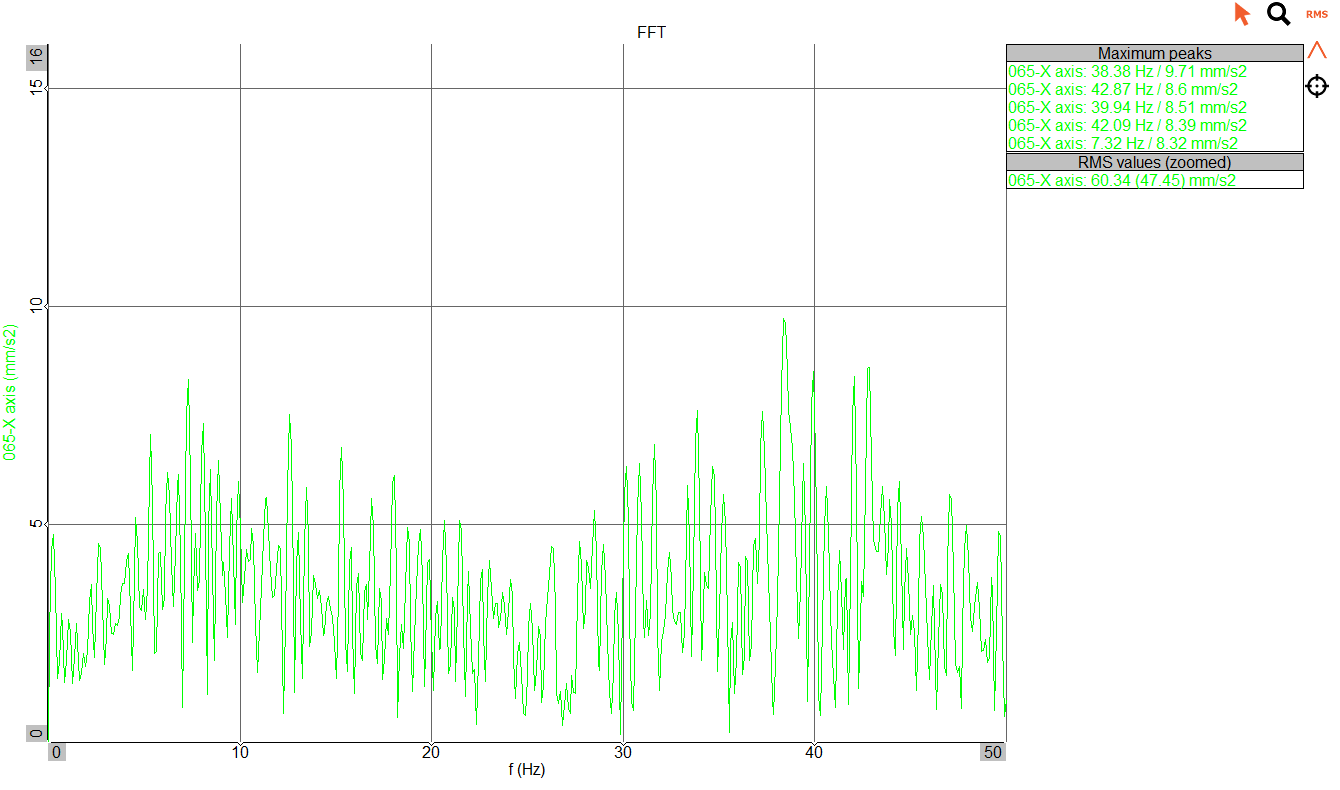

Graph
Graph
Description

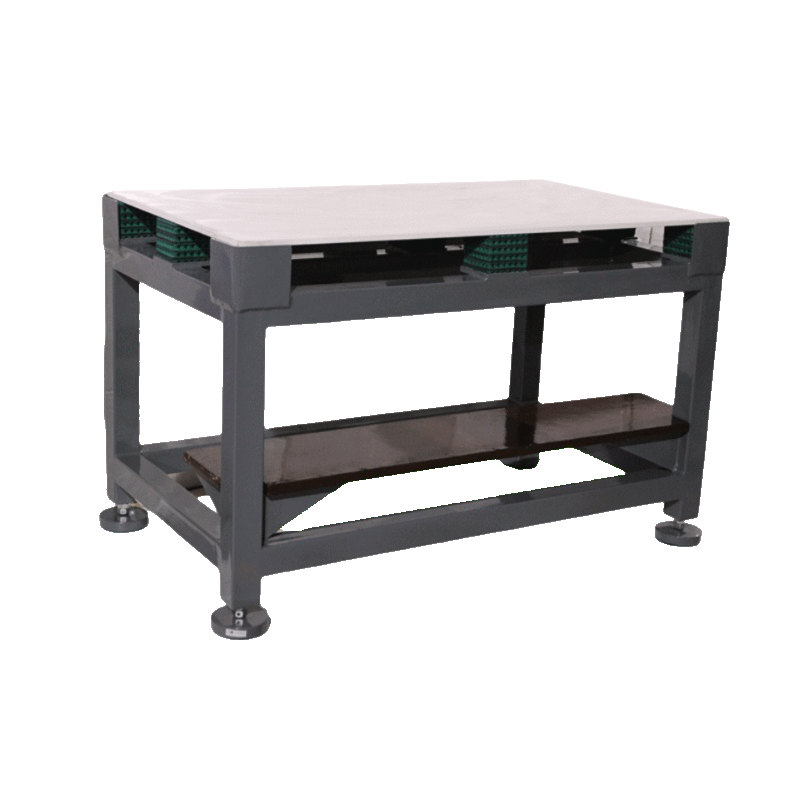

Dynemech Anti Vibration Tables - Series DIT-E-CM has a corian marble table top. High degree of vibration can be damped with the help of Dp Elastomeric sheets. We can select up-to five layers of insulation plate depending upon the vibrations present in the Testing Laboratory.
Application:
The Vibration Isolated Table (VIT) finds usage in critical areas where reading accuracy of instruments like Balances, Galvanometers, Electronic Microscopes and Atomic Absorption Spectrophotometers, is affected by Vibrations
Technical Data
Model Catologue
Load (Kg)
upto 250
Length (mm)
500
Width (mm)
500
Natural Frequency At Max. Load (Hz)
7-8
Corian Marble Table Top Thickness(Mm)
12
Other Technical Specification
Elastomeric Leg Specification
Levelling
with the help of bottom DLM mounts.
Height Adjustment
8mm
Vibration Isolation Efficiency
65-70 %
