DFH
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
DFH-u
Product
DFH-u
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
Tool room machines, plastic injection moulding machines, pressure die casting machines, shaper, printing and textile machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-u-a2-FG-DG | 2250 | 200 | 125 | 96 | +8/-8 | Du | 15 | Da2 | 8 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFH2-u-a2-FG-DG | 2700 | 200 | 150 | 128 | +10/-10 | Du | 15 | Da2 | 8 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFH3-u-a2-FG-DG | 4284 | 280 | 170 | 158 | +12.5/-12.5 | Du | 15 | Da2 | 8 | 39 | 22 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |

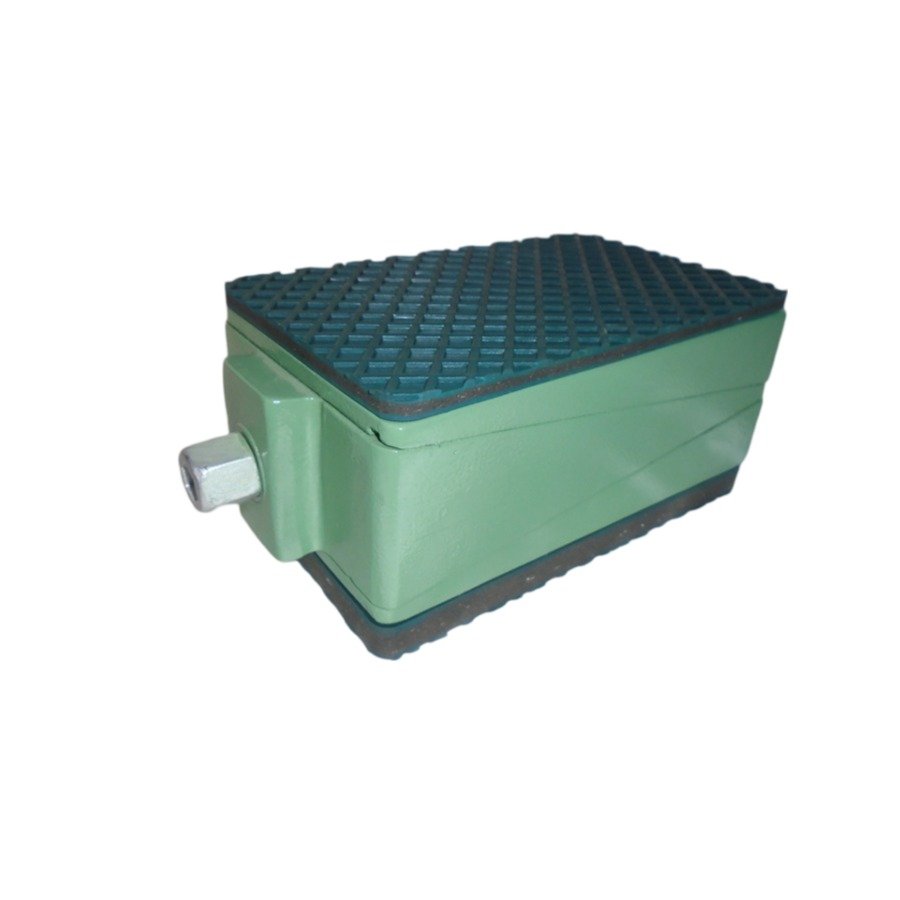

DFH-u-10
Product
DFH-u-10
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
Tool room machines, plastic injection moulding machines, pressure die casting machines, shaper, printing and textile machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-u-10-a2-FG-DG | 2250 | 200 | 125 | 91 | +8/-8 | Du-10 | 10 | Da2 | 8 | 22 | 12 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
| DFH2-u-10-a2-FG-DG | 2700 | 200 | 150 | 123 | +10/-10 | Du-10 | 10 | Da2 | 8 | 22 | 12 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
| DFH3-u-10-a2-FG-DG | 4284 | 280 | 170 | 153 | +12.5/-12.5 | Du-10 | 10 | Da2 | 8 | 39 | 22 | 0.9 | 24 | From -16 to 90 | Dark Grey/Green |
DFH-u-12
Product
DFH-u-12
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
Tool room machines, plastic injection moulding machines, pressure die casting machines, shaper, printing and textile machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-u-12-a2-FG-DG | 2250 | 200 | 125 | 93 | +8/-8 | Du-12 | 12 | Da2 | 8 | 22 | 12 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |
| DFH2-u-12-a2-FG-DG | 2700 | 200 | 150 | 125 | +10/-10 | Du-12 | 12 | Da2 | 8 | 22 | 12 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |
| DFH3-u-12-a2-FG-DG | 4284 | 280 | 170 | 155 | +12.5/-12.5 | Du-12 | 12 | Da2 | 8 | 39 | 22 | 0.9 | 22 | From -16 to 90 | Dark Grey/Green |

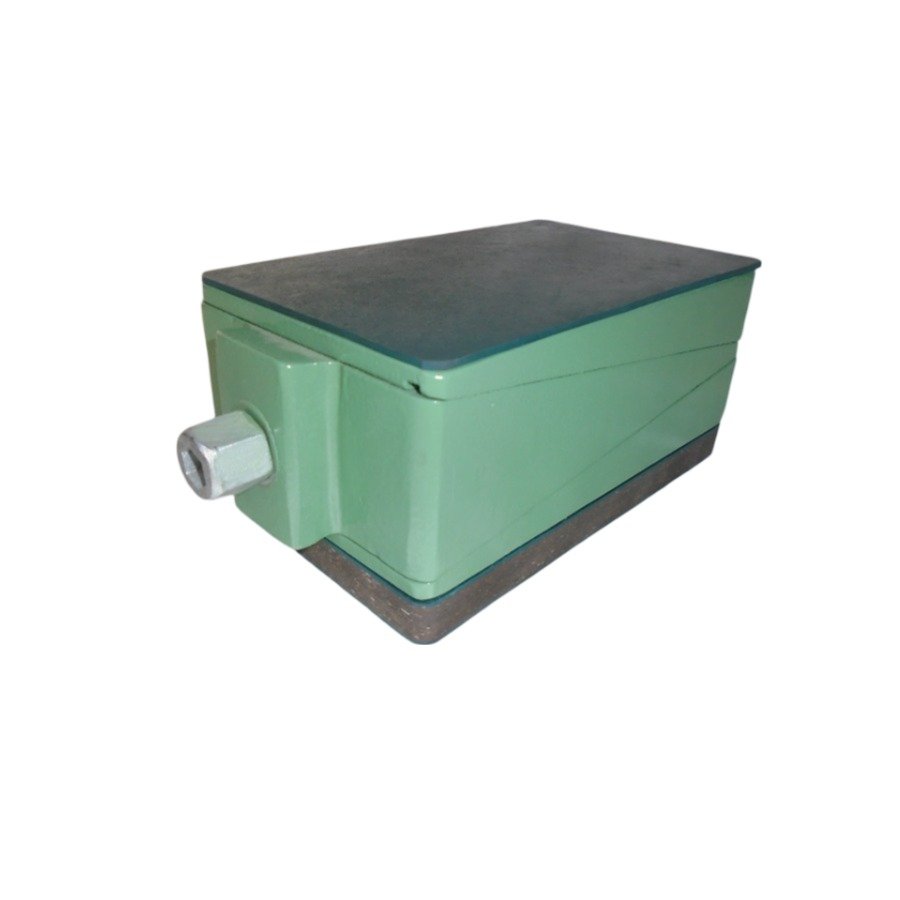

DFH-m
Product
DFH-m
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
Lathe machines, Machining centres, Miling machines, precision grinding machines, drilling machines, turning centres, transfer lines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-m-a1-FG-DG | 2500 | 200 | 125 | 90 | +8/-8 | Dm | 15 | Da1 | 2 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFH2-m-a1-FG-DG | 3000 | 200 | 150 | 122 | +10/-10 | Dm | 15 | Da1 | 2 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFH3-m-a1-FG-DG | 4760 | 280 | 170 | 152 | +12.5/-12.5 | Dm | 15 | Da1 | 2 | 39 | 22 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |

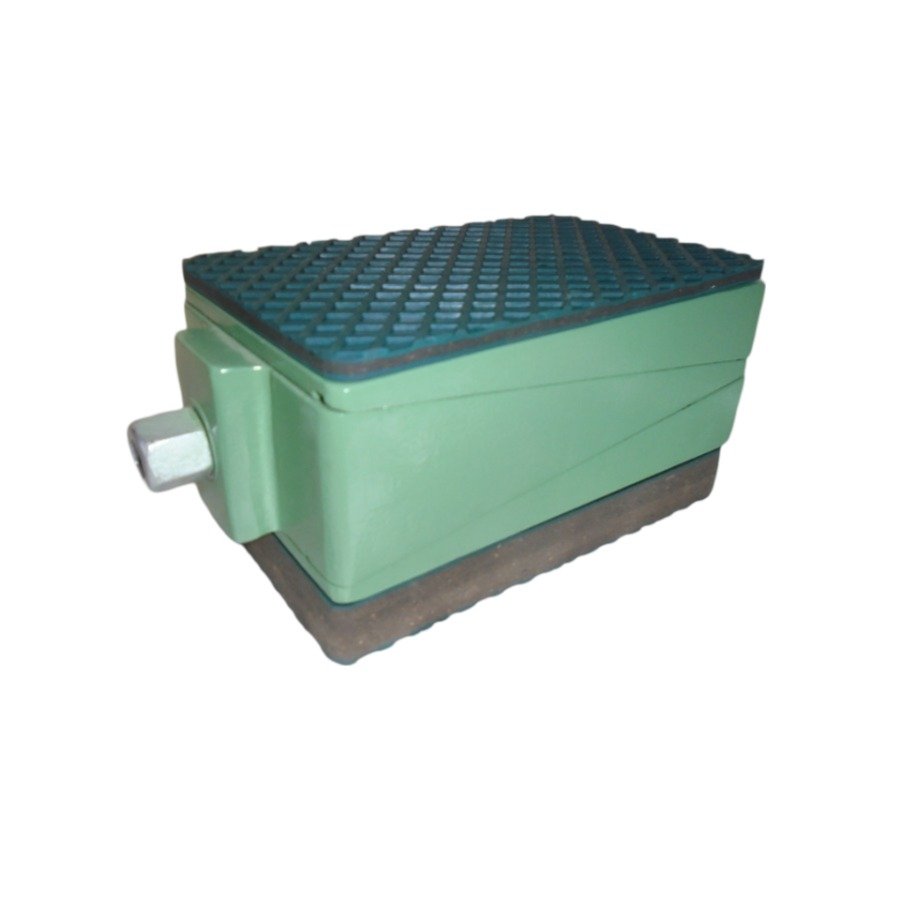

DFH-i
Product
DFH-i
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
Power Presses, Stamping Machines,Shearing Machines, Punching Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-i-a2-FG-DG | 3500 | 200 | 125 | 106 | +8/-8 | Di | 25 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFH2-i-a2-FG-DG | 4200 | 200 | 150 | 138 | +10/-10 | Di | 25 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFH3-i-a2-FG-DG | 6664 | 280 | 170 | 168 | +12.5/-12.5 | Di | 25 | Da2 | 8 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |

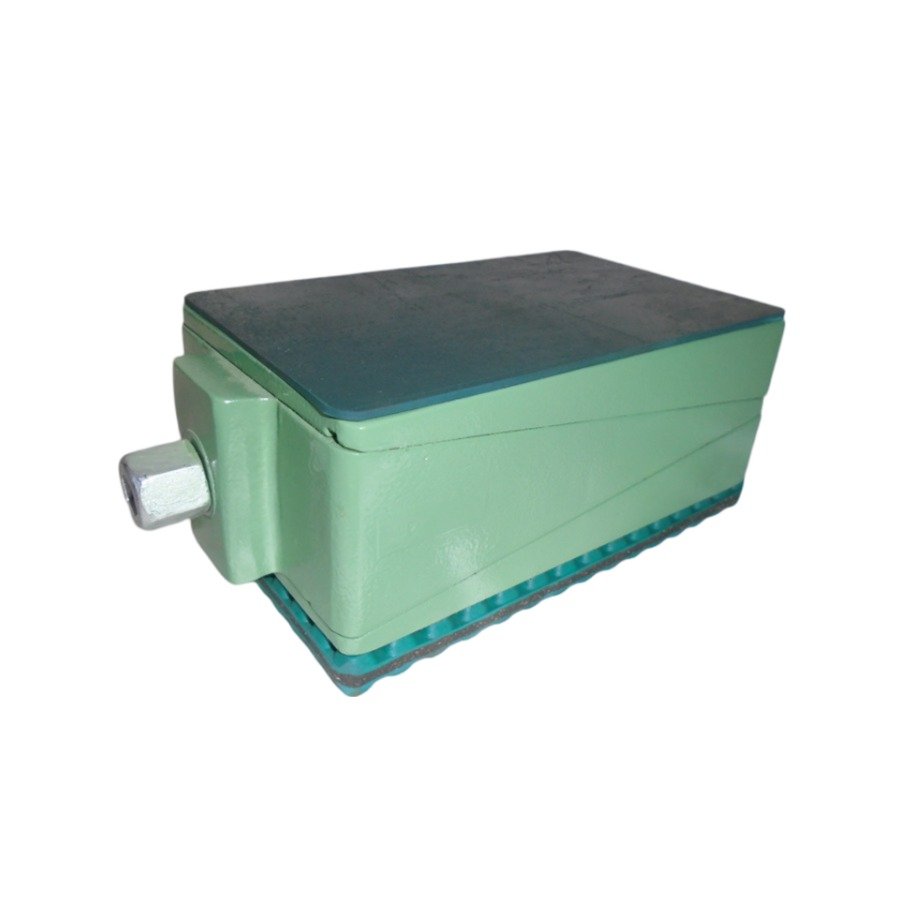

DFH-p1
Product
DFH-p1
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
Passive vibration control of measuring & Testing Machines, Grinders etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-p1-a1-FG-DG | 1000 | 200 | 125 | 90 | +8/-8 | Dp1 | 15 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFH2-p1-a1-FG-DG | 1200 | 200 | 150 | 122 | +10/-10 | Dp1 | 15 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFH3-p1-a1-FG-DG | 1900 | 280 | 170 | 152 | +12.5/-12.5 | Dp1 | 15 | Da1 | 2 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |

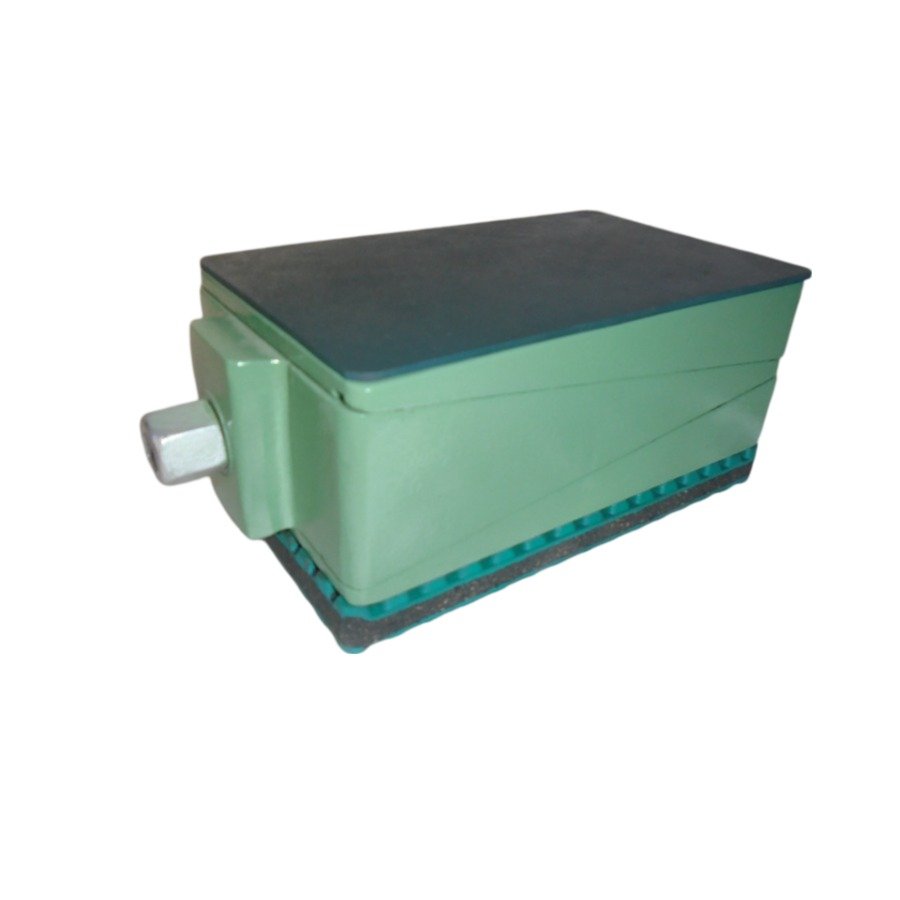

DFH-p2
Product
DFH-p2
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
Measuring & Testing Machines, SurfacePlates, Hardness Testers, Microscopes,EDM Machines, Profile Projectors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-p2-a1-FG-DG | 1250 | 200 | 125 | 95 | +8/-8 | Dp2 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFH2-p2-a1-FG-DG | 1500 | 200 | 150 | 127 | +10/-10 | Dp2 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFH3-p2-a1-FG-DG | 2380 | 280 | 170 | 157 | +12.5/-12.5 | Dp2 | 20 | Da1 | 2 | 39 | 22 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |

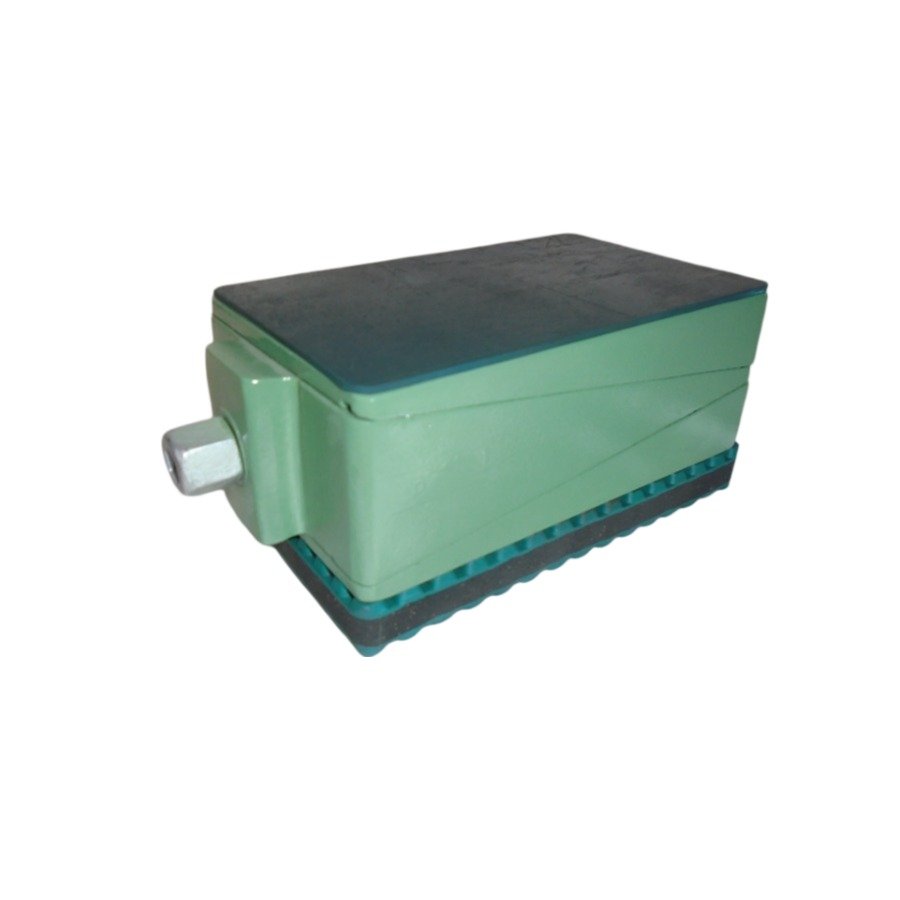

DFH-p3
Product
DFH-p3
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
Tuned to low natural frequency, suitable for both active & passive vibration isolation of metrology and production machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-p3-a1-FG-DG | 1500 | 200 | 125 | 99 | +8/-8 | Dp3 | 24 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFH2-p3-a1-FG-DG | 1800 | 200 | 150 | 131 | +10/-10 | Dp3 | 24 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFH3-p3-a1-FG-DG | 2860 | 280 | 170 | 161 | +12.5/-12.5 | Dp3 | 24 | Da1 | 2 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |

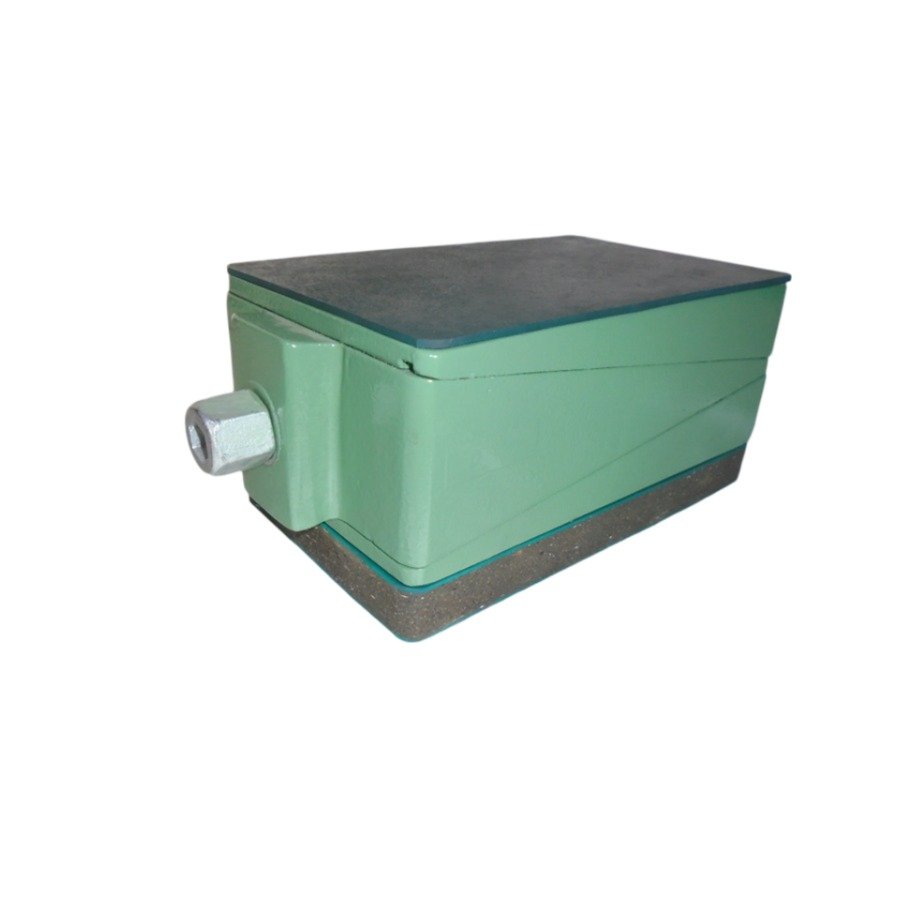

DFH-s1
Product
DFH-s1
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
Light Weight Presses, Tool Room Machines, Compressors etc. on ground floor as well as upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-s1-a1-FG-DG | 1250 | 200 | 125 | 95 | +8/-8 | Ds1 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFH2-s1-a1-FG-DG | 1500 | 200 | 150 | 127 | +10/-10 | Ds1 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFH3-s1-a1-FG-DG | 2380 | 280 | 170 | 157 | +12.5/-12.5 | Ds1 | 20 | Da1 | 2 | 39 | 22 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |

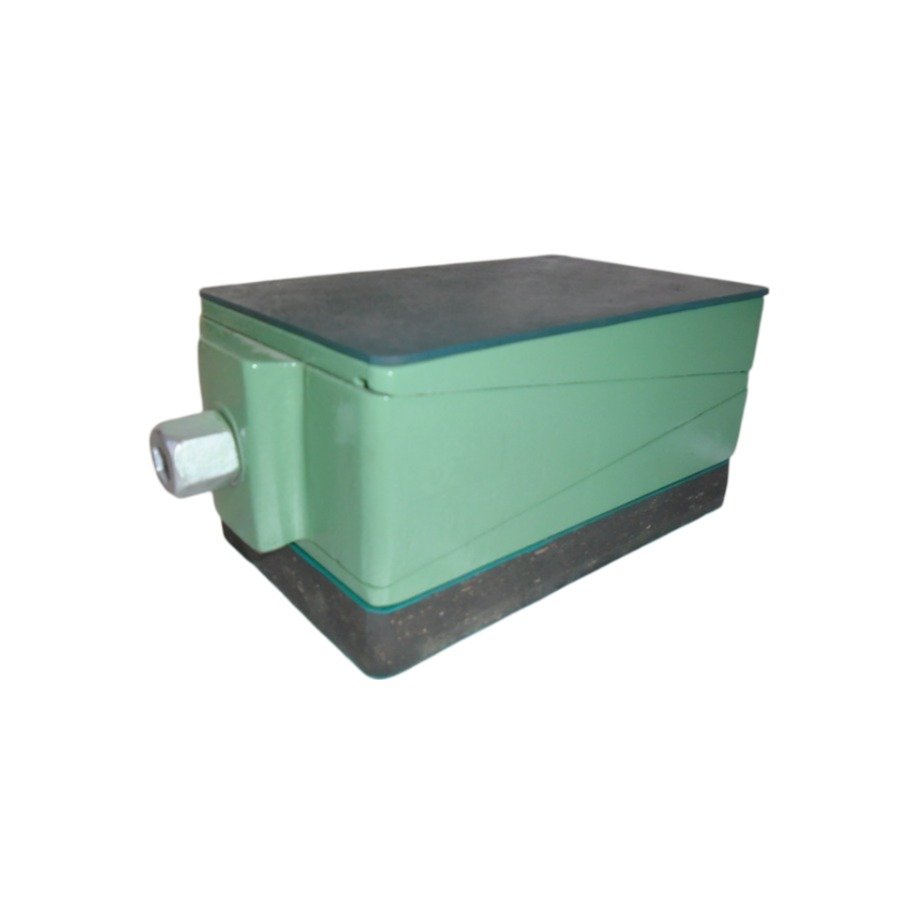

DFH-s2
Product
DFH-s2
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-s2-a1-FG-DG | 2000 | 200 | 125 | 100 | +8/-8 | Ds2 | 25 | Da1 | 2 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFH2-s2-a1-FG-DG | 2400 | 200 | 150 | 132 | +10/-10 | Ds2 | 25 | Da1 | 2 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFH3-s2-a1-FG-DG | 3800 | 280 | 170 | 162 | +12.5/-12.5 | Ds2 | 25 | Da1 | 2 | 39 | 22 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
DFH-hs1
Product
DFH-hs1
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-hs1-a2-FG-DG | 5000 | 200 | 125 | 146 | +8/-8 | Dhs1 | 65 | Da2 | 8 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFH2-hs1-a2-FG-DG | 6000 | 200 | 150 | 178 | +10/-10 | Dhs1 | 65 | Da2 | 8 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFH3-hs1-a2-FG-DG | 9520 | 280 | 170 | 208 | +12.5/-12.5 | Dhs1 | 65 | Da2 | 8 | 39 | 22 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |

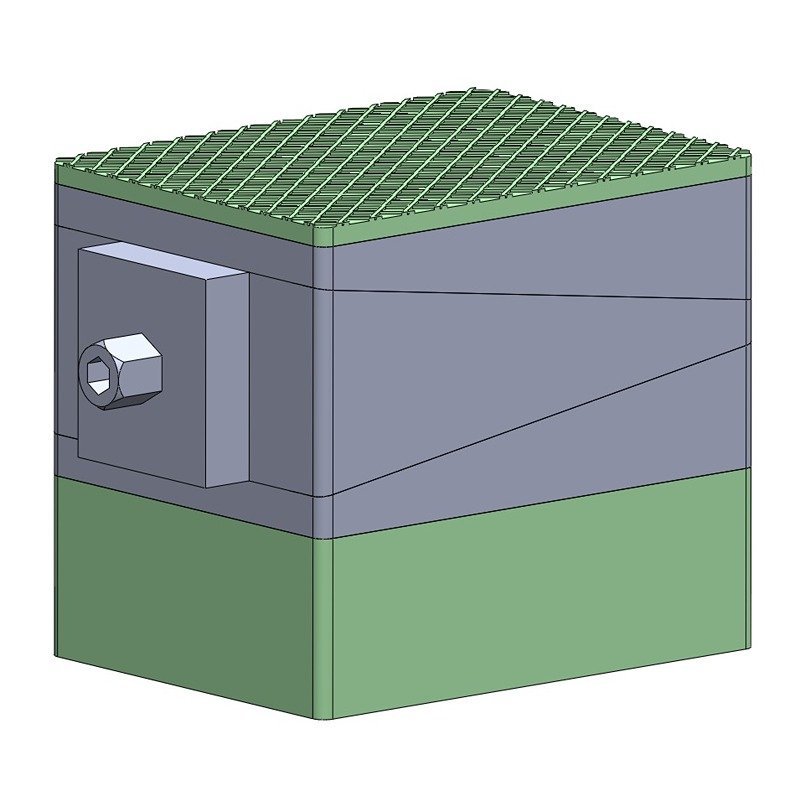

DFH-hs2
Product
DFH-hs2
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-hs2-a1-FG-DG | 2000 | 200 | 125 | 140 | +8/-8 | Dhs2 | 65 | Da1 | 2 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFH2-hs2-a1-FG-DG | 2400 | 200 | 150 | 172 | +10/-10 | Dhs2 | 65 | Da1 | 2 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFH3-hs2-a1-FG-DG | 3800 | 280 | 170 | 202 | +12.5/-12.5 | Dhs2 | 65 | Da1 | 2 | 39 | 22 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |

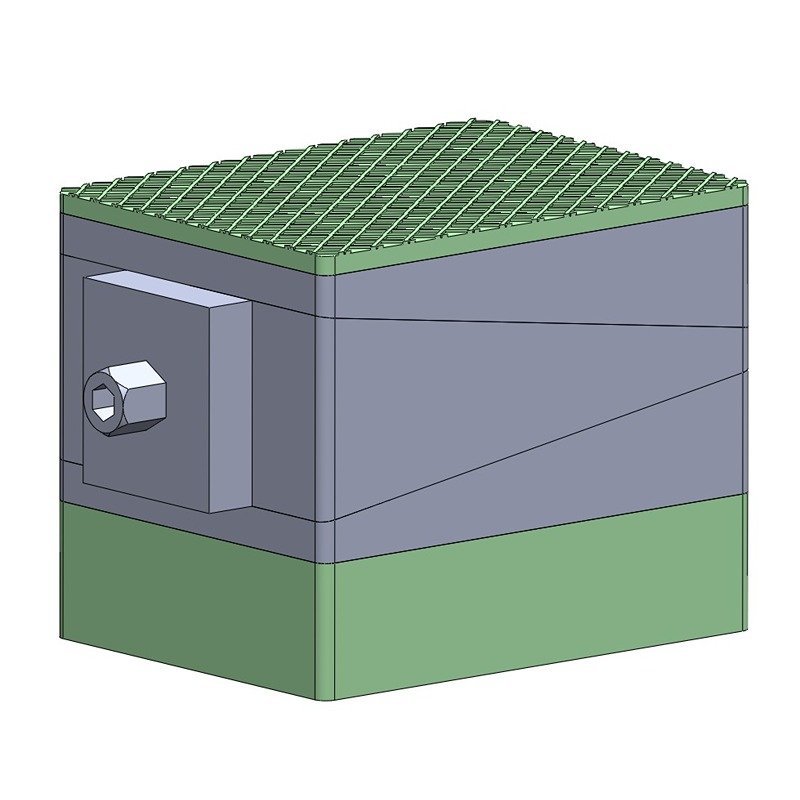

DFH-hs3
Product
DFH-hs3
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-hs3-a2-FG-DG | 7000 | 200 | 125 | 131 | +8/-8 | Dhs3 | 50 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFH2-hs3-a2-FG-DG | 8400 | 200 | 150 | 163 | +10/-10 | Dhs3 | 50 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFH3-hs3-a2-FG-DG | 13330 | 280 | 170 | 193 | +12.5/-12.5 | Dhs3 | 50 | Da2 | 8 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
DFH-hs4
Product
DFH-hs4
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses, etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-hs4-a1-FG-DG | 3000 | 200 | 125 | 125 | +8/-8 | Dhs4 | 50 | Da1 | 2 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFH2-hs4-a1-FG-DG | 3600 | 200 | 150 | 157 | +10/-10 | Dhs4 | 50 | Da1 | 2 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFH3-hs4-a1-FG-DG | 5700 | 280 | 170 | 187 | +12.5/-12.5 | Dhs4 | 50 | Da1 | 2 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |

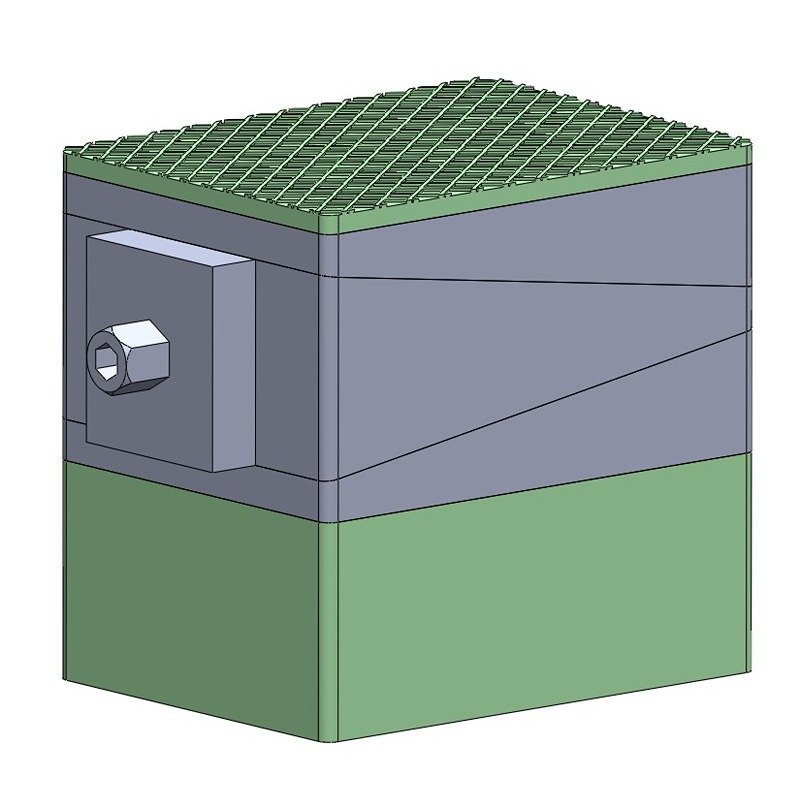

DFH-hs5
Product
DFH-hs5
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-hs5-a2-FG-DG | 7000 | 200 | 125 | 161 | +8/-8 | Dhs5 | 80 | Da2 | 8 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFH2-hs5-a2-FG-DG | 8400 | 200 | 150 | 193 | +10/-10 | Dhs5 | 80 | Da2 | 8 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFH3-hs5-a2-FG-DG | 13330 | 280 | 170 | 223 | +12.5/-12.5 | Dhs5 | 80 | Da2 | 8 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
DFH-h
Product
DFH-h
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-h-a1-FG-DG | 7500 | 200 | 125 | 90 | +8/-8 | Dh | 15 | Da1 | 2 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFH2-h-a1-FG-DG | 9000 | 200 | 150 | 122 | +10/-10 | Dh | 15 | Da1 | 2 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFH3-h-a1-FG-DG | 14000 | 280 | 170 | 152 | +12.5/-12.5 | Dh | 15 | Da1 | 2 | 39 | 22 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |

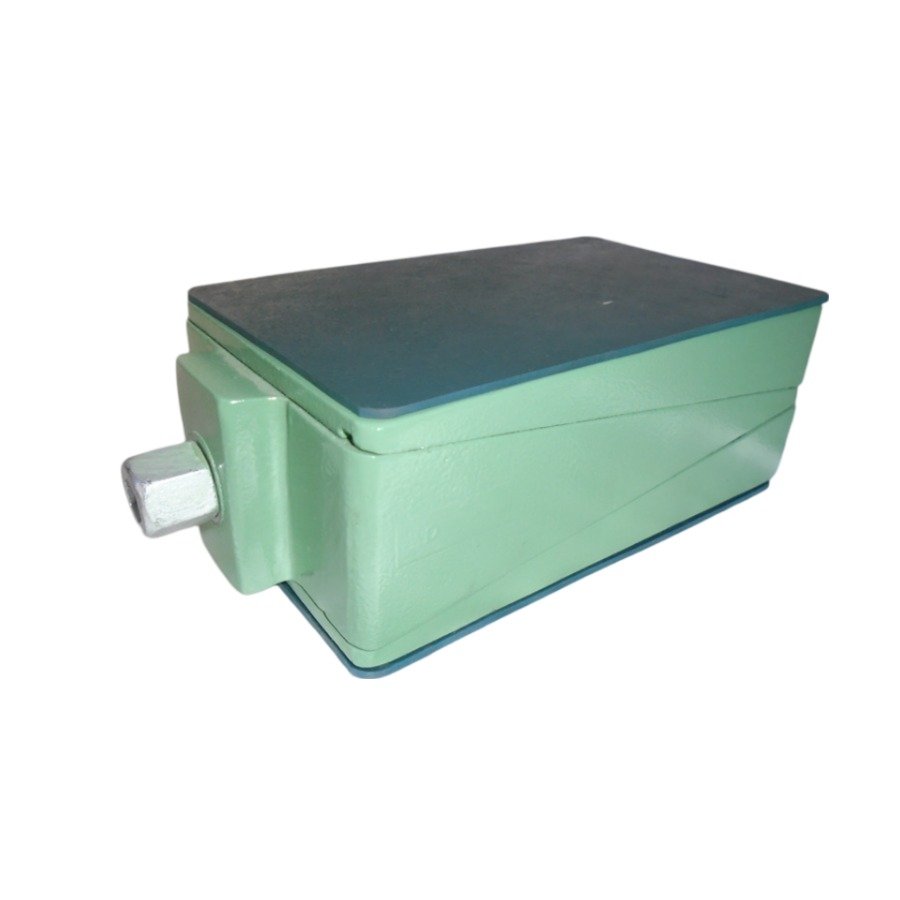

DFH-a1
Product
DFH-a1
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-a1-a1-FG-DG | 4500 | 200 | 125 | 77 | +8/-8 | Da1 | 2 | Da1 | 2 | 22 | 12 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DFH2-a1-a1-FG-DG | 5400 | 200 | 150 | 109 | +10/-10 | Da1 | 2 | Da1 | 2 | 22 | 12 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |
| DFH3-a1-a1-FG-DG | 8570 | 280 | 170 | 139 | +12.5/-12.5 | Da1 | 2 | Da1 | 2 | 39 | 22 | 0.8 | 20 | From -16 to 90 | Dark Grey/Green |

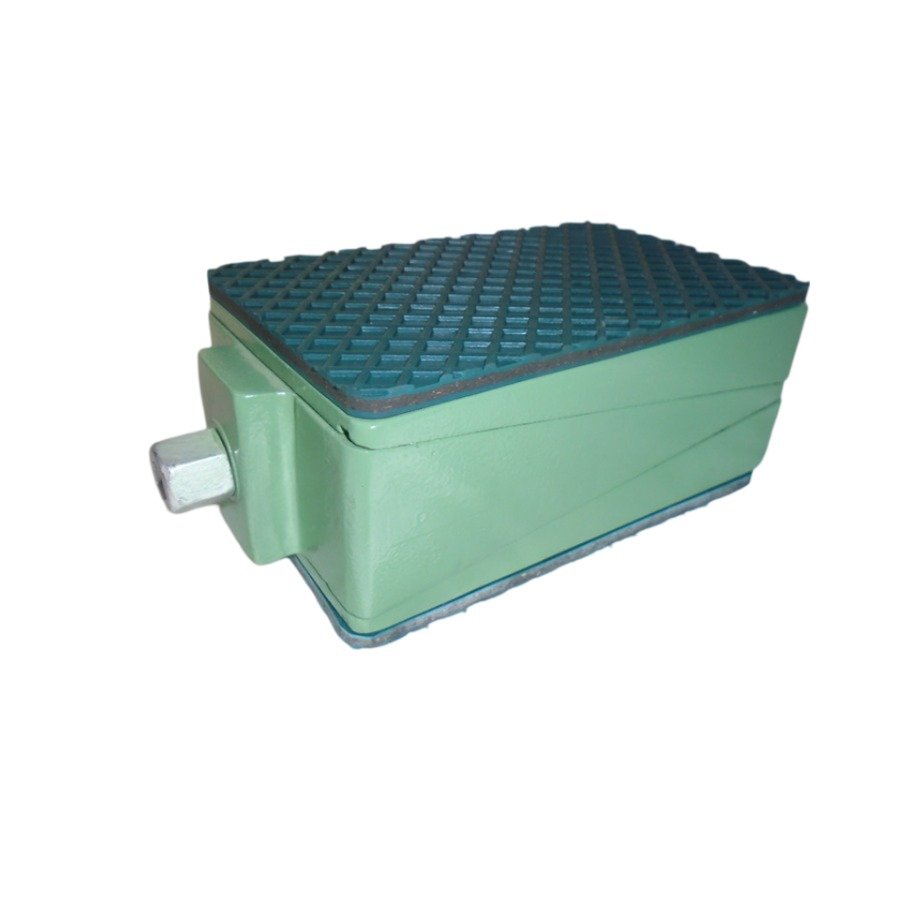

DFH-a2
Product
DFH-a2
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-a2-a2-FG-DG | 2500 | 200 | 125 | 89 | +8/-8 | Da2 | 8 | Da2 | 8 | 22 | 12 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DFH2-a2-a2-FG-DG | 3000 | 200 | 150 | 121 | +10/-10 | Da2 | 8 | Da2 | 8 | 22 | 12 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |
| DFH3-a2-a2-FG-DG | 4760 | 280 | 170 | 151 | +12.5/-12.5 | Da2 | 8 | Da2 | 8 | 39 | 22 | 0.9 | 21 | From -16 to 90 | Dark Grey/Green |

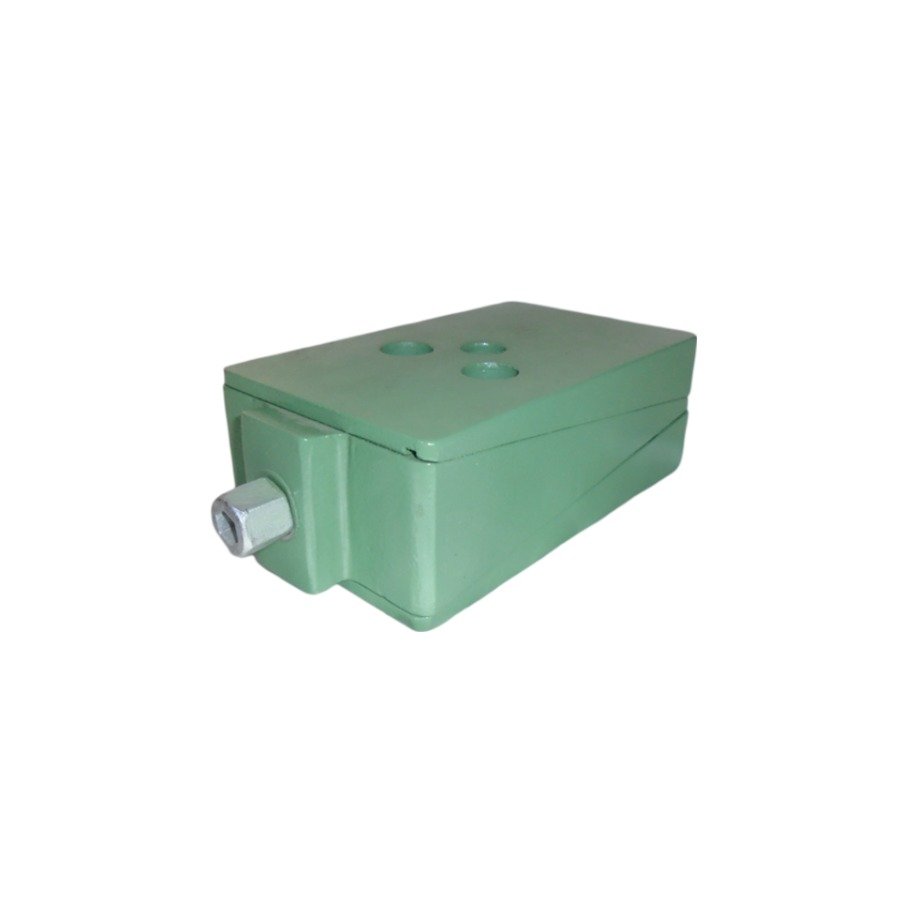

DFH
Product
DFH
Description
Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
For levelling of all Precicion Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Sw1 (Mm) | Sw2 (Mm) | Temperature Range (°C) | Color | Bottom Pad Type | Top Pad Type | Natural Frequency At Max Load (Hz) | Bottom Pad Thickness (Mm) | Top Pad Thickness (Mm) | Coeff Of Friction Against Concrete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFH1-FG-DG | 13000 | 200 | 125 | 73 | +8/-8 | 22 | 12 | From -16 to 90 | Dark Grey/Green | — | — | — | — | — | — |
| DFH2-FG-DG | 16000 | 200 | 150 | 105 | +10/-10 | 22 | 12 | From -16 to 90 | Dark Grey/Green | X | X | X | — | — | — |
| DFH3-FG-DG | 23800 | 280 | 170 | 135 | +12.5/-12.5 | 39 | 22 | From -16 to 90 | Dark Grey/Green | X | X | X | X | X | X |
