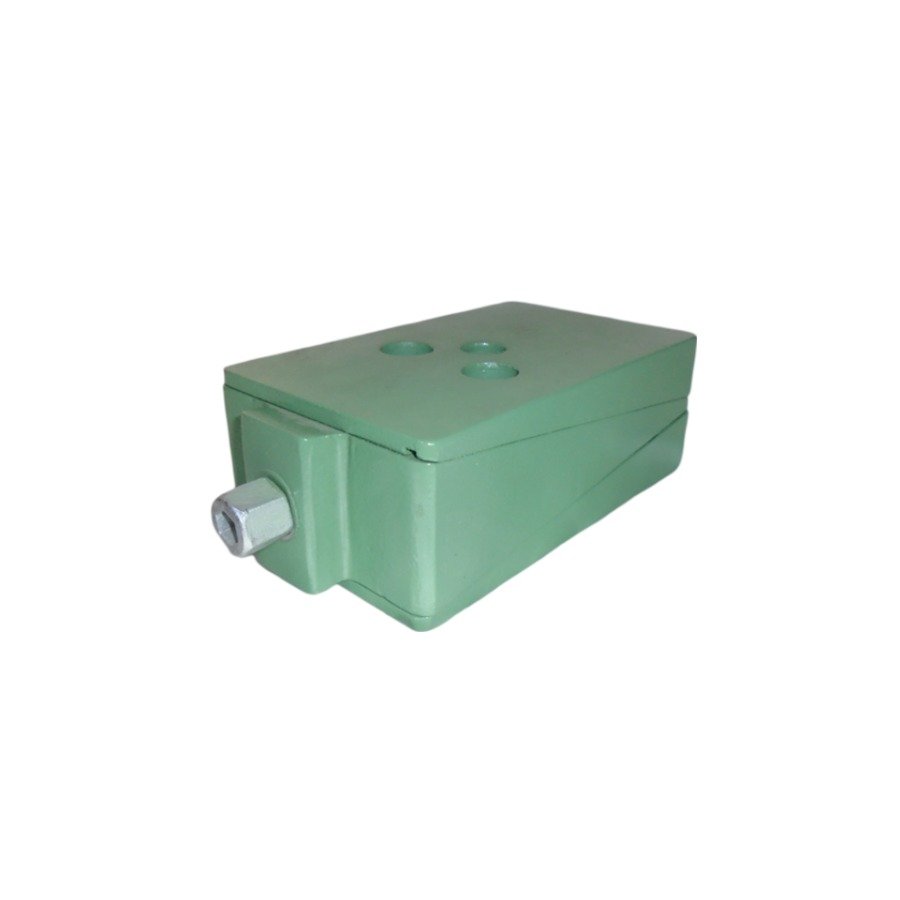

Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
DFH1-FG-DG
Model

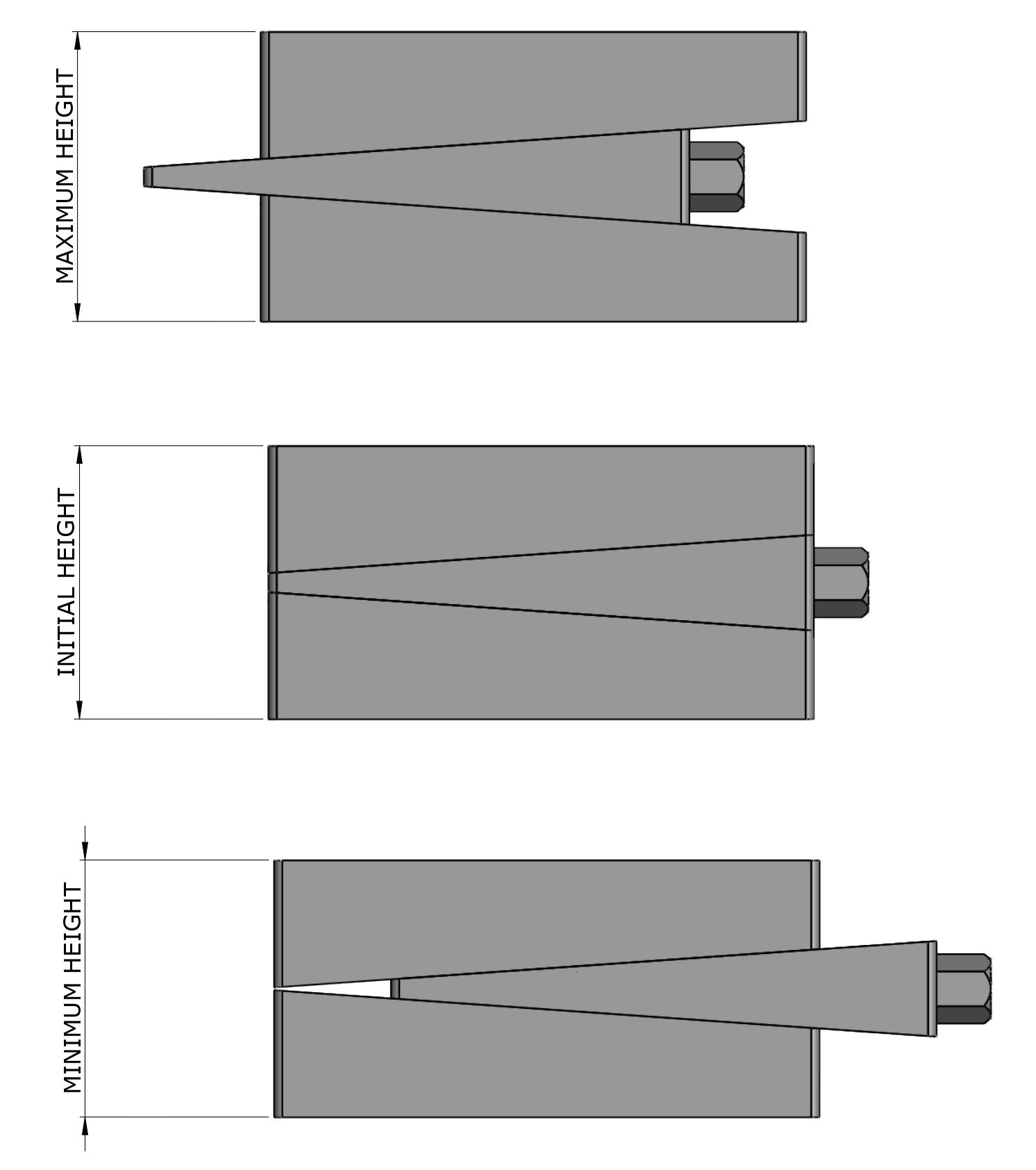

Adjustment Configuration

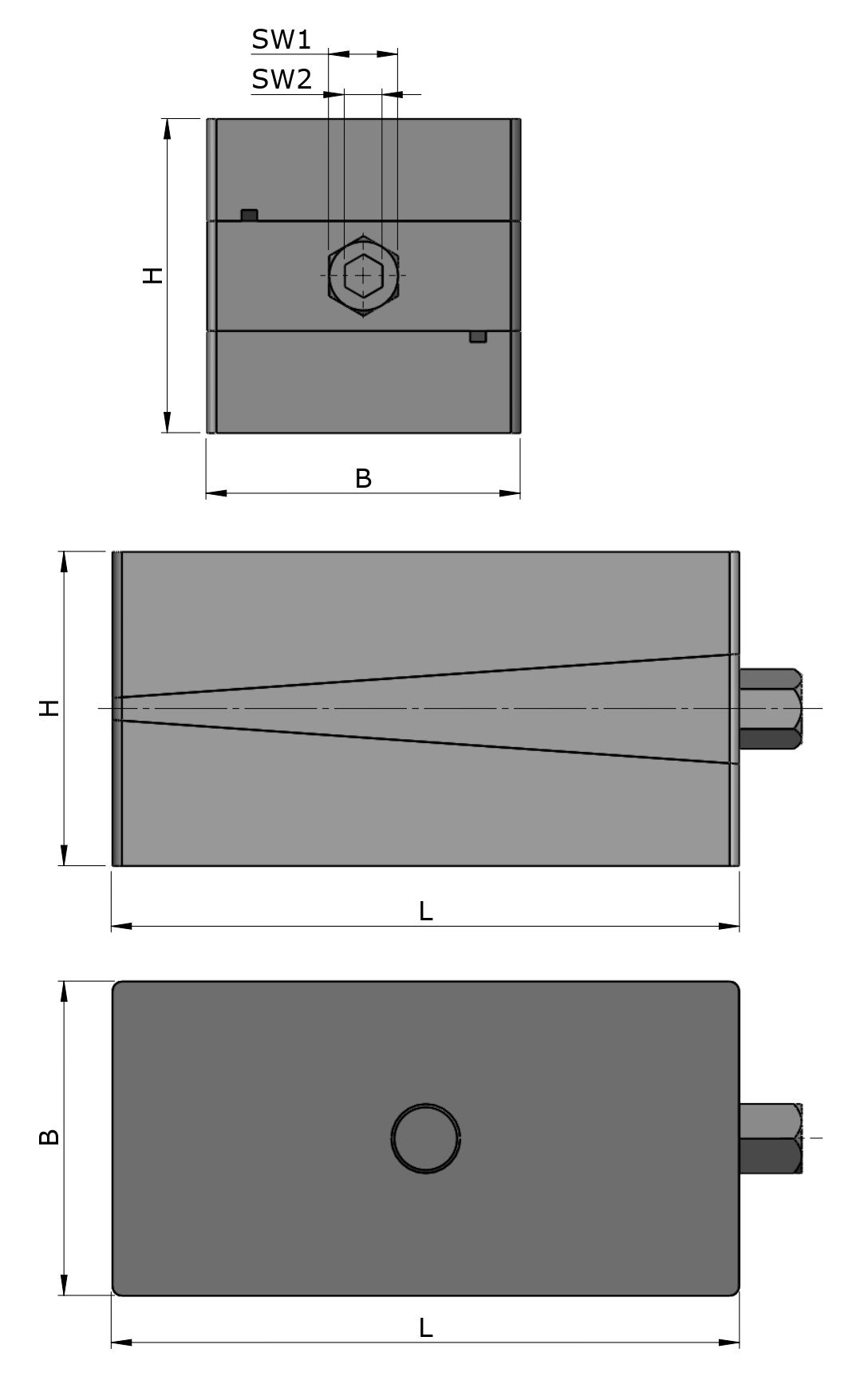

Dimensional Details

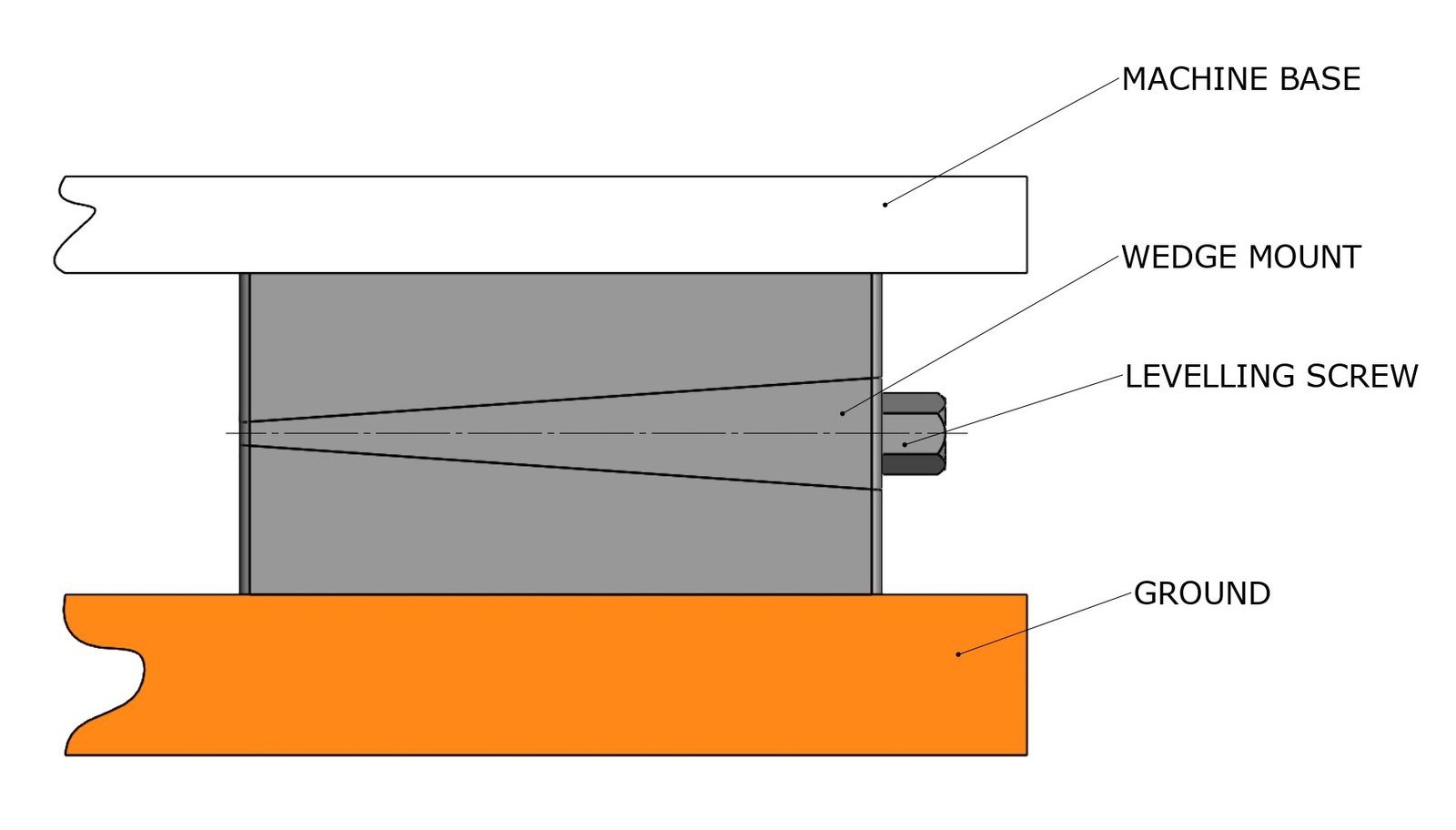

Installation 01

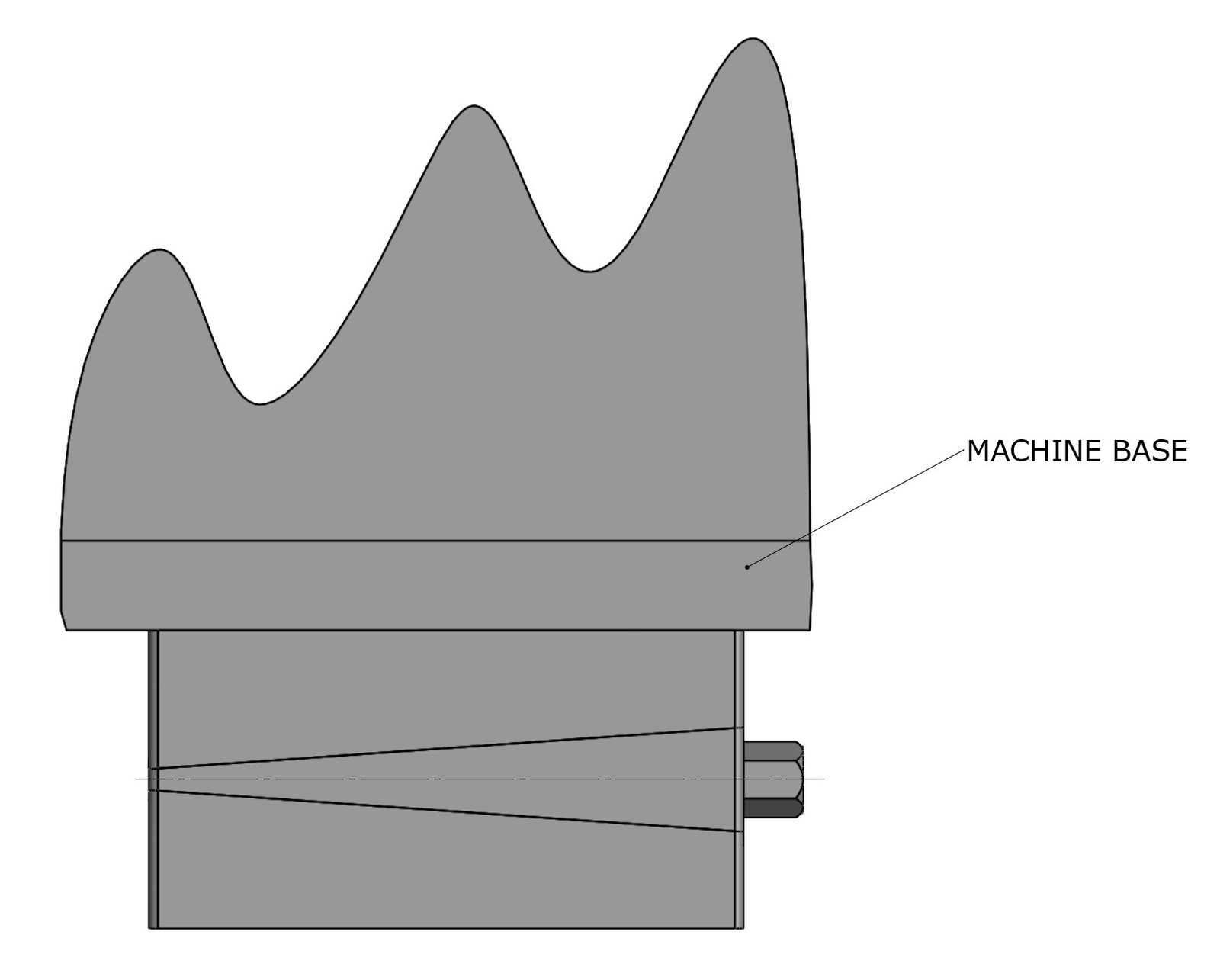

Installation 02
Description
Application:
For levelling of all Precicion Machines.
Technical Data
Load Capacity Kg/pc
13000
Length (L) mm
200
Width (B) mm
125
Height (H) at mean position (mm)
73
Adjustment Range (mm)
+8/-8
Bottom pad Type
X
Bottom pad Thickness (mm)
X
Top pad Type
X
Top pad Thickness (mm)
X
SW1 (mm)
22
SW2 (mm)
12
Coeff. of Friction against Concrete
X
Natural Frequency at Max. Load (Hz)
X
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
