Dynemech Wedge Mounts, Series DFH are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
DFH1-i-a2-FG-DG
Model

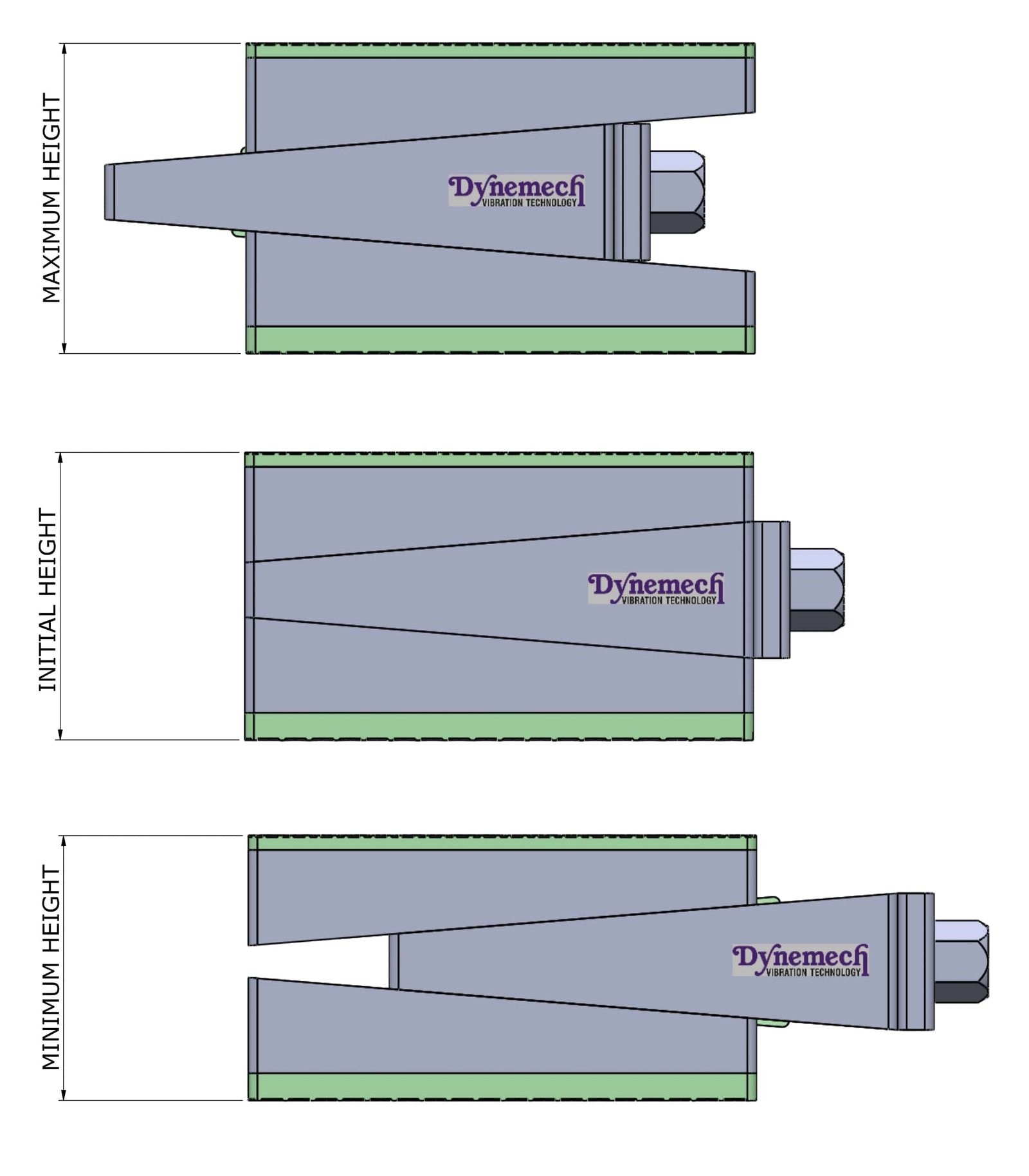

Adjustment Configuration

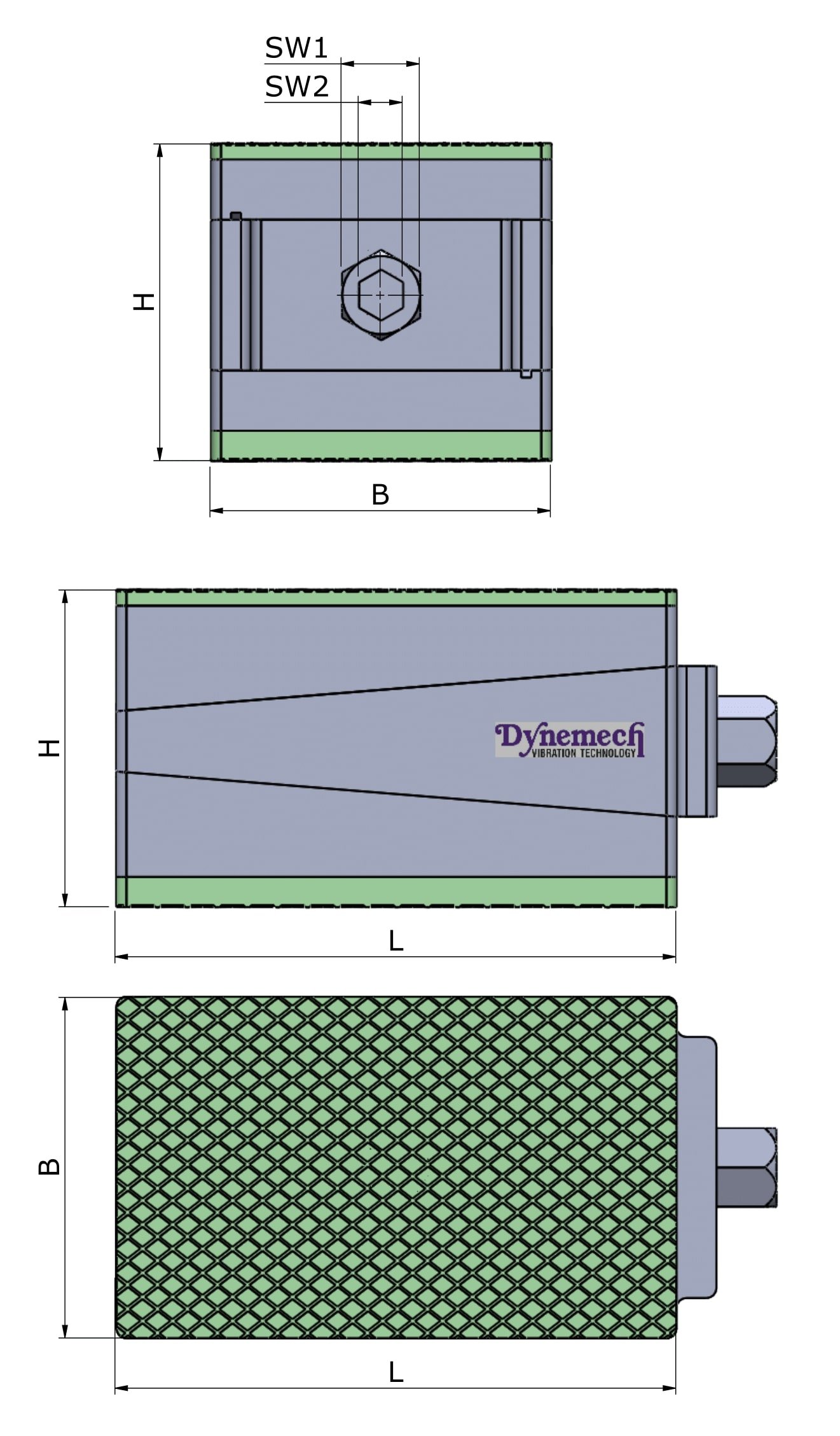

Dimensional Details

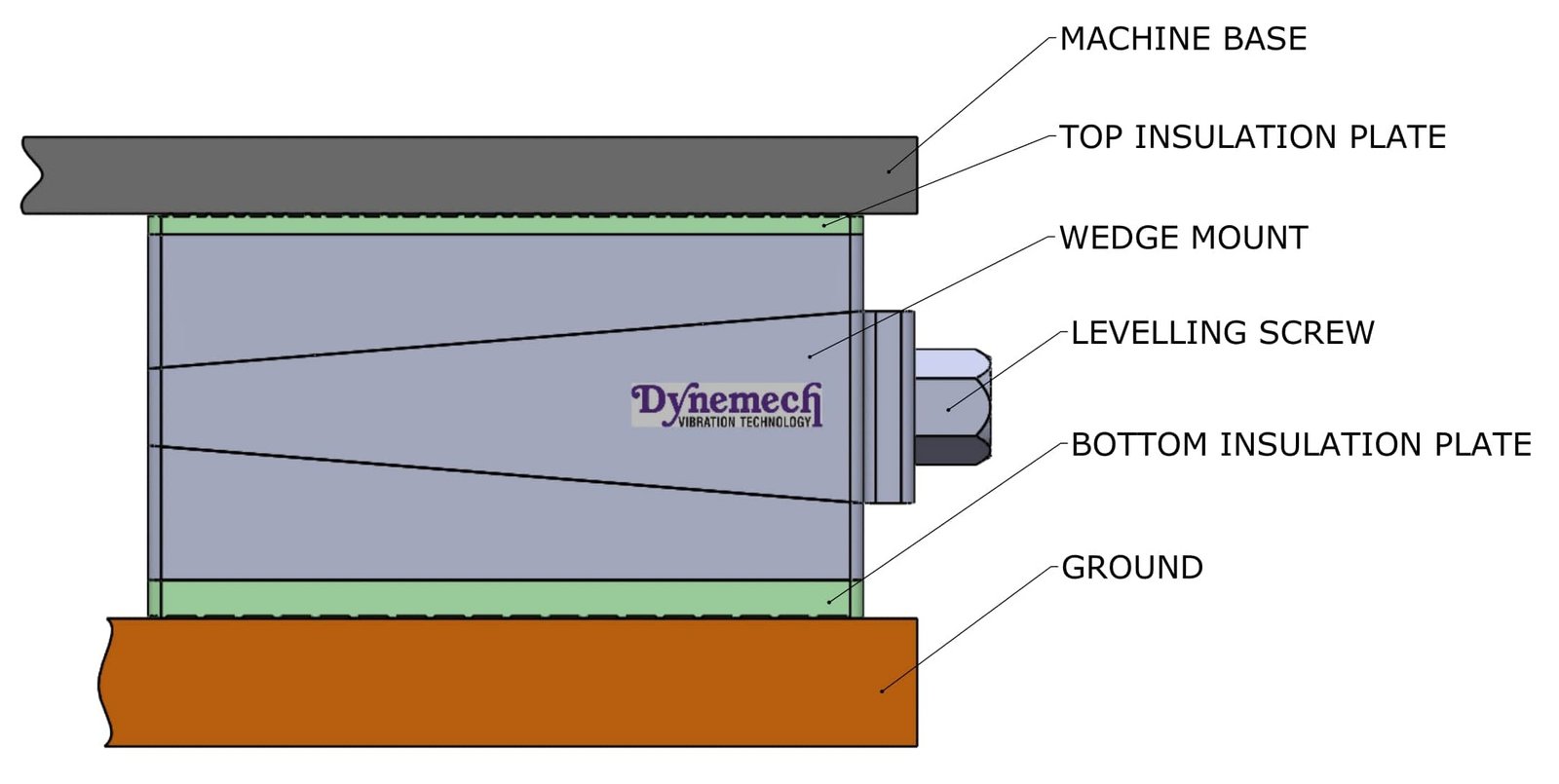

Installation 01

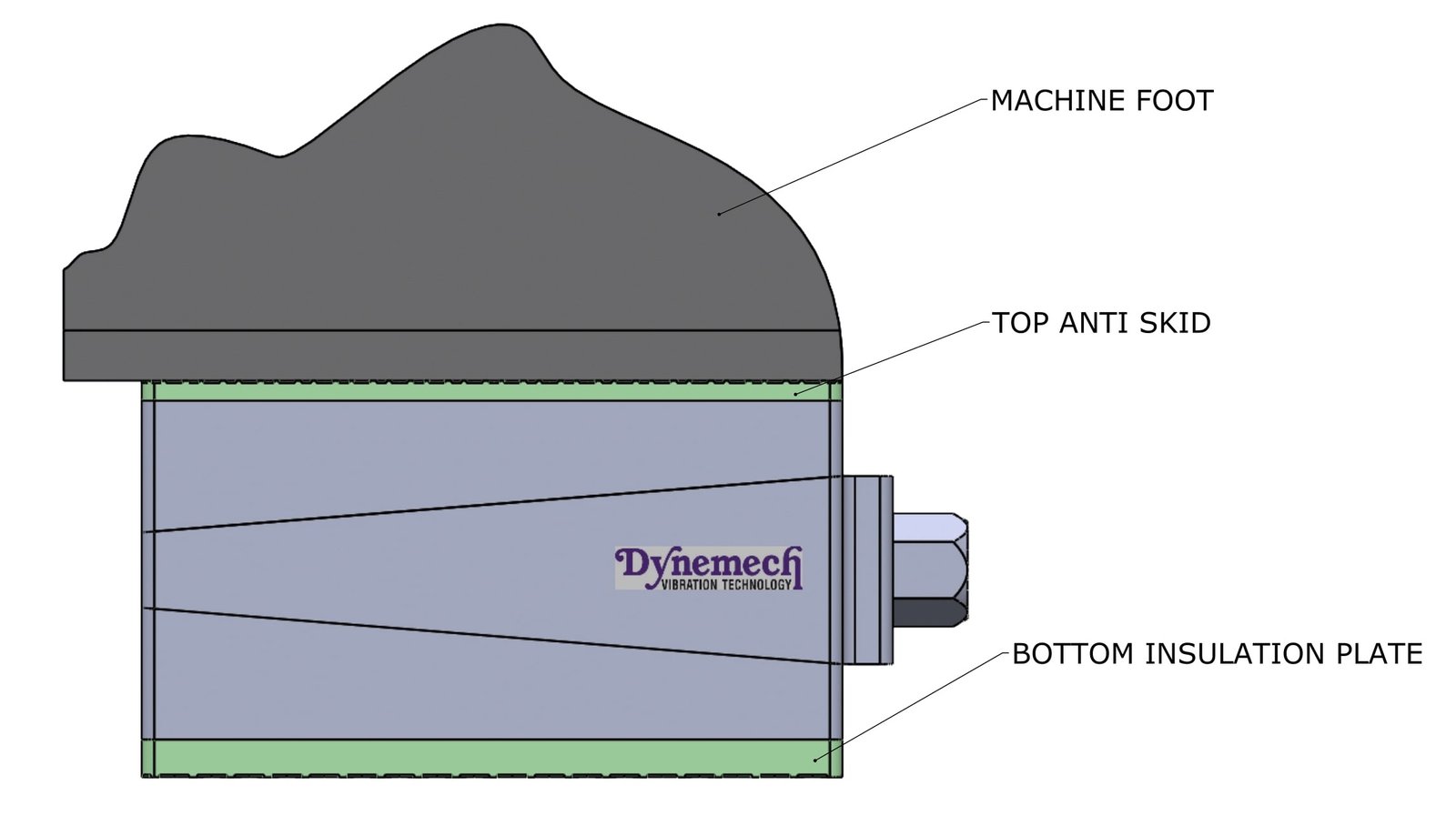

Installation 02
Description
Application:
Power Presses, Stamping Machines,
Shearing Machines, Punching Machines.
Technical Data
Model Catologue
Load Capacity Kg/pc
3500
Length (L) mm
200
Width (B) mm
125
Height (H) at mean position (mm)
106
Adjustment Range (mm)
+8/-8
Bottom pad Type
Di
Bottom pad Thickness (mm)
25
Top pad Type
Da2
Top pad Thickness (mm)
8
SW1 (mm)
22
SW2 (mm)
12
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
7
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
