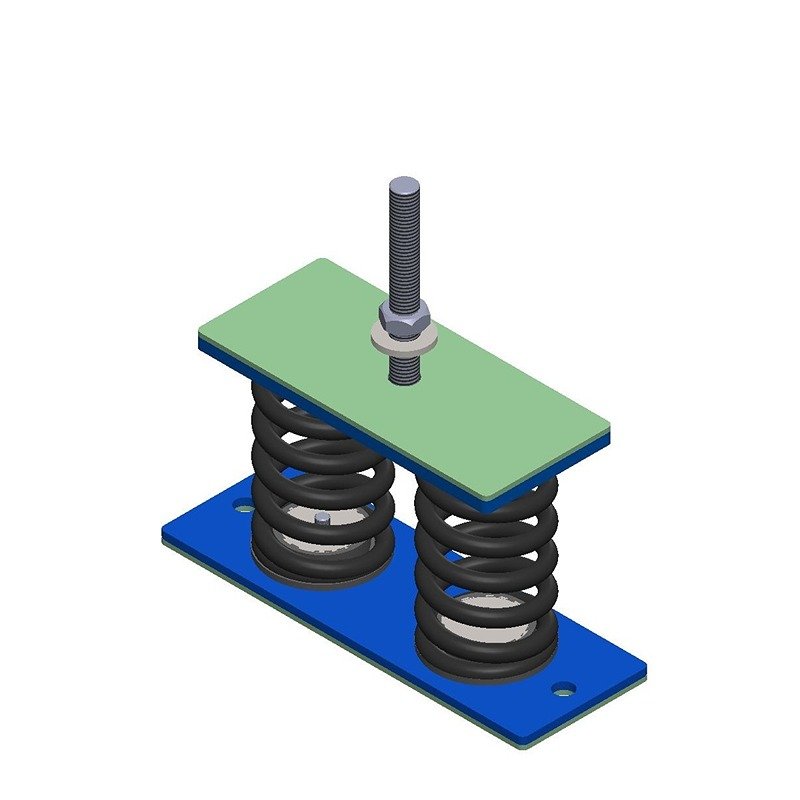

DOS-B

Documents

8 Models

Model	Part No	Rated Load (Kg)	Deflection At Rated Load (Mm)	Height At Maximum Load (Mm)	A	B	(°C)	Cc	H 2	L2	Bolt	Od
DOS-B-5	DOS-B-5	62	25	86	160	70	200	175	111	91	M12	11
DOS-B-6	DOS-B-6	122	25	86	160	70	200	175	111	91	M12	11
DOS-B-7	DOS-B-7	218	25	86	160	70	200	175	111	91	M12	11
DOS-B-7.5	DOS-B-7.5	314	25	86	160	70	200	175	111	91	M12	11
DOS-B-8	DOS-B-8	420	25	86	160	70	200	175	111	91	M12	11
DOS-B-10	DOS-B-10	600	25	86	190	90	230	175	111	91	M12	11
DOS-B-12	DOS-B-12	1000	25	86	190	90	230	205	111	91	M12	11
DOS-B-17	DOS-B-17	2800	9	102	190	90	230	205	111	91	M12	11
