DTHO2-p3-25T-FG-DG

Model
Adjustment Configuration

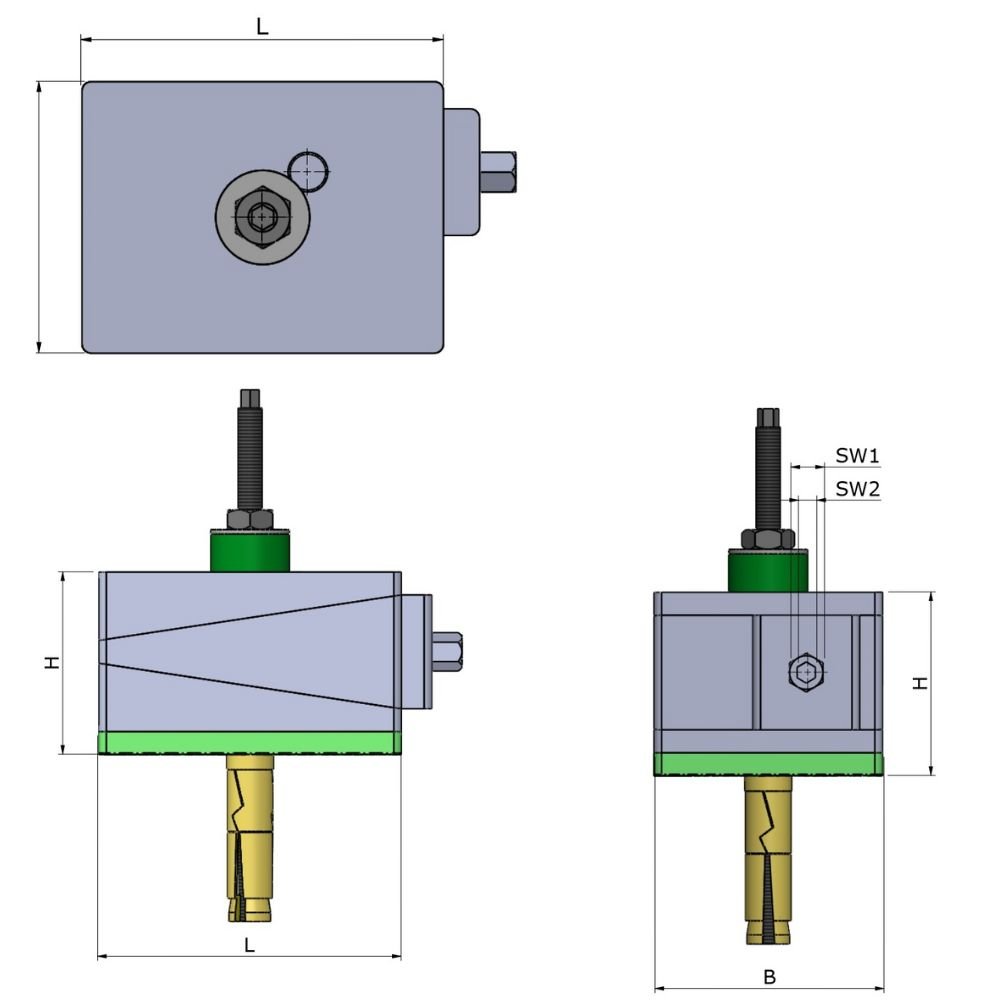

Dimensional Details
Installation 01
Installation 02

Description

Dynemech Wedge mounts, Series DTHO mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.

Application:

Tool Room Machines on suspended Floors, Light Weight Presses, Compressors etc.

Technical Data

Load Capacity Kg/pc
1800
Length (L) mm
200
Width (B) mm
150
Height (H) at mean position (mm)
129
Adjustment Range (mm)
+10/-10
Bottom pad Type
Dp3
Bottom pad Thickness (mm)
24
SW1 (mm)
22
SW2 (mm)
12
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
7
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
BORE* (mm)
25
