DBP0-hs2-200-FG-M12x1.75x200-S-Z-8-GR
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc. |
| Load Capacity (Kg/Pc) | 800 |

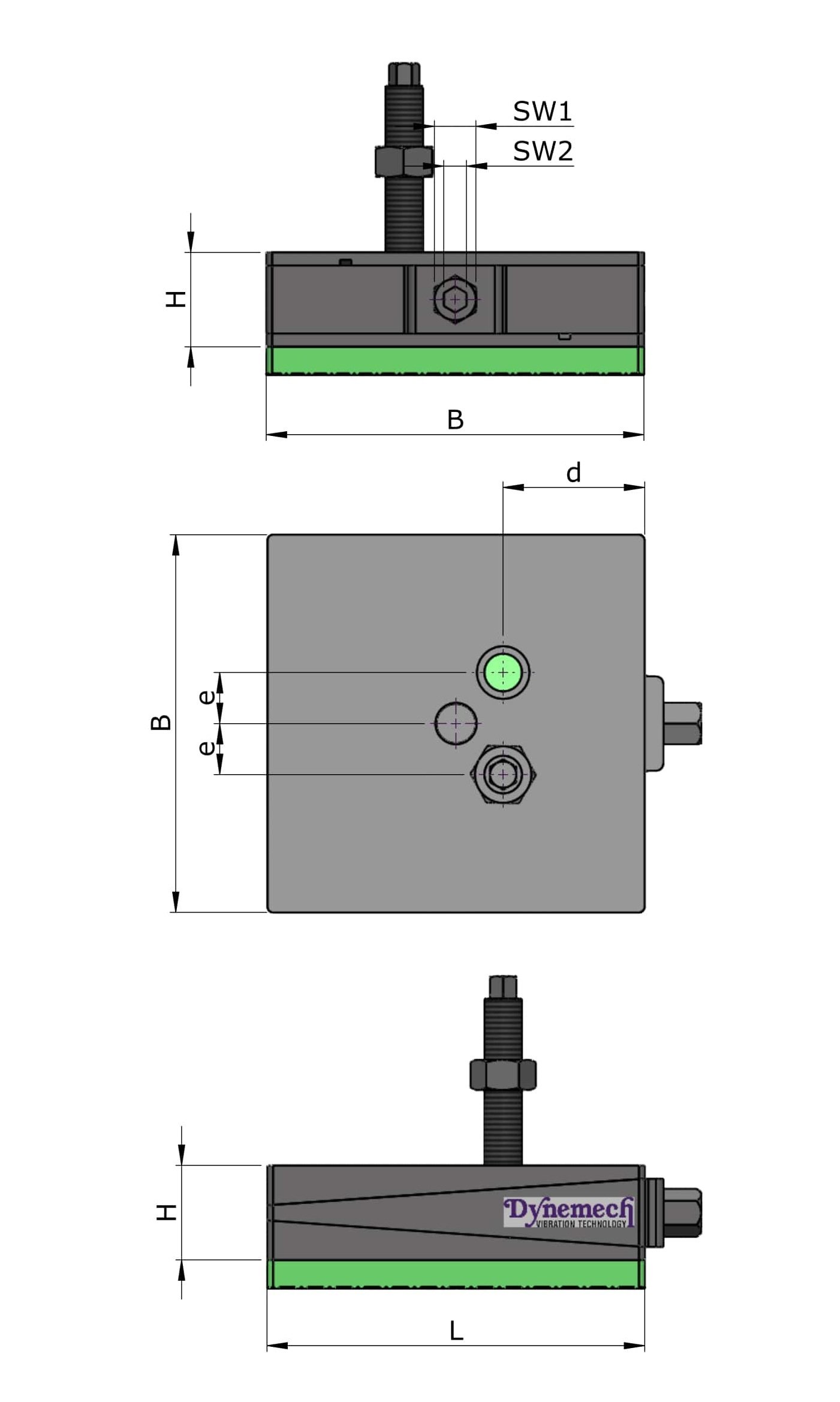

| Length L (Mm) | 100 |
| Width B (Mm) | 100 |
| Height H At Mean Position (Mm) | 200 |

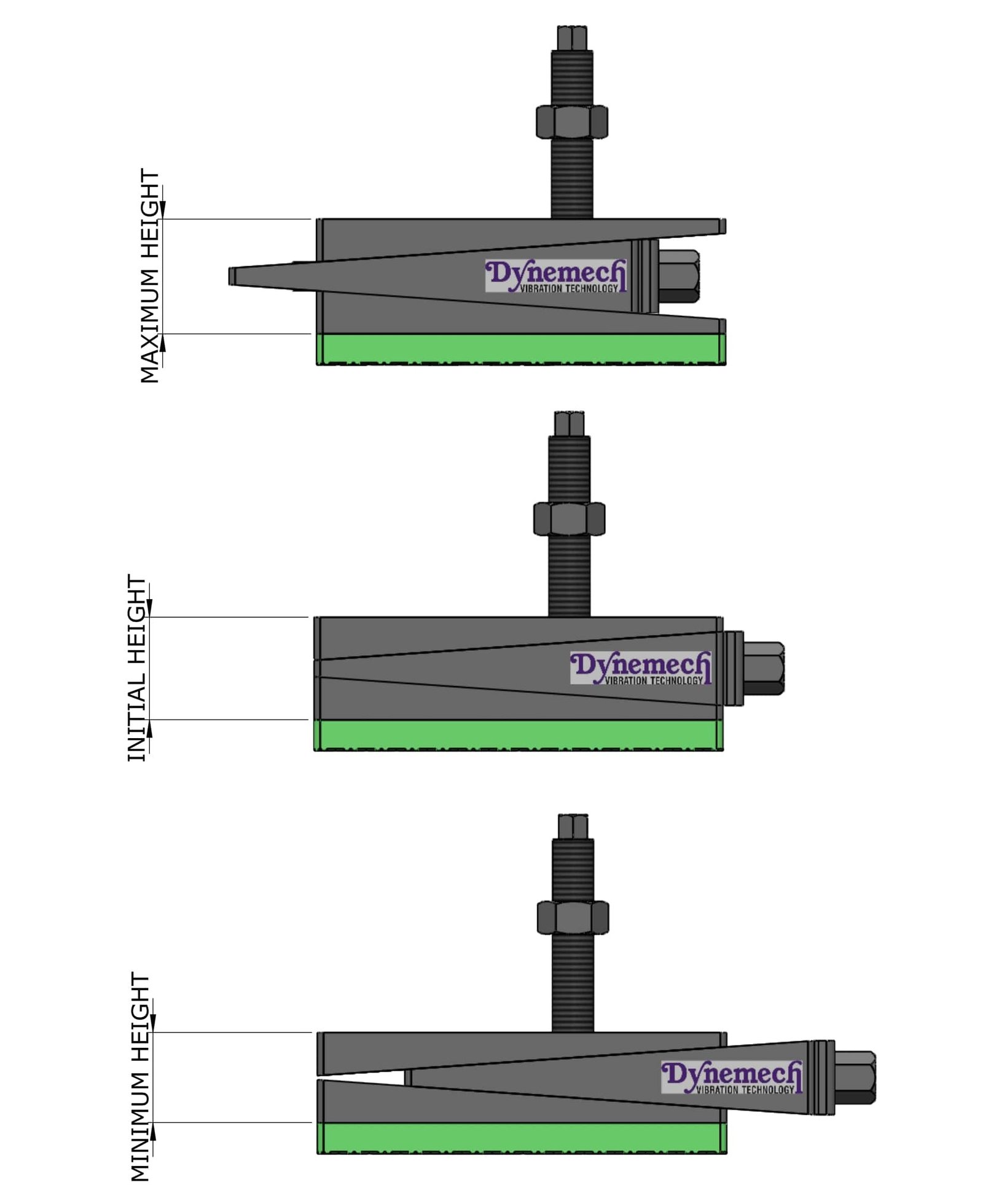

| Adjustment Range (Mm) | +3/-3 |
| Bottom Pad Type | Dhs2 |
| Bottom Pad Thickness (Mm) | 65 |
| Sw1 (Mm) | 19 |
| Sw2 (Mm) | 10 |
| Coeff Of Friction Against Concrete | 0.8 |
| Natural Frequency At Max Load (Hz) | 4 |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
| D (Mm) | 42 |
| Bolt Size (Mm) | M12 |
| E (Mm) | 23 |
