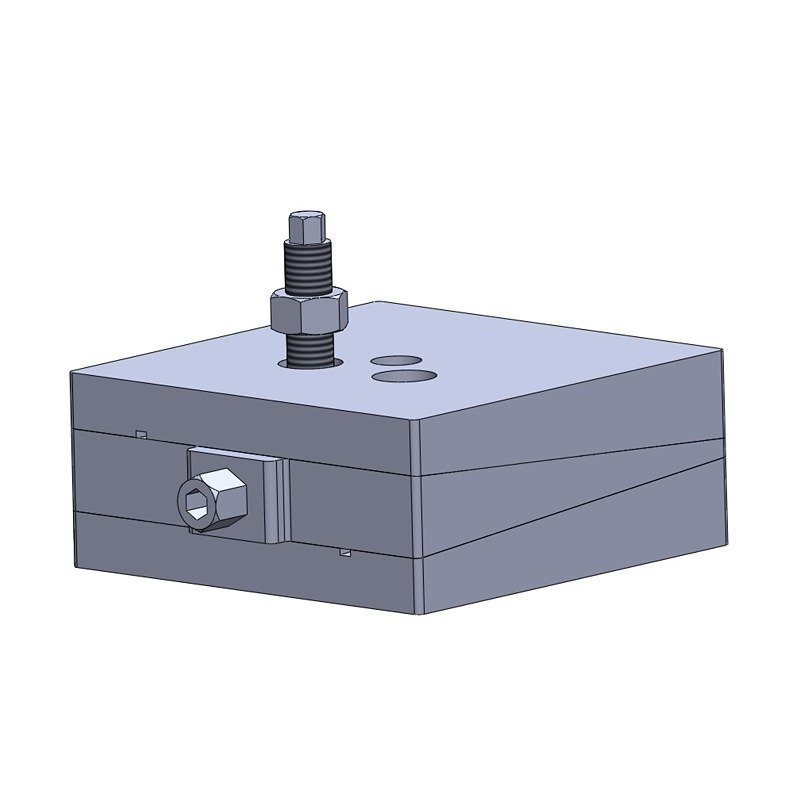

DBP-150
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
DBP-u-150
Product
DBP-u-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-u-150-FG-M12x1.75x200-S-Z-8-GR | 900 | 100 | 100 | 150 | +3/-3 | Du | 15 | 19 | 10 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-u-150-FG-M16x2.0x200-S-Z-8-GR | 1100 | 115 | 115 | 150 | +4/-4 | Du | 15 | 19 | 10 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-u-150-FG-M18x2.5x200-S-Z-8-GR | 1800 | 150 | 150 | 150 | +5/-5 | Du | 15 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-u-150-FG-M20x2.5x200-S-Z-8-GR | 3200 | 200 | 200 | 150 | +6/-6 | Du | 15 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-u-150-FG-M20x2.5x200-S-Z-8-GR | 4000 | 200 | 250 | 150 | +9/-9 | Du | 15 | 27 | 14 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-u-150-FG-M24x3.0x200-S-Z-8-GR | 6400 | 250 | 320 | 150 | +9/-9 | Du | 15 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-u-150-FG-M24x3.0x200-S-Z-8-GR | 9600 | 300 | 400 | 150 | +10/-10 | Du | 15 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-u-150-FG-M24x3.0x200-S-Z-8-GR | 16000 | 400 | 500 | 150 | +10/-10 | Du | 15 | 39 | 22 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

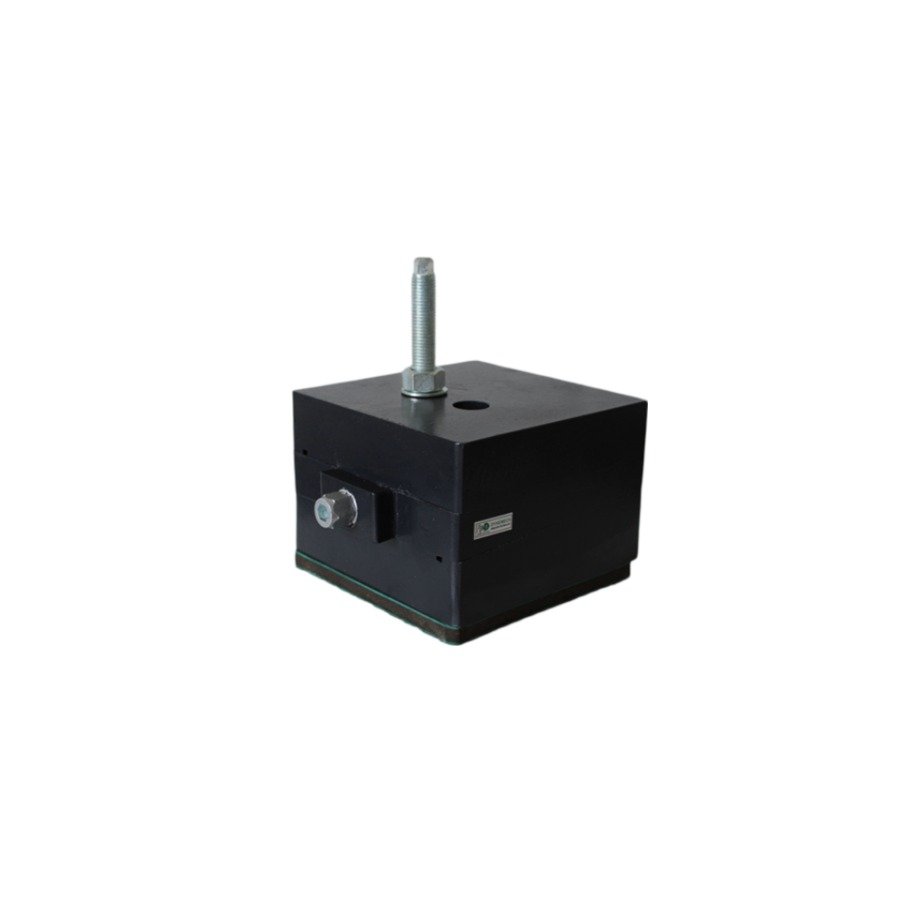

DBP-u-10-150
Product
DBP-u-10-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application
Tool RoomMachines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-u-10-145-FG-M12x1.75x200-S-Z-8-GR | 900 | 100 | 100 | 145 | +3/-3 | Du-10 | 10 | 19 | 10 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-u-10-145-FG-M16x2.0x200-S-Z-8-GR | 1100 | 115 | 115 | 145 | +4/-4 | Du-10 | 10 | 19 | 10 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-u-10-145-FG-M18x2.5x200-S-Z-8-GR | 1800 | 150 | 150 | 145 | +5/-5 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-u-10-145-FG-M20x2.5x200-S-Z-8-GR | 3200 | 200 | 200 | 145 | +6/-6 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-u-10-145-FG-M20x2.5x200-S-Z-8-GR | 4000 | 200 | 250 | 145 | +9/-9 | Du-10 | 10 | 27 | 14 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-u-10-145-FG-M24x3.0x200-S-Z-8-GR | 6400 | 250 | 320 | 145 | +9/-9 | Du-10 | 10 | 32 | 18 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-u-10-145-FG-M24x3.0x200-S-Z-8-GR | 9600 | 300 | 400 | 145 | +10/-10 | Du-10 | 10 | 32 | 18 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-u-10-145-FG-M24x3.0x200-S-Z-8-GR | 16000 | 400 | 500 | 145 | +10/-10 | Du-10 | 10 | 39 | 22 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

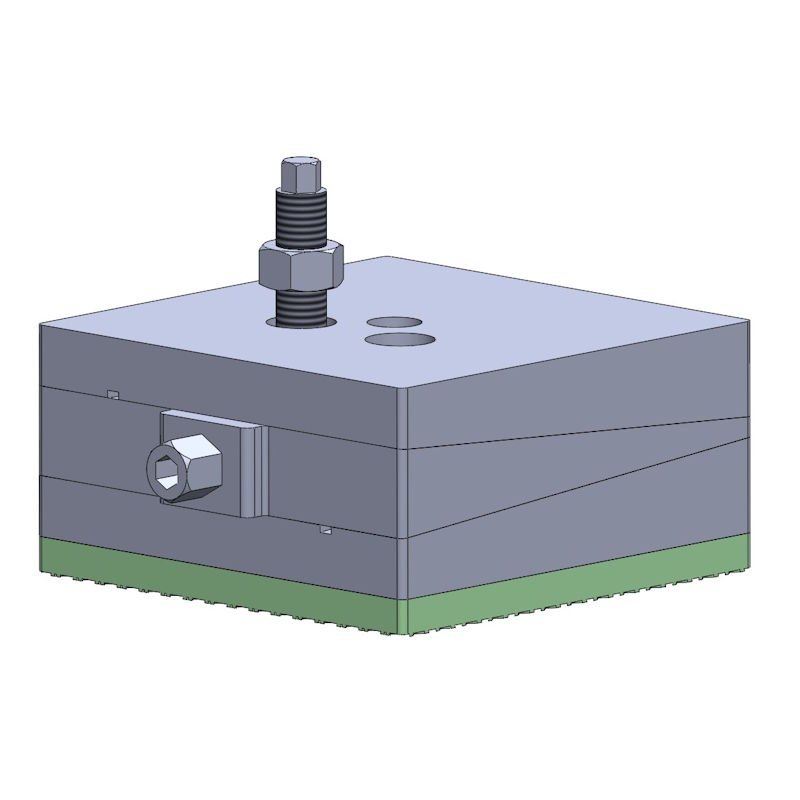

DBP-u-12-150
Product
DBP-u-12-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application
Tool RoomMachines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-u-12-147-FG-M12x1.75x200-S-Z-8-GR | 900 | 100 | 100 | 147 | +3/-3 | Du-12 | 12 | 19 | 10 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-u-12-147-FG-M16x2.0x200-S-Z-8-GR | 1100 | 115 | 115 | 147 | +4/-4 | Du-12 | 12 | 19 | 10 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-u-12-147-FG-M18x2.5x200-S-Z-8-GR | 1800 | 150 | 150 | 147 | +5/-5 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-u-12-147-FG-M20x2.5x200-S-Z-8-GR | 3200 | 200 | 200 | 147 | +6/-6 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-u-12-147-FG-M20x2.5x200-S-Z-8-GR | 4000 | 200 | 250 | 147 | +9/-9 | Du-12 | 12 | 27 | 14 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-u-12-147-FG-M24x3.0x200-S-Z-8-GR | 6400 | 250 | 320 | 147 | +9/-9 | Du-12 | 12 | 32 | 18 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-u-12-147-FG-M24x3.0x200-S-Z-8-GR | 9600 | 300 | 400 | 147 | +10/-10 | Du-12 | 12 | 32 | 18 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-u-12-147-FG-M24x3.0x200-S-Z-8-GR | 16000 | 400 | 500 | 147 | +10/-10 | Du-12 | 12 | 39 | 22 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |
DBP-m-150
Product
DBP-m-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-m-150-FG-M12x1.75x200-S-Z-8-GR | 1000 | 100 | 100 | 150 | +3/-3 | Dm | 15 | 19 | 10 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-m-150-FG-M16x2.0x200-S-Z-8-GR | 1400 | 115 | 115 | 150 | +4/-4 | Dm | 15 | 19 | 10 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-m-150-FG-M18x2.5x200-S-Z-8-GR | 2200 | 150 | 150 | 150 | +5/-5 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-m-150-FG-M20x2.5x200-S-Z-8-GR | 4000 | 200 | 200 | 150 | +6/-6 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-m-150-FG-M20x2.5x200-S-Z-8-GR | 5000 | 200 | 250 | 150 | +9/-9 | Dm | 15 | 27 | 14 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-m-150-FG-M24x3.0x200-S-Z-8-GR | 8000 | 250 | 320 | 150 | +9/-9 | Dm | 15 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-m-150-FG-M24x3.0x200-S-Z-8-GR | 12000 | 300 | 400 | 150 | +10/-10 | Dm | 15 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-m-150-FG-M24x3.0x200-S-Z-8-GR | 20000 | 400 | 500 | 150 | +10/-10 | Dm | 15 | 39 | 22 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

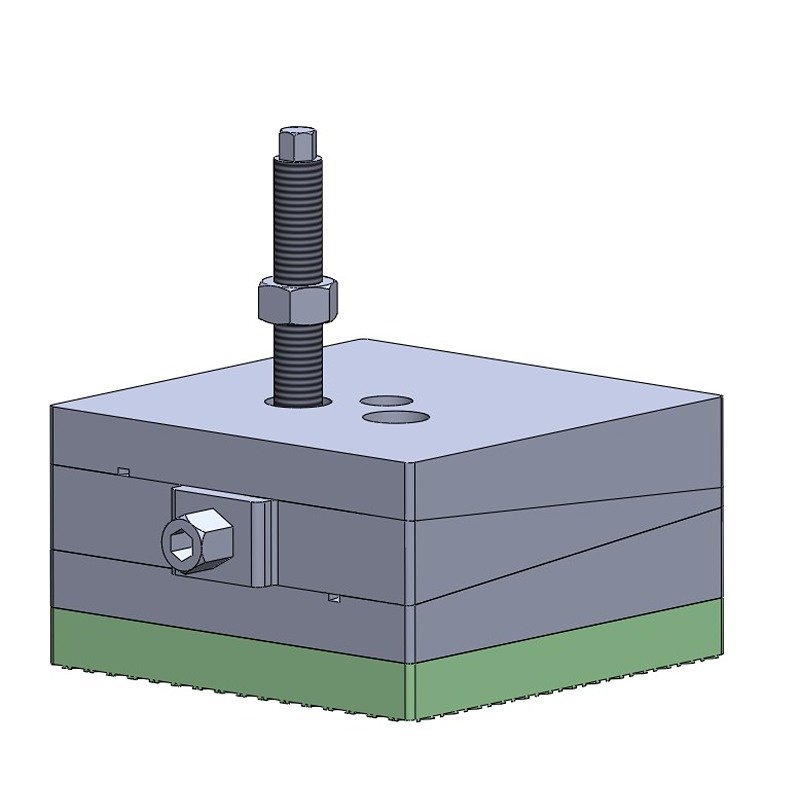

DBP-i-150
Product
DBP-i-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-i-160-FG-M12x1.75x200-S-Z-8-GR | 1400 | 100 | 100 | 160 | +3/-3 | Di | 25 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-i-160-FG-M16x2.0x200-S-Z-8-GR | 1800 | 115 | 115 | 160 | +4/-4 | Di | 25 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-i-160-FG-M18x2.5x200-S-Z-8-GR | 2900 | 150 | 150 | 160 | +5/-5 | Di | 25 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-i-160-FG-M20x2.5x200-S-Z-8-GR | 5200 | 200 | 200 | 160 | +6/-6 | Di | 25 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-i-160-FG-M20x2.5x200-S-Z-8-GR | 6500 | 200 | 250 | 160 | +9/-9 | Di | 25 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-i-160-FG-M24x3.0x200-S-Z-8-GR | 10000 | 250 | 320 | 160 | +9/-9 | Di | 25 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-i-160-FG-M24x3.0x200-S-Z-8-GR | 15000 | 300 | 400 | 160 | +10/-10 | Di | 25 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-i-160-FG-M24x3.0x200-S-Z-8-GR | 26000 | 400 | 500 | 160 | +10/-10 | Di | 25 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

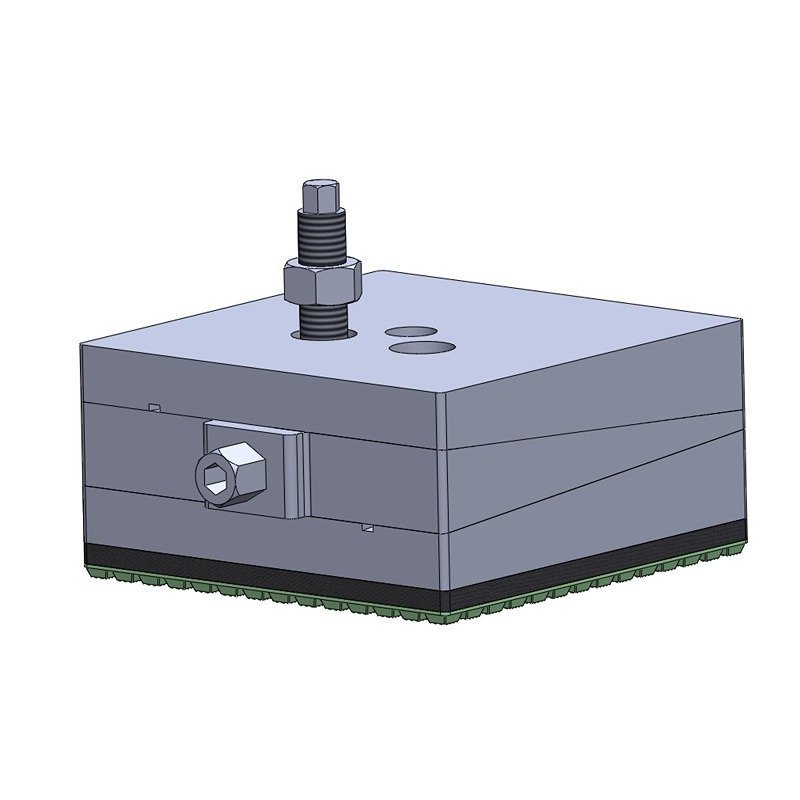

DBP-p1-150
Product
DBP-p1-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-p1-150-FG-M12x1.75x200-S-Z-8-GR | 400 | 100 | 100 | 150 | +3/-3 | Dp1 | 15 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-p1-150-FG-M16x2.0x200-S-Z-8-GR | 530 | 115 | 115 | 150 | +4/-4 | Dp1 | 15 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-p1-150-FG-M18x2.5x200-S-Z-8-GR | 900 | 150 | 150 | 150 | +5/-5 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-p1-150-FG-M20x2.5x200-S-Z-8-GR | 1600 | 200 | 200 | 150 | +6/-6 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-p1-150-FG-M20x2.5x200-S-Z-8-GR | 2000 | 200 | 250 | 150 | +9/-9 | Dp1 | 15 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-p1-150-FG-M24x3.0x200-S-Z-8-GR | 3200 | 250 | 320 | 150 | +9/-9 | Dp1 | 15 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-p1-150-FG-M24x3.0x200-S-Z-8-GR | 4800 | 300 | 400 | 150 | +10/-10 | Dp1 | 15 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-p1-150-FG-M24x3.0x200-S-Z-8-GR | 8000 | 400 | 500 | 150 | +10/-10 | Dp1 | 15 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

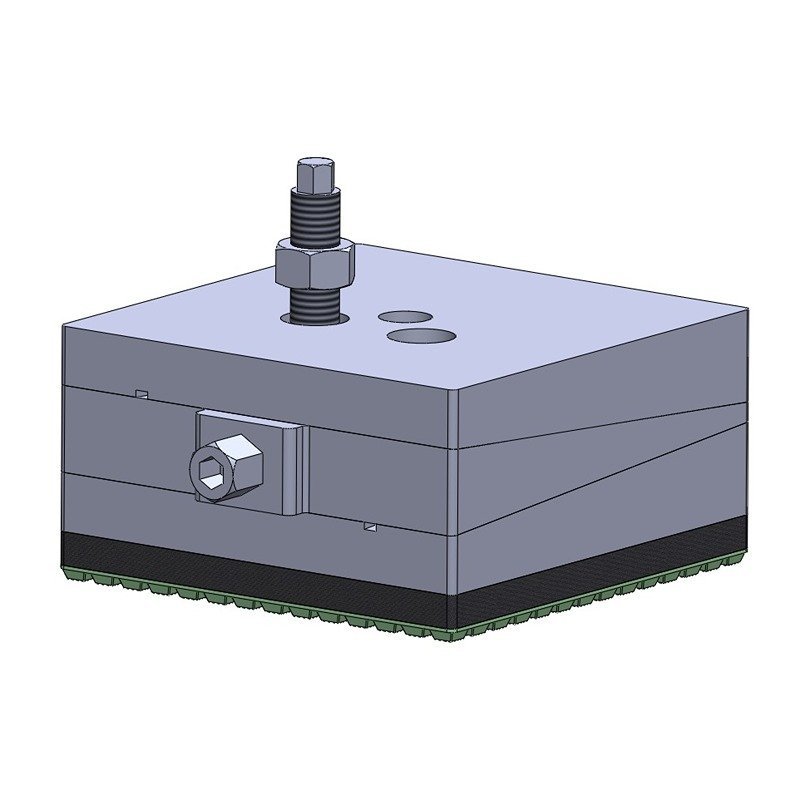

DBP-p2-150
Product
DBP-p2-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application
Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-p2-155-FG-M12x1.75x200-S-Z-8-GR | 500 | 100 | 100 | 155 | +3/-3 | Dp2 | 20 | 19 | 10 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-p2-155-FG-M16x2.0x200-S-Z-8-GR | 660 | 115 | 115 | 155 | +4/-4 | Dp2 | 20 | 19 | 10 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-p2-155-FG-M18x2.5x200-S-Z-8-GR | 1120 | 150 | 150 | 155 | +5/-5 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-p2-155-FG-M20x2.5x200-S-Z-8-GR | 2000 | 200 | 200 | 155 | +6/-6 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-p2-155-FG-M20x2.5x200-S-Z-8-GR | 2500 | 200 | 250 | 155 | +9/-9 | Dp2 | 20 | 27 | 14 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-p2-155-FG-M24x3.0x200-S-Z-8-GR | 4000 | 250 | 320 | 155 | +9/-9 | Dp2 | 20 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-p2-155-FG-M24x3.0x200-S-Z-8-GR | 6000 | 300 | 400 | 155 | +10/-10 | Dp2 | 20 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-p2-155-FG-M24x3.0x200-S-Z-8-GR | 10000 | 400 | 500 | 155 | +10/-10 | Dp2 | 20 | 39 | 22 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

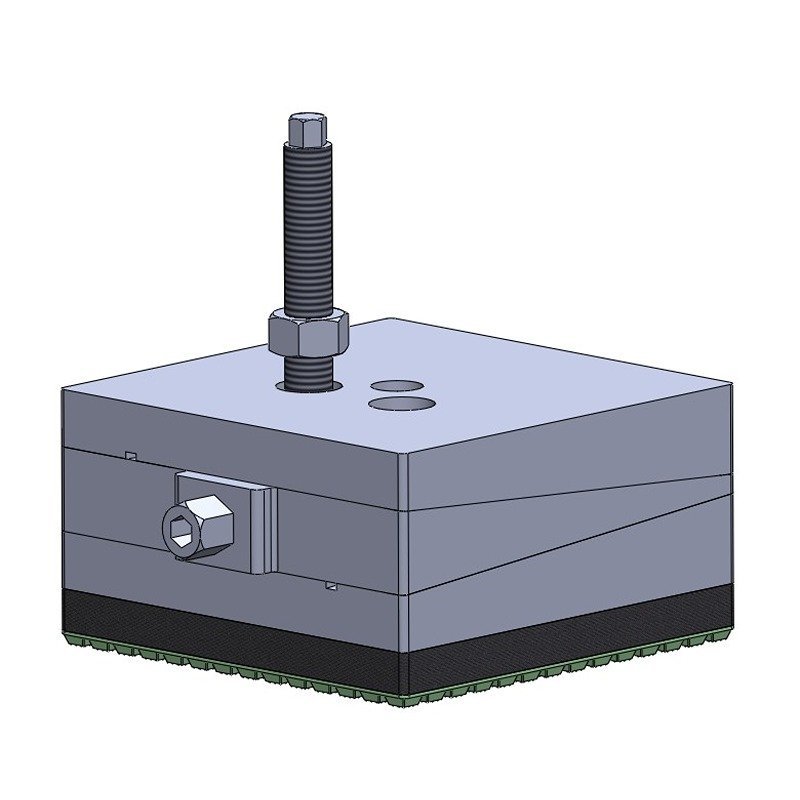

DBP-p3-150
Product
DBP-p3-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application
Tool Room Machines on suspended Floors, Light Weight Presses, Compressors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-p3-159-FG-M12x1.75x200-S-Z-8-GR | 600 | 100 | 100 | 159 | +3/-3 | Dp3 | 24 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-p3-159-FG-M16x2.0x200-S-Z-8-GR | 790 | 115 | 115 | 159 | +4/-4 | Dp3 | 24 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-p3-159-FG-M18x2.5x200-S-Z-8-GR | 1350 | 150 | 150 | 159 | +5/-5 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-p3-159-FG-M20x2.5x200-S-Z-8-GR | 2400 | 200 | 200 | 159 | +6/-6 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-p3-159-FG-M20x2.5x200-S-Z-8-GR | 3000 | 200 | 250 | 159 | +9/-9 | Dp3 | 24 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-p3-159-FG-M24x3.0x200-S-Z-8-GR | 4800 | 250 | 320 | 159 | +9/-9 | Dp3 | 24 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-p3-159-FG-M24x3.0x200-S-Z-8-GR | 7200 | 300 | 400 | 159 | +10/-10 | Dp3 | 24 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-p3-159-FG-M24x3.0x200-S-Z-8-GR | 12000 | 400 | 500 | 159 | +10/-10 | Dp3 | 24 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |
DBP-s1-150
Product
DBP-s1-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-s1-155-FG-M12x1.75x200-S-Z-8-GR | 500 | 100 | 100 | 155 | +3/-3 | Ds1 | 20 | 19 | 10 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-s1-155-FG-M16x2.0x200-S-Z-8-GR | 600 | 115 | 115 | 155 | +4/-4 | Ds1 | 20 | 19 | 10 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-s1-155-FG-M18x2.5x200-S-Z-8-GR | 1000 | 150 | 150 | 155 | +5/-5 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-s1-155-FG-M20x2.5x200-S-Z-8-GR | 1800 | 200 | 200 | 155 | +6/-6 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-s1-155-FG-M20x2.5x200-S-Z-8-GR | 2200 | 200 | 250 | 155 | +9/-9 | Ds1 | 20 | 27 | 14 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-s1-155-FG-M24x3.0x200-S-Z-8-GR | 3500 | 250 | 320 | 155 | +9/-9 | Ds1 | 20 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-s1-155-FG-M24x3.0x200-S-Z-8-GR | 5200 | 300 | 400 | 155 | +10/-10 | Ds1 | 20 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-s1-155-FG-M24x3.0x200-S-Z-8-GR | 9500 | 400 | 500 | 155 | +10/-10 | Ds1 | 20 | 39 | 22 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

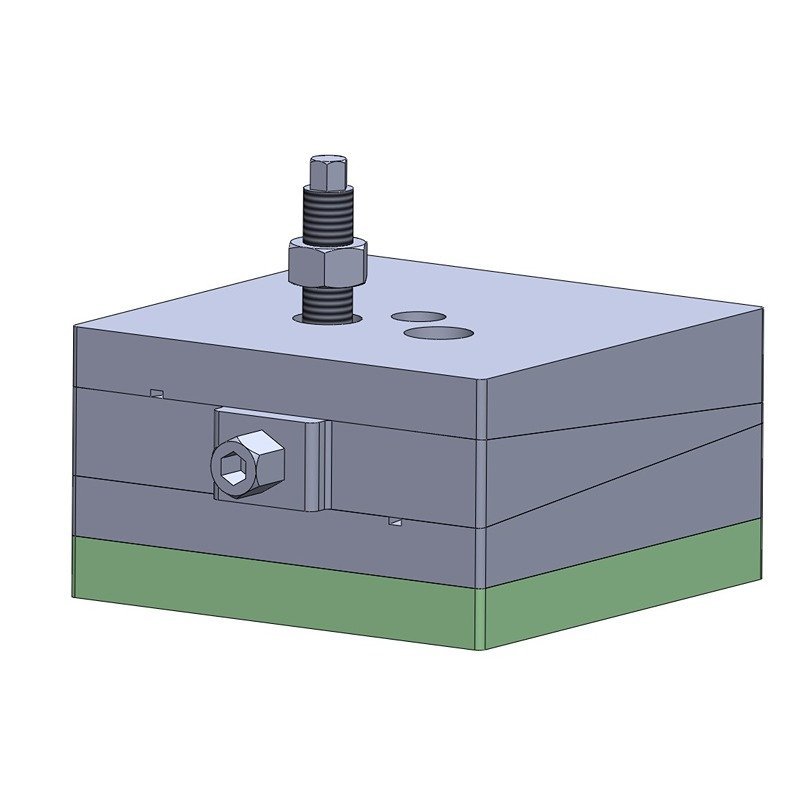

DBP-s2-150
Product
DBP-s2-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-s2-160-FG-M12x1.75x200-S-Z-8-GR | 800 | 100 | 100 | 160 | +3/-3 | Ds2 | 25 | 19 | 10 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-s2-160-FG-M16x2.0x200-S-Z-8-GR | 950 | 115 | 115 | 160 | +4/-4 | Ds2 | 25 | 19 | 10 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-s2-160-FG-M18x2.5x200-S-Z-8-GR | 1600 | 150 | 150 | 160 | +5/-5 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-s2-160-FG-M20x2.5x200-S-Z-8-GR | 2800 | 200 | 200 | 160 | +6/-6 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-s2-160-FG-M20x2.5x200-S-Z-8-GR | 3500 | 200 | 250 | 160 | +9/-9 | Ds2 | 25 | 27 | 14 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-s2-160-FG-M24x3.0x200-S-Z-8-GR | 5500 | 250 | 320 | 160 | +9/-9 | Ds2 | 25 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-s2-160-FG-M24x3.0x200-S-Z-8-GR | 8500 | 300 | 400 | 160 | +10/-10 | Ds2 | 25 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-s2-160-FG-M24x3.0x200-S-Z-8-GR | 14000 | 400 | 500 | 160 | +10/-10 | Ds2 | 25 | 39 | 22 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |
DBP-hs1-150
Product
DBP-hs1-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-hs1-200-FG-M12x1.75x200-S-Z-8-GR | 2000 | 100 | 100 | 200 | +3/-3 | Dhs1 | 65 | 19 | 10 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-hs1-200-FG-M16x2.0x200-S-Z-8-GR | 2640 | 115 | 115 | 200 | +4/-4 | Dhs1 | 65 | 19 | 10 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-hs1-200-FG-M18x2.5x200-S-Z-8-GR | 4500 | 150 | 150 | 200 | +5/-5 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-hs1-200-FG-M20x2.5x200-S-Z-8-GR | 8000 | 200 | 200 | 200 | +6/-6 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-hs1-200-FG-M20x2.5x200-S-Z-8-GR | 10000 | 200 | 250 | 200 | +9/-9 | Dhs1 | 65 | 27 | 14 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-hs1-200-FG-M24x3.0x200-S-Z-8-GR | 16000 | 250 | 320 | 200 | +9/-9 | Dhs1 | 65 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-hs1-200-FG-M24x3.0x200-S-Z-8-GR | 24000 | 300 | 400 | 200 | +10/-10 | Dhs1 | 65 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-hs1-200-FG-M24x3.0x200-S-Z-8-GR | 40000 | 400 | 500 | 200 | +10/-10 | Dhs1 | 65 | 39 | 22 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

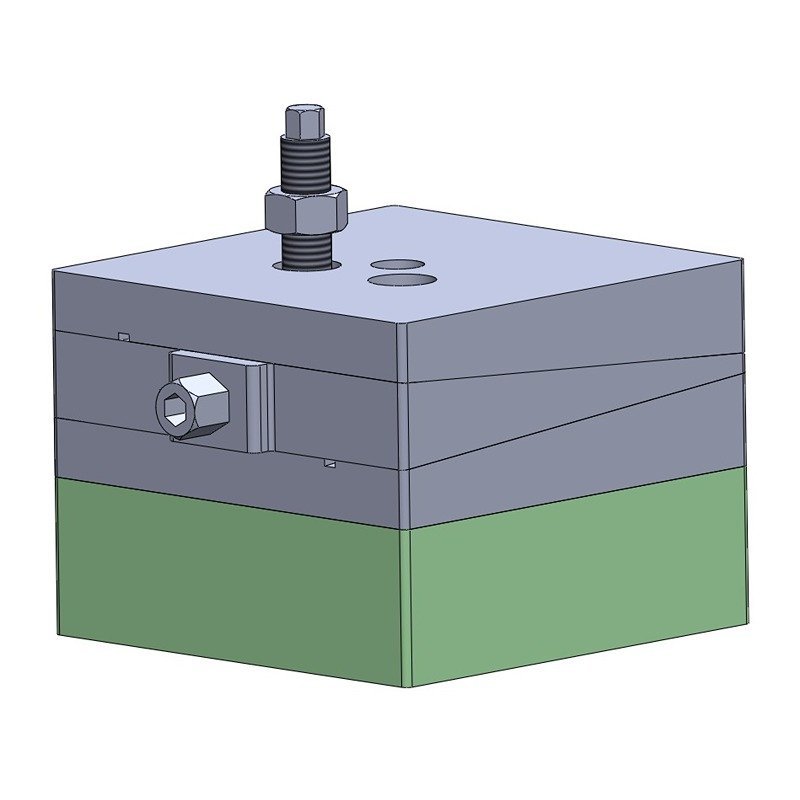

DBP-hs2-150
Product
DBP-hs2-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-hs2-200-FG-M12x1.75x200-S-Z-8-GR | 800 | 100 | 100 | 200 | +3/-3 | Dhs2 | 65 | 19 | 10 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-hs2-200-FG-M16x2.0x200-S-Z-8-GR | 1060 | 115 | 115 | 200 | +4/-4 | Dhs2 | 65 | 19 | 10 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-hs2-200-FG-M18x2.5x200-S-Z-8-GR | 1800 | 150 | 150 | 200 | +5/-5 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-hs2-200-FG-M20x2.5x200-S-Z-8-GR | 3200 | 200 | 200 | 200 | +6/-6 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-hs2-200-FG-M20x2.5x200-S-Z-8-GR | 4000 | 200 | 250 | 200 | +9/-9 | Dhs2 | 65 | 27 | 14 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-hs2-200-FG-M24x3.0x200-S-Z-8-GR | 6400 | 250 | 320 | 200 | +9/-9 | Dhs2 | 65 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-hs2-200-FG-M24x3.0x200-S-Z-8-GR | 9600 | 300 | 400 | 200 | +10/-10 | Dhs2 | 65 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-hs2-200-FG-M24x3.0x200-S-Z-8-GR | 16000 | 400 | 500 | 200 | +10/-10 | Dhs2 | 65 | 39 | 22 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |
DBP-hs3-150
Product
DBP-hs3-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-hs3-185-FG-M12x1.75x200-S-Z-8-GR | 2800 | 100 | 100 | 185 | +3/-3 | Dhs3 | 50 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-hs3-185-FG-M16x2.0x200-S-Z-8-GR | 3700 | 115 | 115 | 185 | +4/-4 | Dhs3 | 50 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-hs3-185-FG-M18x2.5x200-S-Z-8-GR | 6300 | 150 | 150 | 185 | +5/-5 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-hs3-185-FG-M20x2.5x200-S-Z-8-GR | 11200 | 200 | 200 | 185 | +6/-6 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-hs3-185-FG-M20x2.5x200-S-Z-8-GR | 14000 | 200 | 250 | 185 | +9/-9 | Dhs3 | 50 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-hs3-185-FG-M24x3.0x200-S-Z-8-GR | 22400 | 250 | 320 | 185 | +9/-9 | Dhs3 | 50 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-hs3-185-FG-M24x3.0x200-S-Z-8-GR | 33600 | 300 | 400 | 185 | +10/-10 | Dhs3 | 50 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-hs3-185-FG-M24x3.0x200-S-Z-8-GR | 56000 | 400 | 500 | 185 | +10/-10 | Dhs3 | 50 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

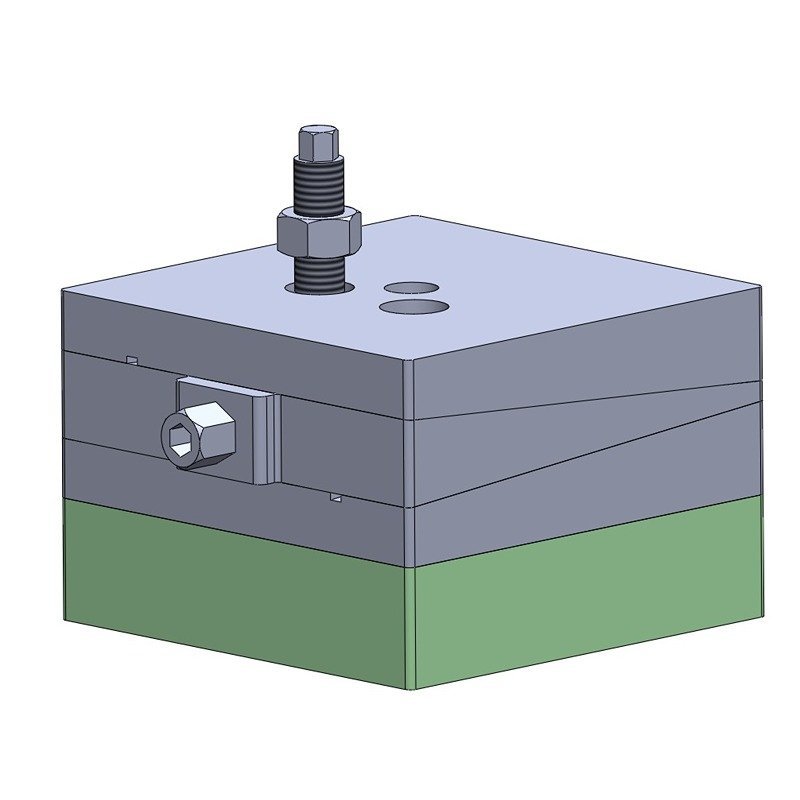

DBP-hs4-150
Product
DBP-hs4-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-hs4-185-FG-M12x1.75x200-S-Z-8-GR | 1200 | 100 | 100 | 185 | +3/-3 | Dhs4 | 50 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-hs4-185-FG-M16x2.0x200-S-Z-8-GR | 1580 | 115 | 115 | 185 | +4/-4 | Dhs4 | 50 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-hs4-185-FG-M18x2.5x200-S-Z-8-GR | 2700 | 150 | 150 | 185 | +5/-5 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-hs4-185-FG-M20x2.5x200-S-Z-8-GR | 4800 | 200 | 200 | 185 | +6/-6 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-hs4-185-FG-M20x2.5x200-S-Z-8-GR | 6000 | 200 | 250 | 185 | +9/-9 | Dhs4 | 50 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-hs4-185-FG-M24x3.0x200-S-Z-8-GR | 9600 | 250 | 320 | 185 | +9/-9 | Dhs4 | 50 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-hs4-185-FG-M24x3.0x200-S-Z-8-GR | 14400 | 300 | 400 | 185 | +10/-10 | Dhs4 | 50 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-hs4-185-FG-M24x3.0x200-S-Z-8-GR | 24000 | 400 | 500 | 185 | +10/-10 | Dhs4 | 50 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

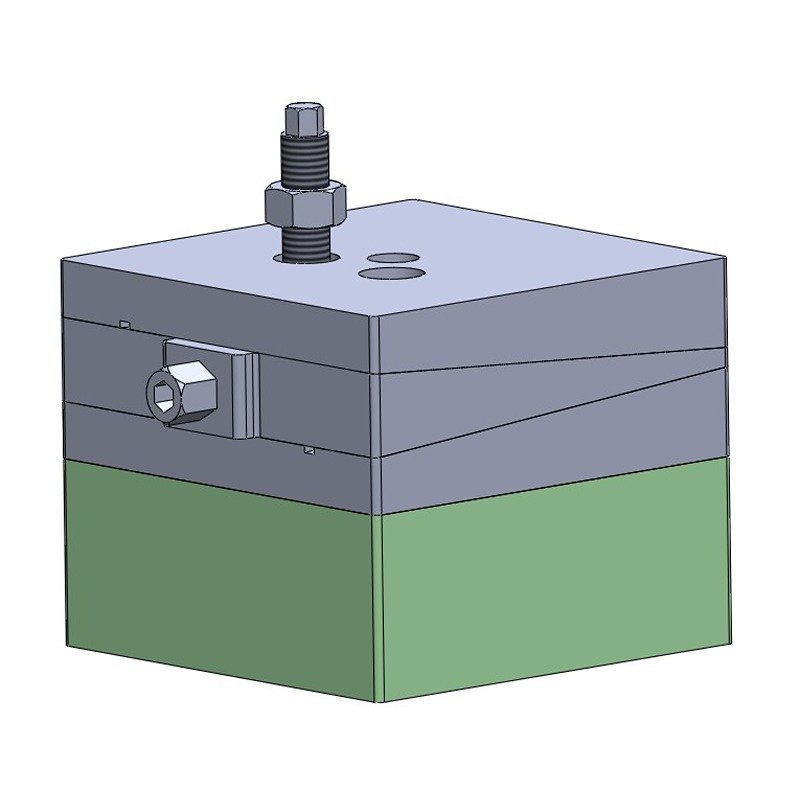

DBP-hs5-150
Product
DBP-hs5-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-hs5-215-FG-M12x1.75x200-S-Z-8-GR | 2800 | 100 | 100 | 215 | +3/-3 | Dhs5 | 80 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-hs5-215-FG-M16x2.0x200-S-Z-8-GR | 3700 | 115 | 115 | 215 | +4/-4 | Dhs5 | 80 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-hs5-215-FG-M18x2.5x200-S-Z-8-GR | 6300 | 150 | 150 | 215 | +5/-5 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-hs5-215-FG-M20x2.5x200-S-Z-8-GR | 11200 | 200 | 200 | 215 | +6/-6 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-hs5-215-FG-M20x2.5x200-S-Z-8-GR | 14000 | 200 | 250 | 215 | +9/-9 | Dhs5 | 80 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-hs5-215-FG-M24x3.0x200-S-Z-8-GR | 22400 | 250 | 320 | 215 | +9/-9 | Dhs5 | 80 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-hs5-215-FG-M24x3.0x200-S-Z-8-GR | 33600 | 300 | 400 | 215 | +10/-10 | Dhs5 | 80 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-hs5-215-FG-M24x3.0x200-S-Z-8-GR | 56000 | 400 | 500 | 215 | +10/-10 | Dhs5 | 80 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

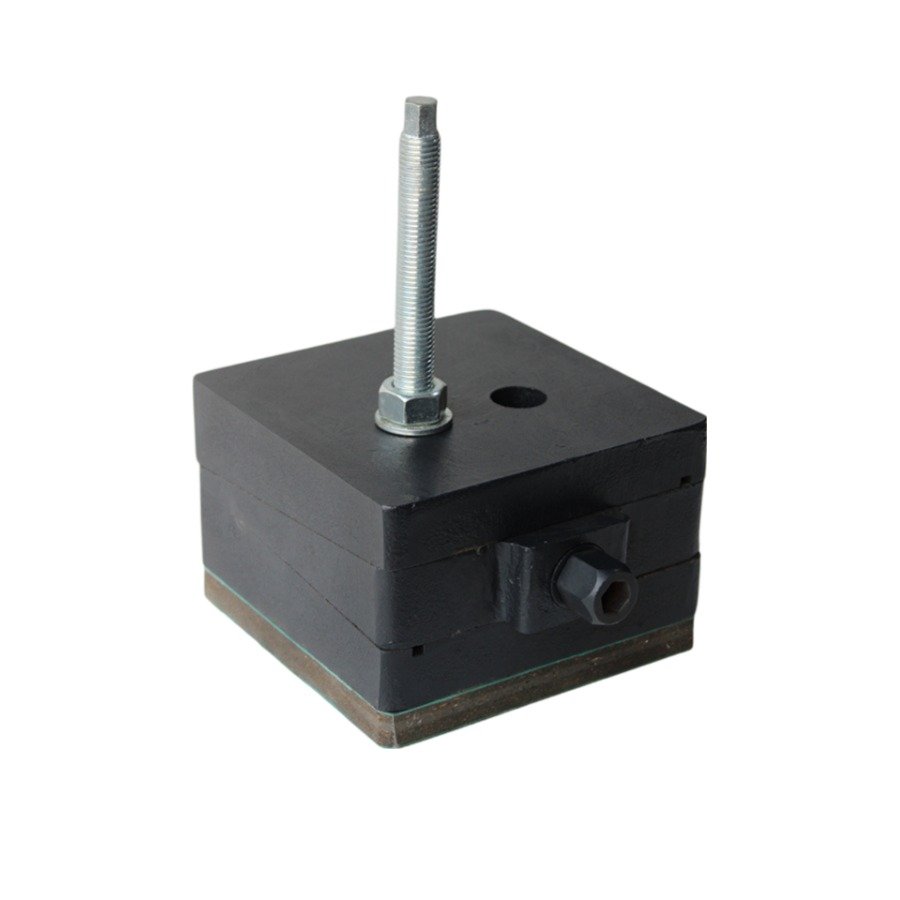

DBP-h-150
Product
DBP-h-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-h-150-FG-M12x1.75x200-S-Z-8-GR | 3000 | 100 | 100 | 150 | +3/-3 | Dh | 15 | 19 | 10 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-h-150-FG-M16x2.0x200-S-Z-8-GR | 3970 | 115 | 115 | 150 | +4/-4 | Dh | 15 | 19 | 10 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-h-150-FG-M18x2.5x200-S-Z-8-GR | 6750 | 150 | 150 | 150 | +5/-5 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-h-150-FG-M20x2.5x200-S-Z-8-GR | 12000 | 200 | 200 | 150 | +6/-6 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-h-150-FG-M20x2.5x200-S-Z-8-GR | 15000 | 200 | 250 | 150 | +9/-9 | Dh | 15 | 27 | 14 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-h-150-FG-M24x3.0x200-S-Z-8-GR | 24000 | 250 | 320 | 150 | +9/-9 | Dh | 15 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-h-150-FG-M24x3.0x200-S-Z-8-GR | 36000 | 300 | 400 | 150 | +10/-10 | Dh | 15 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-h-150-FG-M24x3.0x200-S-Z-8-GR | 60000 | 400 | 500 | 150 | +10/-10 | Dh | 15 | 39 | 22 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

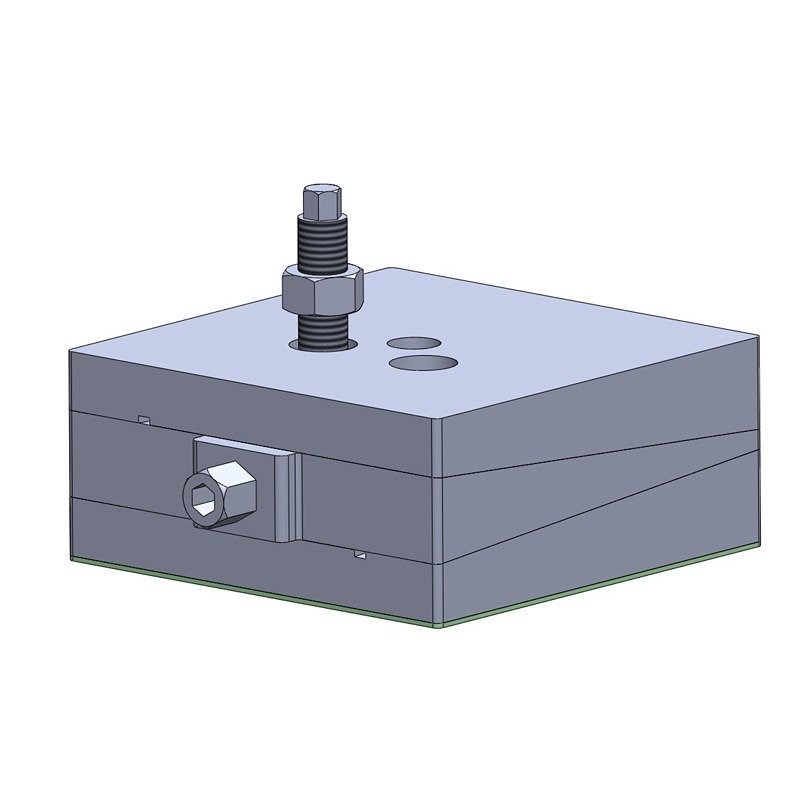

DBP-a1-150
Product
DBP-a1-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-a1-137-FG-M12x1.75x200-S-Z-8-GR | 1800 | 100 | 100 | 137 | +3/-3 | Da1 | 2 | 19 | 10 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-a1-137-FG-M16x2.0x200-S-Z-8-GR | 2300 | 115 | 115 | 137 | +4/-4 | Da1 | 2 | 19 | 10 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-a1-137-FG-M18x2.5x200-S-Z-8-GR | 4000 | 150 | 150 | 137 | +5/-5 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-a1-137-FG-M20x2.5x200-S-Z-8-GR | 7200 | 200 | 200 | 137 | +6/-6 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-a1-137-FG-M20x2.5x200-S-Z-8-GR | 9000 | 200 | 250 | 137 | +9/-9 | Da1 | 2 | 27 | 14 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-a1-137-FG-M24x3.0x200-S-Z-8-GR | 14400 | 250 | 320 | 137 | +9/-9 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-a1-137-FG-M24x3.0x200-S-Z-8-GR | 21600 | 300 | 400 | 137 | +10/-10 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-a1-137-FG-M24x3.0x200-S-Z-8-GR | 36000 | 400 | 500 | 137 | +10/-10 | Da1 | 2 | 39 | 22 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

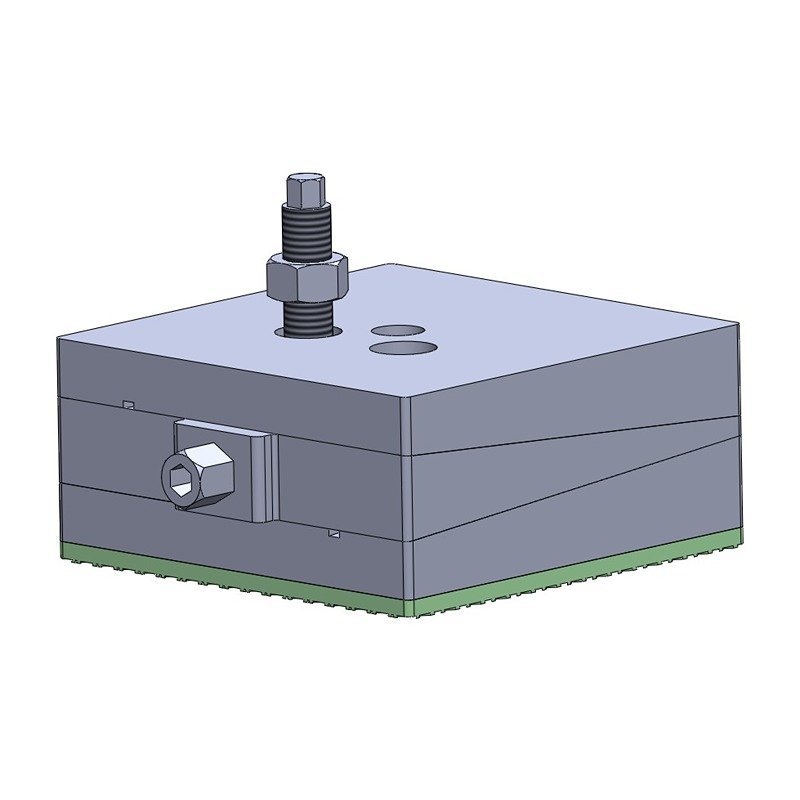

DBP-a2-150
Product
DBP-a2-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-a2-143-FG-M12x1.75x200-S-Z-8-GR | 1000 | 100 | 100 | 143 | +3/-3 | Da2 | 8 | 19 | 10 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-a2-143-FG-M16x2.0x200-S-Z-8-GR | 1300 | 115 | 115 | 143 | +4/-4 | Da2 | 8 | 19 | 10 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-a2-143-FG-M18x2.5x200-S-Z-8-GR | 2250 | 150 | 150 | 143 | +5/-5 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-a2-143-FG-M20x2.5x200-S-Z-8-GR | 4000 | 200 | 200 | 143 | +6/-6 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-a2-143-FG-M20x2.5x200-S-Z-8-GR | 5000 | 200 | 250 | 143 | +9/-9 | Da2 | 8 | 27 | 14 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-a2-143-FG-M24x3.0x200-S-Z-8-GR | 8000 | 250 | 320 | 143 | +9/-9 | Da2 | 8 | 32 | 18 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-a2-143-FG-M24x3.0x200-S-Z-8-GR | 12000 | 300 | 400 | 143 | +10/-10 | Da2 | 8 | 32 | 18 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-a2-143-FG-M24x3.0x200-S-Z-8-GR | 20000 | 400 | 500 | 143 | +10/-10 | Da2 | 8 | 39 | 22 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |
DBP-150
Product
DBP-150
Description
Dynemech Wedge mounts, Series DBP-150 have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Application
For levelling of all Precicion Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBP0-135-FG-M12x1.75x200-S-Z-8-GR | 2600 | 100 | 100 | 135 | +3/-3 | X | X | 19 | 10 | X | X | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DBP1-135-FG-M16x2.0x200-S-Z-8-GR | 3600 | 115 | 115 | 135 | +4/-4 | X | X | 19 | 10 | X | X | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DBP2-135-FG-M18x2.5x200-S-Z-8-GR | 5800 | 150 | 150 | 135 | +5/-5 | X | X | 22 | 12 | X | X | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DBP3-135-FG-M20x2.5x200-S-Z-8-GR | 10400 | 200 | 200 | 135 | +6/-6 | X | X | 22 | 12 | X | X | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DBP4-135-FG-M20x2.5x200-S-Z-8-GR | 13000 | 200 | 250 | 135 | +9/-9 | X | X | 27 | 14 | X | X | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DBP5-135-FG-M24x3.0x200-S-Z-8-GR | 20000 | 250 | 320 | 135 | +9/-9 | X | X | 32 | 18 | X | X | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DBP6-135-FG-M24x3.0x200-S-Z-8-GR | 30000 | 300 | 400 | 135 | +10/-10 | X | X | 32 | 18 | X | X | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DBP7-135-FG-M24x3.0x200-S-Z-8-GR | 52000 | 400 | 500 | 135 | +10/-10 | X | X | 39 | 22 | X | X | From -16 to 90 | Dark Grey/Green | 160 | M24 | 70 |
