Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
DBOP6-m-150-FG-S-Z-GR
Model

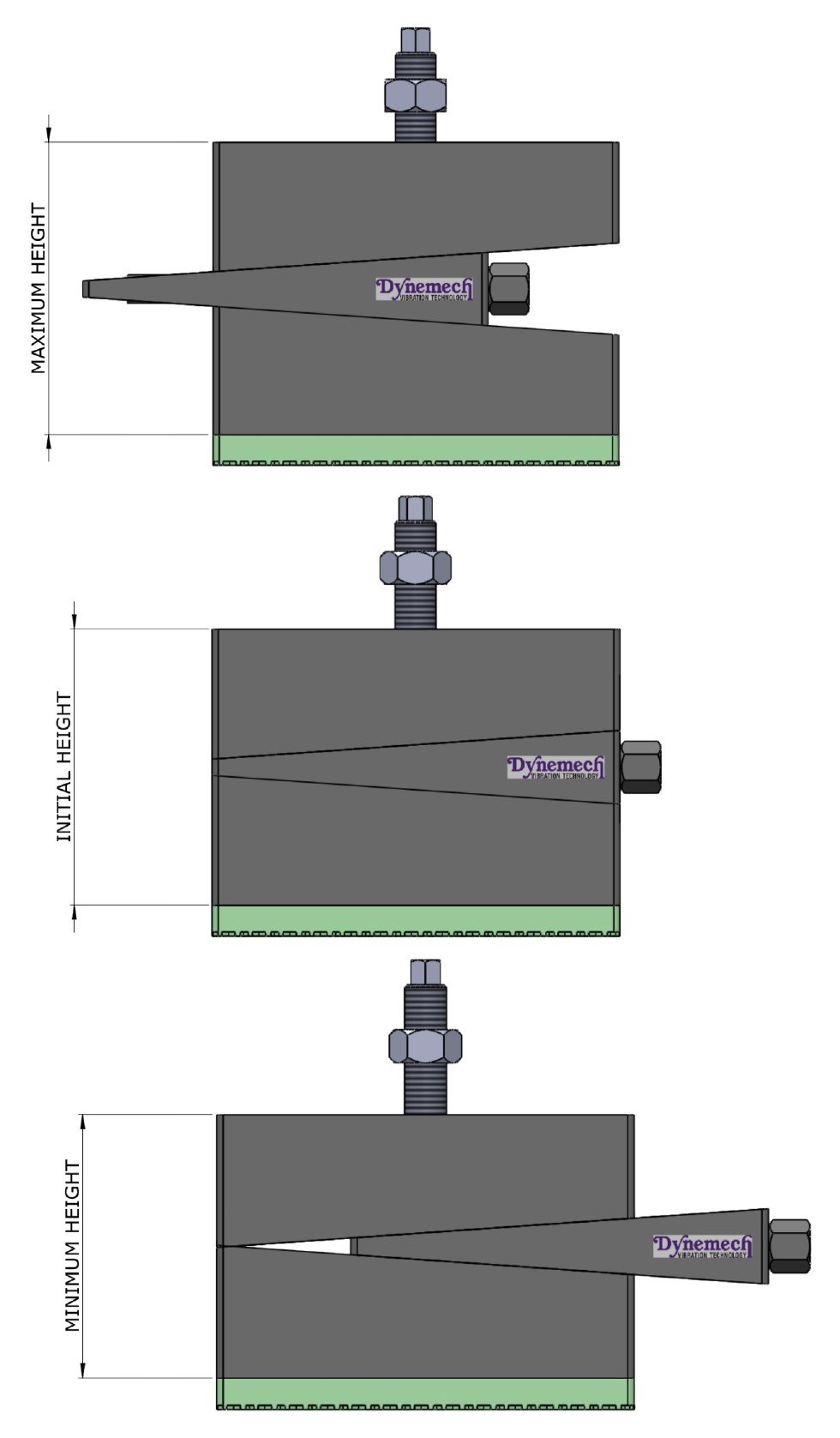

Adjustment Configuration

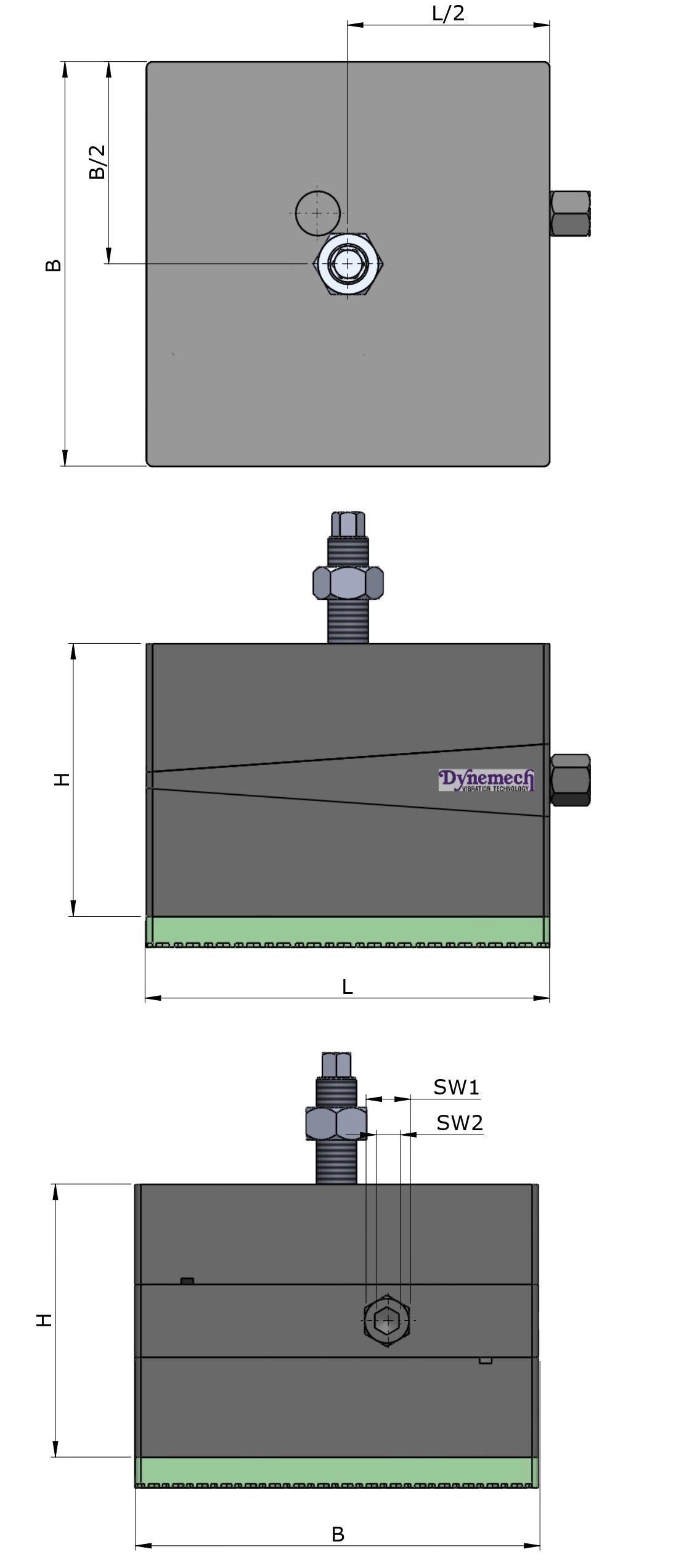

Dimensional Details

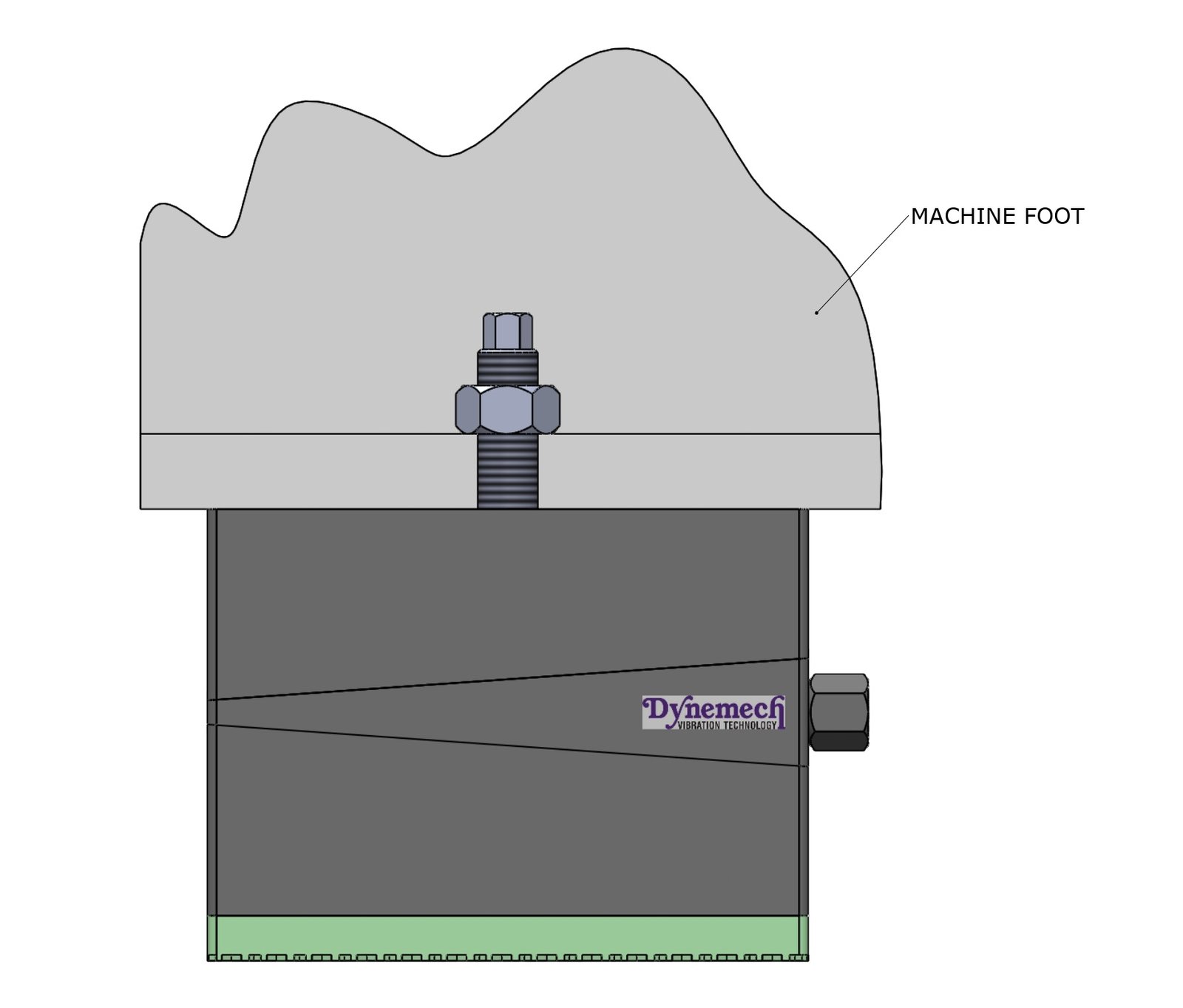

Installation 01

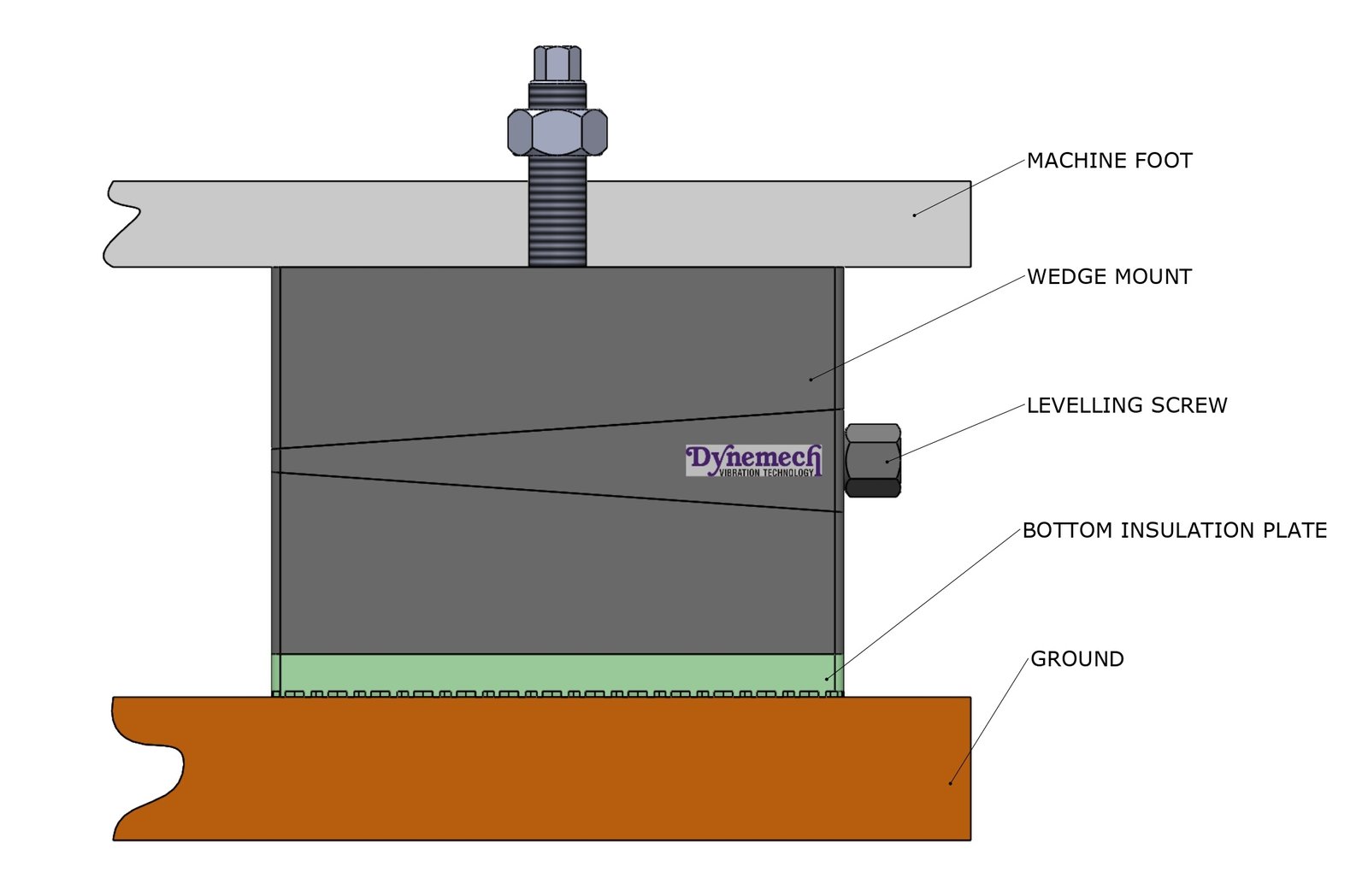

Installation 02
Description
Application:
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Technical Data
Load Capacity Kg/pc
12000
Length (L) mm
300
Width (B) mm
400
Height (H) at mean position (mm)
150
Adjustment Range (mm)
+10/-10
Bottom pad Type
Dm
d (mm)
150
Bottom pad Thickness (mm)
15
BOLT SIZE (mm)
M16/18/20/22/24
SW1 (mm)
32
SW2 (mm)
18
Coeff. of Friction against Concrete
0.7
Natural Frequency at Max. Load (Hz)
30
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
