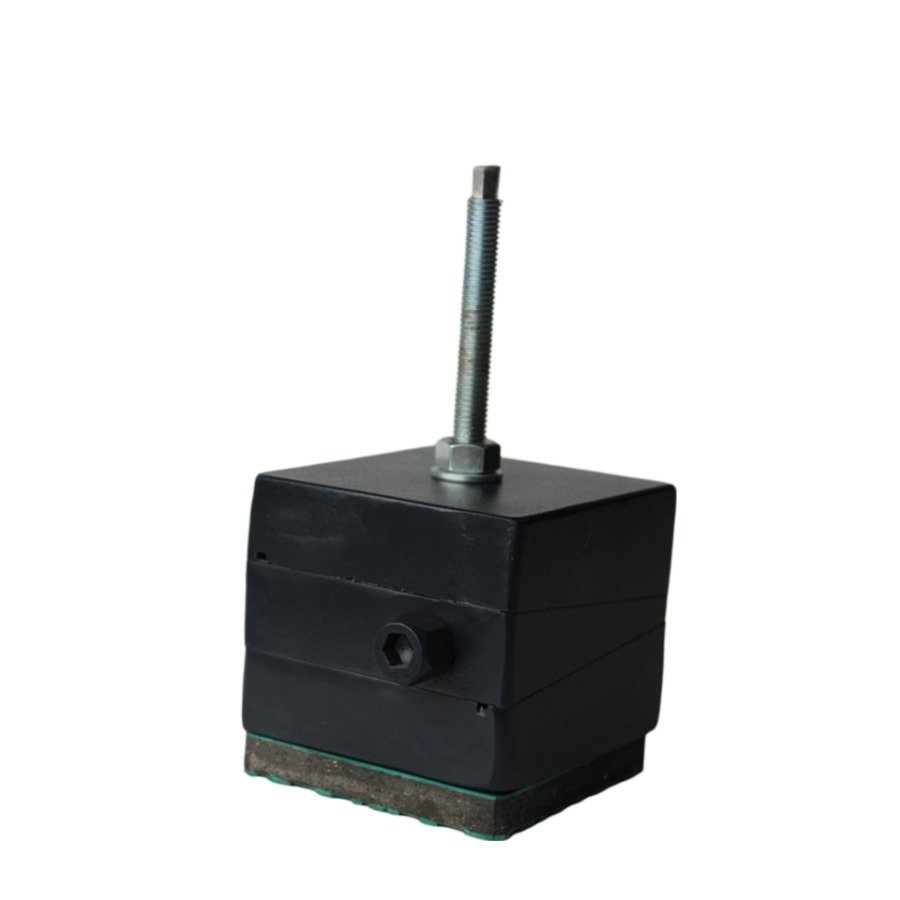

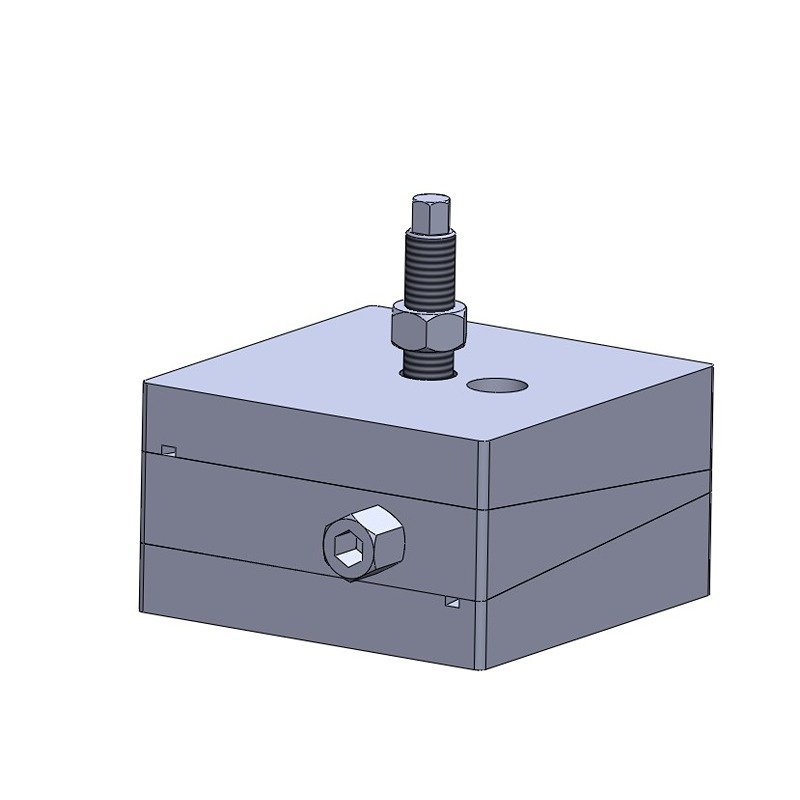

DBOP-150
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
DBOP-u-150
Product
DBOP-u-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-u-150-FG-S-Z-GR | 1100 | 115 | 115 | 150 | +4/-4 | Du | 15 | 19 | 10 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-u-150-FG-S-Z-GR | 1800 | 150 | 150 | 150 | +5/-5 | Du | 15 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-u-150-FG-S-Z-GR | 3200 | 200 | 200 | 150 | +6/-6 | Du | 15 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-u-150-FG-S-Z-GR | 4000 | 200 | 250 | 150 | +9/-9 | Du | 15 | 27 | 14 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-u-150-FG-S-Z-GR | 6400 | 250 | 320 | 150 | +9/-9 | Du | 15 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-u-150-FG-S-Z-GR | 9600 | 300 | 400 | 150 | +10/-10 | Du | 15 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-u-150-FG-S-Z-GR | 16000 | 400 | 500 | 150 | +10/-10 | Du | 15 | 39 | 22 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |
DBOP-u-10-150
Product
DBOP-u-10-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-u-10-145-FG-S-Z-GR | 1100 | 115 | 115 | 145 | +4/-4 | Du-10 | 10 | 19 | 10 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-u-10-145-FG-S-Z-GR | 1800 | 150 | 150 | 145 | +5/-5 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-u-10-145-FG-S-Z-GR | 3200 | 200 | 200 | 145 | +6/-6 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-u-10-145-FG-S-Z-GR | 4000 | 200 | 250 | 145 | +9/-9 | Du-10 | 10 | 27 | 14 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-u-10-145-FG-S-Z-GR | 6400 | 250 | 320 | 145 | +9/-9 | Du-10 | 10 | 32 | 18 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-u-10-145-FG-S-Z-GR | 9600 | 300 | 400 | 145 | +10/-10 | Du-10 | 10 | 32 | 18 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-u-10-145-FG-S-Z-GR | 16000 | 400 | 500 | 145 | +10/-10 | Du-10 | 10 | 39 | 22 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |
DBOP-u-12-150
Product
DBOP-u-12-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-u-12-147-FG-S-Z-GR | 1100 | 115 | 115 | 147 | +4/-4 | Du-12 | 12 | 19 | 10 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-u-12-147-FG-S-Z-GR | 1800 | 150 | 150 | 147 | +5/-5 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-u-12-147-FG-S-Z-GR | 3200 | 200 | 200 | 147 | +6/-6 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-u-12-147-FG-S-Z-GR | 4000 | 200 | 250 | 147 | +9/-9 | Du-12 | 12 | 27 | 14 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-u-12-147-FG-S-Z-GR | 6400 | 250 | 320 | 147 | +9/-9 | Du-12 | 12 | 32 | 18 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-u-12-147-FG-S-Z-GR | 9600 | 300 | 400 | 147 | +10/-10 | Du-12 | 12 | 32 | 18 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-u-12-147-FG-S-Z-GR | 16000 | 400 | 500 | 147 | +10/-10 | Du-12 | 12 | 39 | 22 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |
DBOP-m-150
Product
DBOP-m-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-m-150-FG-S-Z-GR | 1400 | 115 | 115 | 150 | +4/-4 | Dm | 15 | 19 | 10 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-m-150-FG-S-Z-GR | 2200 | 150 | 150 | 150 | +5/-5 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-m-150-FG-S-Z-GR | 4000 | 200 | 200 | 150 | +6/-6 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-m-150-FG-S-Z-GR | 5000 | 200 | 250 | 150 | +9/-9 | Dm | 15 | 27 | 14 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-m-150-FG-S-Z-GR | 8000 | 250 | 320 | 150 | +9/-9 | Dm | 15 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-m-150-FG-S-Z-GR | 12000 | 300 | 400 | 150 | +10/-10 | Dm | 15 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-m-150-FG-S-Z-GR | 20000 | 400 | 500 | 150 | +10/-10 | Dm | 15 | 39 | 22 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |

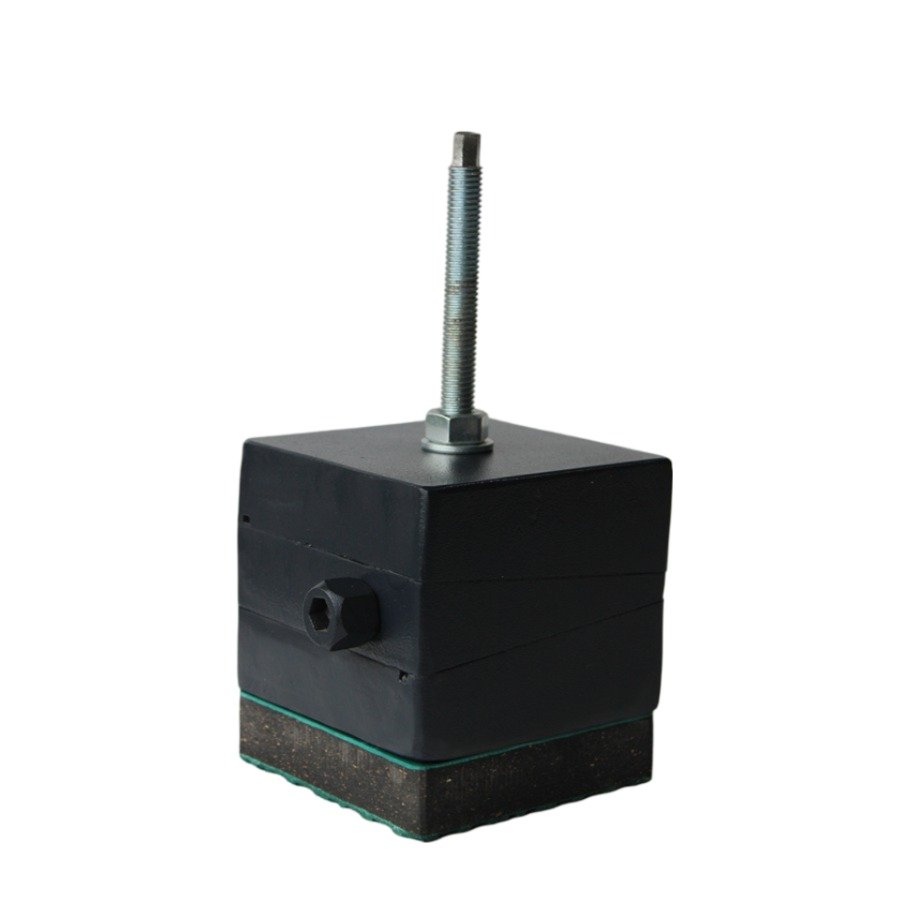

DBOP-i-150
Product
DBOP-i-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-i-160-FG-S-Z-GR | 1800 | 115 | 115 | 160 | +4/-4 | Di | 25 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-i-160-FG-S-Z-GR | 2900 | 150 | 150 | 160 | +5/-5 | Di | 25 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-i-160-FG-S-Z-GR | 5200 | 200 | 200 | 160 | +6/-6 | Di | 25 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-i-160-FG-S-Z-GR | 6500 | 200 | 250 | 160 | +9/-9 | Di | 25 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-i-160-FG-S-Z-GR | 10000 | 250 | 320 | 160 | +9/-9 | Di | 25 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-i-160-FG-S-Z-GR | 15000 | 300 | 400 | 160 | +10/-10 | Di | 25 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-i-160-FG-S-Z-GR | 26000 | 400 | 500 | 160 | +10/-10 | Di | 25 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |
DBOP-p1-150
Product
DBOP-p1-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-p1-150-FG-S-Z-GR | 530 | 115 | 115 | 150 | +4/-4 | Dp1 | 15 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-p1-150-FG-S-Z-GR | 900 | 150 | 150 | 150 | +5/-5 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-p1-150-FG-S-Z-GR | 1600 | 200 | 200 | 150 | +6/-6 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-p1-150-FG-S-Z-GR | 2000 | 200 | 250 | 150 | +9/-9 | Dp1 | 15 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-p1-150-FG-S-Z-GR | 3200 | 250 | 320 | 150 | +9/-9 | Dp1 | 15 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-p1-150-FG-S-Z-GR | 4800 | 300 | 400 | 150 | +10/-10 | Dp1 | 15 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-p1-150-FG-S-Z-GR | 8000 | 400 | 500 | 150 | +10/-10 | Dp1 | 15 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |

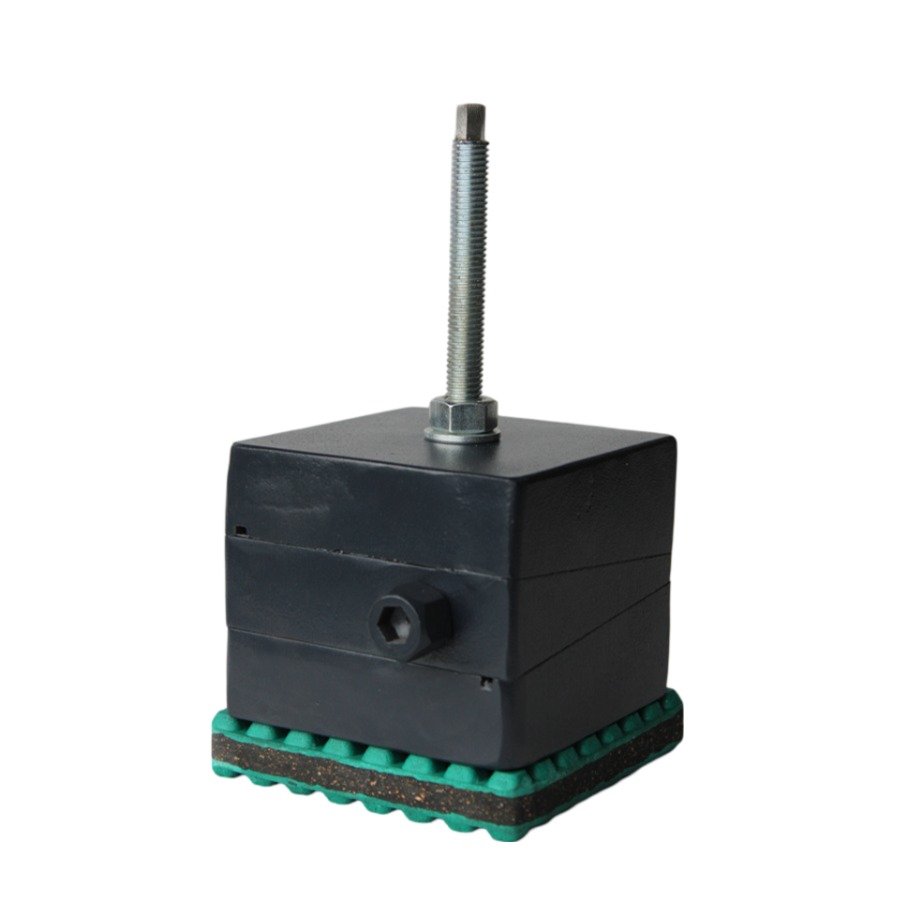

DBOP-p2-150
Product
DBOP-p2-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-p2-155-FG-S-Z-GR | 660 | 115 | 115 | 155 | +4/-4 | Dp2 | 20 | 19 | 10 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-p2-155-FG-S-Z-GR | 1130 | 150 | 150 | 155 | +5/-5 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-p2-155-FG-S-Z-GR | 2000 | 200 | 200 | 155 | +6/-6 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-p2-155-FG-S-Z-GR | 2500 | 200 | 250 | 155 | +9/-9 | Dp2 | 20 | 27 | 14 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-p2-155-FG-S-Z-GR | 4000 | 250 | 320 | 155 | +9/-9 | Dp2 | 20 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-p2-155-FG-S-Z-GR | 6000 | 300 | 400 | 155 | +10/-10 | Dp2 | 20 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-p2-155-FG-S-Z-GR | 10000 | 400 | 500 | 155 | +10/-10 | Dp2 | 20 | 39 | 22 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |

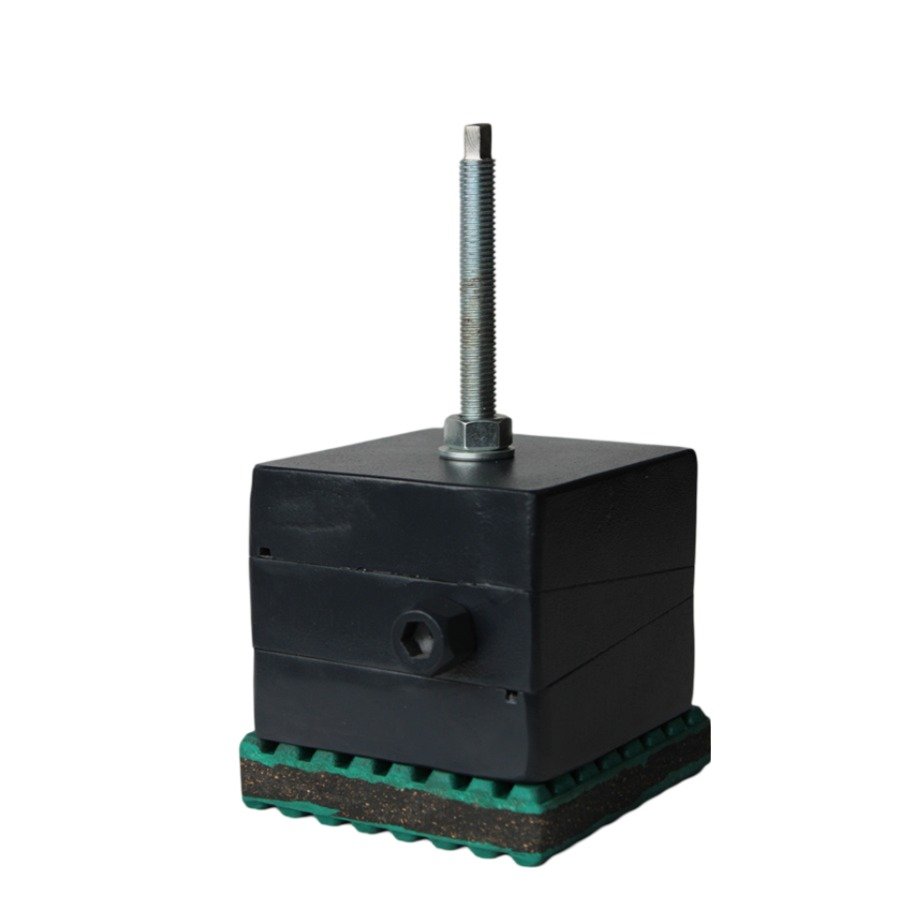

DBOP-p3-150
Product
DBOP-p3-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Tool Room Machines on suspended Floors, Light Weight Presses, Compressors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-p3-159-FG-S-Z-GR | 790 | 115 | 115 | 159 | +4/-4 | Dp3 | 24 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-p3-159-FG-S-Z-GR | 1350 | 150 | 150 | 159 | +5/-5 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-p3-159-FG-S-Z-GR | 2400 | 200 | 200 | 159 | +6/-6 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-p3-159-FG-S-Z-GR | 3000 | 200 | 250 | 159 | +9/-9 | Dp3 | 24 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-p3-159-FG-S-Z-GR | 4800 | 250 | 320 | 159 | +9/-9 | Dp3 | 24 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-p3-159-FG-S-Z-GR | 7200 | 300 | 400 | 159 | +10/-10 | Dp3 | 24 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-p3-159-FG-S-Z-GR | 12000 | 400 | 500 | 159 | +10/-10 | Dp3 | 24 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |

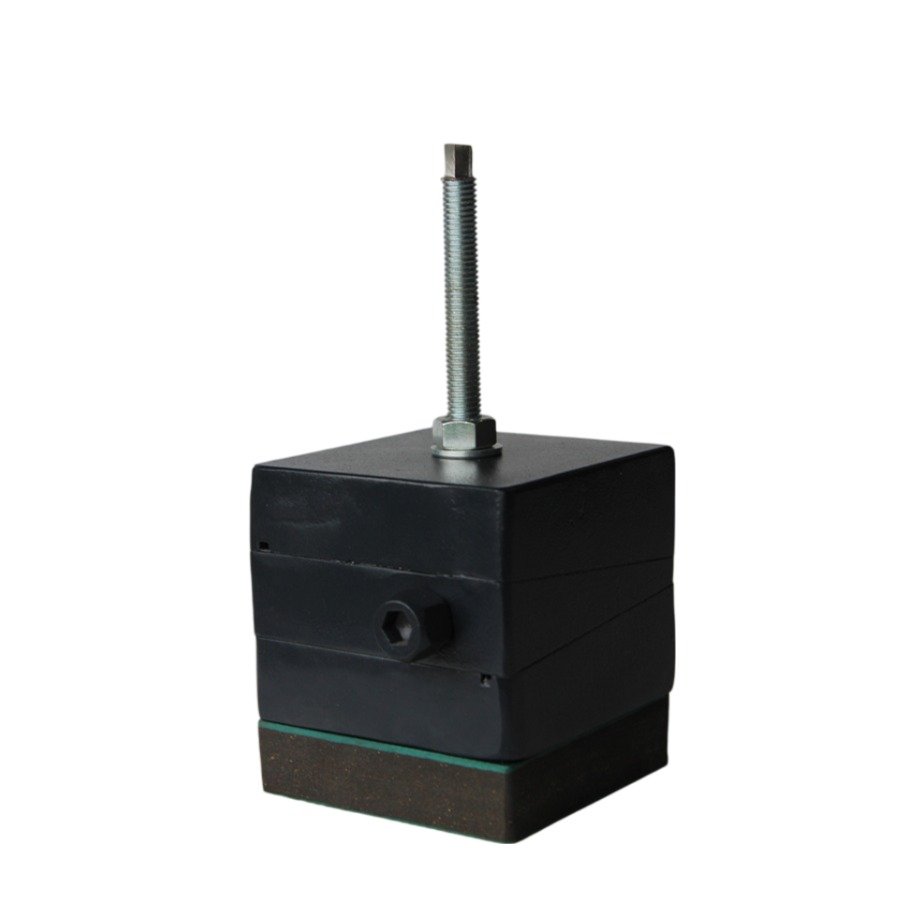

DBOP-s1-150
Product
DBOP-s1-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-s1-155-FG-S-Z-GR | 660 | 115 | 115 | 155 | +4/-4 | Ds1 | 20 | 19 | 10 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-s1-155-FG-S-Z-GR | 1130 | 150 | 150 | 155 | +5/-5 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-s1-155-FG-S-Z-GR | 2000 | 200 | 200 | 155 | +6/-6 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-s1-155-FG-S-Z-GR | 2500 | 200 | 250 | 155 | +9/-9 | Ds1 | 20 | 27 | 14 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-s1-155-FG-S-Z-GR | 4000 | 250 | 320 | 155 | +9/-9 | Ds1 | 20 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-s1-155-FG-S-Z-GR | 6000 | 300 | 400 | 155 | +10/-10 | Ds1 | 20 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-s1-155-FG-S-Z-GR | 10000 | 400 | 500 | 155 | +10/-10 | Ds1 | 20 | 39 | 22 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |

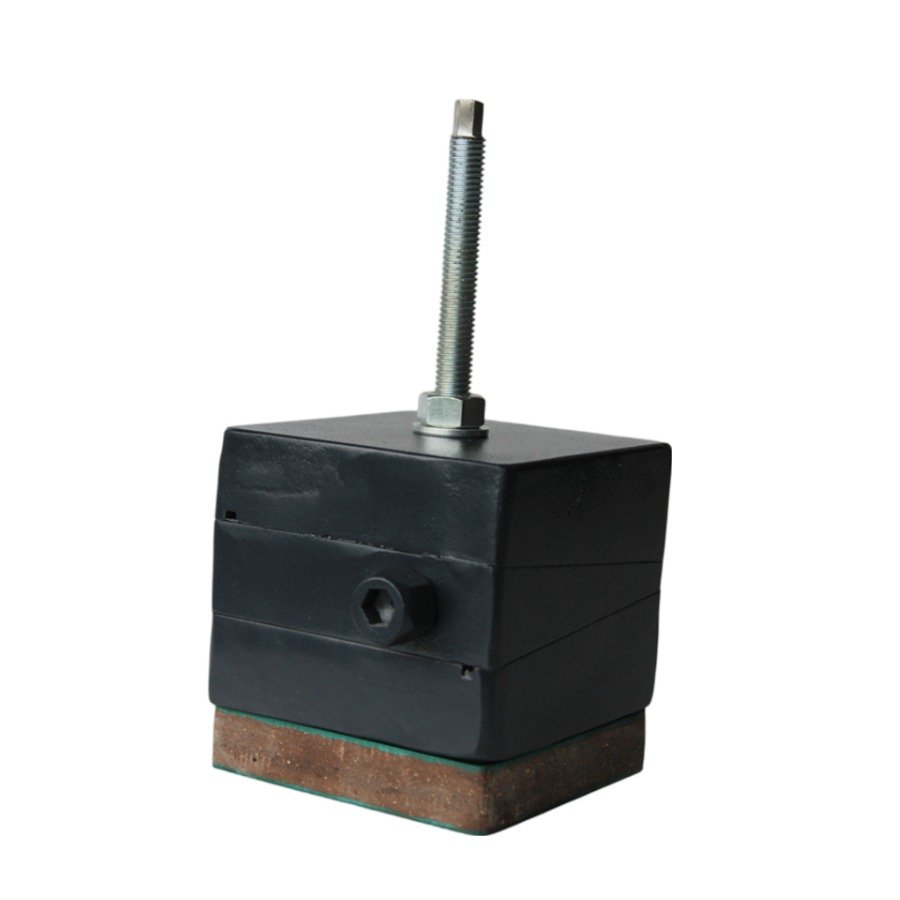

DBOP-s2-150
Product
DBOP-s2-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-s2-160-FG-S-Z-GR | 950 | 115 | 115 | 160 | +4/-4 | Ds2 | 25 | 19 | 10 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-s2-160-FG-S-Z-GR | 1600 | 150 | 150 | 160 | +5/-5 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-s2-160-FG-S-Z-GR | 2800 | 200 | 200 | 160 | +6/-6 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-s2-160-FG-S-Z-GR | 3500 | 200 | 250 | 160 | +9/-9 | Ds2 | 25 | 27 | 14 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-s2-160-FG-S-Z-GR | 5500 | 250 | 320 | 160 | +9/-9 | Ds2 | 25 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-s2-160-FG-S-Z-GR | 8500 | 300 | 400 | 160 | +10/-10 | Ds2 | 25 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-s2-160-FG-S-Z-GR | 14000 | 400 | 500 | 160 | +10/-10 | Ds2 | 25 | 39 | 22 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |
DBOP-hs1-150
Product
DBOP-hs1-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-hs1-200-FG-S-Z-GR | 2650 | 115 | 115 | 200 | +4/-4 | Dhs1 | 65 | 19 | 10 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-hs1-200-FG-S-Z-GR | 4500 | 150 | 150 | 200 | +5/-5 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-hs1-200-FG-S-Z-GR | 8000 | 200 | 200 | 200 | +6/-6 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-hs1-200-FG-S-Z-GR | 14000 | 200 | 250 | 200 | +9/-9 | Dhs1 | 65 | 27 | 14 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-hs1-200-FG-S-Z-GR | 16000 | 250 | 320 | 200 | +9/-9 | Dhs1 | 65 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-hs1-200-FG-S-Z-GR | 24000 | 300 | 400 | 200 | +10/-10 | Dhs1 | 65 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-hs1-200-FG-S-Z-GR | 40000 | 400 | 500 | 200 | +10/-10 | Dhs1 | 65 | 39 | 22 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |
DBOP-hs2-150
Product
DBOP-hs2-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-hs2-200-FG-S-Z-GR | 1060 | 115 | 115 | 200 | +4/-4 | Dhs2 | 65 | 19 | 10 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-hs2-200-FG-S-Z-GR | 1800 | 150 | 150 | 200 | +5/-5 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-hs2-200-FG-S-Z-GR | 3200 | 200 | 200 | 200 | +6/-6 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-hs2-200-FG-S-Z-GR | 4000 | 200 | 250 | 200 | +9/-9 | Dhs2 | 65 | 27 | 14 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-hs2-200-FG-S-Z-GR | 6400 | 250 | 320 | 200 | +9/-9 | Dhs2 | 65 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-hs2-200-FG-S-Z-GR | 9600 | 300 | 400 | 200 | +10/-10 | Dhs2 | 65 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-hs2-200-FG-S-Z-GR | 16000 | 400 | 500 | 200 | +10/-10 | Dhs2 | 65 | 39 | 22 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |
DBOP-hs3-150
Product
DBOP-hs3-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-hs3-185-FG-S-Z-GR | 3700 | 115 | 115 | 185 | +4/-4 | Dhs3 | 50 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-hs3-185-FG-S-Z-GR | 6300 | 150 | 150 | 185 | +5/-5 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-hs3-185-FG-S-Z-GR | 11200 | 200 | 200 | 185 | +6/-6 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-hs3-185-FG-S-Z-GR | 14000 | 200 | 250 | 185 | +9/-9 | Dhs3 | 50 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-hs3-185-FG-S-Z-GR | 22400 | 250 | 320 | 185 | +9/-9 | Dhs3 | 50 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-hs3-185-FG-S-Z-GR | 33600 | 300 | 400 | 185 | +10/-10 | Dhs3 | 50 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-hs3-185-FG-S-Z-GR | 56000 | 400 | 500 | 185 | +10/-10 | Dhs3 | 50 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |

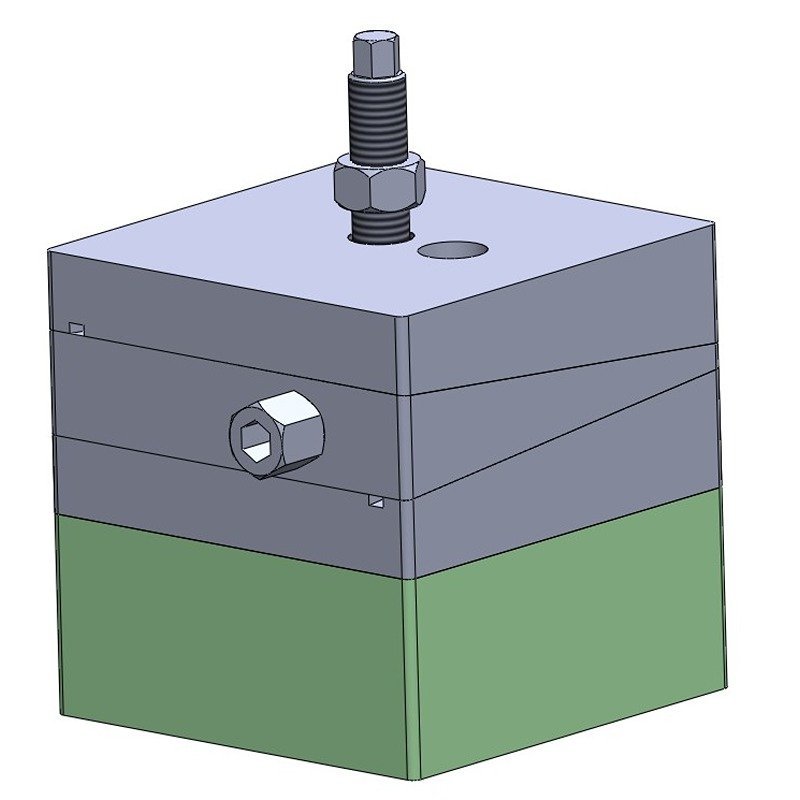

DBOP-hs4-150
Product
DBOP-hs4-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-hs4-185-FG-S-Z-GR | 1590 | 115 | 115 | 185 | +4/-4 | Dhs4 | 50 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-hs4-185-FG-S-Z-GR | 2700 | 150 | 150 | 185 | +5/-5 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-hs4-185-FG-S-Z-GR | 4800 | 200 | 200 | 185 | +6/-6 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-hs4-185-FG-S-Z-GR | 6000 | 200 | 250 | 185 | +9/-9 | Dhs4 | 50 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-hs4-185-FG-S-Z-GR | 9600 | 250 | 320 | 185 | +9/-9 | Dhs4 | 50 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-hs4-185-FG-S-Z-GR | 14000 | 300 | 400 | 185 | +10/-10 | Dhs4 | 50 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-hs4-185-FG-S-Z-GR | 24000 | 400 | 500 | 185 | +10/-10 | Dhs4 | 50 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |

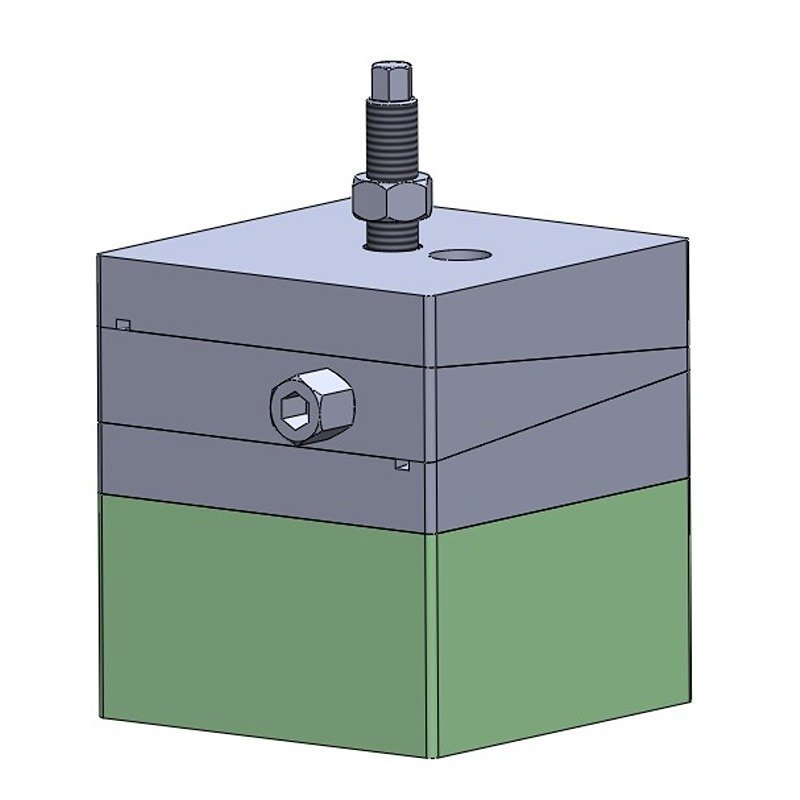

DBOP-hs5-150
Product
DBOP-hs5-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-hs5-215-FG-S-Z-GR | 3700 | 115 | 115 | 215 | +4/-4 | Dhs5 | 80 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-hs5-215-FG-S-Z-GR | 6300 | 150 | 150 | 215 | +5/-5 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-hs5-215-FG-S-Z-GR | 11200 | 200 | 200 | 215 | +6/-6 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-hs5-215-FG-S-Z-GR | 14000 | 200 | 250 | 215 | +9/-9 | Dhs5 | 80 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-hs5-215-FG-S-Z-GR | 22400 | 250 | 320 | 215 | +9/-9 | Dhs5 | 80 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-hs5-215-FG-S-Z-GR | 33600 | 300 | 400 | 215 | +10/-10 | Dhs5 | 80 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-hs5-215-FG-S-Z-GR | 56000 | 400 | 500 | 215 | +10/-10 | Dhs5 | 80 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |
DBOP-h-150
Product

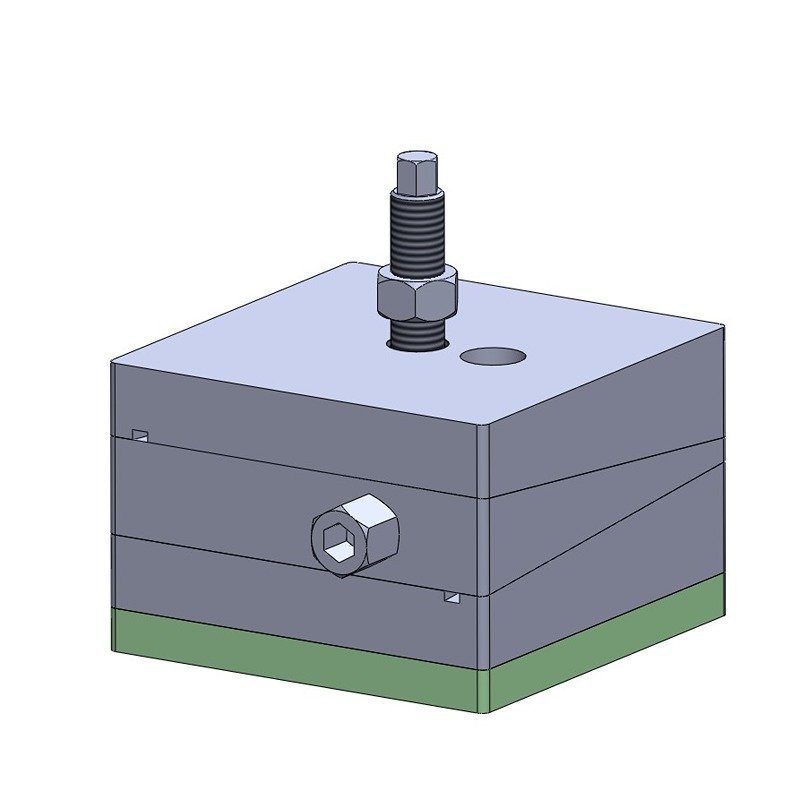

DBOP-h-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-h-150-FG-S-Z-GR | 3970 | 115 | 115 | 150 | +4/-4 | Dh | 15 | 19 | 10 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-h-150-FG-S-Z-GR | 6750 | 150 | 150 | 150 | +5/-5 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-h-150-FG-S-Z-GR | 12000 | 200 | 200 | 150 | +6/-6 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-h-150-FG-S-Z-GR | 15000 | 200 | 250 | 150 | +9/-9 | Dh | 15 | 27 | 14 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-h-150-FG-S-Z-GR | 24000 | 250 | 320 | 150 | +9/-9 | Dh | 15 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-h-150-FG-S-Z-GR | 36000 | 300 | 400 | 150 | +10/-10 | Dh | 15 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-h-150-FG-S-Z-GR | 60000 | 400 | 500 | 150 | +10/-10 | Dh | 15 | 39 | 22 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |
DBOP-a1-150
Product

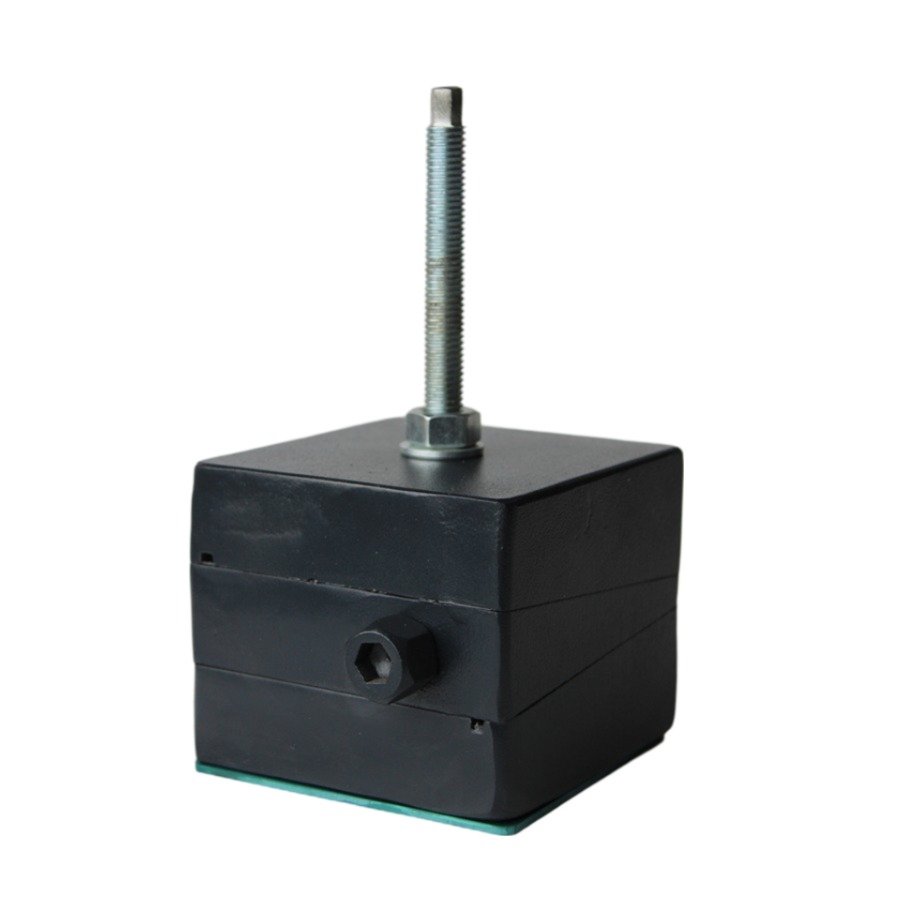

DBOP-a1-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Extrusion Machine, Pressure Die, Casting Machine, Injection Moulding Machines, CNC Turning Machines, VMC Machines, Grinding Machines Etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-a1-137-FG-S-Z-GR | 2380 | 115 | 115 | 137 | +4/-4 | Da1 | 2 | 19 | 10 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-a1-137-FG-S-Z-GR | 4050 | 150 | 150 | 137 | +5/-5 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-a1-137-FG-S-Z-GR | 7200 | 200 | 200 | 137 | +6/-6 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-a1-137-FG-S-Z-GR | 9000 | 200 | 250 | 137 | +9/-9 | Da1 | 2 | 27 | 14 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-a1-137-FG-S-Z-GR | 14400 | 250 | 320 | 137 | +9/-9 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-a1-137-FG-S-Z-GR | 21600 | 300 | 400 | 137 | +10/-10 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-a1-137-FG-S-Z-GR | 36000 | 400 | 500 | 137 | +10/-10 | Da1 | 2 | 39 | 22 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |
DBOP-a2-150
Product

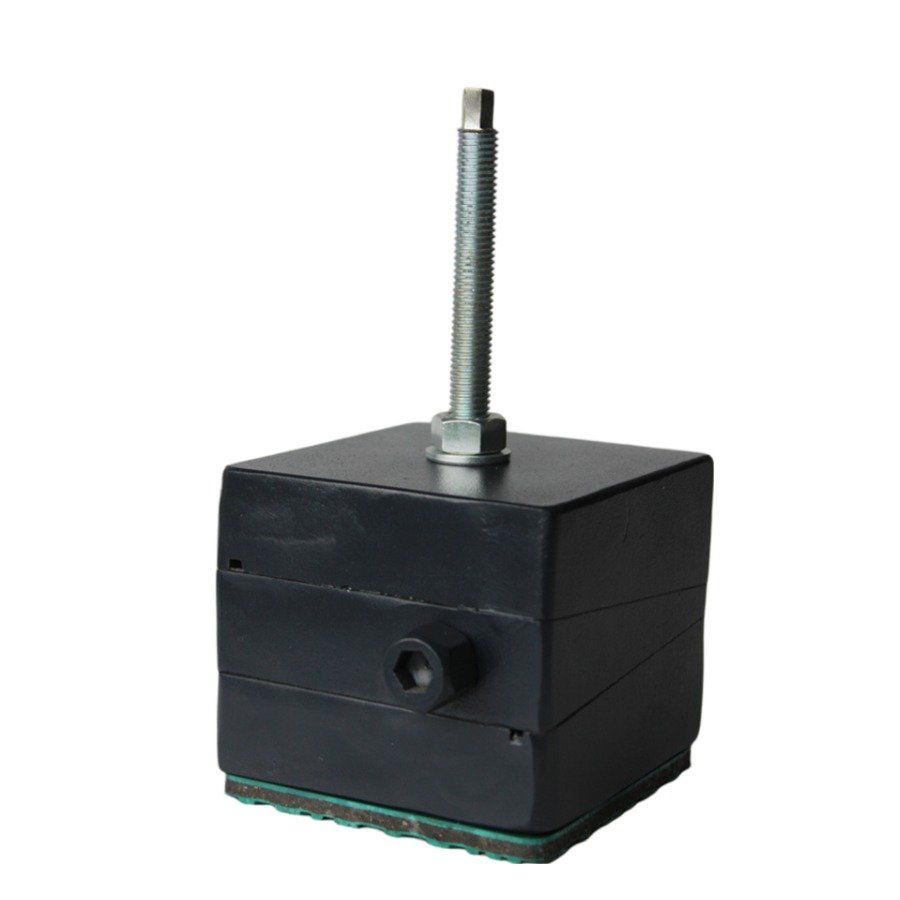

DBOP-a2-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Extrusion Machine, Pressure Die, Casting Machine, Injection Moulding Machines, CNC Turning Machines, VMC Machines, Grinding Machines Etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-a2-143-FG-S-Z-GR | 1320 | 115 | 115 | 143 | +4/-4 | Da2 | 8 | 19 | 10 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-a2-143-FG-S-Z-GR | 2250 | 150 | 150 | 143 | +5/-5 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-a2-143-FG-S-Z-GR | 4000 | 200 | 200 | 143 | +6/-6 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-a2-143-FG-S-Z-GR | 6500 | 200 | 250 | 143 | +9/-9 | Da2 | 8 | 27 | 14 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-a2-143-FG-S-Z-GR | 8000 | 250 | 320 | 143 | +9/-9 | Da2 | 8 | 32 | 18 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-a2-143-FG-S-Z-GR | 12000 | 300 | 400 | 143 | +10/-10 | Da2 | 8 | 32 | 18 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-a2-143-FG-S-Z-GR | 20000 | 400 | 500 | 143 | +10/-10 | Da2 | 8 | 39 | 22 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |
DBOP-150
Product
DBOP-150
Description
Dynemech Wedge mounts, Series DBOP-150 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
For levelling of all Precicion Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBOP1-135-FG-S-Z-GR | 3600 | 115 | 115 | 135 | +4/-4 | X | X | 19 | 10 | X | X | From -16 to 90 | Dark Grey/Green | 57.5 | M16/18/20/22/24 |
| DBOP2-135-FG-S-Z-GR | 3800 | 150 | 150 | 135 | +5/-5 | X | X | 22 | 12 | X | X | From -16 to 90 | Dark Grey/Green | 75 | M16/18/20/22/24 |
| DBOP3-135-FG-S-Z-GR | 10400 | 200 | 200 | 135 | +6/-6 | X | X | 22 | 12 | X | X | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP4-135-FG-S-Z-GR | 13000 | 200 | 250 | 135 | +9/-9 | X | X | 27 | 14 | X | X | From -16 to 90 | Dark Grey/Green | 100 | M16/18/20/22/24 |
| DBOP5-135-FG-S-Z-GR | 20000 | 250 | 320 | 135 | +9/-9 | X | X | 32 | 18 | X | X | From -16 to 90 | Dark Grey/Green | 125 | M16/18/20/22/24 |
| DBOP6-135-FG-S-Z-GR | 30000 | 300 | 400 | 135 | +10/-10 | X | X | 32 | 18 | X | X | From -16 to 90 | Dark Grey/Green | 150 | M16/18/20/22/24 |
| DBOP7-135-FG-S-Z-GR | 40000 | 400 | 500 | 135 | +10/-10 | X | X | 39 | 22 | X | X | From -16 to 90 | Dark Grey/Green | 200 | M16/18/20/22/24 |
