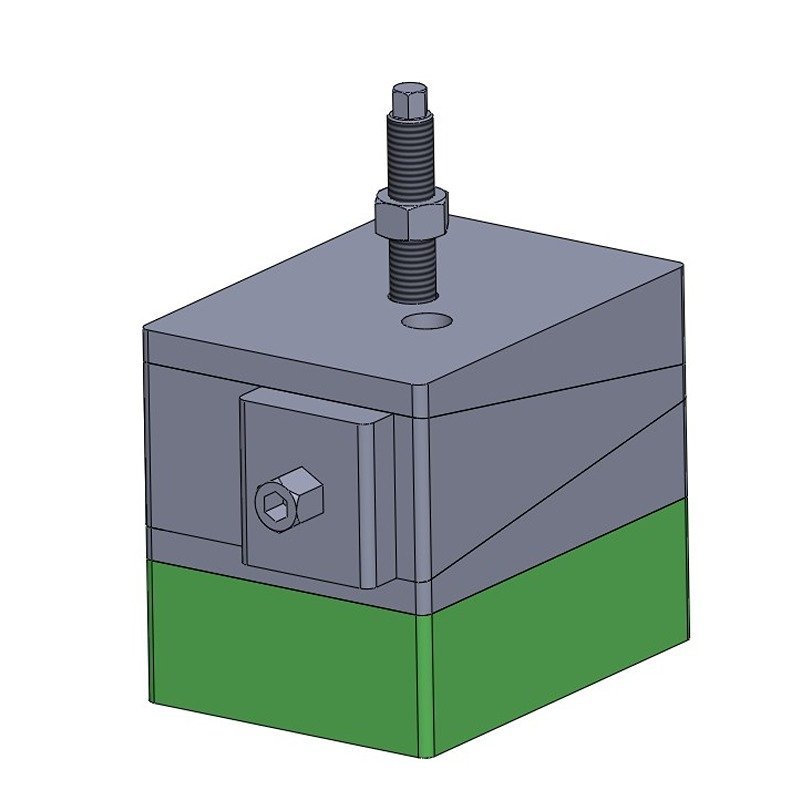

DBHO1-hs1-M20x2.5x200-FG-DG

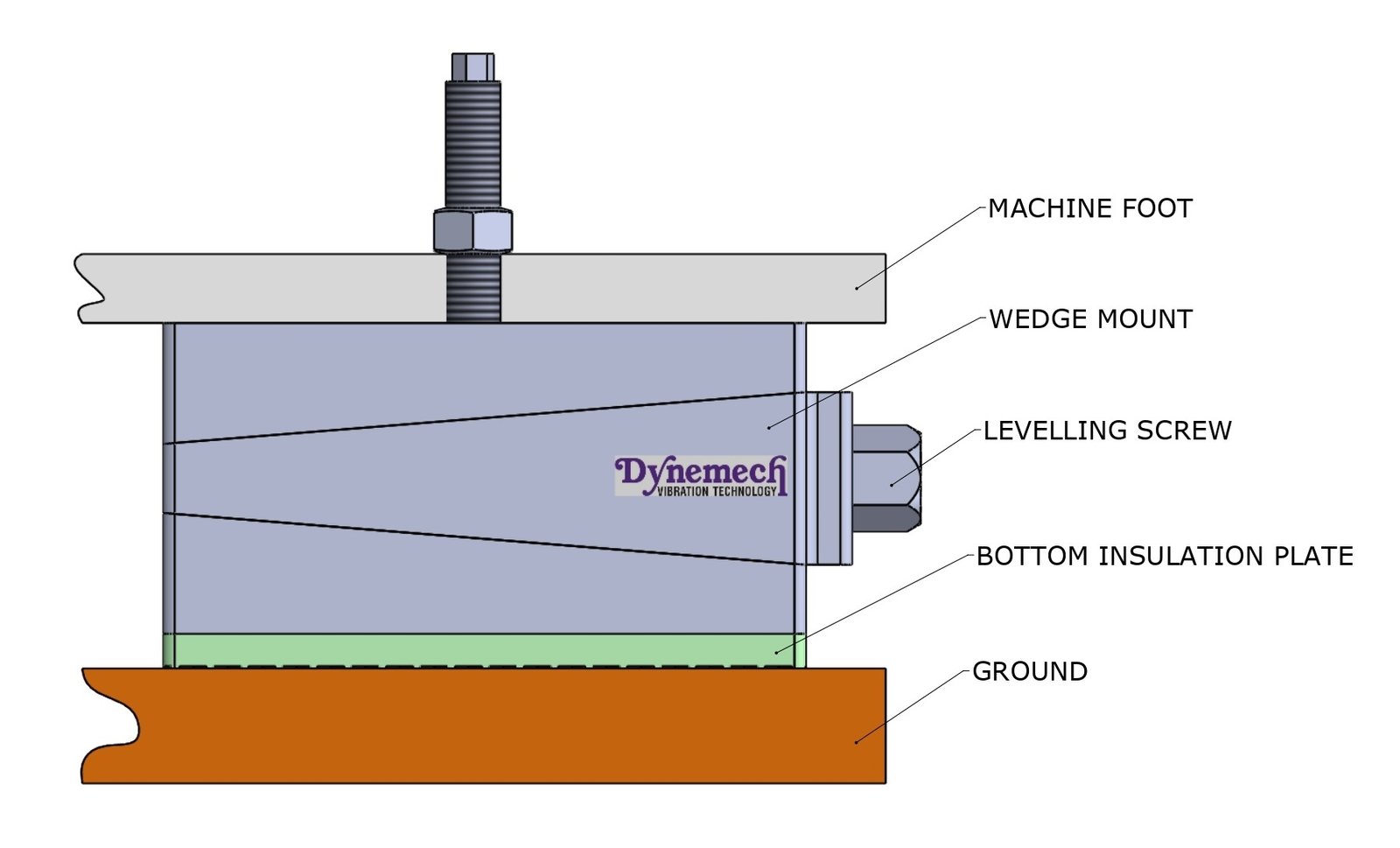

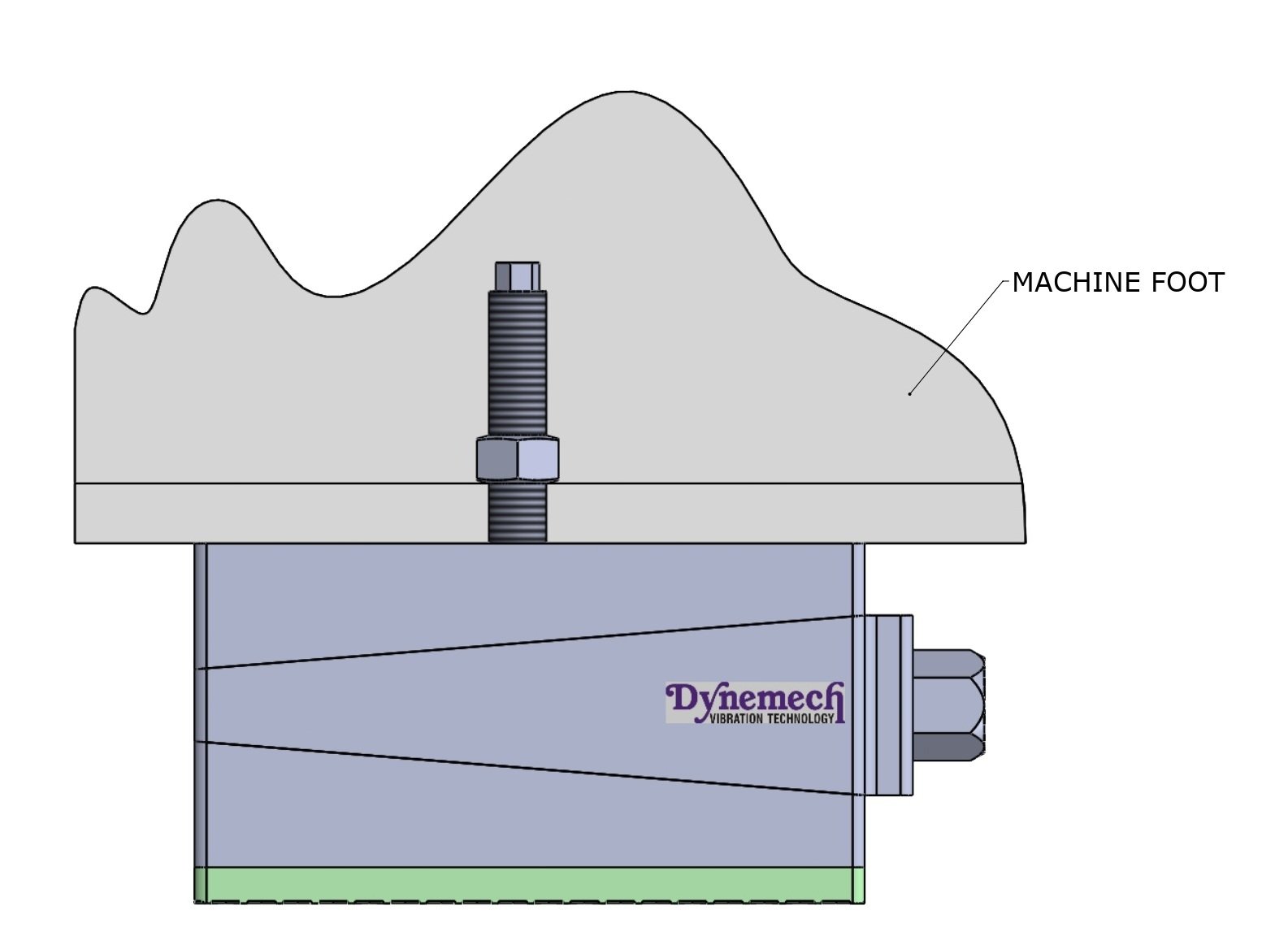

Dynemech Wedge mounts, Series DBHO mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc. |
| Load Capacity (Kg/Pc) | 5000 |

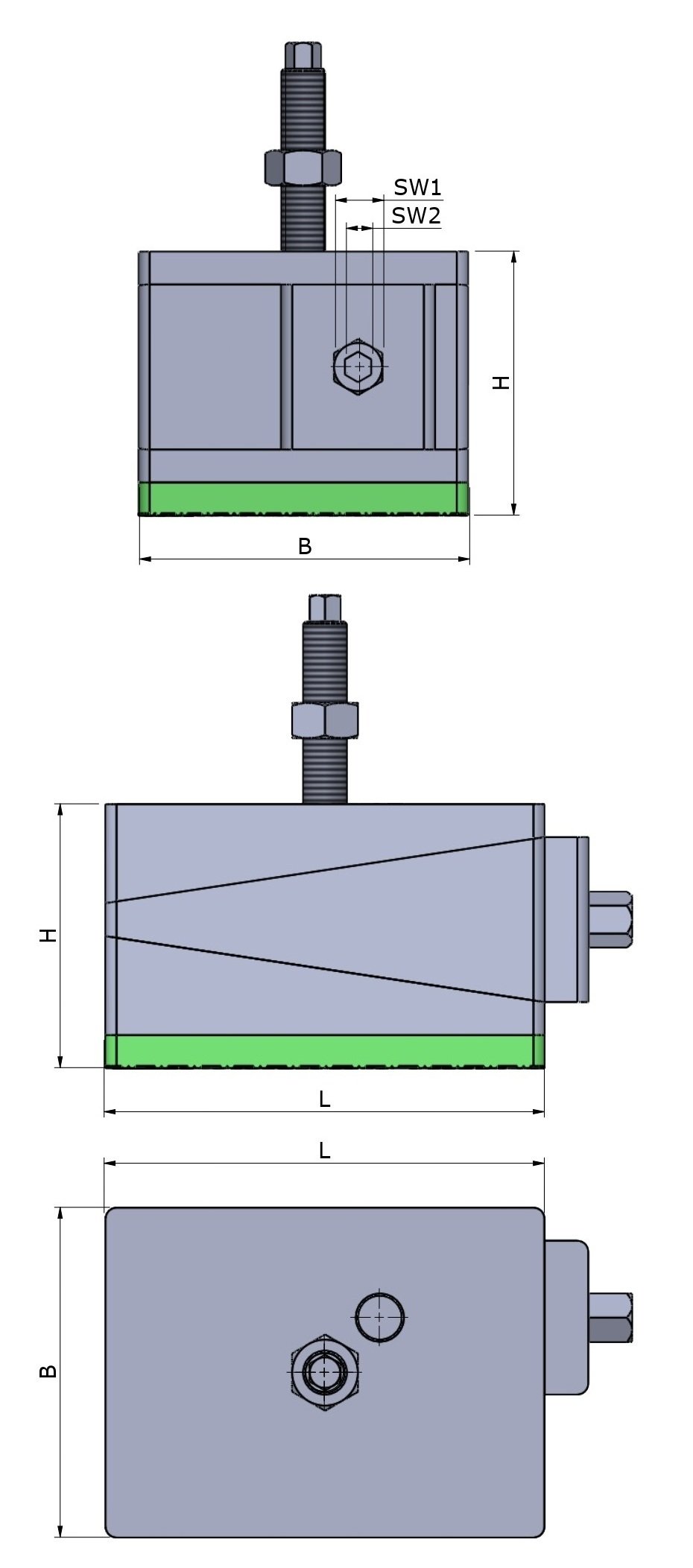

| Length L (Mm) | 200 |
| Width B (Mm) | 125 |
| Height H At Mean Position (Mm) | 138 |

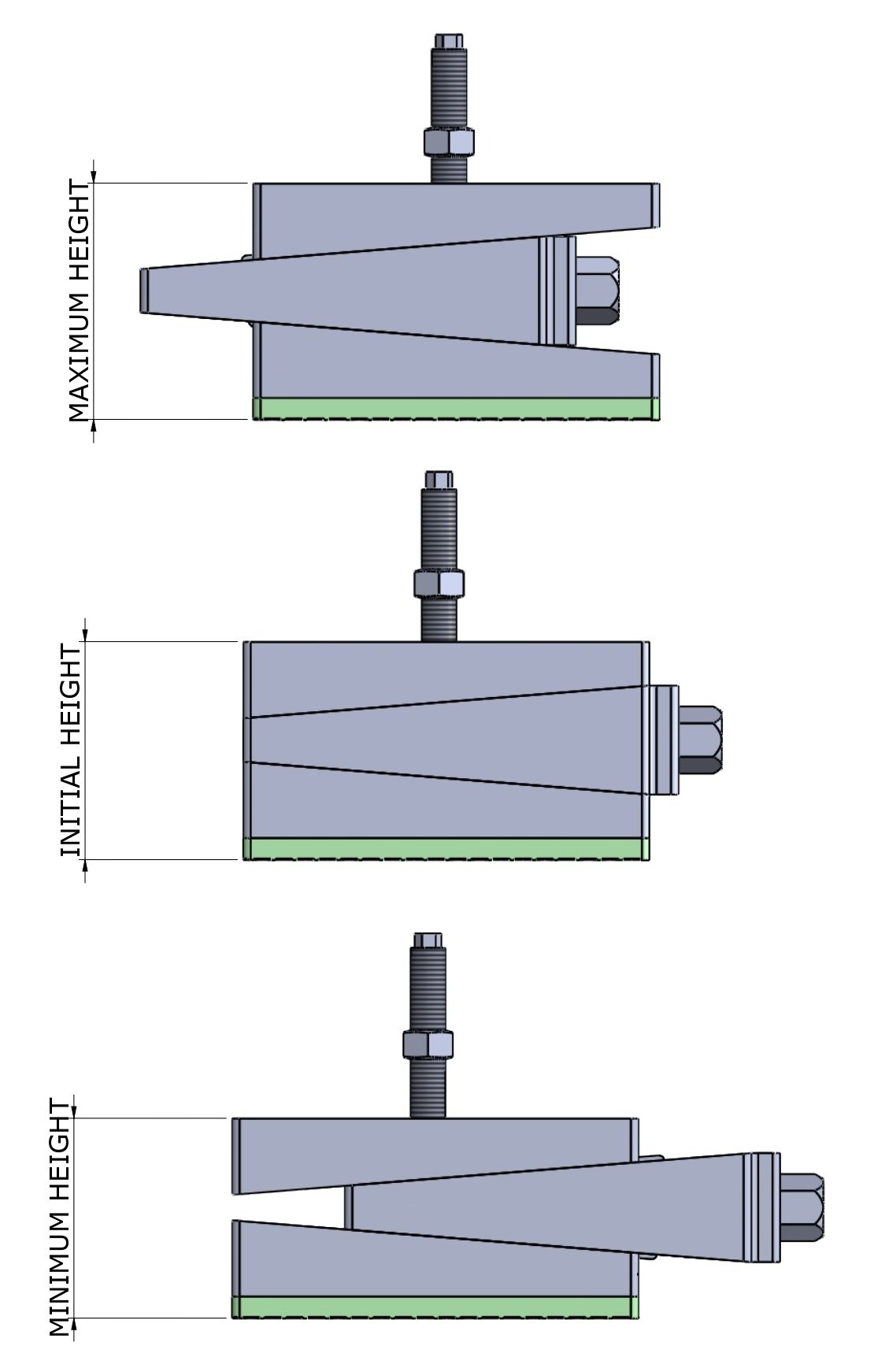

| Adjustment Range (Mm) | +8/-8 |
| Bottom Pad Type | Dhs1 |
| Bottom Pad Thickness (Mm) | 65 |
| Sw1 (Mm) | 22 |
| Sw2 (Mm) | 12 |
| Coeff Of Friction Against Concrete | 0.8 |
| Natural Frequency At Max Load (Hz) | 6 |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
| Bolt Size (Mm) | M20 |
