Dynemech Wedge mounts, Series DBHO mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
DBHO
Description
Catalogue
Series:
DBHO-u
Applications:
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-u-M20x2.5x200-FG-DG | 2250 | 200 | 125 | 88 |
| DBHO2-u-M20x2.5x200-FG-DG | 2700 | 200 | 150 | 120 |
| DBHO3-u-M20x2.5x250-FG-DG | 4200 | 280 | 170 | 150 |
Series:

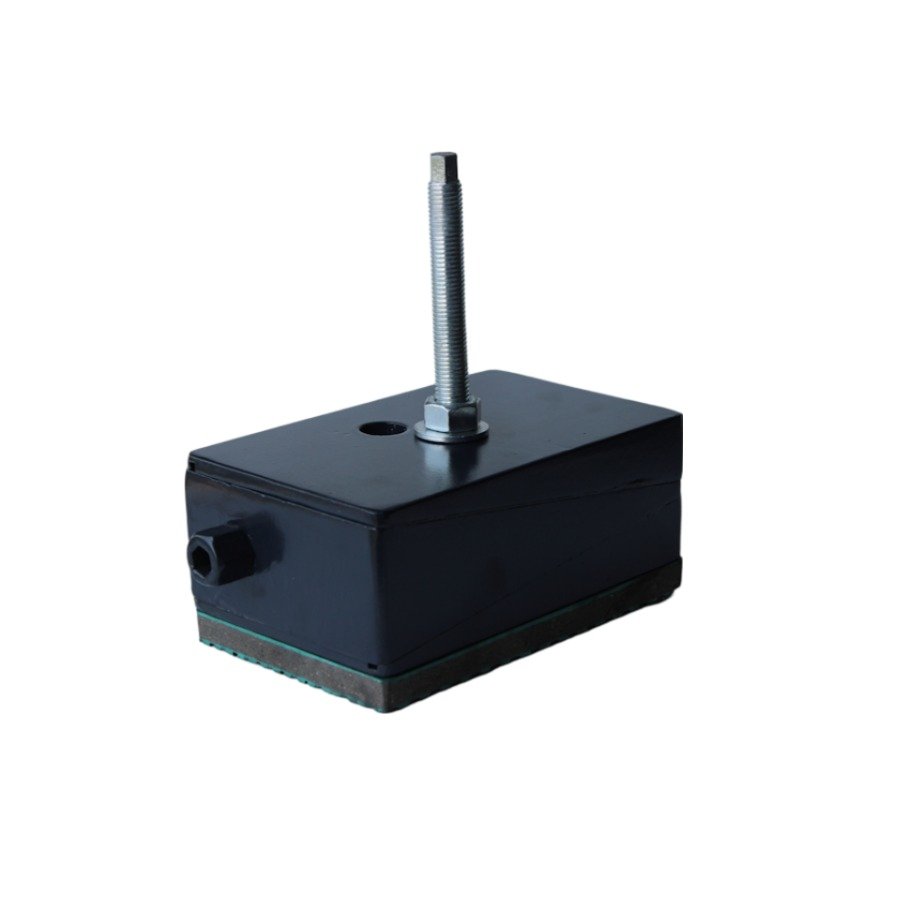

DBHO-u-10
Applications:
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-u-10-M20x2.5x200-FG-DG | 2250 | 200 | 125 | 83 |
| DBHO2-u-10-M20x2.5x200-FG-DG | 2700 | 200 | 150 | 115 |
| DBHO3-u-10-M20x2.5x250-FG-DG | 4200 | 280 | 170 | 145 |
Series:

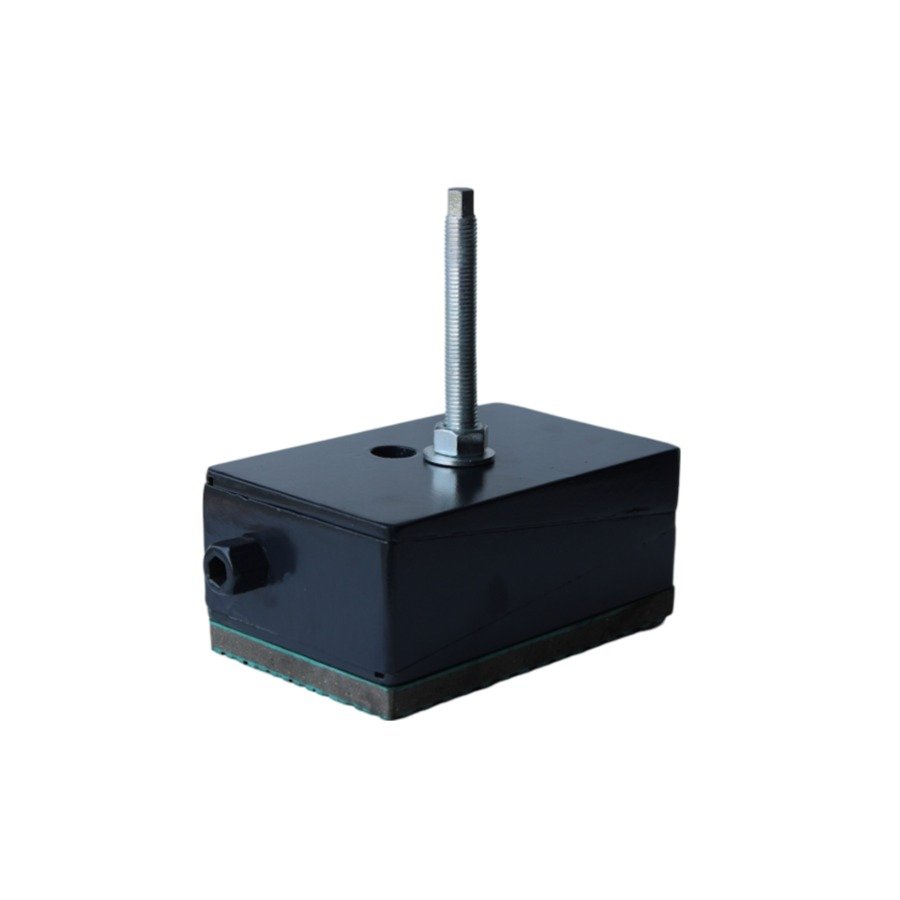

DBHO-u-12
Applications:
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-u-12-M20x2.5x200-FG-DG | 2250 | 200 | 125 | 85 |
| DBHO2-u-12-M20x2.5x200-FG-DG | 2700 | 200 | 150 | 117 |
| DBHO3-u-12-M20x2.5x250-FG-DG | 4200 | 280 | 170 | 147 |
Series:
DBHO-m
Applications:
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-m-M20x2.5x200-FG-DG | 2500 | 200 | 125 | 88 |
| DBHO2-m-M20x2.5x200-FG-DG | 3000 | 200 | 150 | 120 |
| DBHO3-m-M20x2.5x250-FG-DG | 4600 | 280 | 170 | 150 |
Series:

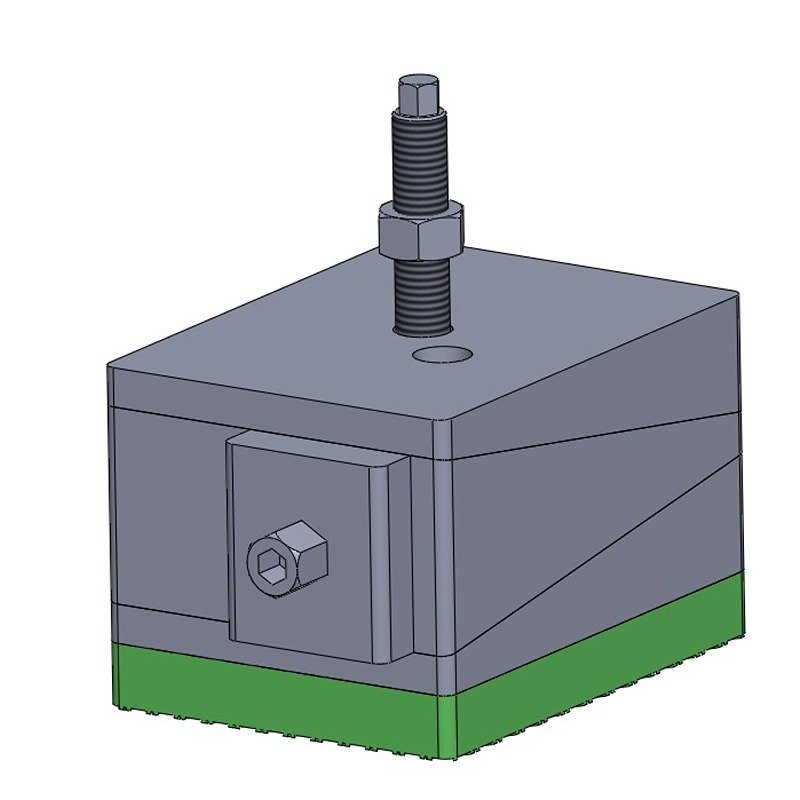

DBHO-i
Applications:
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-i-M20x2.5x200-FG-DG | 3500 | 200 | 125 | 98 |
| DBHO2-i-M20x2.5x200-FG-DG | 4200 | 200 | 150 | 130 |
| DBHO3-i-M20x2.5x250-FG-DG | 6400 | 280 | 170 | 160 |
Series:

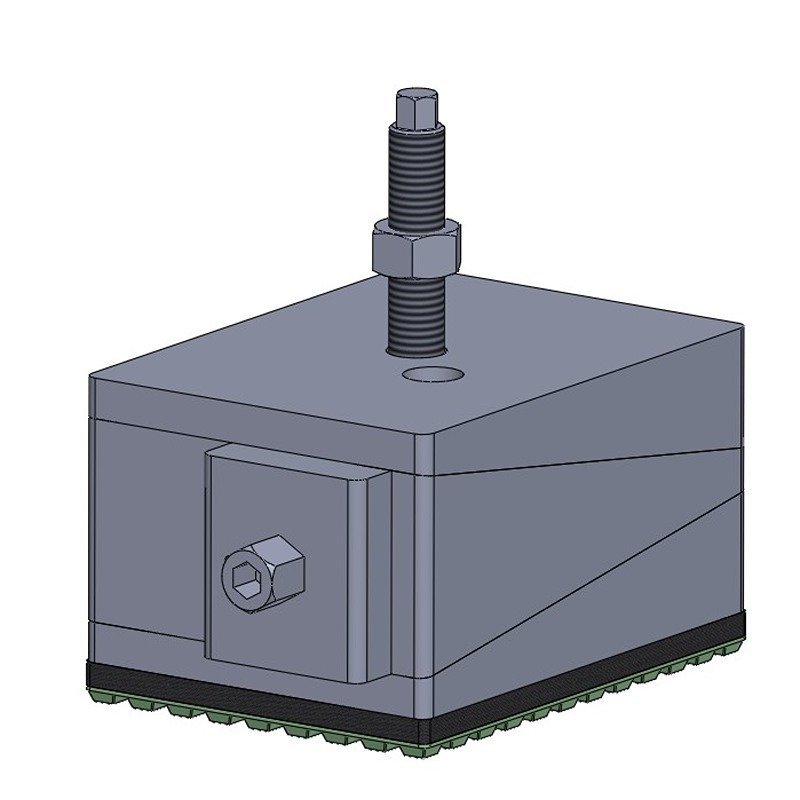

DBHO-p1
Applications:
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-p1-M20x2.5x200-FG-DG | 1000 | 200 | 125 | 88 |
| DBHO2-p1-M20x2.5x200-FG-DG | 1200 | 200 | 150 | 120 |
| DBHO3-p1-M20x2.5x250-FG-DG | 1900 | 280 | 170 | 150 |
Series:
DBHO-p2
Applications:
Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-p2-M20x2.5x200-FG-DG | 1250 | 200 | 125 | 93 |
| DBHO2-p2-M20x2.5x200-FG-DG | 1500 | 200 | 150 | 125 |
| DBHO3-p2-M20x2.5x250-FG-DG | 2380 | 280 | 170 | 155 |
Series:
DBHO-p3
Applications:
Tool Room Machines on suspended Floors, Light Weight Presses, Compressors etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-p3-M20x2.5x200-FG-DG | 1500 | 200 | 125 | 97 |
| DBHO2-p3-M20x2.5x200-FG-DG | 1800 | 200 | 150 | 129 |
| DBHO3-p3-M20x2.5x250-FG-DG | 2860 | 280 | 170 | 159 |
Series:
DBHO-s1
Applications:
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-s1-M20x2.5x200-FG-DG | 1250 | 200 | 125 | 93 |
| DBHO2-s1-M20x2.5x200-FG-DG | 1500 | 200 | 150 | 125 |
| DBHO3-s1-M20x2.5x250-FG-DG | 2380 | 280 | 170 | 155 |
Series:

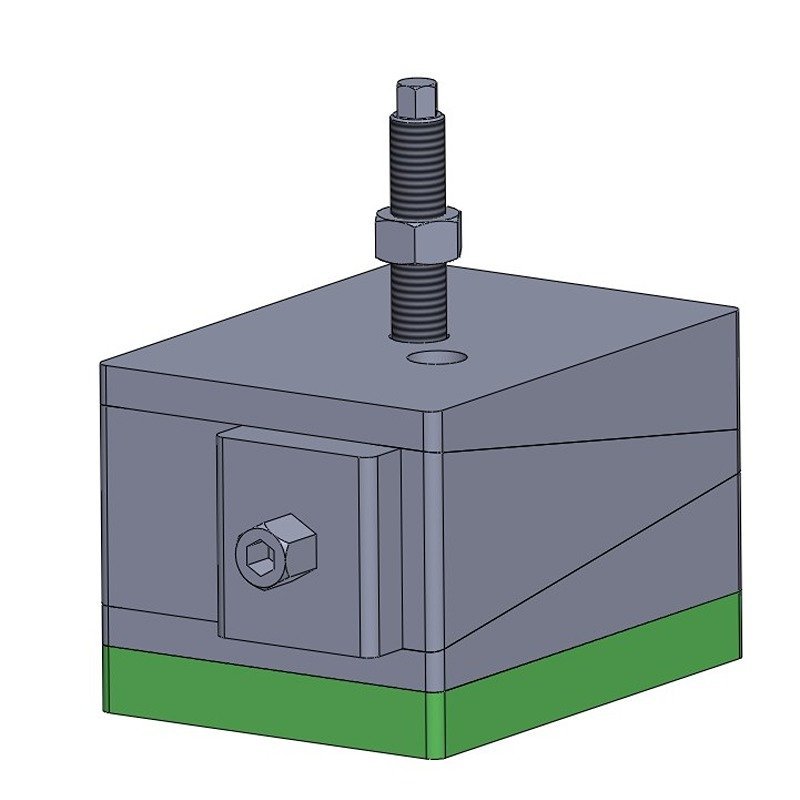

DBHO-s2
Applications:
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-s2-M20x2.5x200-FG-DG | 2000 | 200 | 125 | 98 |
| DBHO2-s2-M20x2.5x200-FG-DG | 2400 | 200 | 150 | 130 |
| DBHO3-s2-M20x2.5x250-FG-DG | 3800 | 280 | 170 | 160 |
Series:

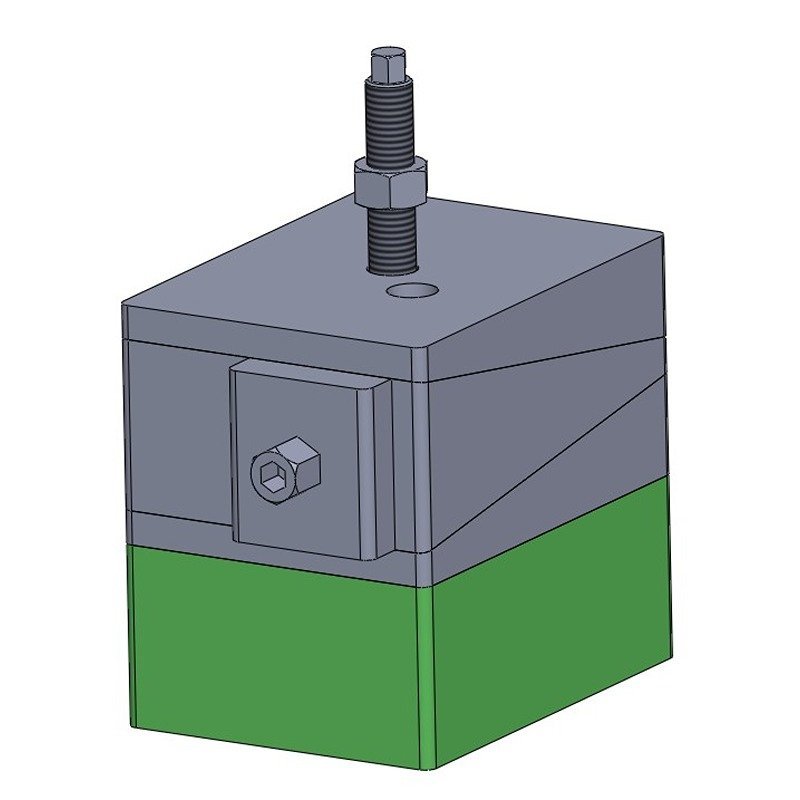

DBHO-hs1
Applications:
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-hs1-M20x2.5x200-FG-DG | 5000 | 200 | 125 | 138 |
| DBHO2-hs1-M20x2.5x200-FG-DG | 6000 | 200 | 150 | 170 |
| DBHO3-hs1-M20x2.5x250-FG-DG | 9520 | 280 | 170 | 200 |
Series:

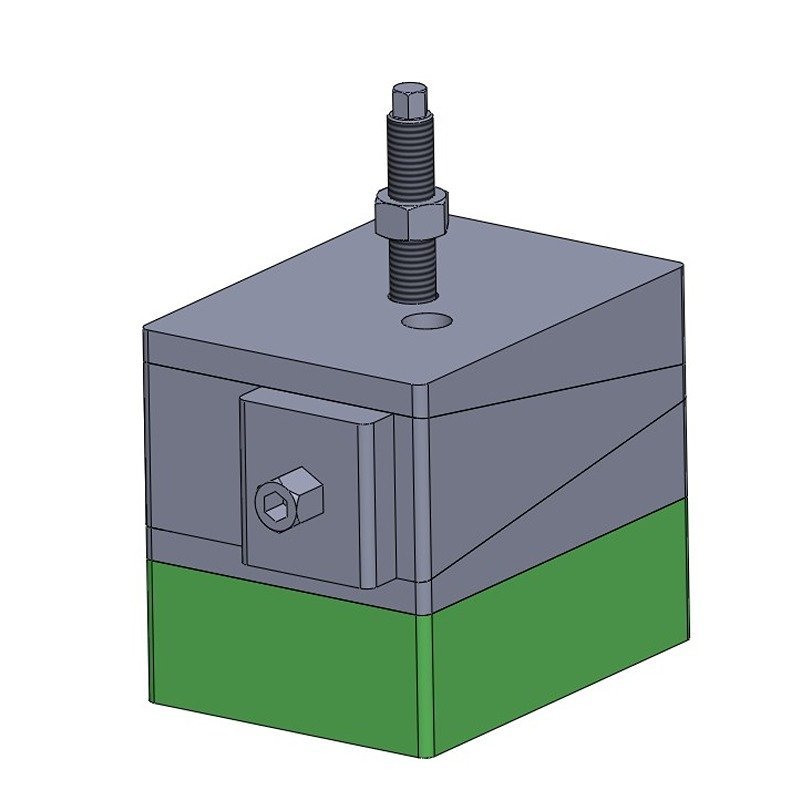

DBHO-hs2
Applications:
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-hs2-M20x2.5x200-FG-DG | 2000 | 200 | 125 | 138 |
| DBHO2-hs2-M20x2.5x200-FG-DG | 2400 | 200 | 150 | 170 |
| DBHO3-hs2-M20x2.5x250-FG-DG | 3800 | 280 | 170 | 200 |
Series:

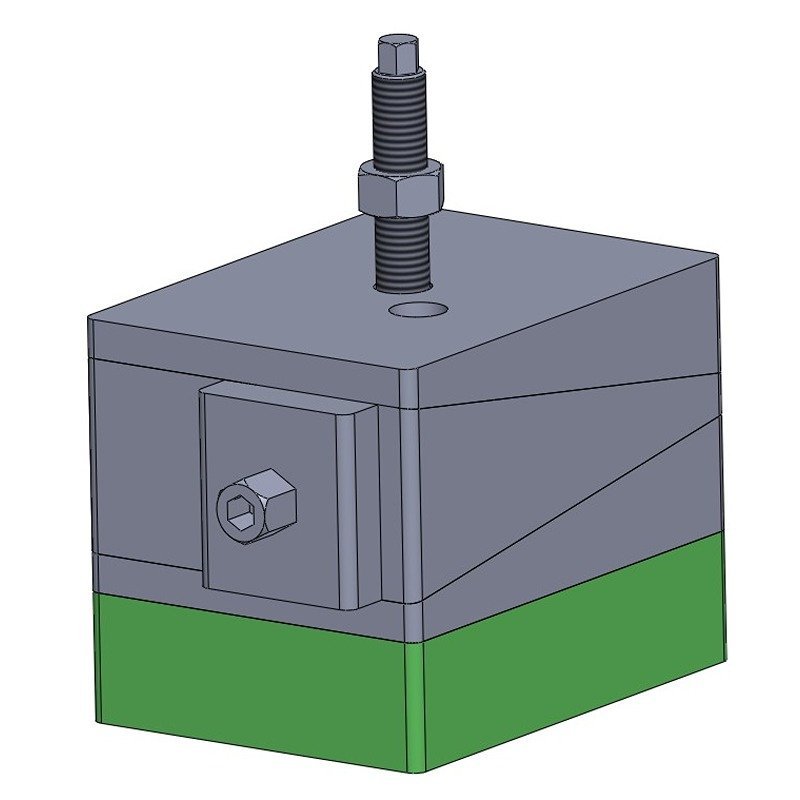

DBHO-hs3
Applications:
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-hs3-M20x2.5x200-FG-DG | 7000 | 200 | 125 | 123 |
| DBHO2-hs3-M20x2.5x200-FG-DG | 8400 | 200 | 150 | 155 |
| DBHO3-hs3-M20x2.5x250-FG-DG | 13330 | 280 | 170 | 185 |
Series:
DBHO-hs4
Applications:
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-hs4-M20x2.5x200-FG-DG | 3000 | 200 | 125 | 123 |
| DBHO2-hs4-M20x2.5x200-FG-DG | 3600 | 200 | 150 | 155 |
| DBHO3-hs4-M20x2.5x250-FG-DG | 5700 | 280 | 170 | 185 |
Series:
DBHO-hs5
Applications:
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-hs5-M20x2.5x200-FG-DG | 7000 | 200 | 125 | 153 |
| DBHO2-hs5-M20x2.5x200-FG-DG | 8400 | 200 | 150 | 185 |
| DBHO3-hs5-M20x2.5x250-FG-DG | 13330 | 280 | 170 | 215 |
Series:

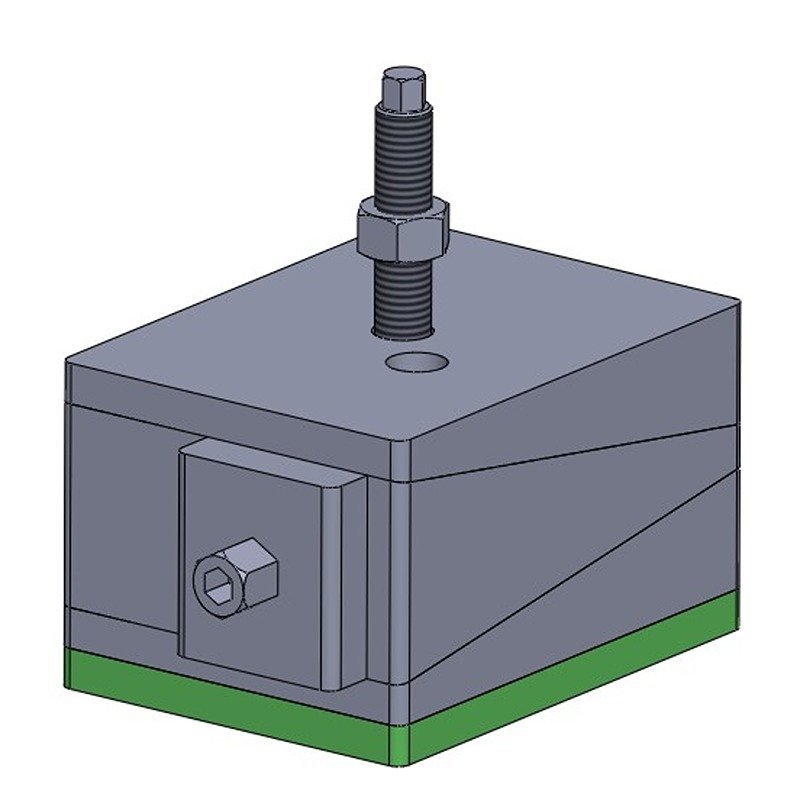

DBHO-h
Applications:
Very Heavy and long bed machines, long machining centres, planners etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-h-M20x2.5x200-FG-DG | 7500 | 200 | 125 | 88 |
| DBHO2-h-M20x2.5x200-FG-DG | 9000 | 200 | 150 | 120 |
| DBHO3-h-M20x2.5x250-FG-DG | 14000 | 280 | 170 | 150 |
Series:

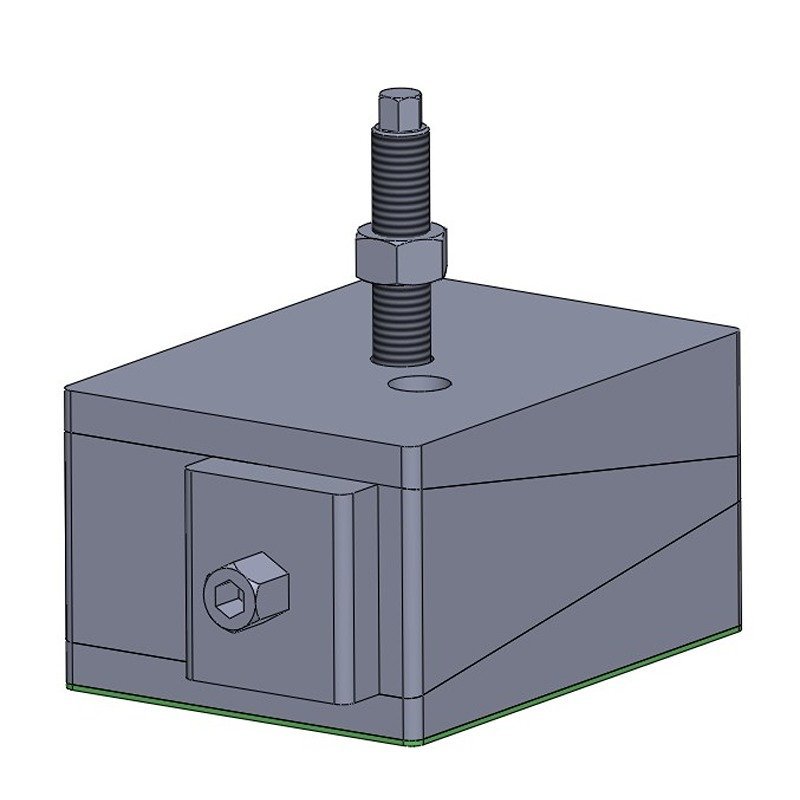

DBHO-a1
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-a1-M20x2.5x200-FG-DG | 4500 | 200 | 125 | 75 |
| DBHO2-a1-M20x2.5x200-FG-DG | 5400 | 200 | 150 | 107 |
| DBHO3-a1-M20x2.5x250-FG-DG | 8570 | 280 | 170 | 137 |
Series:

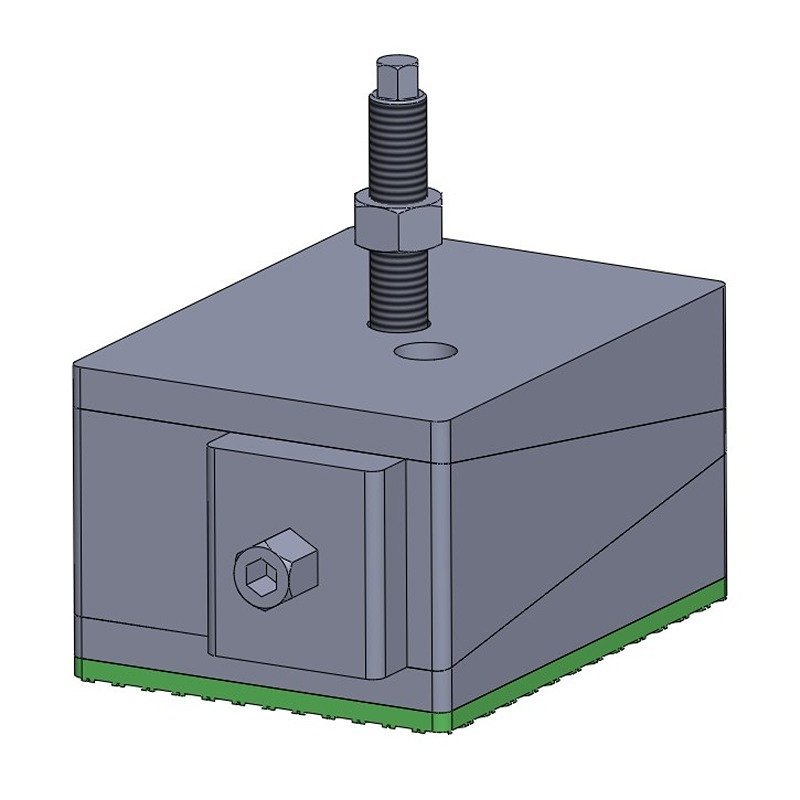

DBHO-a2
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-a2-M20x2.5x200-FG-DG | 2500 | 200 | 125 | 81 |
| DBHO2-a2-M20x2.5x200-FG-DG | 3000 | 200 | 150 | 113 |
| DBHO3-a2-M20x2.5x250-FG-DG | 4760 | 280 | 170 | 143 |
Series:

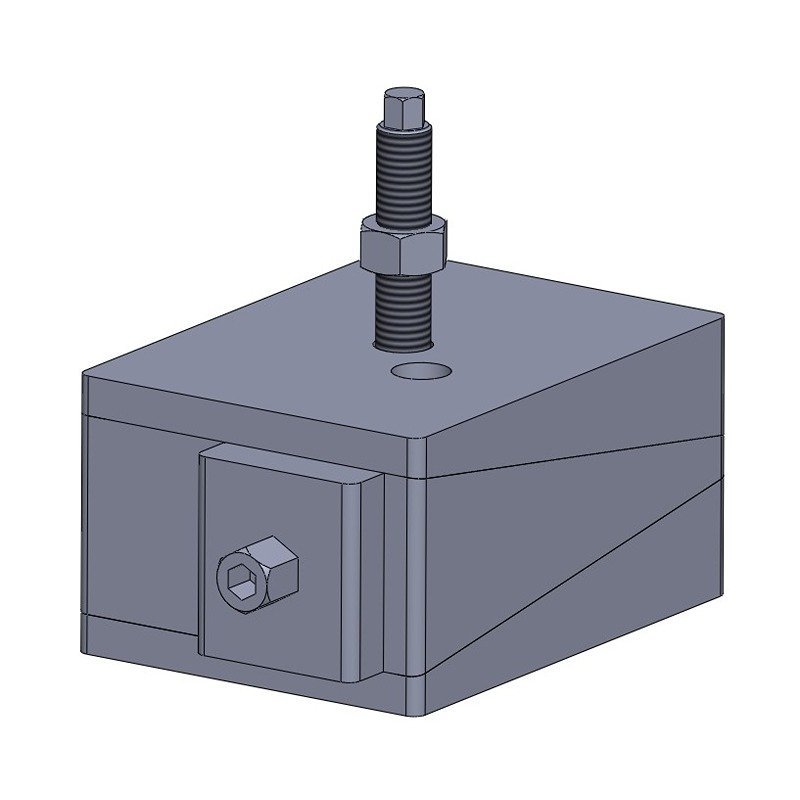

DBHO
Applications:
For levelling of all Precicion Machines.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DBHO1-M20x2.5x200-FG-DG | 13000 | 200 | 125 | 73 |
| DBHO2-M20x2.5x200-FG-DG | 16000 | 200 | 150 | 105 |
| DBHO3-M20x2.5x250-FG-DG | 23000 | 280 | 170 | 135 |
