DBH3-u-12-M20x2.5x250-FG-DG

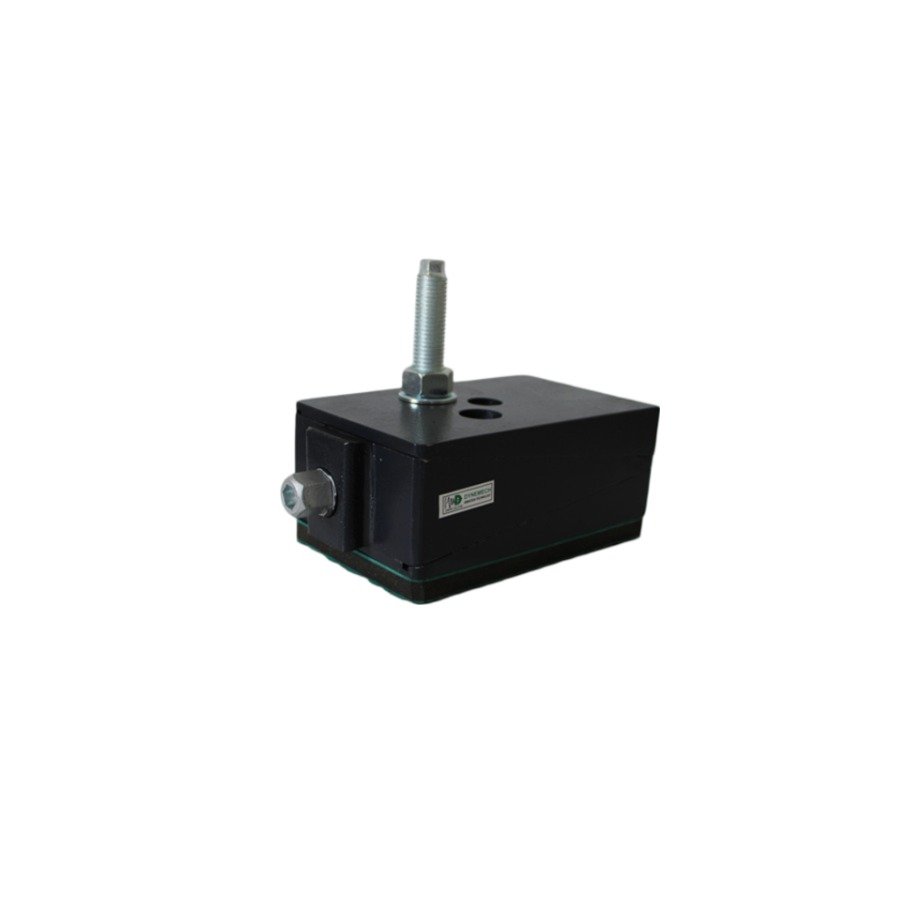

Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc. |
| Load Capacity (Kg/Pc) | 4200 |
| Length L (Mm) | 280 |
| Width B (Mm) | 170 |
| Height H At Mean Position (Mm) | 147 |
| Adjustment Range (Mm) | +12.5/-12.5 |
| Bottom Pad Type | Du-12 |
| Bottom Pad Thickness (Mm) | 12 |
| Sw1 (Mm) | 39 |
| Sw2 (Mm) | 22 |
| Coeff Of Friction Against Concrete | 0.9 |
| Natural Frequency At Max Load (Hz) | 20 |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
| D (Mm) | 145 |
| Bolt Size (Mm) | M20 |
| E (Mm) | 30 |
