DBH
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
DBH-u
Product
DBH-u
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-u-M20x2.5x200-FG-DG | 2250 | 200 | 125 | 88 | +8/-8 | Du | 15 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-u-M20x2.5x200-FG-DG | 2700 | 200 | 150 | 120 | +10/-10 | Du | 15 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-u-M20x2.5x250-FG-DG | 4200 | 280 | 170 | 150 | +12.5/-12.5 | Du | 15 | 39 | 22 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |
DBH-u-10
Product
DBH-u-10
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-u-10-M20x2.5x200-FG-DG | 2250 | 200 | 125 | 83 | +8/-8 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-u-10-M20x2.5x200-FG-DG | 2700 | 200 | 150 | 115 | +10/-10 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-u-10-M20x2.5x250-FG-DG | 4200 | 280 | 170 | 145 | +12.5/-12.5 | Du-10 | 10 | 39 | 22 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |
DBH-u-12
Product
DBH-u-12
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-u-12-M20x2.5x200-FG-DG | 2250 | 200 | 125 | 85 | +8/-8 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-u-12-M20x2.5x200-FG-DG | 2700 | 200 | 150 | 117 | +10/-10 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-u-12-M20x2.5x250-FG-DG | 4200 | 280 | 170 | 147 | +12.5/-12.5 | Du-12 | 12 | 39 | 22 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |

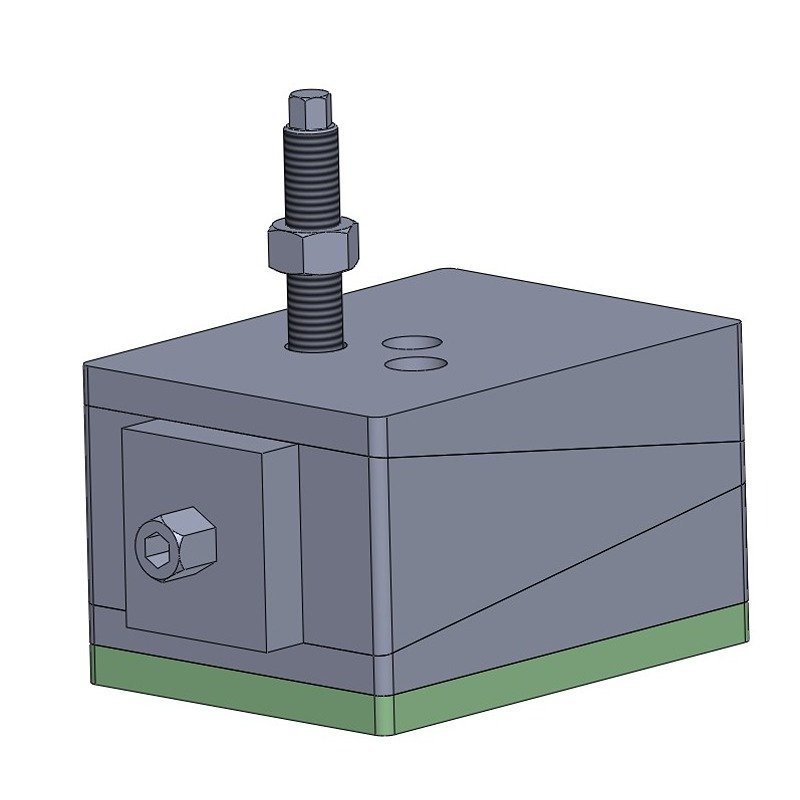

DBH-m
Product
DBH-m
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-m-M20x2.5x200-FG-DG | 2500 | 200 | 125 | 88 | +8/-8 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-m-M20x2.5x200-FG-DG | 3000 | 200 | 150 | 120 | +10/-10 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-m-M20x2.5x250-FG-DG | 4600 | 280 | 170 | 150 | +12.5/-12.5 | Dm | 15 | 39 | 22 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |

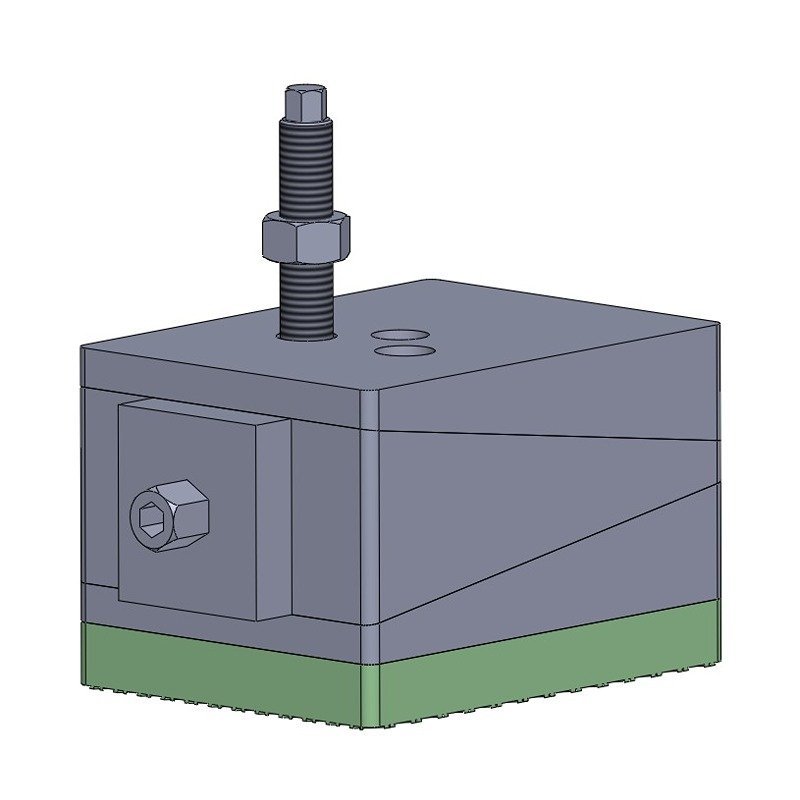

DBH-i
Product
DBH-i
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-i-M20x2.5x200-FG-DG | 3500 | 200 | 125 | 98 | +8/-8 | Di | 25 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-i-M20x2.5x200-FG-DG | 4200 | 200 | 150 | 130 | +10/-10 | Di | 25 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-i-M20x2.5x250-FG-DG | 6400 | 280 | 170 | 160 | +12.5/-12.5 | Di | 25 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |

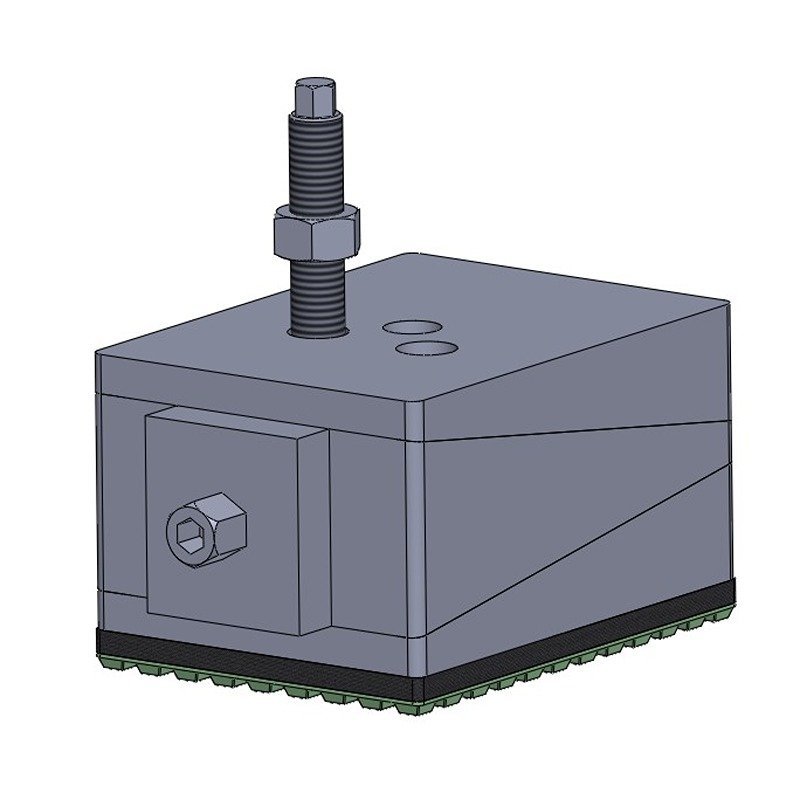

DBH-p1
Product
DBH-p1
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-p1-M20x2.5x200-FG-DG | 1000 | 200 | 125 | 88 | +8/-8 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-p1-M20x2.5x200-FG-DG | 1200 | 200 | 150 | 120 | +10/-10 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-p1-M20x2.5x250-FG-DG | 1900 | 280 | 170 | 150 | +12.5/-12.5 | Dp1 | 15 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |

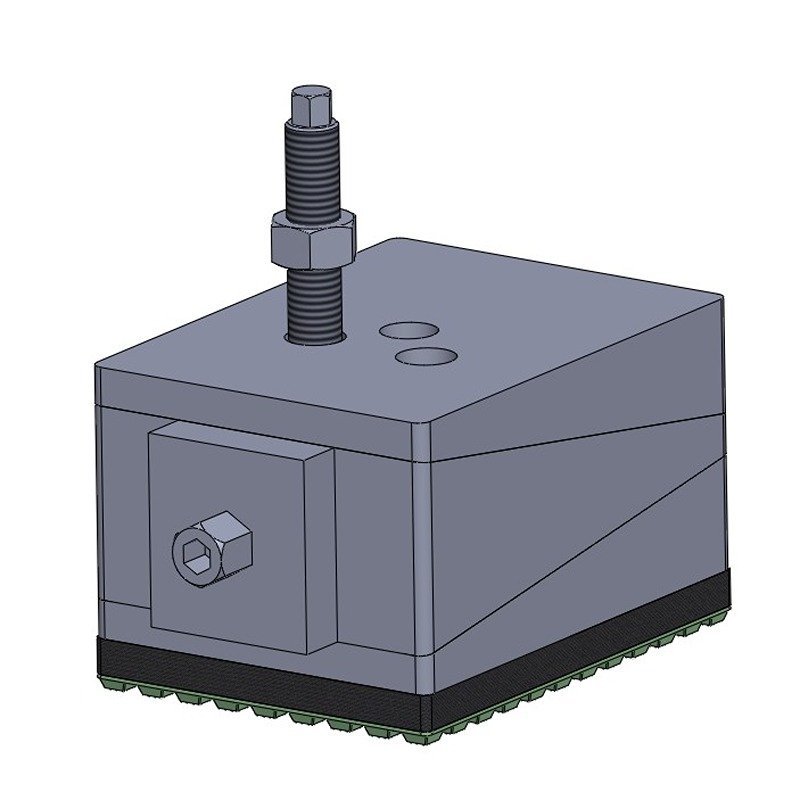

DBH-p2
Product
DBH-p2
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-p2-M20x2.5x200-FG-DG | 1250 | 200 | 125 | 93 | +8/-8 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-p2-M20x2.5x200-FG-DG | 1500 | 200 | 150 | 125 | +10/-10 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-p2-M20x2.5x200-FG-DG | 2380 | 280 | 170 | 155 | +12.5/-12.5 | Dp2 | 20 | 39 | 22 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |

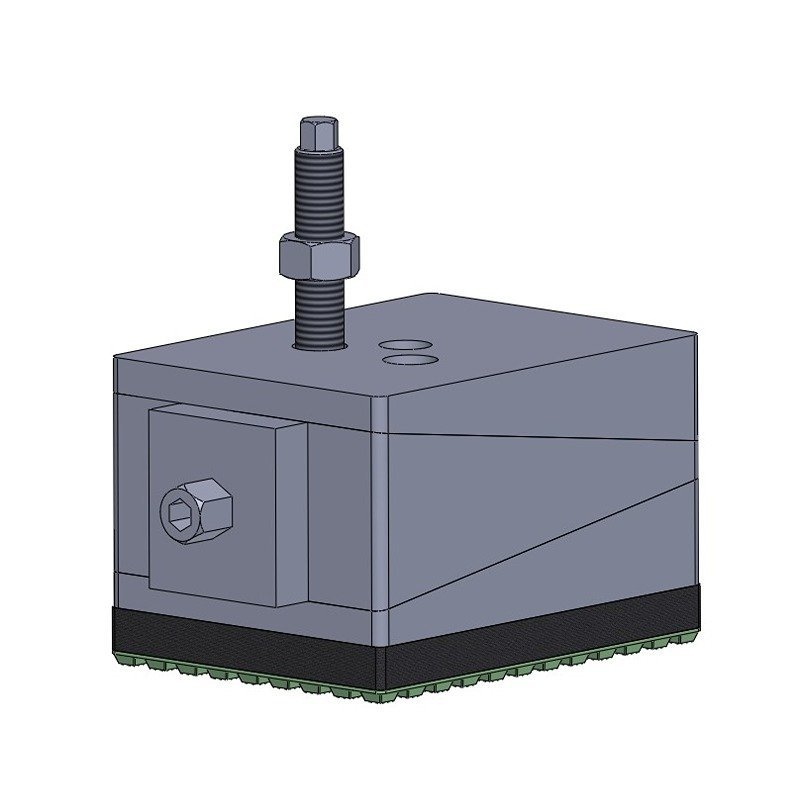

DBH-p3
Product
DBH-p3
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Tool Room Machines on suspended Floors, Light Weight Presses, Compressors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-p3-M20x2.5x200-FG-DG | 1500 | 200 | 125 | 97 | +8/-8 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-p3-M20x2.5x200-FG-DG | 1800 | 200 | 150 | 129 | +10/-10 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-p3-M20x2.5x250-FG-DG | 2860 | 280 | 170 | 159 | +12.5/-12.5 | Dp3 | 24 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |

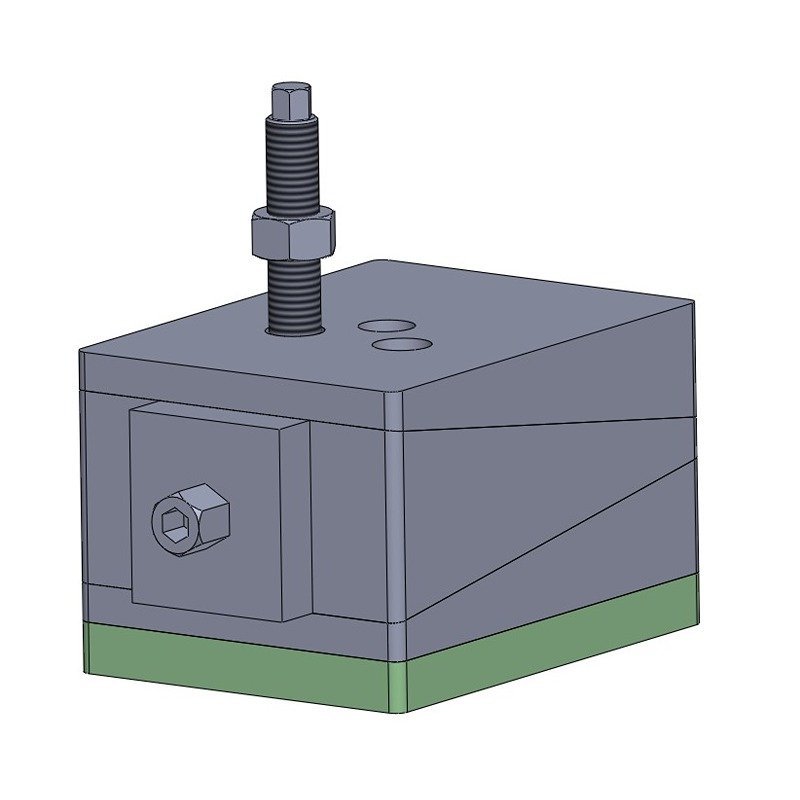

DBH-s1
Product
DBH-s1
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-s1-M20x2.5x200-FG-DG | 1250 | 200 | 125 | 93 | +8/-8 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-s1-M20x2.5x200-FG-DG | 1500 | 200 | 150 | 125 | +10/-10 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-s1-M20x2.5x250-FG-DG | 2380 | 280 | 170 | 155 | +12.5/-12.5 | Ds1 | 20 | 39 | 22 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |

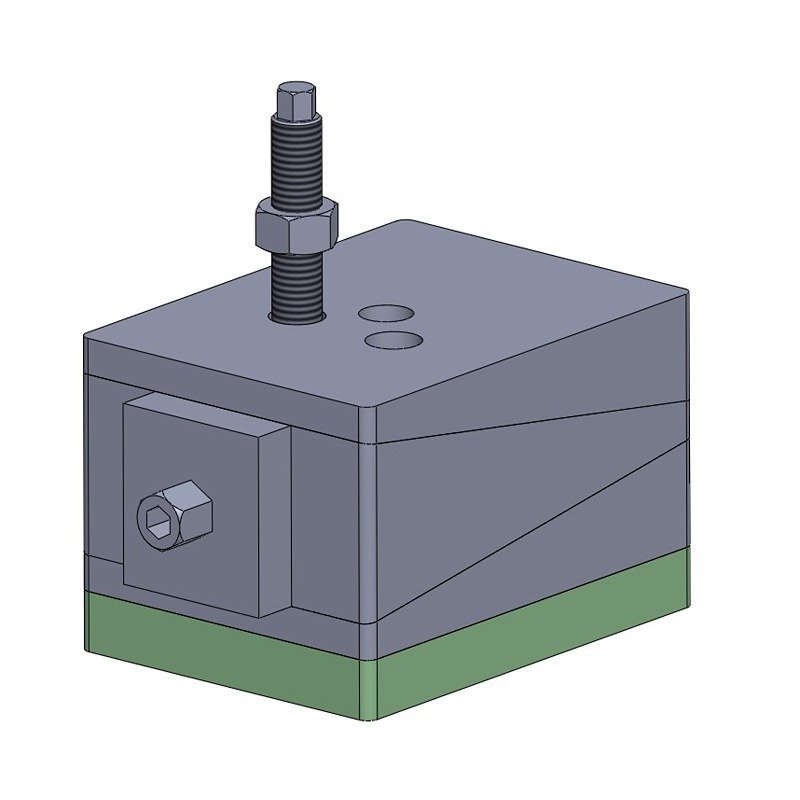

DBH-s2
Product
DBH-s2
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-s2-M20x2.5x200-FG-DG | 2000 | 200 | 125 | 98 | +8/-8 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-s2-M20x2.5x200-FG-DG | 2400 | 200 | 150 | 130 | +10/-10 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-s2-M20x2.5x250-FG-DG | 3800 | 280 | 170 | 160 | +12.5/-12.5 | Ds2 | 25 | 39 | 22 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |

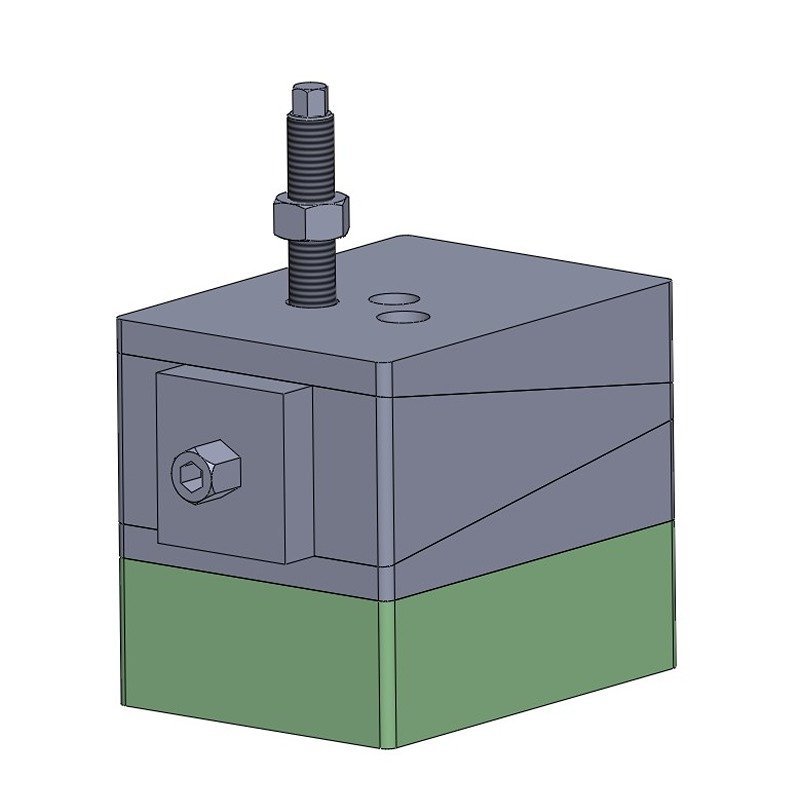

DBH-hs1
Product
DBH-hs1
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-hs1-M20x2.5x200-FG-DG | 5000 | 200 | 125 | 138 | +8/-8 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-hs1-M20x2.5x200-FG-DG | 6000 | 200 | 150 | 170 | +10/-10 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-hs1-M20x2.5x250-FG-DG | 9520 | 280 | 170 | 200 | +12.5/-12.5 | Dhs1 | 65 | 39 | 22 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |
DBH-hs2
Product
DBH-hs2
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-hs2-M20x2.5x200-FG-DG | 2000 | 200 | 125 | 138 | +8/-8 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-hs2-M20x2.5x200-FG-DG | 2400 | 200 | 150 | 170 | +10/-10 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-hs2-M20x2.5x250-FG-DG | 3800 | 280 | 170 | 200 | +12.5/-12.5 | Dhs2 | 65 | 39 | 22 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |
DBH-hs3
Product
DBH-hs3
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-hs3-M20x2.5x200-FG-DG | 7000 | 200 | 125 | 123 | +8/-8 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-hs3-M20x2.5x200-FG-DG | 8400 | 200 | 150 | 155 | +10/-10 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-hs3-M20x2.5x250-FG-DG | 13330 | 280 | 170 | 185 | +12.5/-12.5 | Dhs3 | 50 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |

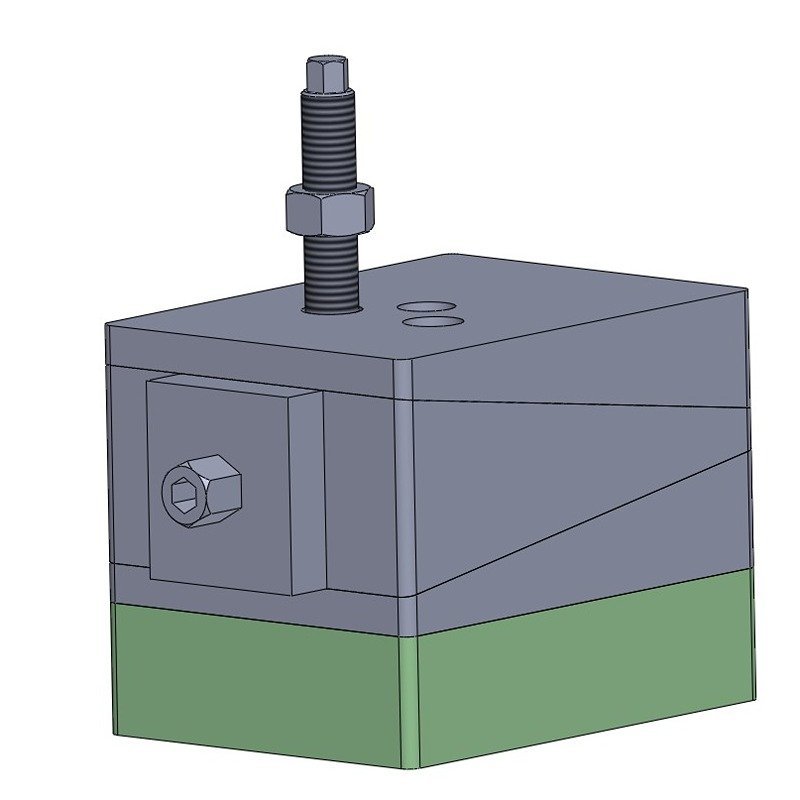

DBH-hs4
Product
DBH-hs4
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-hs4-M20x2.5x200-FG-DG | 3000 | 200 | 125 | 123 | +8/-8 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-hs4-M20x2.5x200-FG-DG | 3600 | 200 | 150 | 155 | +10/-10 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-hs4-M20x2.5x250-FG-DG | 5700 | 280 | 170 | 185 | +12.5/-12.5 | Dhs4 | 50 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |

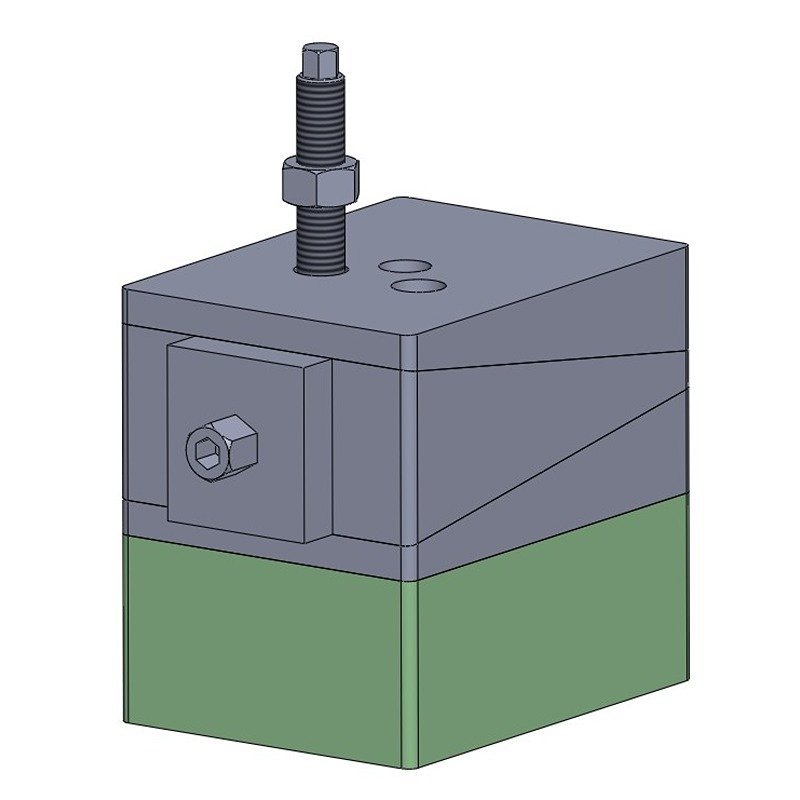

DBH-hs5
Product
DBH-hs5
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-hs5-M20x2.5x200-FG-DG | 7000 | 200 | 125 | 153 | +8/-8 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-hs5-M20x2.5x200-FG-DG | 8400 | 200 | 150 | 185 | +10/-10 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-hs5-M20x2.5x250-FG-DG | 13330 | 280 | 170 | 215 | +12.5/-12.5 | Dhs5 | 80 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |

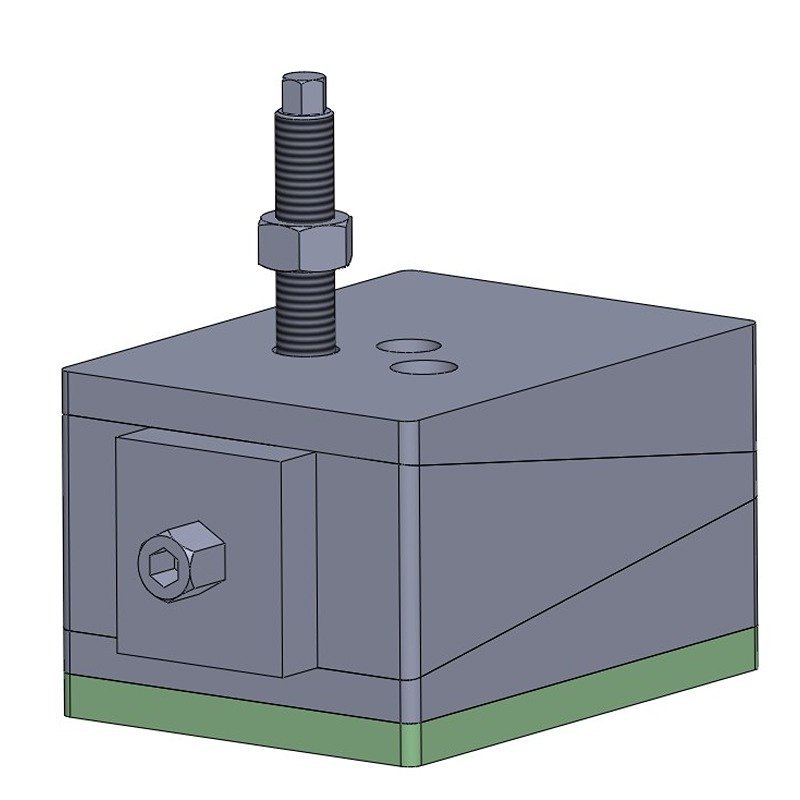

DBH-h
Product
DBH-h
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-h-M20x2.5x200-FG-DG | 7500 | 200 | 125 | 88 | +8/-8 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-h-M20x2.5x200-FG-DG | 9000 | 200 | 150 | 120 | +10/-10 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-h-M20x2.5x250-FG-DG | 14000 | 280 | 170 | 150 | +12.5/-12.5 | Dh | 15 | 39 | 22 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |

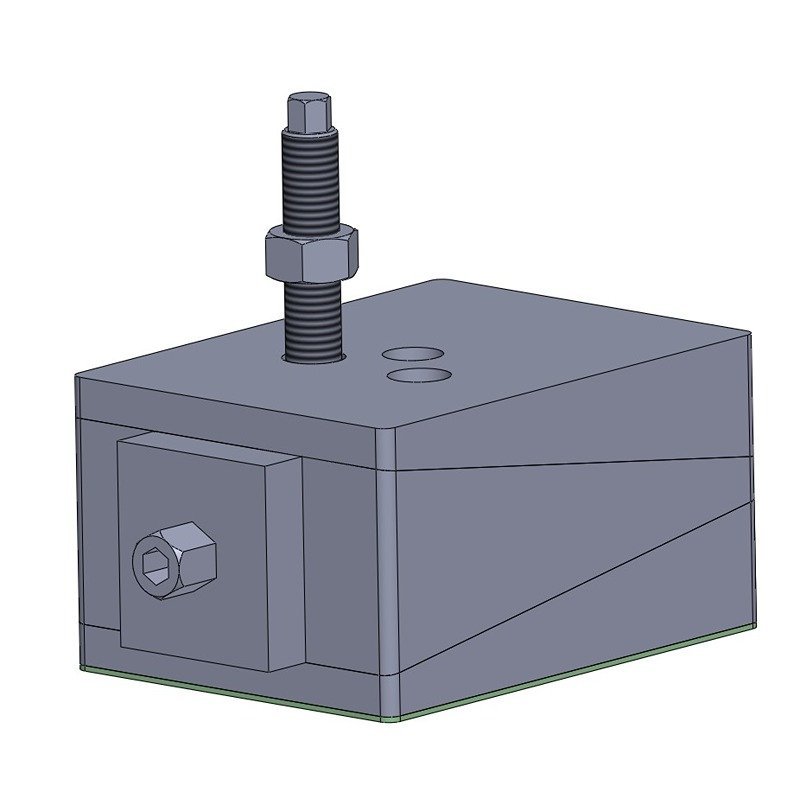

DBH-a1
Product
DBH-a1
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-a1-M20x2.5x200-FG-DG | 4500 | 200 | 125 | 75 | +8/-8 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-a1-M20x2.5x200-FG-DG | 5400 | 200 | 150 | 107 | +10/-10 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-a1-M20x2.5x250-FG-DG | 8570 | 280 | 170 | 137 | +12.5/-12.5 | Da1 | 2 | 39 | 22 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |

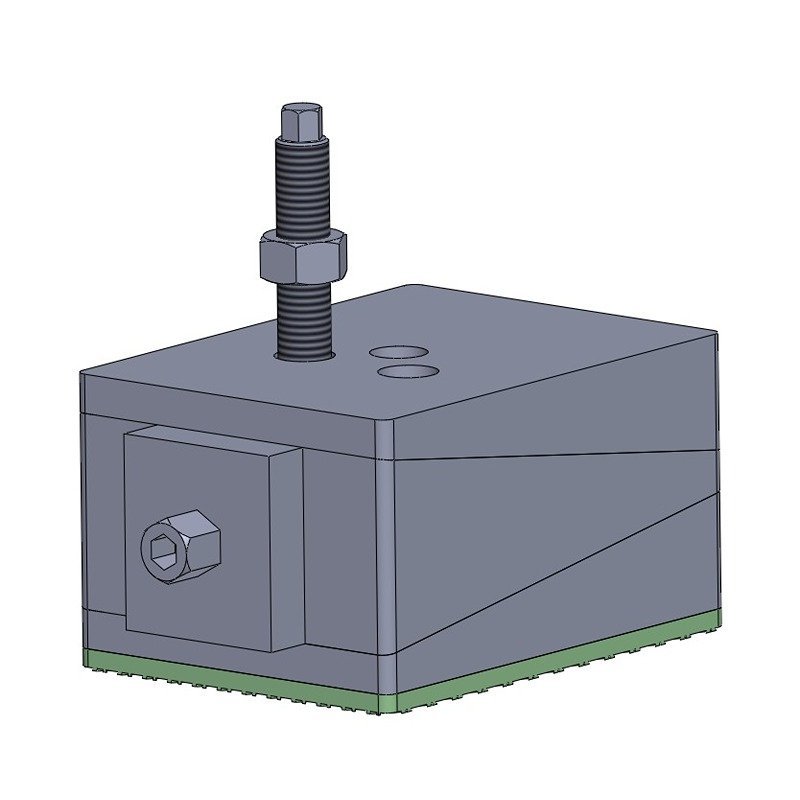

DBH-a2
Product
DBH-a2
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-a2-M20x2.5x200-FG-DG | 2500 | 200 | 125 | 81 | +8/-8 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-a2-M20x2.5x200-FG-DG | 3000 | 200 | 150 | 113 | +10/-10 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-a2-M20x2.5x250-FG-DG | 4760 | 280 | 170 | 143 | +12.5/-12.5 | Da2 | 8 | 39 | 22 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |

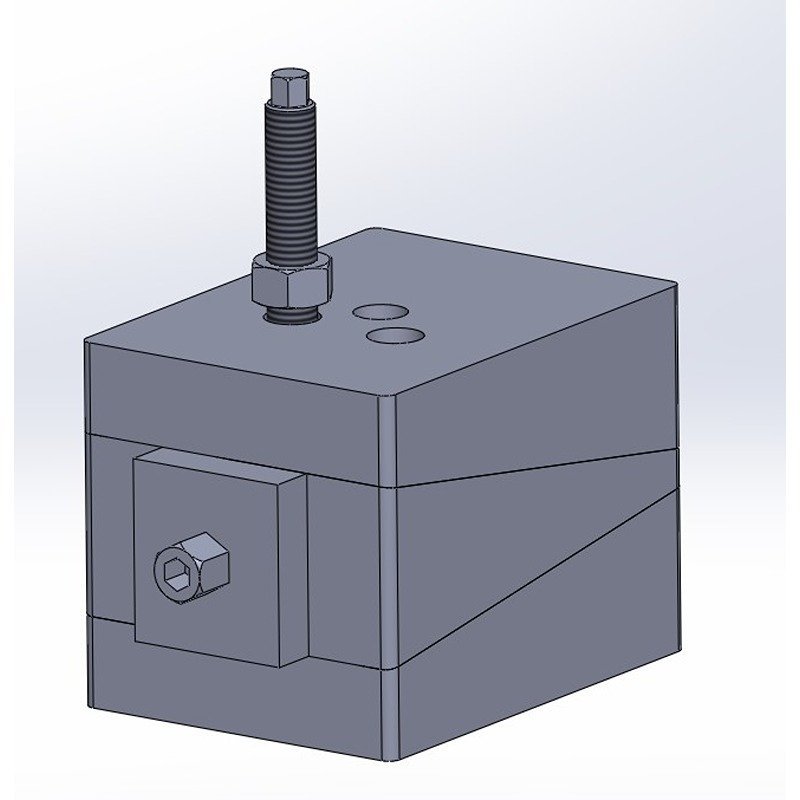

DBH
Product
DBH
Description
Dynemech Wedge mounts, Series DBH mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBPH has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Application
For levelling of all Precicion Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBH1-M20x2.5x200-FG-DG | 13000 | 200 | 125 | 73 | +8/-8 | X | X | 22 | 12 | X | X | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH2-M20x2.5x200-FG-DG | 16000 | 200 | 150 | 105 | +10/-10 | X | X | 22 | 12 | X | X | From -16 to 90 | Dark Grey/Green | 75 | M20 | 25 |
| DBH3-M20x2.5x250-FG-DG | 23000 | 280 | 170 | 135 | +12.5/-12.5 | X | X | 39 | 22 | X | X | From -16 to 90 | Dark Grey/Green | 145 | M20 | 30 |
