DR-100

Vibration Mounts India

DR-100

Home / TPM Mounts / DR-100

Description

DYNEMECH Series DR-100 are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.

Catalogue

Series:

DR-U

Application:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

Model	Load Capacity (Kg/pc)	d (mm)	Dia D (mm)	H (mm)
DR1-u-100-FG-GR	350	87	109	100
DR2-u-100-FG-GR	600	108	150	100
DR3-u-100-FG-GR	900	136	170	100
DR4-u-100-FG-GR	1400	161	210	100
DR5-u-100-FG-GR	1900	185	240	100
DR6-u-100-FG-GR	2500	215	270	100

Series:

DR-U-10

Application:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

Model	Load Capacity (Kg/pc)	d (mm)	Dia D (mm)	H (mm)
DR1-u-10-95-FG-GR	350	87	109	95
DR2-u-10-95-FG-GR	600	108	150	95
DR3-u-10-95-FG-GR	900	136	170	95
DR4-u-10-95-FG-GR	1400	161	210	95
DR5-u-10-95-FG-GR	1900	185	240	95
DR6-u-10-95-FG-GR	2500	215	270	95

Series:

DR-U-12

Application:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

Model	Load Capacity (Kg/pc)	d (mm)	Dia D (mm)	H (mm)
DR1-u-12-97-FG-GR	350	87	109	97
DR2-u-12-97-FG-GR	600	108	150	97
DR3-u-12-97-FG-GR	900	136	170	97
DR4-u-12-97-FG-GR	1400	161	210	97
DR5-u-12-97-FG-GR	1900	185	240	97
DR6-u-12-97-FG-GR	2500	215	270	97

Series:

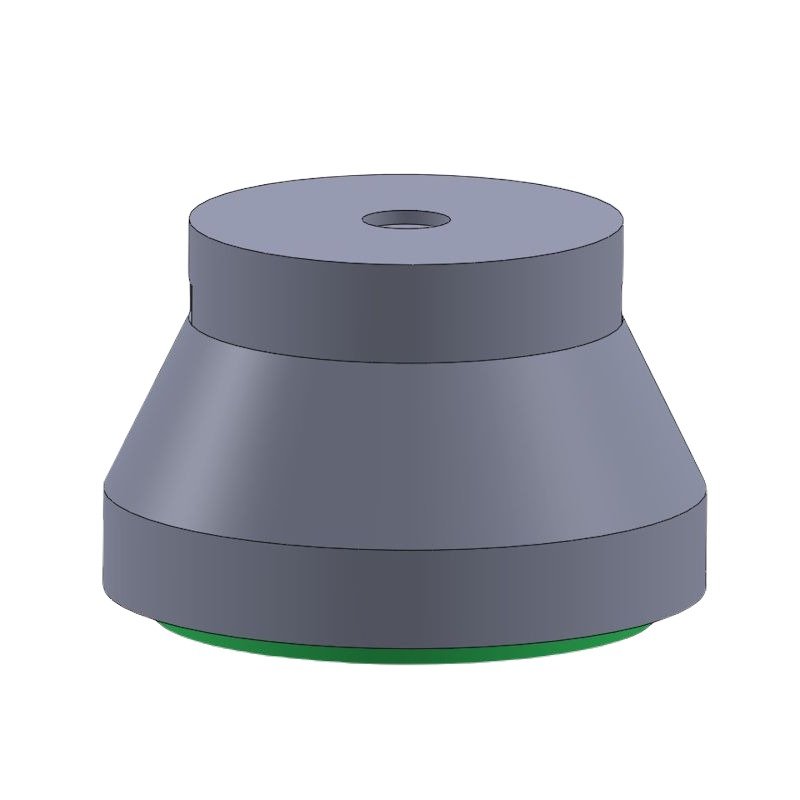

DR-M

Application:

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.

Model	Load Capacity (Kg/pc)	d (mm)	Dia D (mm)	H (mm)
DR1-m-100-FG-GR	450	87	109	100
DR2-m-100-FG-GR	800	108	150	100
DR3-m-100-FG-GR	1150	136	170	100
DR4-m-100-FG-GR	1750	161	210	100
DR5-m-100-FG-GR	2400	185	240	100
DR6-m-100-FG-GR	3200	215	270	100

Series:

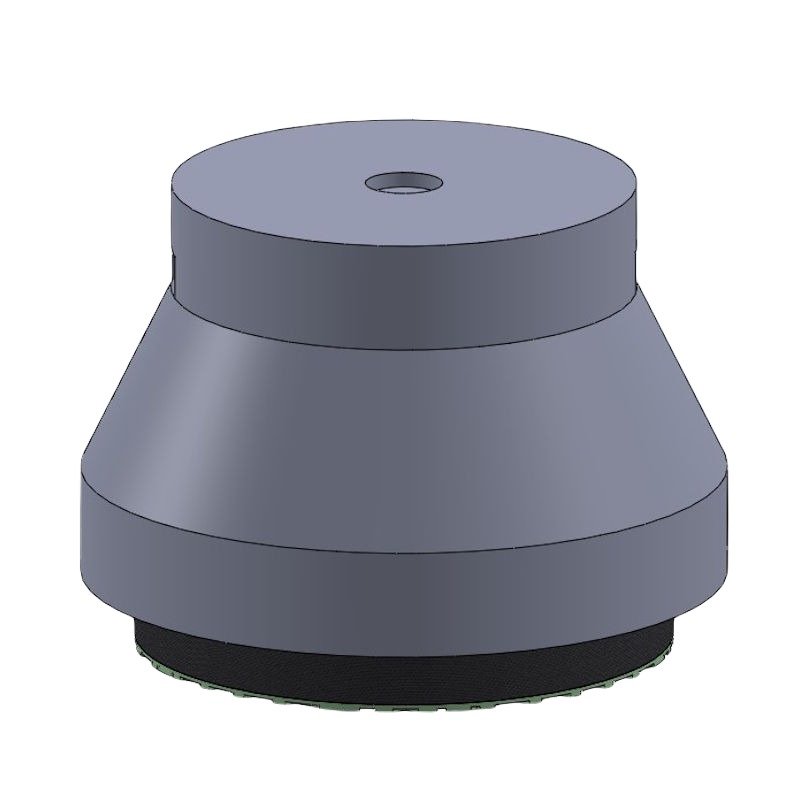

DR-I

Application:

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.

Model	Load Capacity (Kg/pc)	d (mm)	Dia D (mm)	H (mm)
DR1-i-110-FG-GR	890	87	109	110
DR2-i-110-FG-GR	1720	108	150	110
DR3-i-110-FG-GR	2470	136	170	110
DR4-i-110-FG-GR	3180	161	210	110
DR5-i-110-FG-GR	5320	185	240	110
DR6-i-110-FG-GR	6870	215	270	110

Series:

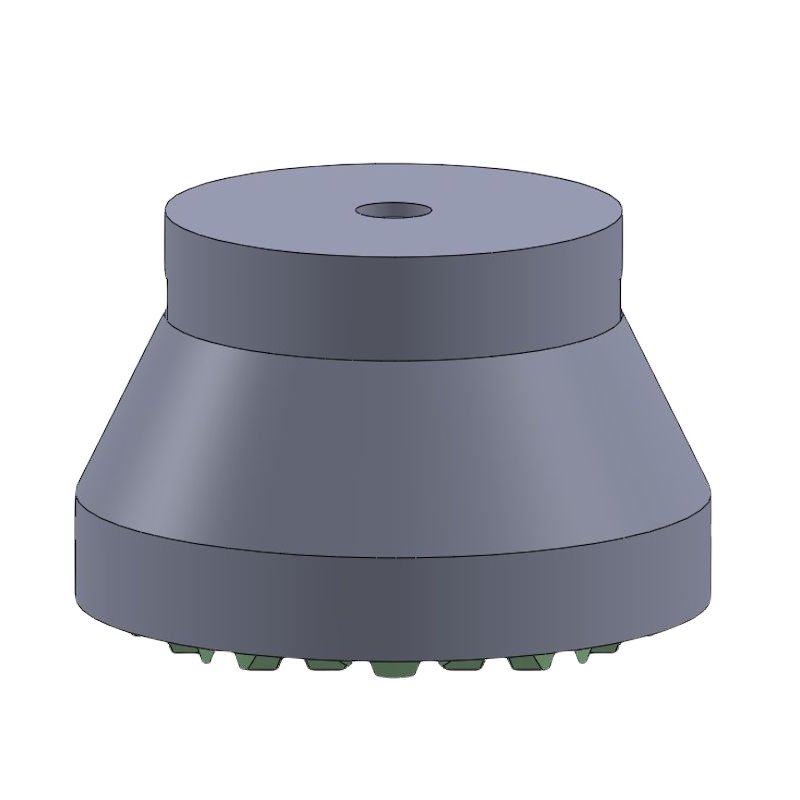

DR-P1

Application:

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.

Model	Load Capacity (Kg/pc)	d (mm)	Dia D (mm)	H (mm)
DR1-p1-100-FG-GR	250	87	109	100
DR2-p1-100-FG-GR	490	108	150	100
DR3-p1-100-FG-GR	700	136	170	100
DR4-p1-100-FG-GR	900	161	210	100
DR5-p1-100-FG-GR	1520	185	240	100
DR6-p1-100-FG-GR	1960	215	270	100

Series:

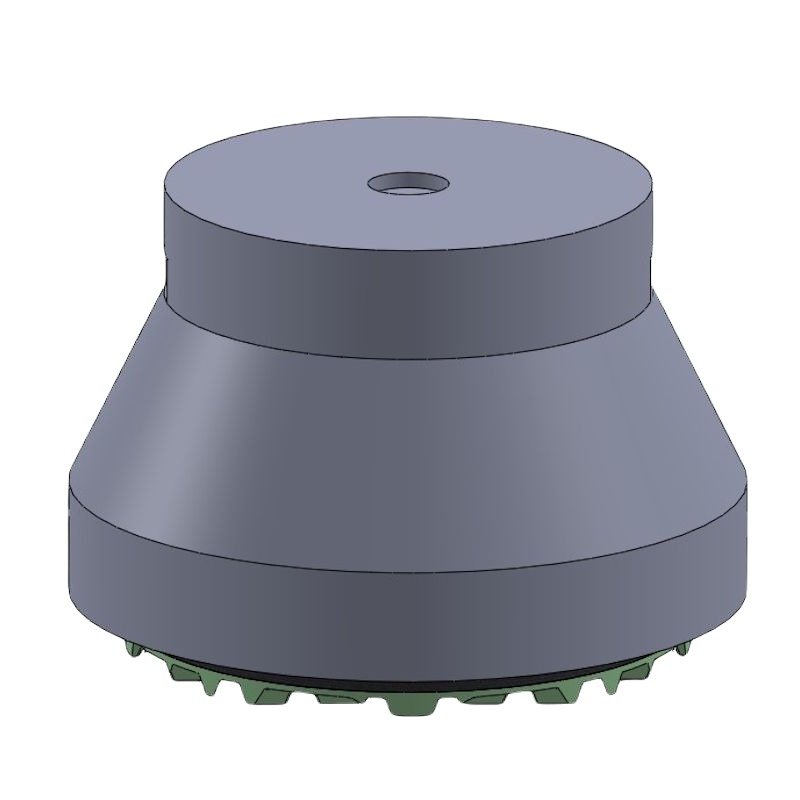

DR-P2

Application:

Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.

Model	Load Capacity (Kg/pc)	d (mm)	Dia D (mm)	H (mm)
DR1-p2-105-FG-GR	320	87	109	105
DR2-p2-105-FG-GR	610	108	150	105
DR3-p2-105-FG-GR	880	136	170	105
DR4-p2-105-FG-GR	1130	161	210	105
DR5-p2-105-FG-GR	1900	185	240	105
DR6-p2-105-FG-GR	2450	215	270	105

Series:

DR-P3

Application:

Tool Room Machines on suspended Floors, Light Weight Presses, Compressors etc.

Model	Load Capacity (Kg/pc)	d (mm)	Dia D (mm)	H (mm)
DR1-p3-109-FG-GR	380	87	109	109
DR2-p3-109-FG-GR	730	108	150	109
DR3-p3-109-FG-GR	1060	136	170	109
DR4-p3-109-FG-GR	1360	161	210	109
DR5-p3-109-FG-GR	2280	185	240	109
DR6-p3-109-FG-GR	2940	215	270	109

Series:

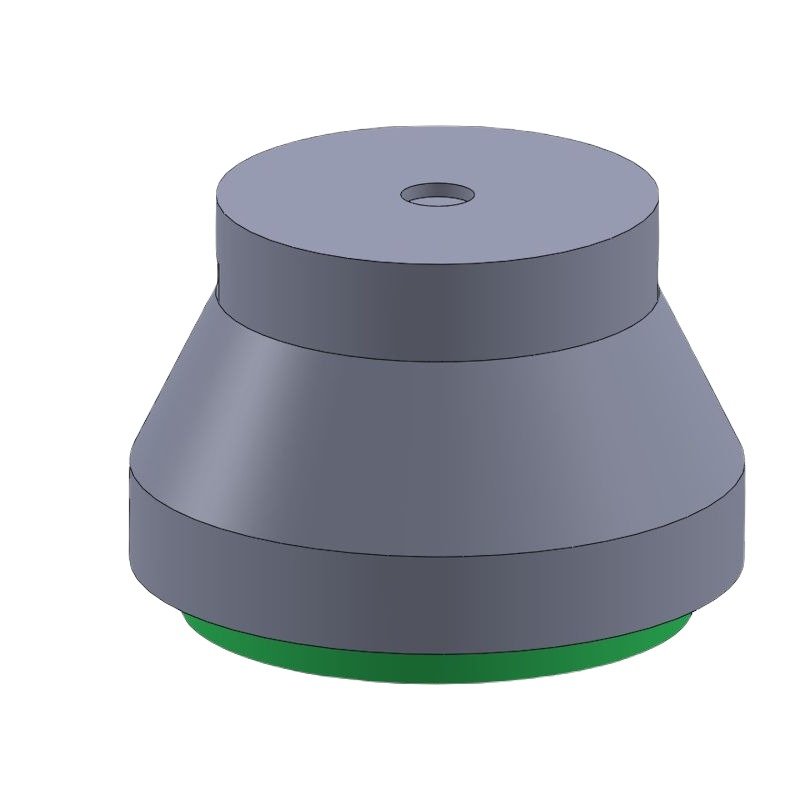

DR-S1

Application:

Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

Model	Load Capacity (Kg/pc)	d (mm)	Dia D (mm)	H (mm)
DR1-s1-105-FG-GR	200	87	109	105
DR2-s1-105-FG-GR	375	108	150	105
DR3-s1-105-FG-GR	575	136	170	105
DR4-s1-105-FG-GR	800	161	210	105
DR5-s1-105-FG-GR	1100	185	240	105
DR6-s1-105-FG-GR	1500	215	270	105

Series:

DR-S2

Application:

Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.

Model	Load Capacity (Kg/pc)	d (mm)	Dia D (mm)	H (mm)
DR1-s2-110-FG-GR	300	87	109	110
DR2-s2-110-FG-GR	550	108	150	110
DR3-s2-110-FG-GR	850	136	170	110
DR4-s2-110-FG-GR	1250	161	210	110
DR5-s2-110-FG-GR	1700	185	240	110
DR6-s2-110-FG-GR	2200	215	270	110

Series:

DR-HS1

Application:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.

Model	Load Capacity (Kg/pc)	d (mm)	Dia D (mm)	H (mm)
DR1-hs1-150-FG-GR	1270	87	109	150
DR2-hs1-150-FG-GR	2450	108	150	150
DR3-hs1-150-FG-GR	3530	136	170	150
DR4-hs1-150-FG-GR	4540	161	210	150
DR5-hs1-150-FG-GR	7600	185	240	150
DR6-hs1-150-FG-GR	9820	215	270	150

Series:

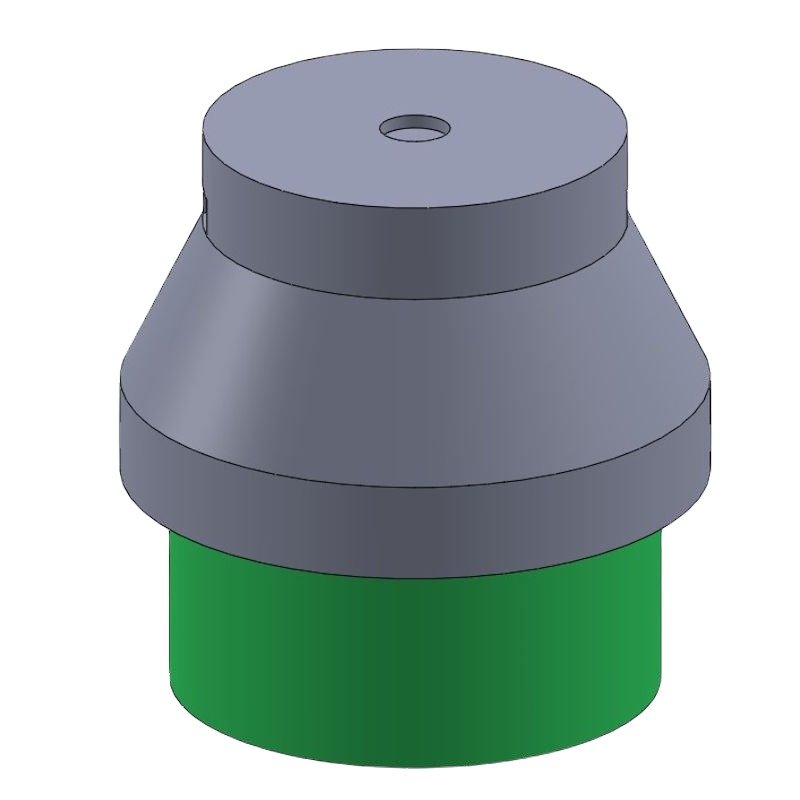

DR-HS2

Application:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.

Model	Load Capacity (Kg/pc)	d (mm)	Dia D (mm)	H (mm)
DR1-hs2-150-FG-GR	510	87	109	150
DR2-hs2-150-FG-GR	900	108	150	150
DR3-hs2-150-FG-GR	1410	136	170	150
DR4-hs2-150-FG-GR	1810	161	210	150
DR5-hs2-150-FG-GR	3040	185	240	150
DR6-hs2-150-FG-GR	3930	215	270	150

Series:

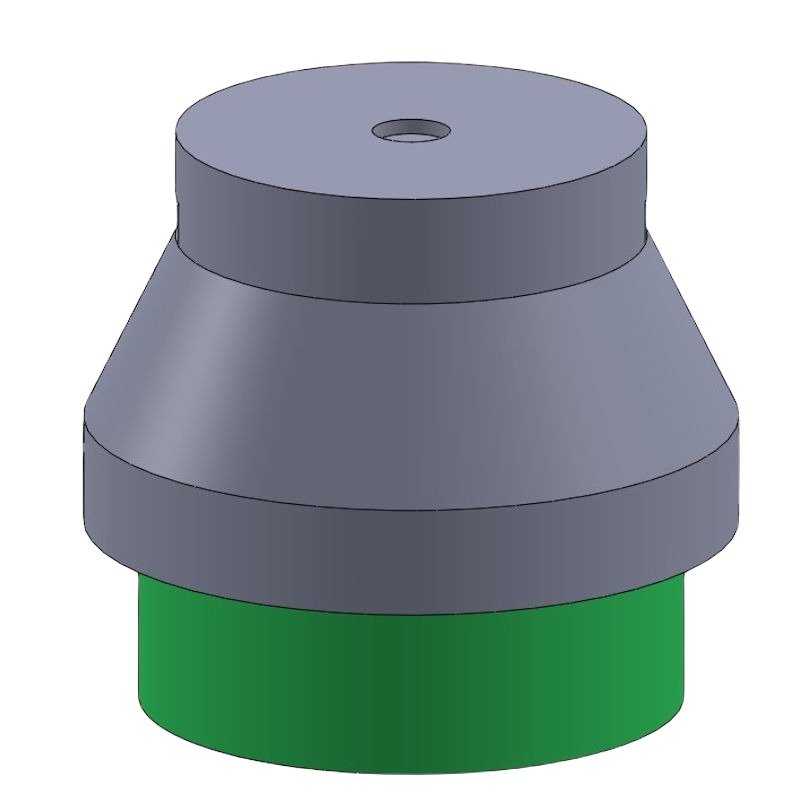

DR-HS3

Application:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.

Model	Load Capacity (Kg/pc)	d (mm)	Dia D (mm)	H (mm)
DR1-hs3-135-FG-GR	1780	87	109	135
DR2-hs3-135-FG-GR	3440	108	150	135
DR3-hs3-135-FG-GR	4950	136	170	135
DR4-hs3-135-FG-GR	6350	161	210	135
DR5-hs3-135-FG-GR	10640	185	240	135
DR6-hs3-135-FG-GR	13740	215	270	135

Series:

DR-HS4

Application:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.

Model	Load Capacity (Kg/pc)	d (mm)	Dia D (mm)	H (mm)
DR1-hs4-135-FG-GR	760	87	109	135
DR2-hs4-135-FG-GR	1470	108	150	135
DR3-hs4-135-FG-GR	2120	136	170	135
DR4-hs4-135-FG-GR	2720	161	210	135
DR5-hs4-135-FG-GR	4960	185	240	135
DR6-hs4-135-FG-GR	5890	215	270	135

Series:

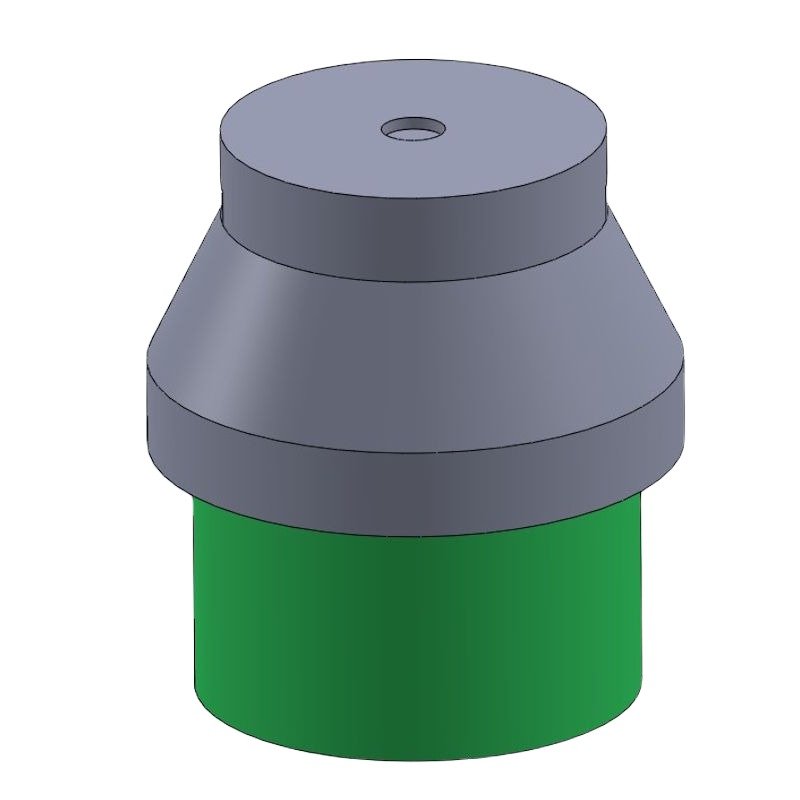

DR-HS5

Application:

Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.

Model	Load Capacity (Kg/pc)	d (mm)	Dia D (mm)	H (mm)
DR1-hs5-165-FG-GR	1780	87	109	165
DR2-hs5-165-FG-GR	3440	108	150	165
DR3-hs5-165-FG-GR	4950	136	170	165
DR4-hs5-165-FG-GR	6350	161	210	165
DR5-hs5-165-FG-GR	10640	185	240	165
DR6-hs5-165-FG-GR	13740	215	270	165

Series:

DR-H

Application:

Very Heavy and long bed machines, long machining centres, planners etc.

Model	Load Capacity (Kg/pc)	d (mm)	Dia D (mm)	H (mm)
DR1-h-100-FG-GR	1200	87	109	100
DR2-h-100-FG-GR	2400	108	150	100
DR3-h-100-FG-GR	3500	136	170	100
DR4-h-100-FG-GR	5200	161	210	100
DR5-h-100-FG-GR	7200	185	240	100
DR6-h-100-FG-GR	9600	215	270	100

Series:

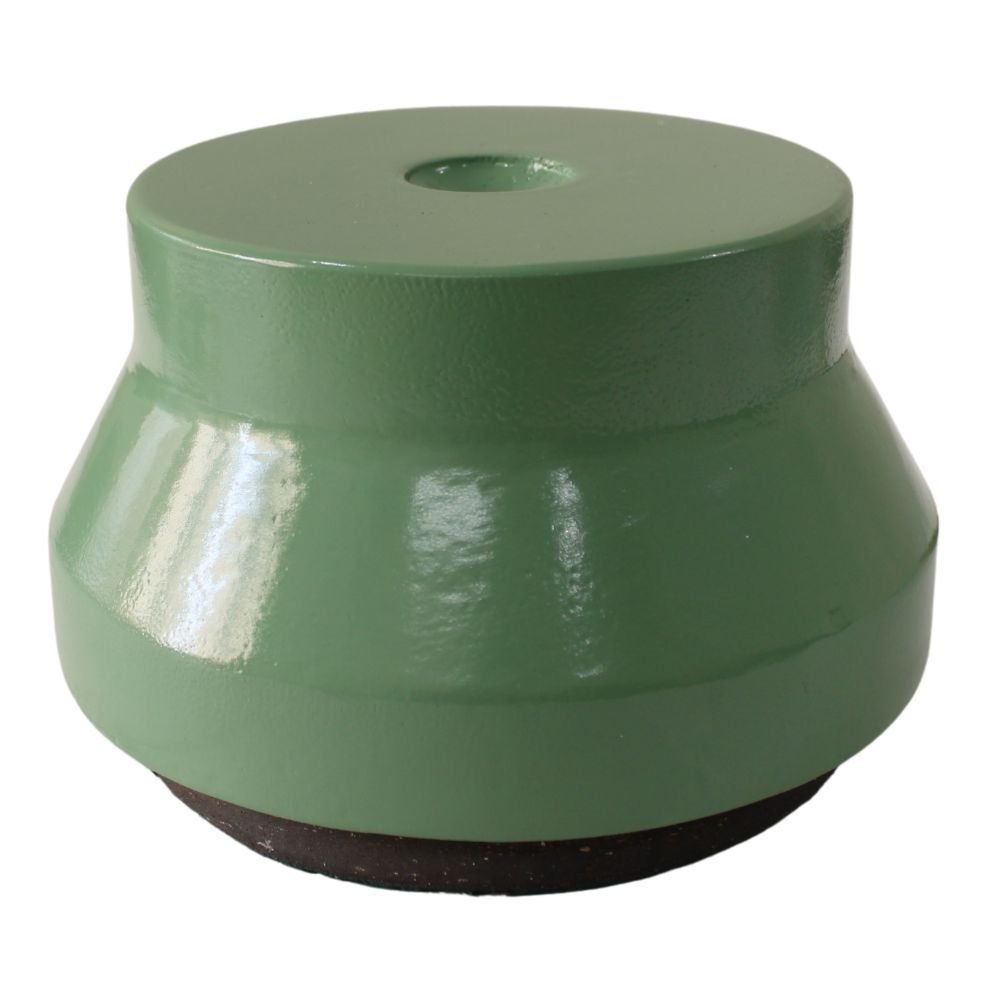

DR-A2

Application:

Model	Load Capacity (Kg/pc)	d (mm)	Dia D (mm)	H (mm)
DR1-a2-93-FG-GR	640	87	109	93
DR2-a2-93-FG-GR	1230	108	150	93
DR3-a2-93-FG-GR	1770	136	170	93
DR4-a2-93-FG-GR	2270	161	210	93
DR5-a2-93-FG-GR	3800	185	240	93
DR6-a2-93-FG-GR	4900	215	270	93
