Spring Viscous Dapshot with Directional Stop

Product:

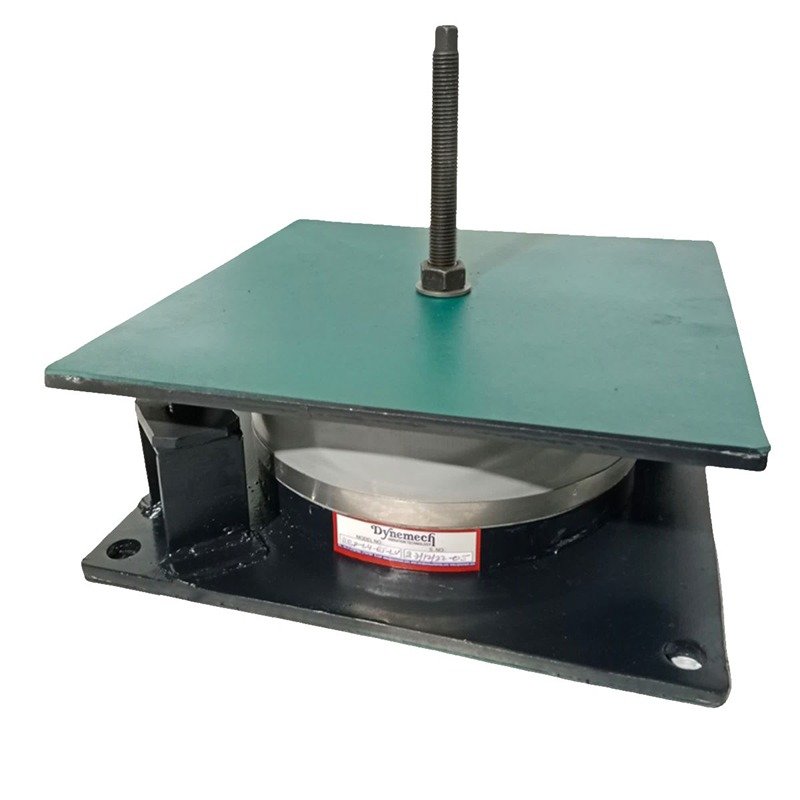

RBD-RT-LV

Description:

Spring viscous dampers with safety stops are designed to provide superior vibration isolation and energy dissipation for various types of machinery and equipment. These dampers combine the elastic properties of springs with the damping characteristics of viscous fluids, along with an integrated safety stop mechanism to prevent excessive movement and ensure operational safety.

Their combination of effective vibration isolation, energy dissipation, and safety features makes them ideal for a wide range of applications, from heavy machinery and HVAC systems to seismic applications and precision equipment.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RBD-J2-RT-LV 60-580 300x300 300x300 111
RBD-L4-RT-LV 100-1000 300x300 300x300 111
RBD-P4-RT-LV 1000-2800 300x300 300x300 111
RBD-K6-RT-LV 400-1700 300x300 300x300 111
RBD-P5-RT-LV 500-1800 310x310 310x310 101
RBD-H2-RT-LV 50-400 300x300 300x300 111

Product:

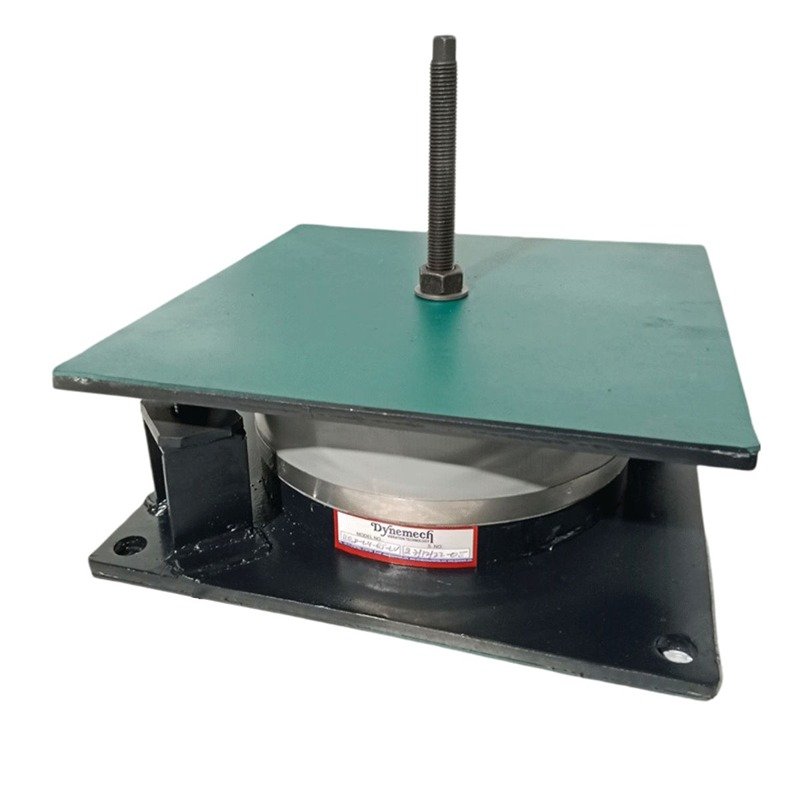

RCD-RT-LV

Description:

Spring viscous dampers with safety stops are designed to provide superior vibration isolation and energy dissipation for various types of machinery and equipment. These dampers combine the elastic properties of springs with the damping characteristics of viscous fluids, along with an integrated safety stop mechanism to prevent excessive movement and ensure operational safety.

Their combination of effective vibration isolation, energy dissipation, and safety features makes them ideal for a wide range of applications, from heavy machinery and HVAC systems to seismic applications and precision equipment.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RCD-J2-RT-LV 82-900 300x300 300x300 111
RCD-L4-RT-LV 150-1500 300x300 300x300 111
RCD-P4-RT-LV 1500-4100 300x300 300x300 111
RCD-K6-RT-LV 600-2550 300x300 300x300 111
RCD-P5-RT-LV 750-2700 310x310 310x310 101
RCD-H2-RT-LV 75-600 300x300 300x300 111

Product:

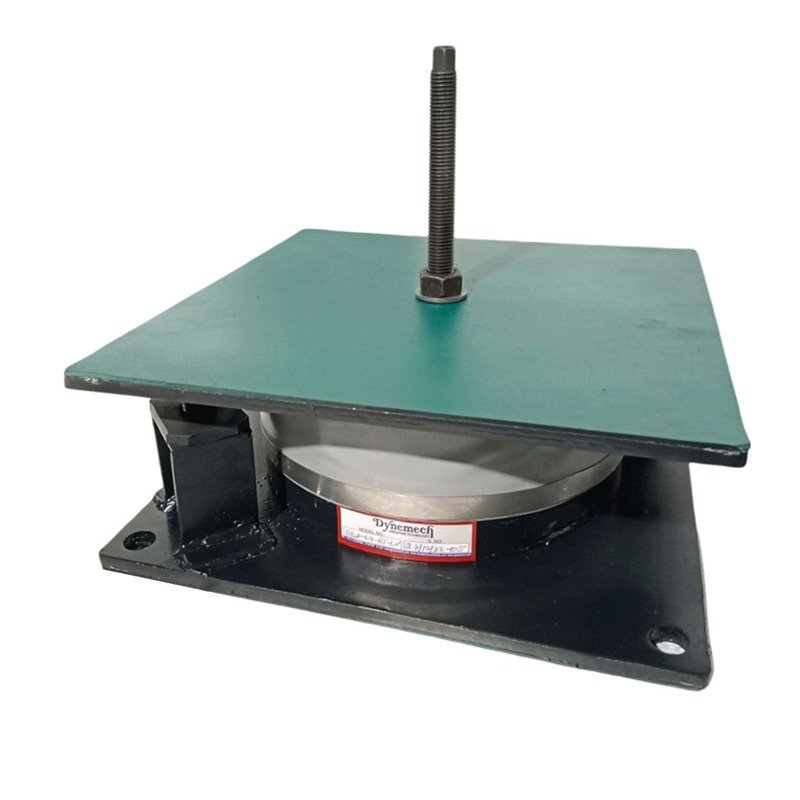

RDD-RT-LV

Description:

Spring viscous dampers with safety stops are designed to provide superior vibration isolation and energy dissipation for various types of machinery and equipment. These dampers combine the elastic properties of springs with the damping characteristics of viscous fluids, along with an integrated safety stop mechanism to prevent excessive movement and ensure operational safety.

Their combination of effective vibration isolation, energy dissipation, and safety features makes them ideal for a wide range of applications, from heavy machinery and HVAC systems to seismic applications and precision equipment.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RDD-J2-RT-LV 110-1200 300x300 300x300 111
RDD-L4-RT-LV 200-2000 300x300 300x300 111
RDD-P4-RT-LV 2000-5500 300x300 300x300 111
RDD-K6-RT-LV 800-3400 300x300 300x300 111
RDD-P5-RT-LV 1000-3600 310x310 310x310 101
RDD-H2-RT-LV 100-800 300x300 300x300 111

Product:

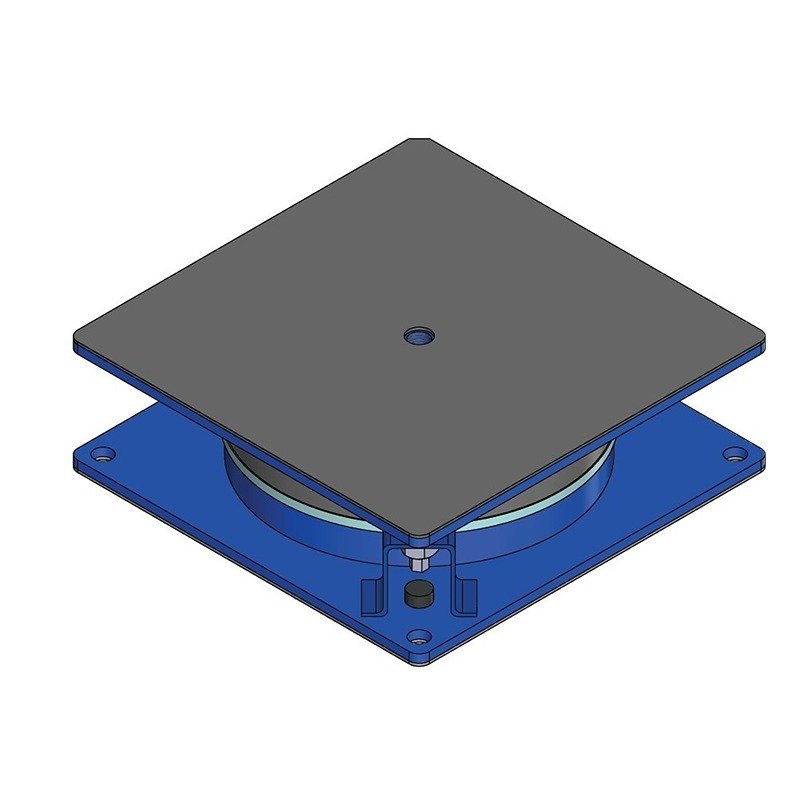

RFD-RT-LV

Description:

Spring viscous dampers with safety stops are designed to provide superior vibration isolation and energy dissipation for various types of machinery and equipment. These dampers combine the elastic properties of springs with the damping characteristics of viscous fluids, along with an integrated safety stop mechanism to prevent excessive movement and ensure operational safety.

Their combination of effective vibration isolation, energy dissipation, and safety features makes them ideal for a wide range of applications, from heavy machinery and HVAC systems to seismic applications and precision equipment.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RFD-J2-RT-LV 170-1800 345x345 345x345 111
RFD-L4-RT-LV 300-3000 345x345 345x345 111
RFD-P4-RT-LV 2400-8200 345x345 345x345 111
RFD-K6-RT-LV 1200-5100 345x345 345x345 111
RFD-P5-RT-LV 1500-5400 355x355 355x355 101
RFD-H2-RT-LV 150-1200 345x345 345x345 111

Product:

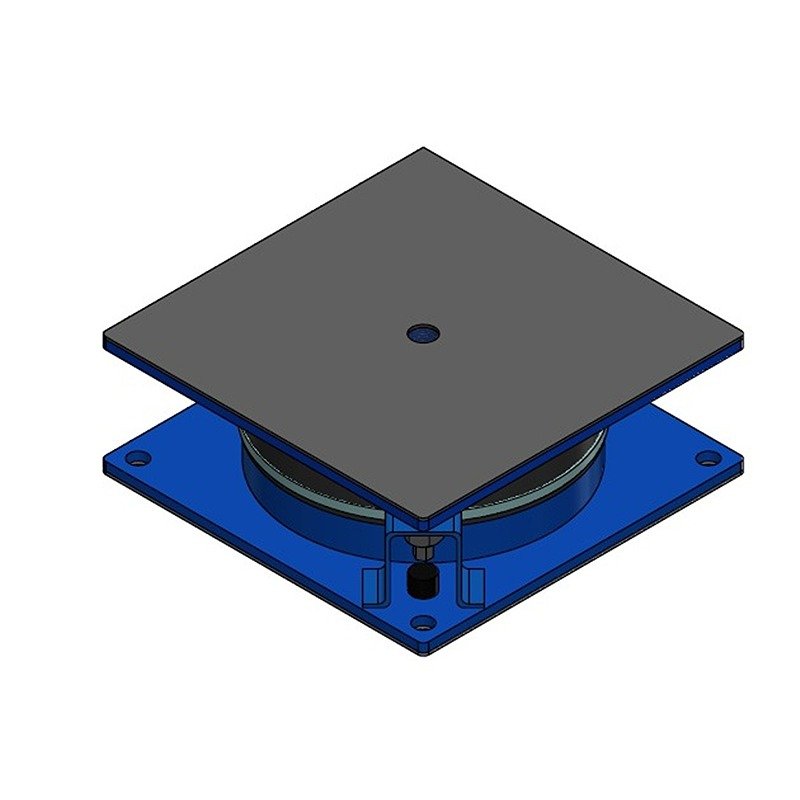

RGD-RT-LV

Description:

Spring viscous dampers with safety stops are designed to provide superior vibration isolation and energy dissipation for various types of machinery and equipment. These dampers combine the elastic properties of springs with the damping characteristics of viscous fluids, along with an integrated safety stop mechanism to prevent excessive movement and ensure operational safety.

Their combination of effective vibration isolation, energy dissipation, and safety features makes them ideal for a wide range of applications, from heavy machinery and HVAC systems to seismic applications and precision equipment.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RGD-J2-RT-LV 210-2100 345x345 345x345 111
RGD-L4-RT-LV 350-3500 345x345 345x345 111
RGD-P4-RT-LV 3500-9800 345x345 345x345 111
RGD-K6-RT-LV 1400-5950 345x345 345x345 111
RGD-P5-RT-LV 1750-6300 355x355 355x355 101
RGD-H2-RT-LV 175-1400 345x345 345x345 111

Product:

RID-RT-LV

Description:

Spring viscous dampers with safety stops are designed to provide superior vibration isolation and energy dissipation for various types of machinery and equipment. These dampers combine the elastic properties of springs with the damping characteristics of viscous fluids, along with an integrated safety stop mechanism to prevent excessive movement and ensure operational safety.

Their combination of effective vibration isolation, energy dissipation, and safety features makes them ideal for a wide range of applications, from heavy machinery and HVAC systems to seismic applications and precision equipment.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RID-J2-RT-LV 270-2700 365x365 365x365 191
RID-L4-RT-LV 450-4500 365x365 365x365 119
RID-P4-RT-LV 3000-12400 365x365 365x365 119
RID-K6-RT-LV 1800-7650 365x365 365x365 119
RID-P5-RT-LV 2250-8100 365x365 365x365 109
RID-H2-RT-LV 225-1800 365x365 365x365 119
