A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine and impact generating machine. Viscous damping is an important feature of an isolation system. In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to, or coinciding with the resonant frequencies of the system. Generally this problem arises during slow run up and run down of rotating machines and during impact at each stroke in presses and hammers.
Enclosed Spring Isolators

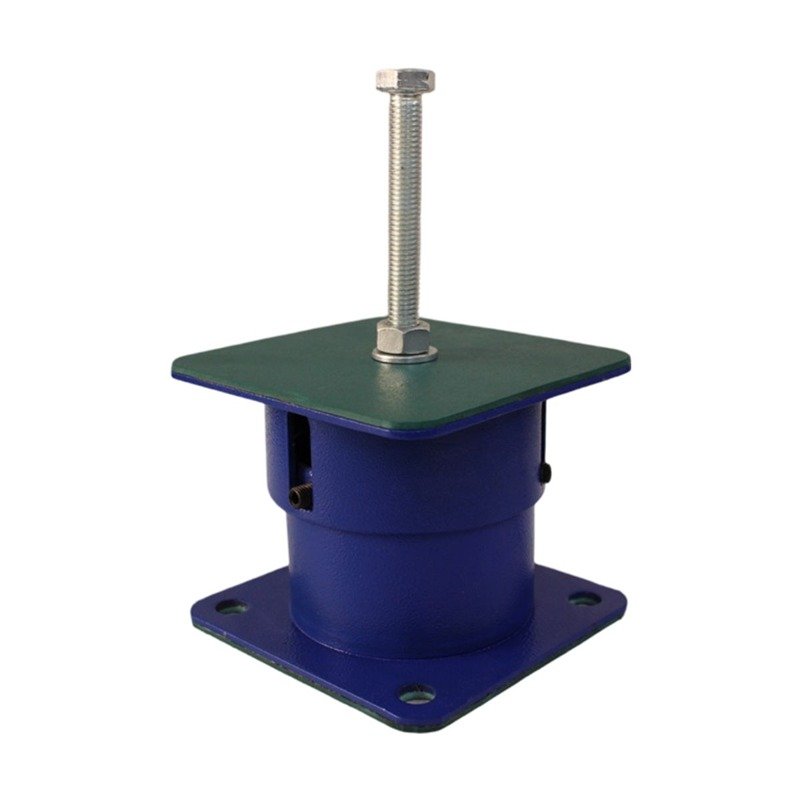

Product:
MAI
Description:
Catalogue
| Part No. | Load (kg/pc) | Top Plate (AxB) (mm) | Bottom Plate (CxD) (mm) | Free Height (H) (mm) |
|---|---|---|---|---|
| MAI-E2-M12x1.75x100 | 32 | 125X125 | 125X125 | 101 |
| MAI-F2-M12x1.75x100 | 10-60 | 110X110 | 110X110 | 85 |
| MAI-F5-M12x1.75x100 | 61 | 125X125 | 125X125 | 101 |
| MAI-G1-M12x1.75x100 | 110 | 125X125 | 125X125 | 101 |
| MAI-G5-M12x1.75x100 | 157 | 125X125 | 125X125 | 101 |
| MAI-H2-M12x1.75x100 | 25-200 | 110X110 | 110X110 | 86 |
| MAI-H5-M12x1.75x100 | 210 | 125X125 | 125X125 | 101 |
| MAI-J2-M12x1.75x100 | 30-300 | 125X125 | 125X125 | 104 |
| MAI-K3-M12x1.75x100 | 200-850 | 125X125 | 125X125 | 75 |
| MAI-L3-M12x1.75x100 | 50-500 | 125X125 | 125X125 | 104 |
| MAI-N5-M12x1.75x100 | 400-1200 | 125X125 | 125X125 | 101 |
| MAI-P3-M12x1.75x100 | 500-1400 | 125X125 | 125X125 | 104 |
| MAI-P5-M12X1.75X100 | 250-900 | 125X125 | 125X125 | 91 |
Product:

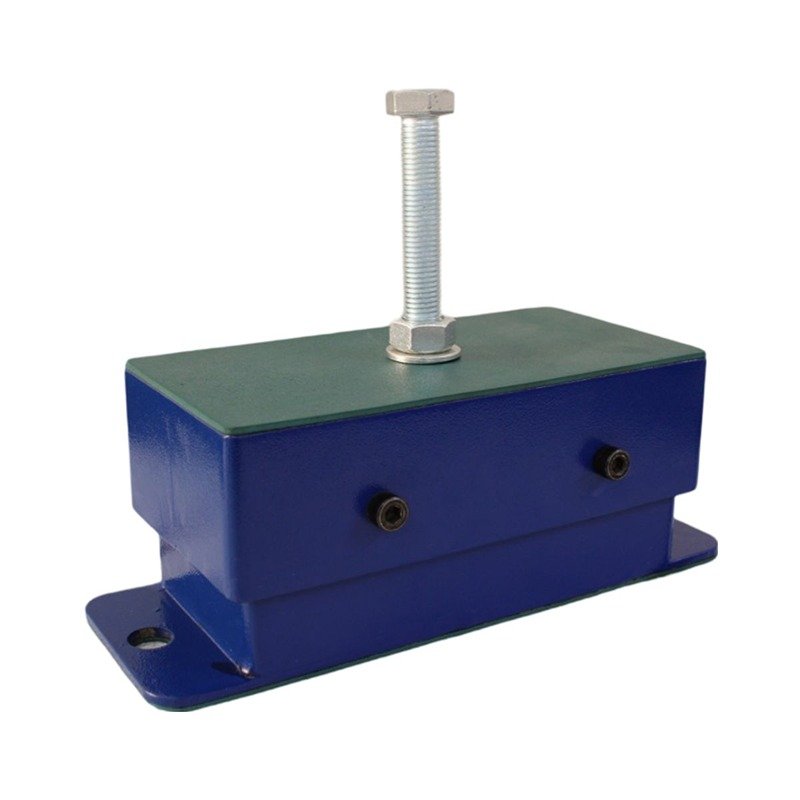

MBI
Description:
A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine and impact generating machine. Viscous damping is an important feature of an isolation system. In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to, or coinciding with the resonant frequencies of the system. Generally this problem arises during slow run up and run down of rotating machines and during impact at each stroke in presses and hammers.
Catalogue
| Part No. | Load (kg/pc) | Top Plate (AxB) (mm) | Bottom Plate (CxD) (mm) | Free Height (H) (mm) |
|---|---|---|---|---|
| MBI-E2-M12x1.75x100 | 64 | 221X117 | 271X96 | 105 |
| MBI-F2-M12x1.75x100 | 20-120 | 221X117 | 271X96 | 105 |
| MBI-F5-M12x1.75x100 | 122 | 221X117 | 271X96 | 105 |
| MBI-G1-M12x1.75x100 | 220 | 221X117 | 271X96 | 105 |
| MBI-G5-M12x1.75x100 | 314 | 221X117 | 271X96 | 105 |
| MBI-H2-M12x1.75x100 | 50-400 | 221X117 | 271X96 | 105 |
| MBI-H5-M12x1.75x100 | 420 | 221X117 | 271X96 | 105 |
| MBI-J4-M12x1.75x100 | 60-580 | 221X117 | 271X96 | 105 |
| MBI-K4-M12x1.75x100 | 400-1700 | 189X119 | 241X101 | 105 |
| MBI-L4-M12x1.75x100 | 100-1000 | 221X117 | 271X96 | 105 |
| MBI-N5-M12x1.75x100 | 800-2400 | 221X117 | 271X96 | 105 |
| MBI-P4-M12x1.75x100 | 1000-2800 | 221X117 | 271X96 | 105 |
| MBI-P5-M12x1.75x100 | 500-1800 | 236X121 | 291X106 | 95 |
Product:
MCI
Description:
A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine and impact generating machine. Viscous damping is an important feature of an isolation system. In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to, or coinciding with the resonant frequencies of the system. Generally this problem arises during slow run up and run down of rotating machines and during impact at each stroke in presses and hammers.
Catalogue
| Part No. | Load (kg/pc) | Top Plate (AxB) (mm) | Bottom Plate (CxD) (mm) | Free Height (H) (mm) |
|---|---|---|---|---|
| MCI-E2-M16x2.0x150 | 96 | 221X196 | 271X176 | 105 |
| MCI-F2-M16x2.0x150 | 30-180 | 221X196 | 271X176 | 105 |
| MCI-F5-M16x2.0x150 | 183 | 221X196 | 271X176 | 105 |
| MCI-G1-M16x2.0x150 | 330 | 221X196 | 271X176 | 105 |
| MCI-G5-M16x2.0x150 | 471 | 221X196 | 271X176 | 105 |
| MCI-H2-M16x2.0x150 | 75-600 | 221X196 | 271X176 | 105 |
| MCI-H5-M16x2.0x150 | 630 | 221X196 | 271X176 | 105 |
| MCI-J2-M16x2.0x150 | 90-900 | 221X196 | 271X176 | 105 |
| MCI-K3-M16x2.0x150 | 600-2550 | 189X164 | 241X146 | 85 |
| MCI-L3-M16x2.0x150 | 150-1500 | 221X196 | 271X176 | 105 |
| MCI-N5-M16x2.0x150 | 1200-3600 | 221X196 | 271X176 | 105 |
| MCI-P3-M16x2.0x150 | 1500-4200 | 221X196 | 271X176 | 105 |
| MCI-P5-M16x2.0x150 | 750-2700 | 240X240 | 291X221 | 95 |

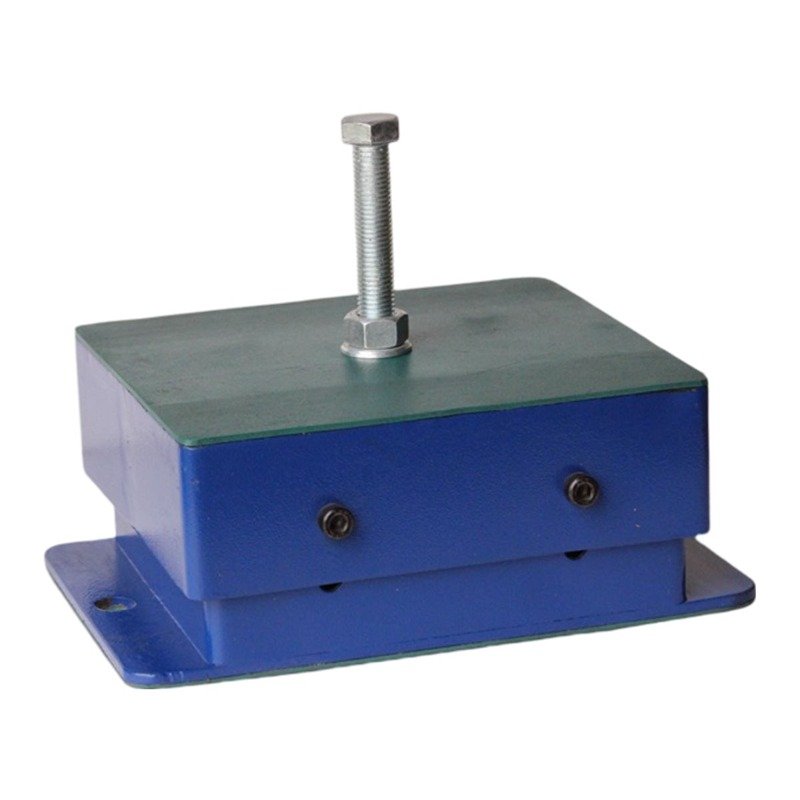

Product:
MDI
Description:
A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine and impact generating machine. Viscous damping is an important feature of an isolation system. In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to, or coinciding with the resonant frequencies of the system. Generally this problem arises during slow run up and run down of rotating machines and during impact at each stroke in presses and hammers.
Catalogue
| Part No. | Load (kg/pc) | Top Plate (AxB) (mm) | Bottom Plate (CxD) (mm) | Free Height (H) (mm) |
|---|---|---|---|---|
| MDI-E2-M16x2.0x150 | 128 | 221X196 | 271X176 | 105 |
| MDI-F2-M16x2.0x150 | 40-240 | 221X196 | 271X176 | 105 |
| MDI-F5-M16x2.0x150 | 244 | 221X196 | 271X176 | 105 |
| MDI-G1-M16x2.0x150 | 440 | 221X196 | 271X176 | 105 |
| MDI-G5-M16x2.0x150 | 628 | 221X196 | 271X176 | 105 |
| MDI-H2-M16x2.0x150 | 100-800 | 221X196 | 271X176 | 105 |
| MDI-H5-M16x2.0x150 | 840 | 221X196 | 271X176 | 105 |
| MDI-J6-M16x2.0x150 | 110-1200 | 221X196 | 271X176 | 105 |
| MDI-K6-M16x2.0x150 | 800-3400 | 186X164 | 241X146 | 85 |
| MDI-L6-M16x2.0x150 | 200-2000 | 221X196 | 271X176 | 105 |
| MDI-N5-M16x2.0x150 | 1600-4800 | 221X196 | 271X176 | 105 |
| MDI-P5-M16x2.0x150 | 1000-3000 | 240X240 | 291X221 | 95 |
| MDI-P6-M16x2.0x150 | 2000-5500 | 221X196 | 271X176 | 105 |

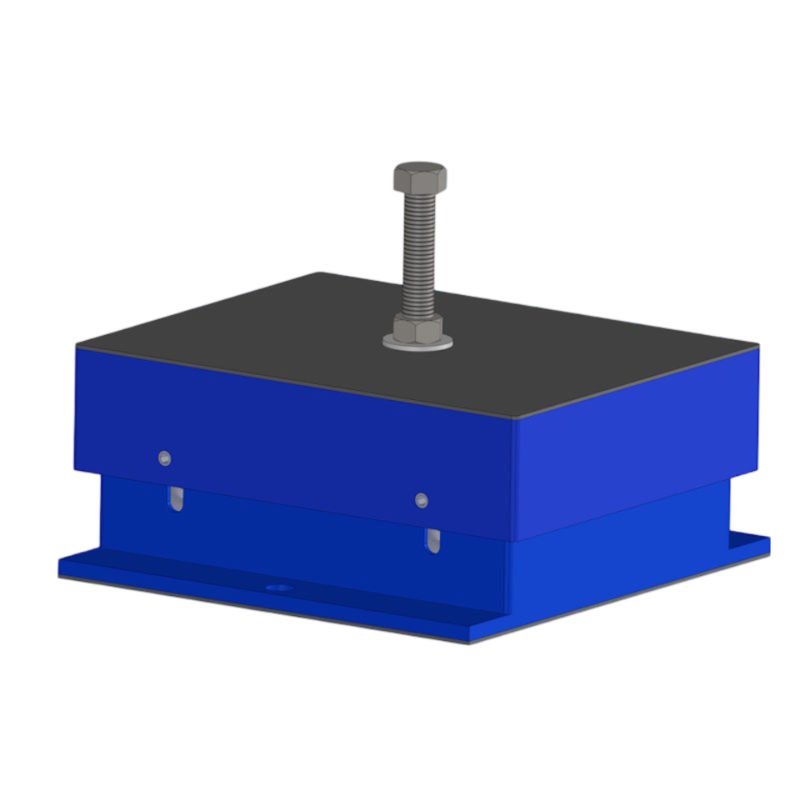

Product:
MEI
Description:
A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine and impact generating machine. Viscous damping is an important feature of an isolation system. In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to, or coinciding with the resonant frequencies of the system. Generally this problem arises during slow run up and run down of rotating machines and during impact at each stroke in presses and hammers.
Catalogue
| Part No. | Load (kg/pc) | Top Plate (AxB) (mm) | Bottom Plate (CxD) (mm) | Free Height (H) (mm) |
|---|---|---|---|---|
| MAI-OR-J6-M16x2.0x150 | 150-1500 | 276X221 | 271X256 | 112 |
| MAI-OR-K6-M16x2.0x150 | 1000-4250 | 276X221 | 271X256 | 112 |
| MAI-OR-L6-M16x2.0x150 | 250-2500 | 276X221 | 271X256 | 112 |
| MAI-OR-P6-M16x2.0x150 | 2500-7000 | 276X221 | 271X256 | 112 |
| MAI-OR-P5-M16x2.0x150 | 1250-4500 | 246X311 | 291X286 | 112 |
| MAI-OR-N5-M16x2.0x150 | 2000-6000 | 276X221 | 271X256 | 112 |

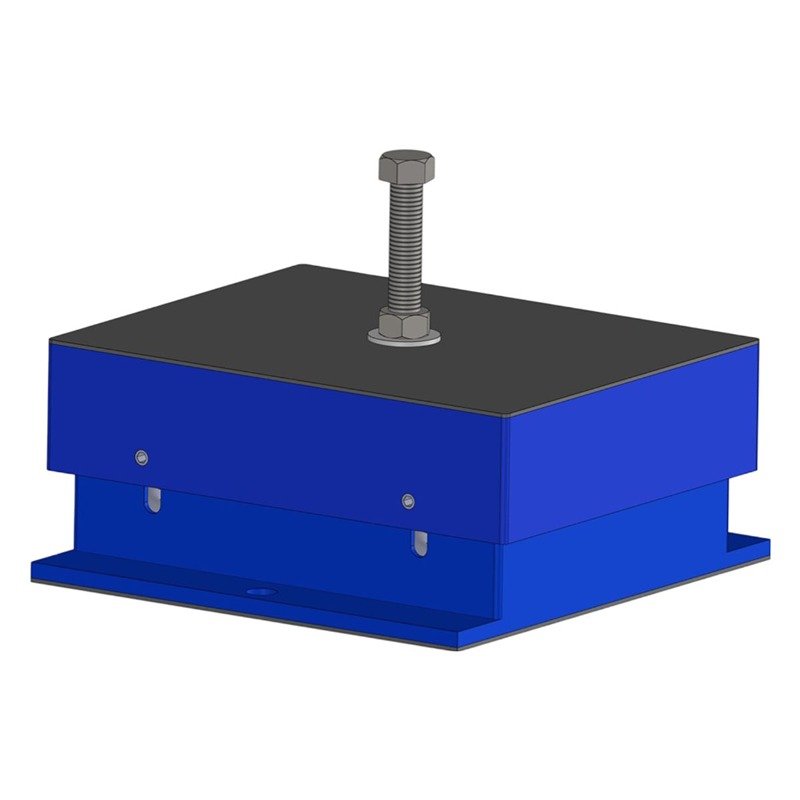

Product:
MFI
Description:
A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine and impact generating machine. Viscous damping is an important feature of an isolation system. In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to, or coinciding with the resonant frequencies of the system. Generally this problem arises during slow run up and run down of rotating machines and during impact at each stroke in presses and hammers.
Catalogue
| Part No. | Load (kg/pc) | Top Plate (AxB) (mm) | Bottom Plate (CxD) (mm) | Free Height (H) (mm) |
|---|---|---|---|---|
| MFI-J6-M16x2.0x150 | 180-1800 | 276X221 | 271X256 | 112 |
| MFI-K6-M16x2.0x150 | 1200-5100 | 276X221 | 271X256 | 112 |
| MFI-L6-M16x2.0x150 | 300-3000 | 276X221 | 271X256 | 112 |
| MFI-P6-M16x2.0x150 | 3000-8400 | 276X221 | 271X256 | 112 |
| MFI-P5-M16x2.0x150 | 1500-5400 | 246X311 | 291X286 | 112 |
| MFI-N5-M16x2.0x150 | 2400-7200 | 276X221 | 271X256 | 112 |
