Product:

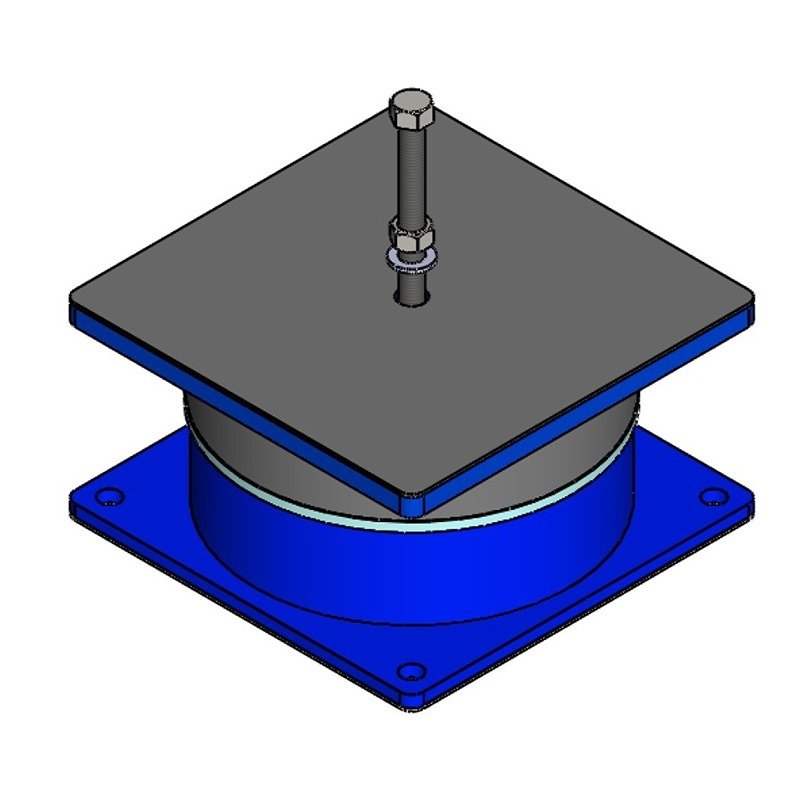

RFD-RT-SP2

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RFD-H2-RT-SP2-M20x2.5x102 150-1200 300X300 300X300 161.5
RFD-J2-RT-SP2-M20x2.5x100 180-1800 300X300 300X300 161.5
RFD-K6-RT-SP2-M20x2.5x101 1200-5100 300X300 300X300 161.5
RFD-L4-RT-SP2-M20x2.5x100 300-3000 300X300 300X300 161.5
RFD-P4-RT-SP2-M20x2.5x100 3000-8400 300X300 300X300 161.5
RFD-P5-RT-SP2-M20x2.5x100 1500-5100 340X340 340X340 161.5
