Enclosed Round Spring Isolators with Viscous Damping

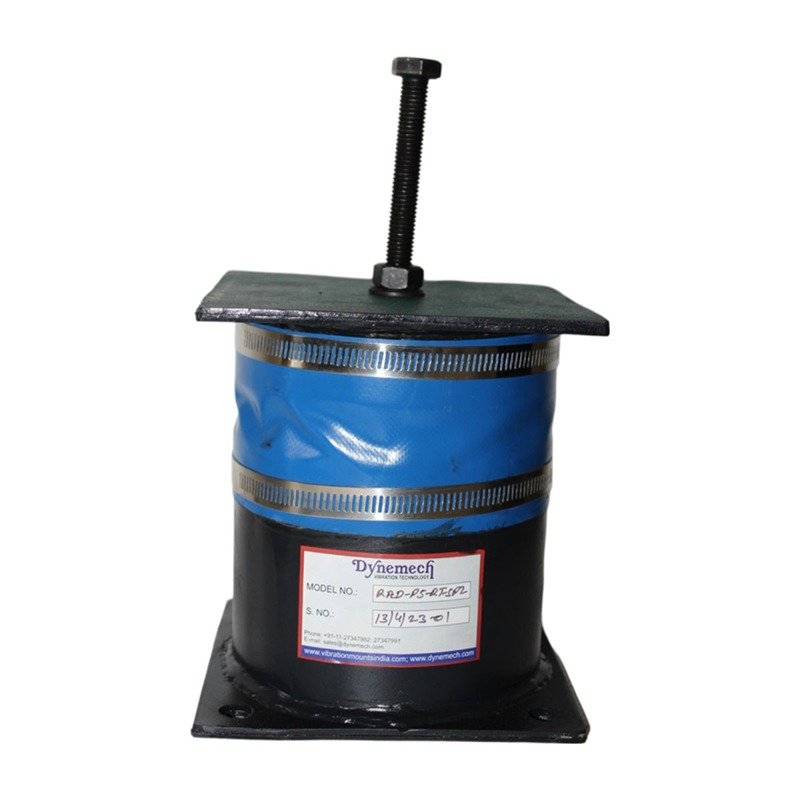

Product:

RAD-RT-SP2

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RAD-E2-RT-SP2-M12x1.75x100 31 125X125 125X125 161.5
RAD-F2-RT-SP2-M12x1.75x100 10-60 125X125 125X125 161.5
RAD-F5-RT-SP2-M12x1.75x100 61 125X125 125X125 161.5
RAD-G1-RT-SP2-M12x1.75x100 109 125X125 125X125 161.5
RAD-G5-RT-SP2-M12x1.75x100 157 125X125 125X125 161.5
RAD-H2-RT-SP2-M12x1.75x100 25-200 125X125 125X125 161.5
RAD-H5-RT-SP2-M12x1.75x100 210 125X125 125X125 161.5
RAD-J2-RT-SP2-M12x1.75x100 30-300 125X125 125X125 161.5
RAD-K6-RT-SP2-M12x1.75x100 200-850 125X125 125X125 161.5
RAD-L4-RT-SP2-M12x1.75x100 50-500 125X125 125X125 161.5
RAD-N5-RT-SP2-M12x1.75x100 400-120 125X125 125X125 161.5
RAD-P4-RT-SP2-M12x1.75x100 500-1400 125X125 125X125 161.5
RAD-P5-RT-SP2-M12x1.75x100 250-900 140X140 140X140 161.5

Product:

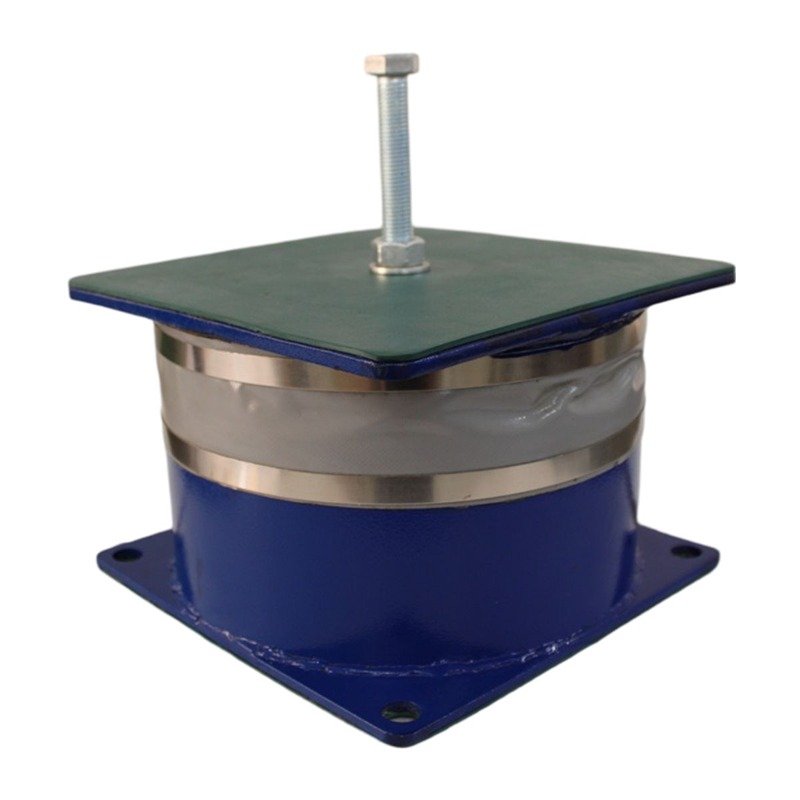

RBD-RT-SP2

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RBD-E2-RT-SP2-M12x1.75x100 62 235X235 235X235 161.5
RBD-F2-RT-SP2-M12x1.75x100 20-120 235X235 235X235 161.5
RBD-F5-RT-SP2-M12x1.75x100 122 235X235 235X235 161.5
RBD-G1-RT-SP2-M12x1.75x100 218 235X235 235X235 161.5
RBD-G5-RT-SP2-M12x1.75x100 314 235X235 235X235 161.5
RBD-H2-RT-SP2-M12x1.75x100 50-400 235X235 235X235 161.5
RBD-H5-RT-SP2-M12x1.75x100 420 235X235 235X235 161.5
RBD-J2-RT-SP2-M12x1.75x100 60-580 235X235 235X235 161.5
RBD-K3-RT-SP2-M12x1.75x100 400-1700 235X235 235X235 161.5
RBD-L3-RT-SP2-M12x1.75x100 100-1000 235X235 235X235 161.5
RBD-N5-RT-SP2-M12x1.75x100 800-2400 235X235 235X235 161.5
RBD-P3-RT-SP2-M12x1.75x100 1000-2800 235X235 235X235 161.5
RBD-P5-RT-SP2-M12x1.75x100 500-1800 245X245 245X245 161.5

Product:

RCD-RT-SP2

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RCD-E2-RT-SP2-M12x1.75x100 96 235X235 235X235 161.5
RCD-F2-RT-SP2-M12x1.75x100 30-180 235X235 235X235 161.5
RCD-F5-RT-SP2-M12x1.75x100 183 235X235 235X235 161.5
RCD-G1-RT-SP2-M12x1.75x100 330 235X235 235X235 161.5
RCD-G5-RT-SP2-M12x1.75x100 471 235X235 235X235 161.5
RCD-H2-RT-SP2-M12x1.75x100 75-600 235X235 235X235 161.5
RCD-H5-RT-SP2-M12x1.75x100 630 235X235 235X235 161.5
RCD-J2-RT-SP2-M12x1.75x100 82-900 235X235 235X235 161.5
RCD-K6-RT-SP2-M12x1.75x100 600-2550 235X235 235X235 161.5
RCD-L4-RT-SP2-M12x1.75x100 150-1500 235X235 235X235 161.5
RCD-N5-RT-SP2-M12x1.75x100 1200-4200 235X235 235X235 161.5
RCD-P4-RT-SP2-M12x1.75x100 1500-4100 235X235 235X235 161.5
RCD-P5-RT-SP2-M12x1.75x100 750-2700 245X245 245X245 161.5

Product:

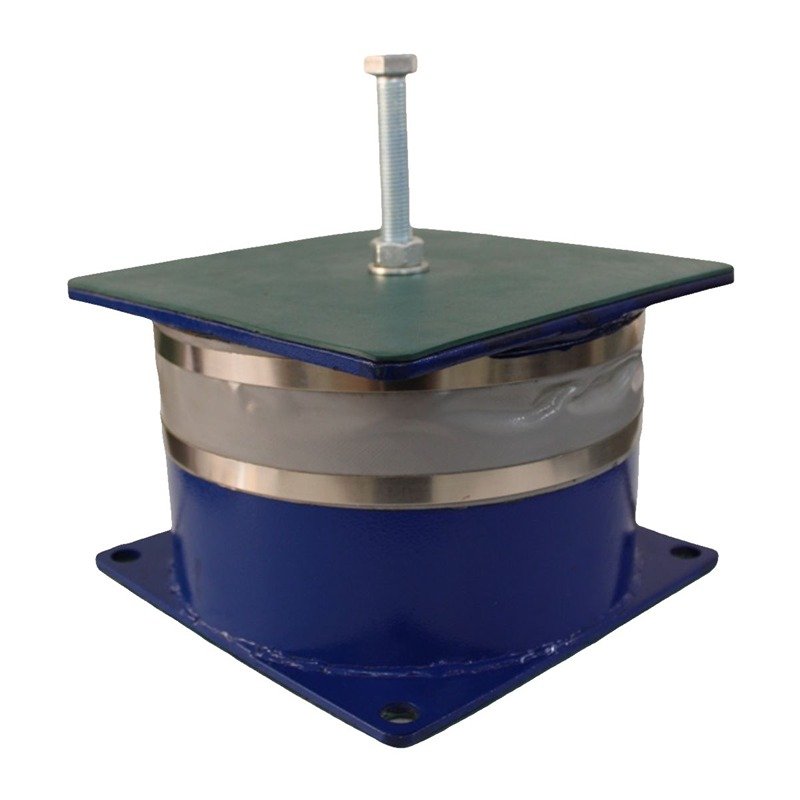

RDD-RT-SP2

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RDD-E2-RT-SP2-M12x1.75x100 128 235X235 235X235 161.5
RDD-F2-RT-SP2-M12x1.75x100 40-240 235X235 235X235 161.5
RDD-F5-RT-SP2-M12x1.75x100 244 235X235 235X235 161.5
RDD-G1-RT-SP2-M12x1.75x100 440 235X235 235X235 161.5
RDD-G5-RT-SP2-M12x1.75x100 628 235X235 235X235 161.5
RDD-H2-RT-SP2-M12x1.75x100 100-800 235X235 235X235 161.5
RDD-H5-RT-SP2-M12x1.75x100 840 235X235 235X235 161.5
RDD-J2-RT-SP2-M12x1.75x100 110-1200 235X235 235X235 161.5
RDD-K6-RT-SP2-M12x1.75x100 800-3400 235X235 235X235 161.5
RDD-L4-RT-SP2-M12x1.75x100 200-2000 235X235 235X235 161.5
RDD-N5-RT-SP2-M12x1.75x100 1600-4800 235X235 235X235 161.5
RDD-P4-RT-SP2-M12x1.75x100 2000-5500 235X235 235X235 161.5
RDD-P5-RT-SP2-M12x1.75x100 1000-3600 245X245 245X245 161.5

Product:

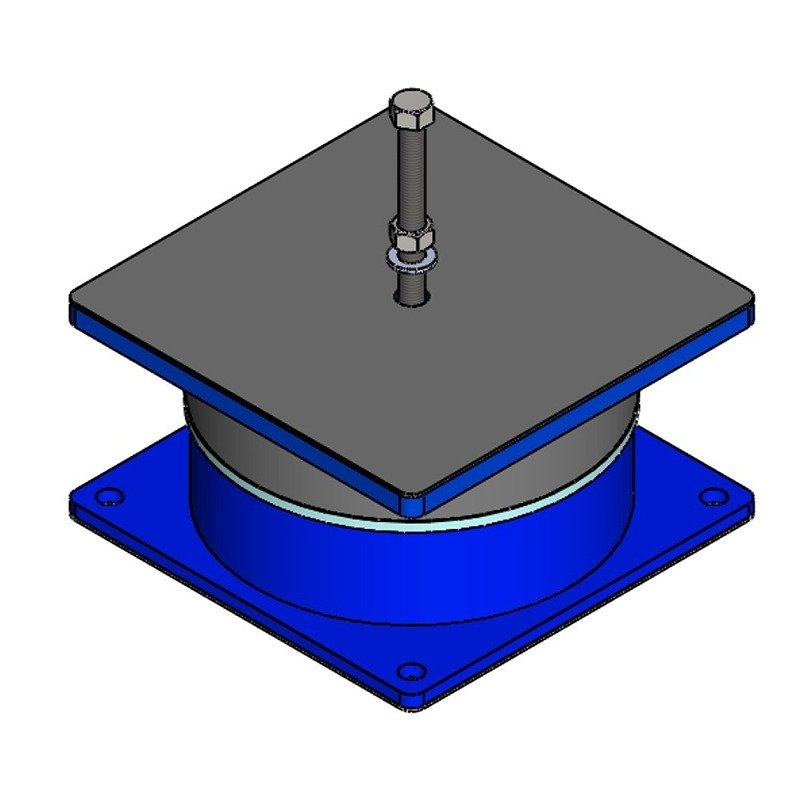

RFD-RT-SP2

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RFD-H2-RT-SP2-M20x2.5x102 150-1200 300X300 300X300 161.5
RFD-J2-RT-SP2-M20x2.5x100 180-1800 300X300 300X300 161.5
RFD-K6-RT-SP2-M20x2.5x101 1200-5100 300X300 300X300 161.5
RFD-L4-RT-SP2-M20x2.5x100 300-3000 300X300 300X300 161.5
RFD-P4-RT-SP2-M20x2.5x100 3000-8400 300X300 300X300 161.5
RFD-P5-RT-SP2-M20x2.5x100 1500-5100 340X340 340X340 161.5

Product:

RGD-RT-SP2

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RGD-H2-RT-SP2 175-1400 300X300 300X300 161.5
RGD-J2-RT-SP2 210-2100 300X300 300X300 161.5
RGD-K6-RT-SP2 1400-5950 300X300 300X300 161.5
RGD-L4-RT-SP2 350-3500 300X300 300X300 161.5
RGD-N5-RT-SP2 2800-8400 300X300 300X300 161.5
RGD-P4-RT-SP2 3500-9800 300X300 300X300 161.5
RGD-P5-RT-SP2 1750-6300 340X340 340X340 161.5

Product:

RHD-RT-SP2

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RHD-H2-RT-SP2 200-1600 335X335 335X335 161.5
RHD-J2-RT-SP2 240-2400 335X335 335X335 161.5
RHD-K6-RT-SP2 1600-6800 335X335 335X335 161.5
RHD-L4-RT-SP2 400-4000 335X335 335X335 161.5
RHD-N5-RT-SP2 3200-9600 335X335 335X335 161.5
RHD-P4-RT-SP2 4000-11200 335X335 335X335 161.5
RHD-P5-RT-SP2 2000-7200 345X345 345X345 161.5

Product:

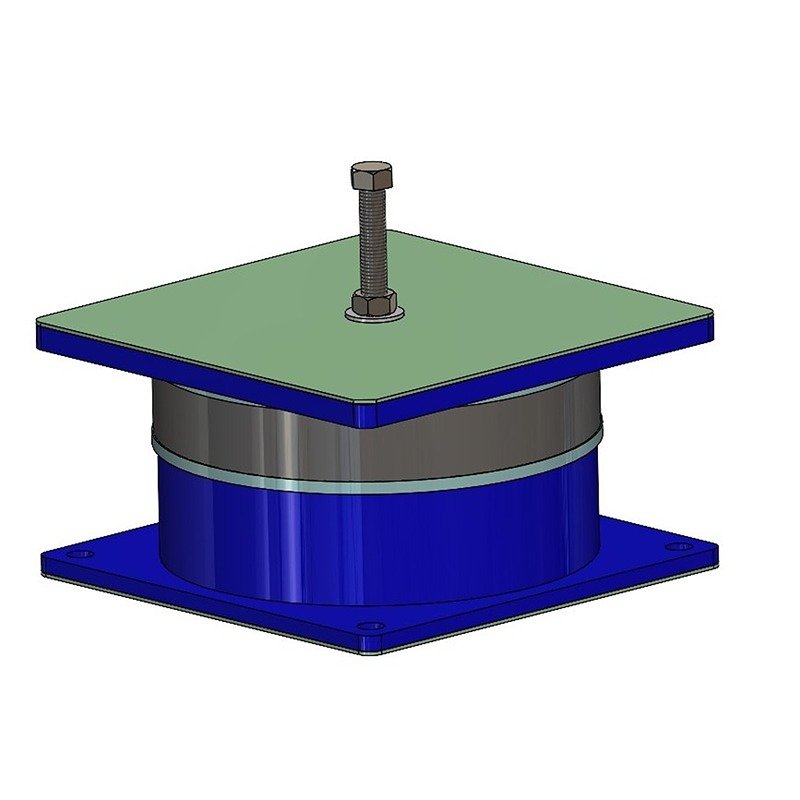

RID-RT-SP2

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RID-H2-RT-SP2 225-1800 335X335 335X335 161.5
RID-J2-RT-SP2 270-2700 335X335 335X335 161.5
RID-K6-RT-SP2 1800-7650 335X335 335X335 161.5
RID-L4-RT-SP2 450-4500 335X335 335X335 161.5
RID-N5-RT-SP2 3600-10800 335X335 335X335 161.5
RID-P4-RT-SP2 4500-12000 335X335 335X335 161.5
RID-P5-RT-SP2 2250-5100 345X345 345X345 161.5

Product:

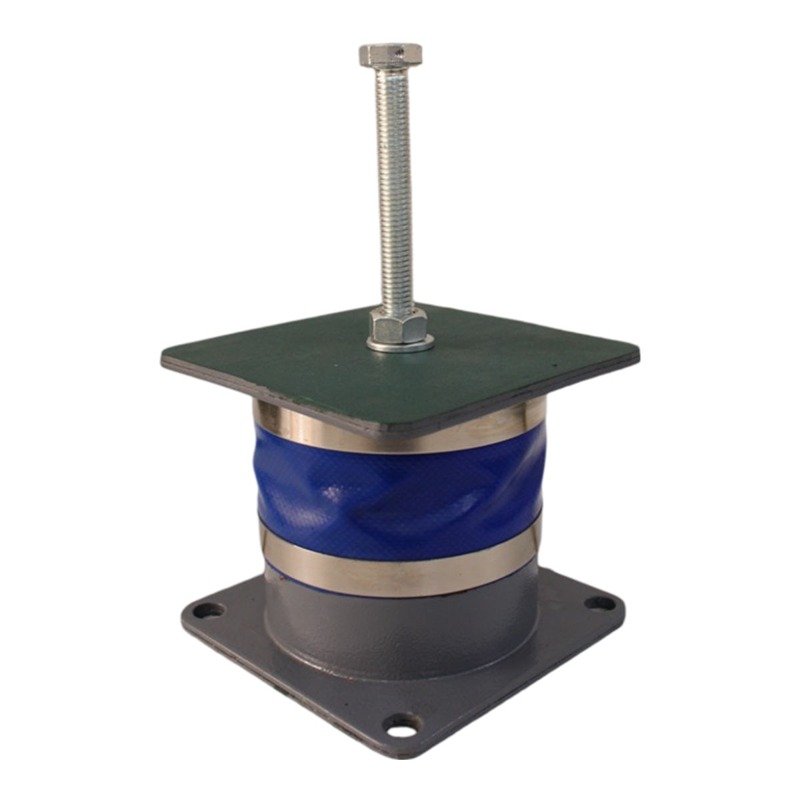

RAD-RT

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RAD-E2-RT-M12x1.75x100 31 125x125 125x125 101
RAD-F2-RT-M12x1.75x100 10-60' 125x125 125x125 101
RAD-F5-RT-M12x1.75x100 61 125x125 125x125 101
RAD-G1-RT-M12x1.75x100 109 125x125 125x125 101
RAD-G5-RT-M12x1.75x100 157 125x125 125x125 101
RAD-H2-RT-M12x1.75x100 25-200 125x125 125x125 86
RAD-H5-RT-M12x1.75x100 210 125x125 125x125 101
RAD-J2-RT-M12x1.75x100 30-300 125x125 125x125 101
RAD-K3-RT-M12x1.75x100 200-850 125x125 125x125 75
RAD-L3-RT-M12x1.75x100 50-500 125x125 125x125 101
RAD-N5-RT-M12x1.75x100 400-1200 125x125 125x125 101
RAD-P3-RT-M12x1.75x100 500-1400 125x125 125x125 101
RAD-P5-RT-M12x1.75x100 250-900 140X140 140X140 91

Product:

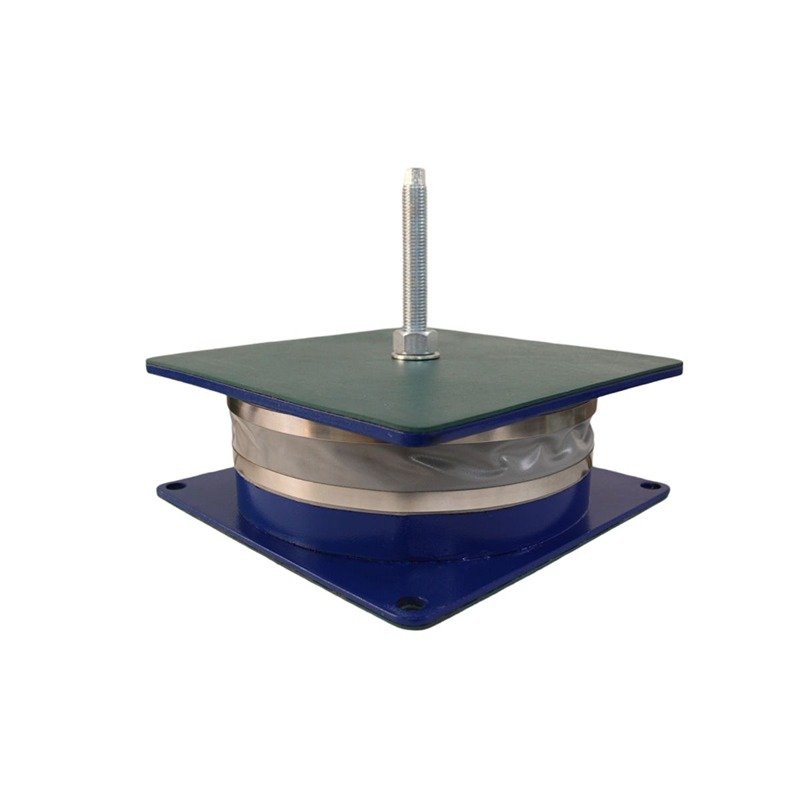

RBD-RT

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RBD-E2-RT-M12x1.75x100 62 235X235 235X235 108
RBD-F2-RT-M12x1.75x100 20-120 235X235 235X235 108
RBD-F5-RT-M12x1.75x100 122 235X235 235X235 108
RBD-G1-RT-M12x1.75x100 218 235X235 235X235 108
RBD-G5-RT-M12x1.75x100 314 235X235 235X235 108
RBD-H2-RT-M12x1.75x100 50-400 235X235 235X235 108
RBD-H5-RT-M12x1.75x100 420 235X235 235X235 108
RBD-J2-RT-M12x1.75x100 60-580 235X235 235X235 108
RBD-K6-RT-M12x1.75x100 400-1700 235X235 235X235 108
RBD-L4-RT-M12x1.75x100 100-100 235X235 235X235 108
RBD-N5-RT-M12x1.75x100 800-2400 235X235 235X235 108
RBD-P4-RT-M12x1.75x100 1000-2800 235X235 235X235 108
RBD-P5-RT-M12x1.75x100 500-1800 245X245 245X245 98

Product:

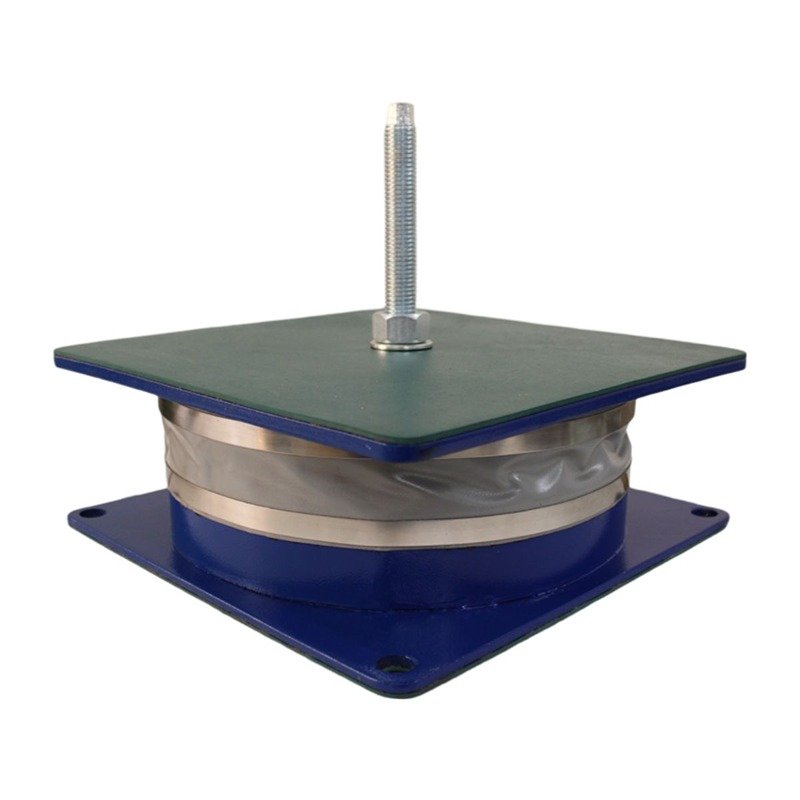

RCD-RT

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RCD-E2-RT-M12x1.75x100 96 235X235 235X235 108
RCD-F2-RT-M12x1.75x100 30-180 235X235 235X235 108
RCD-F5-RT-M12x1.75x100 183 235X235 235X235 108
RCD-G1-RT-M12x1.75x100 330 235X235 235X235 108
RCD-G5-RT-M12x1.75x100 471 235X235 235X235 108
RCD-H2-RT-M12x1.75x100 75-600 235X235 235X235 108
RCD-H5-RT-M12x1.75x100 630 235X235 235X235 108
RCD-J2-RT-M12x1.75x100 90-900 235X235 235X235 108
RCD-K3-RT-M12x1.75x100 600-2550 235X235 235X235 108
RCD-L3-RT-M12x1.75x100 150-1500 235X235 235X235 108
RCD-N5-RT-M12x1.75x100 1200-3600 235X235 235X235 108
RCD-P3-RT-M12x1.75x100 1500-4200 235X235 235X235 108
RCD-P5-RT-M12x1.75x100 750-2700 245X245 245X245 98

Product:

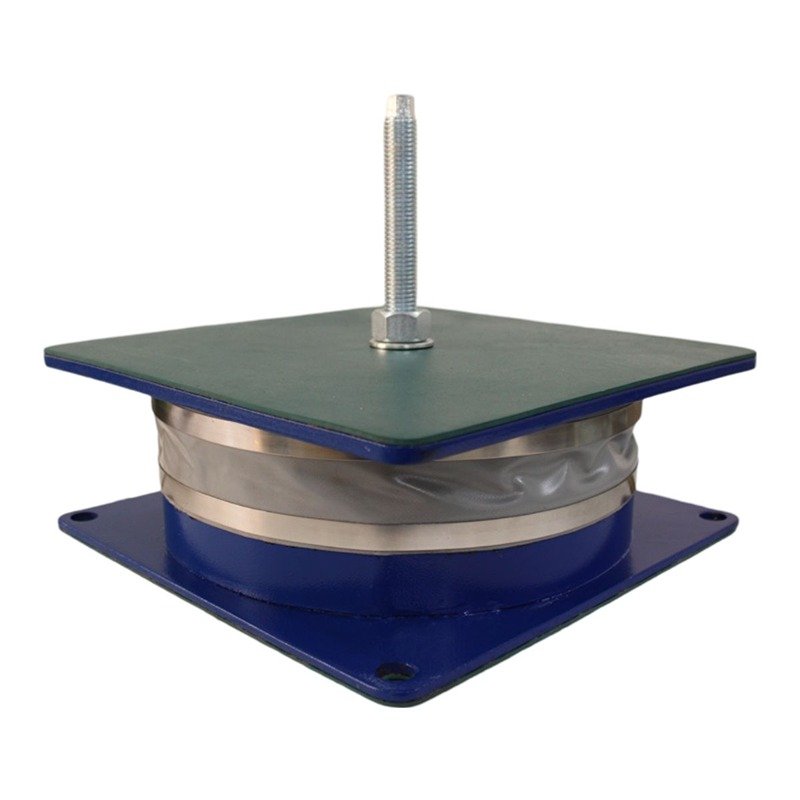

RDD-RT

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RDD-E2-RT-M12x1.75x100 128 235X235 235X235 108
RDD-F2-RT-M12x1.75x100 40-240 235X235 235X235 108
RDD-F5-RT-M12x1.75x100 244 235X235 235X235 108
RDD-G1-RT-M12x1.75x100 440 235X235 235X235 108
RDD-G5-RT-M12x1.75x100 628 235X235 235X235 108
RDD-H2-RT-M12x1.75x100 100-800 235X235 235X235 108
RDD-H5-RT-M12x1.75x100 840 235X235 235X235 108
RDD-J2-RT-M12x1.75x100 110-1200 235X235 235X235 108
RDD-K6-RT-M12x1.75x100 800-3400 235X235 235X235 108
RDD-L4-RT-M12x1.75x100 200-2000 235X235 235X235 108
RDD-N5-RT-M12x1.75x100 1600-4800 235X235 235X235 108
RDD-P4-RT-M12x1.75x100 2000-5500 235X235 235X235 108
RDD-P5-RT-M12x1.75x100 1000-3600 245X245 245X245 98

Product:

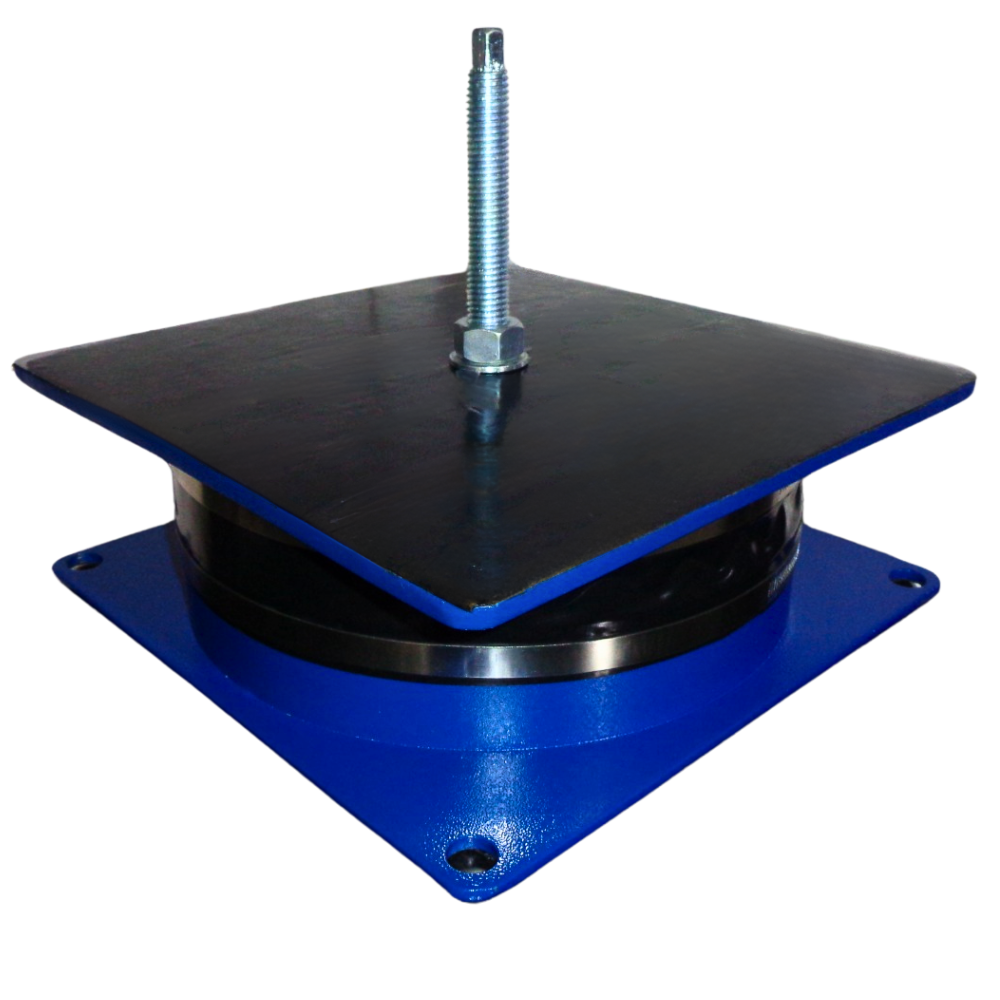

RFD-RT

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RFD-H2-RT -M20x2.5x100 150-1200 300X300 300X300 108
RFD-J2-RT -M20x2.5x100 180-1800 300X300 300X300 108
RFD-K6-RT -M20x2.5x100 1200-5100 300X300 300X300 108
RFD-L4-RT -M20x2.5x100 300-3000 300X300 300X300 108
RFD-P4-RT -M20x2.5x100 3000-8400 300X300 300X300 108
RFD-P5-RT -M20x2.5x100 1500-5100 340X340 340X340 98
RFD-N5-RT -M20x2.5x100 2400-7200 300X300 300X300 108

Product:

RGD-RT

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RGD-H2-RT 175-1400 300X300 300X300 108
RGD-J2-RT 210-2100 300X300 300X300 108
RGD-K6-RT 1400-5950 300X300 300X300 108
RGD-L4-RT 350-3500 300X300 300X300 108
RGD-N5-RT 2800-8400 300X300 300X300 108
RGD-P4-RT 3500-9800 300X300 300X300 108
RGD-P5-RT 1750-6300 340X340 340X340 98

Product:

RHD-RT

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RHD-H2-RT 200-1600 335X335 335X335 117
RHD-J2-RT 240-2400 335X335 335X335 117
RHD-K6-RT 1600-6800 335X335 335X335 117
RHD-L4-RT 400-4000 335X335 335X335 117
RHD-N5-RT 3200-9600 335X335 335X335 117
RHD-P4-RT 4000-11200 335X335 335X335 117
RHD-P5-RT 2000-7200 345X345 345X345 107

Product:

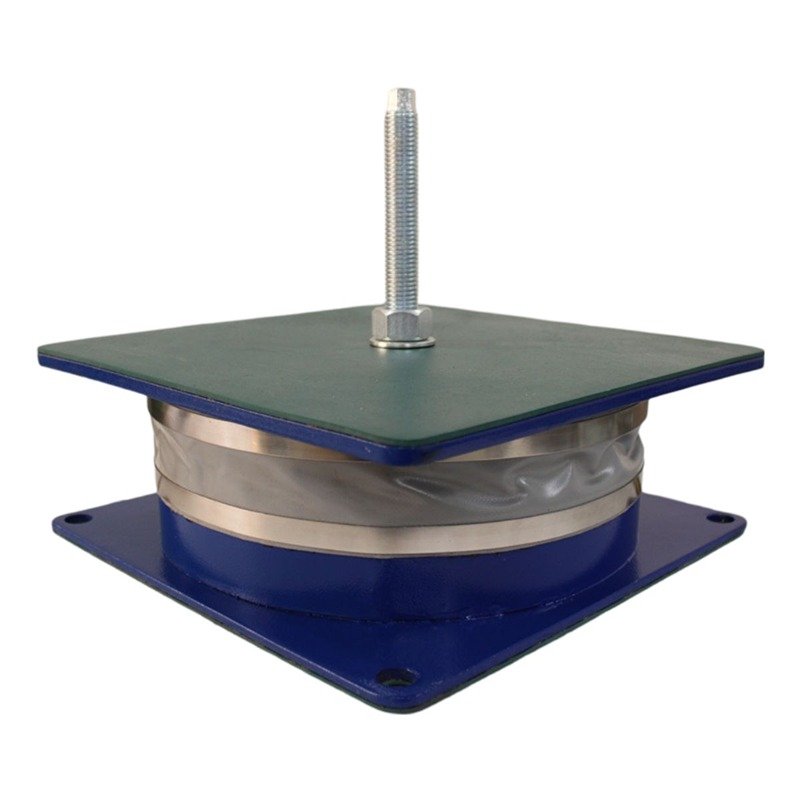

RID-RT

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RID-H2-RT 225-1800 335X335 335X335 117
RID-J2-RT 270-2700 335X335 335X335 117
RID-K6-RT 1800-7650 335X335 335X335 117
RID-L4-RT 450-4500 335X335 335X335 117
RID-P4-RT 4500-12000 335X335 335X335 117
RID-P5-RT 2250-8100 335X335 335X335 107
RID-N5-RT 3600-10800 345X345 345X345 117

Product:

RCD-SP3

Description:

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RCD-J2-RT-SP3 1650 350x350 350x350 310

Product:

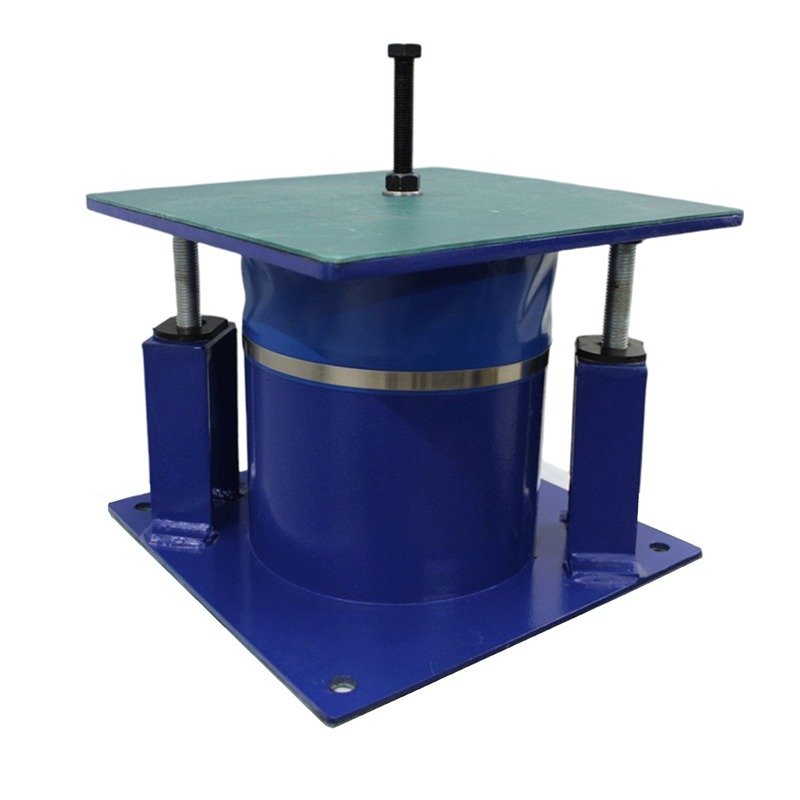

RDD-SP3

Description:

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RDD-J2-RT-SP3 2200 350x350 350x350 310
