Product:

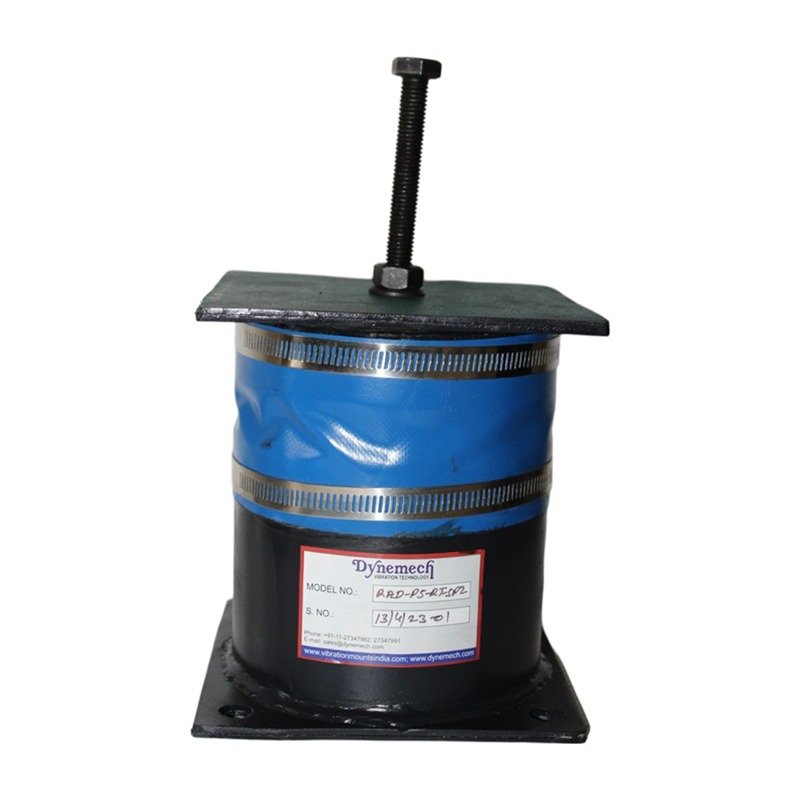

RAD-RT-SP2

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RAD-E2-RT-SP2-M12x1.75x100 31 125X125 125X125 161.5
RAD-F2-RT-SP2-M12x1.75x100 10-60 125X125 125X125 161.5
RAD-F5-RT-SP2-M12x1.75x100 61 125X125 125X125 161.5
RAD-G1-RT-SP2-M12x1.75x100 109 125X125 125X125 161.5
RAD-G5-RT-SP2-M12x1.75x100 157 125X125 125X125 161.5
RAD-H2-RT-SP2-M12x1.75x100 25-200 125X125 125X125 161.5
RAD-H5-RT-SP2-M12x1.75x100 210 125X125 125X125 161.5
RAD-J2-RT-SP2-M12x1.75x100 30-300 125X125 125X125 161.5
RAD-K6-RT-SP2-M12x1.75x100 200-850 125X125 125X125 161.5
RAD-L4-RT-SP2-M12x1.75x100 50-500 125X125 125X125 161.5
RAD-N5-RT-SP2-M12x1.75x100 400-120 125X125 125X125 161.5
RAD-P4-RT-SP2-M12x1.75x100 500-1400 125X125 125X125 161.5
RAD-P5-RT-SP2-M12x1.75x100 250-900 140X140 140X140 161.5
