Vibration Mounts India

Product:

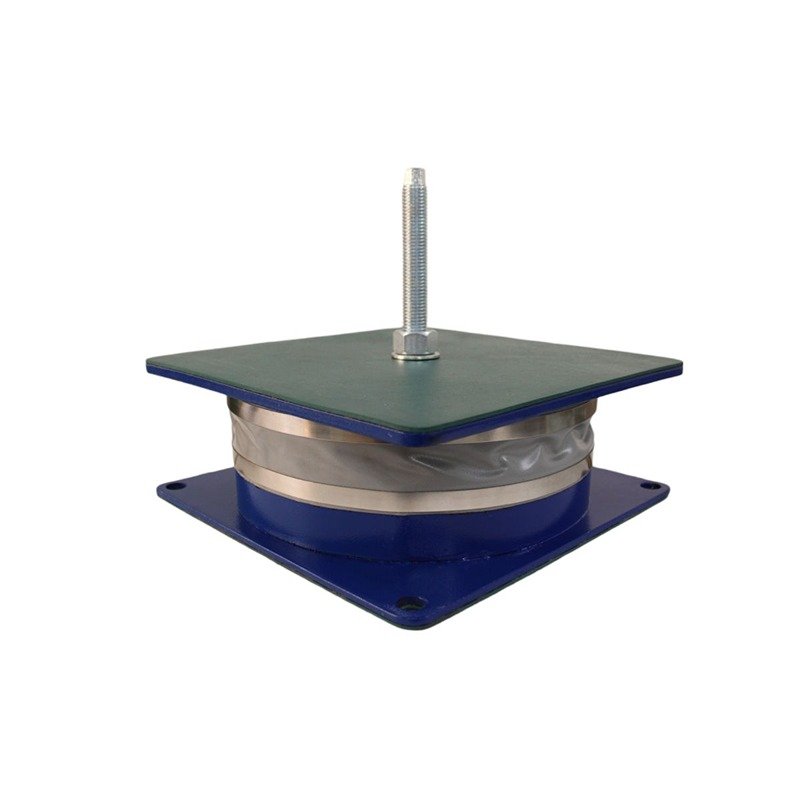

RBD-RT

Description:

Spring viscous dampers with viscous damping series RT are designed to provide exceptional vibration isolation and energy dissipation for machinery and equipment. They combine the elastic properties of springs with the very high energy absorption capabilities of highly viscous damping fluids. These dampers are particularly effective in applications where significant reduction of both vibration amplitude and resonant frequencies is essential such as Heavy Power Presses, centrifuges, Hydraulic Presses, Precision machine tools, Shearing Cutters, embroidery machines, Looms, also high shock and vibration creating machines, installed on the suspended slabs etc.

Catalogue

Part No. Load (kg/pc) Top Plate (AxB) (mm) Bottom Plate (CxD) (mm) Free Height (H) (mm)
RBD-E2-RT-M12x1.75x100 62 235X235 235X235 108
RBD-F2-RT-M12x1.75x100 20-120 235X235 235X235 108
RBD-F5-RT-M12x1.75x100 122 235X235 235X235 108
RBD-G1-RT-M12x1.75x100 218 235X235 235X235 108
RBD-G5-RT-M12x1.75x100 314 235X235 235X235 108
RBD-H2-RT-M12x1.75x100 50-400 235X235 235X235 108
RBD-H5-RT-M12x1.75x100 420 235X235 235X235 108
RBD-J2-RT-M12x1.75x100 60-580 235X235 235X235 108
RBD-K6-RT-M12x1.75x100 400-1700 235X235 235X235 108
RBD-L4-RT-M12x1.75x100 100-100 235X235 235X235 108
RBD-N5-RT-M12x1.75x100 800-2400 235X235 235X235 108
RBD-P4-RT-M12x1.75x100 1000-2800 235X235 235X235 108
RBD-P5-RT-M12x1.75x100 500-1800 245X245 245X245 98
