DLMS8-i-249-SS-M20x2.5x150
Dynemech DLMS series mounts, developed in stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer low frequency attentuation, stable machine levelling and vibration reduction. the flexible levelling screw accomodates uneven/sloped surfaces environmental reasons are required like in pharmaceutical, food and beverages processing and packaging units, medical equipments manufacturing and chemical processing industries.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Load Capacity (Kg/Pc) | 5570 |

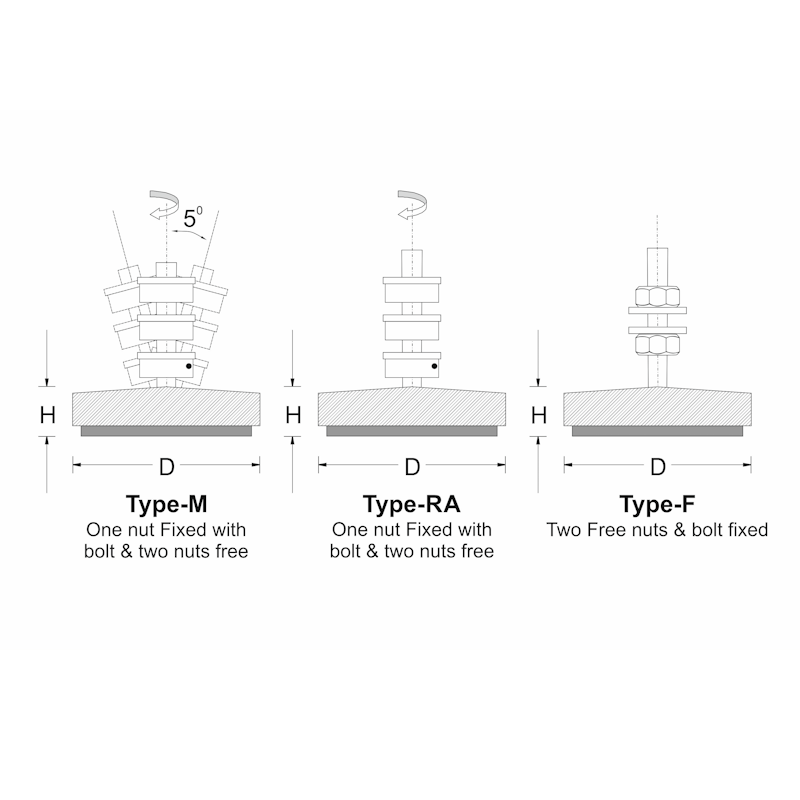

| Diameter D (Mm) | 249 |
| Height H (Mm) | 54 |
| Bolt Size (Mm) | M20X150 |
| Possible Bolts | M10/12/16/20/24 |
| Coeff Of Friction Against Concrete | 0.8 |
| Natural Frequency At Max Load (Hz) | 7 |
| Temperature Range (°C) | From -16 to 90 |
| Colour | Dark Grey |
| Applications | Power Presses, Punching Machines, Stamping Machines, Shearing Machines etc. |
