DTP6-h-150-30T-FG-DG
Dynemech Wedge mounts, Series DTP have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DT.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | Very Heavy and long bed machines, long machining centres, planners etc. |
| Load Capacity (Kg/Pc) | 36000 |

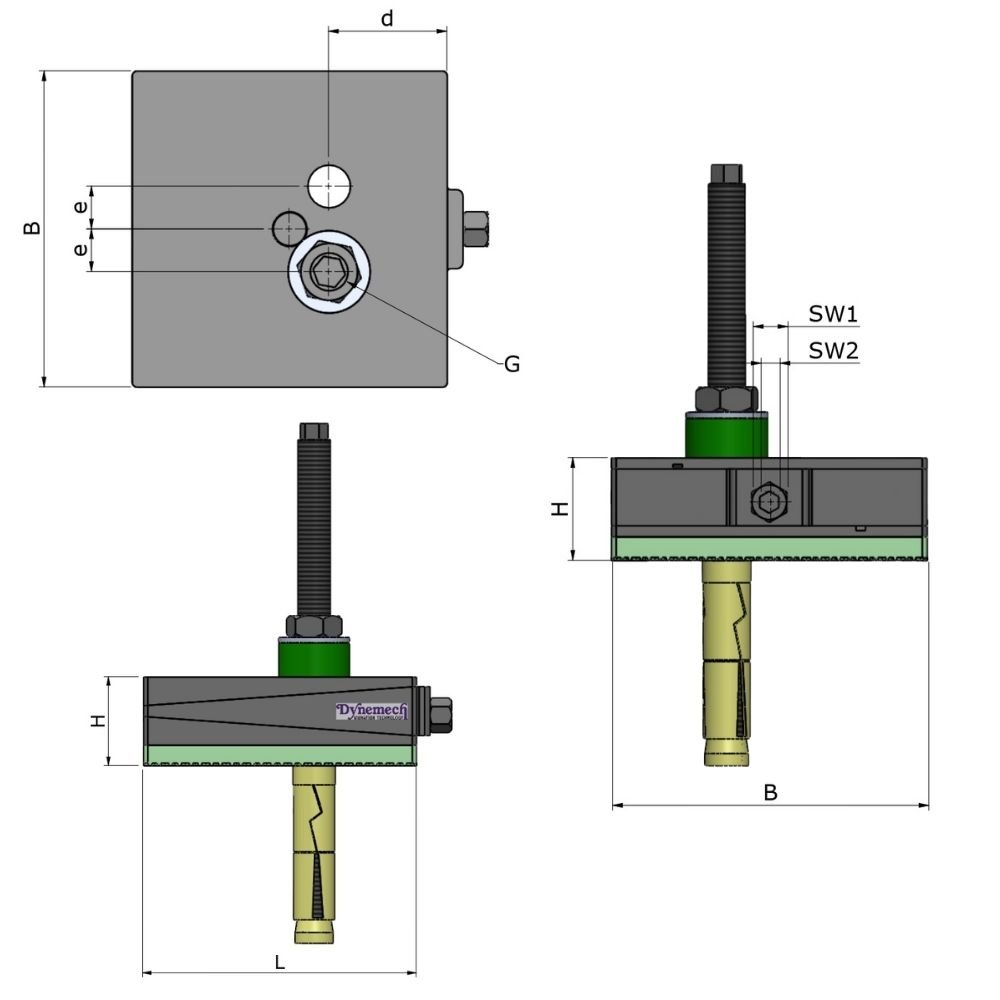

| Length L (Mm) | 300 |
| Width B (Mm) | 400 |
| Height H At Mean Position (Mm) | 150 |

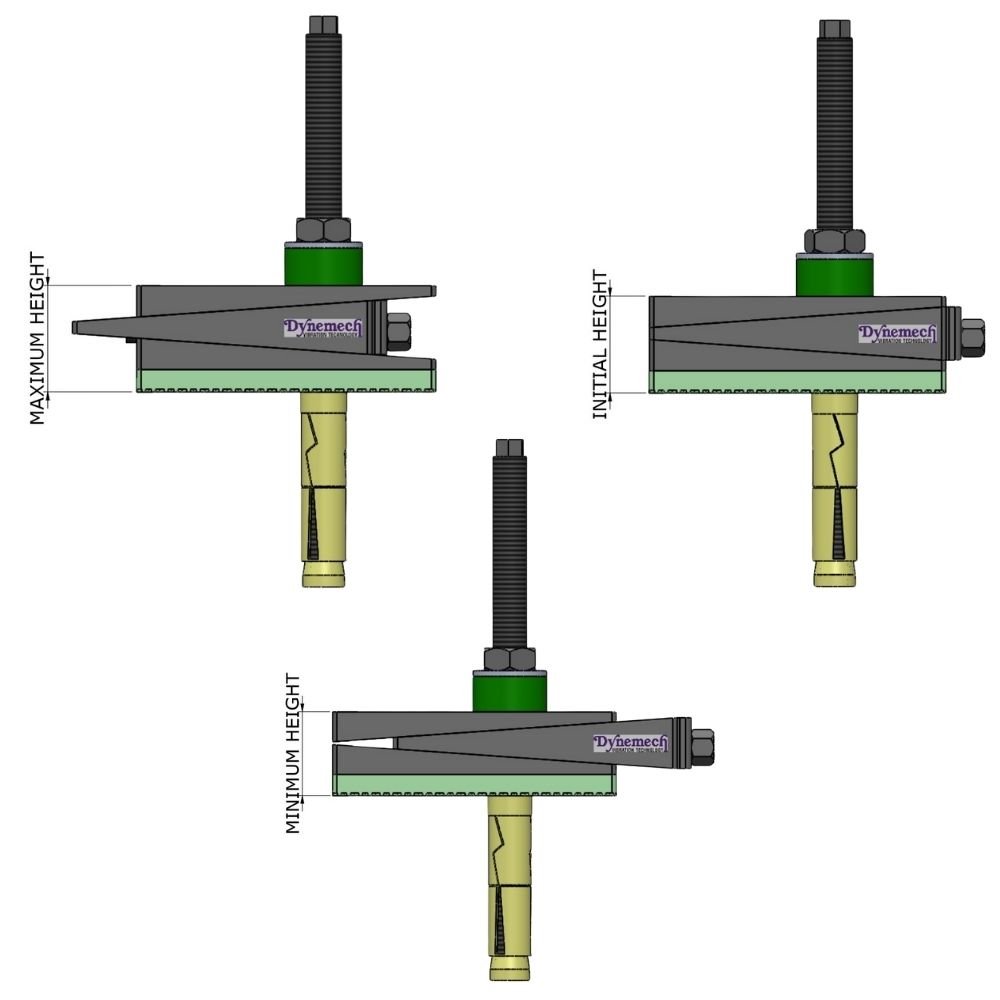

| Adjustment Range (Mm) | +10/-10 |
| Bottom Pad Type | Dh |
| Bottom Pad Thickness (Mm) | 15 |
| Sw1 (Mm) | 32 |
| Sw2 (Mm) | 18 |
| Coeff Of Friction Against Concrete | 0.6 |
| Natural Frequency At Max Load (Hz) | 45 |
| Temperature Range (°C) | From -15 to 80 |
| Color | Dark Grey/Green |
| D (Mm) | 148 |
| E (Mm) | 50 |
| Bore G (Mm) | 30 |
