DTP1-a2-93-22T-FG-DG

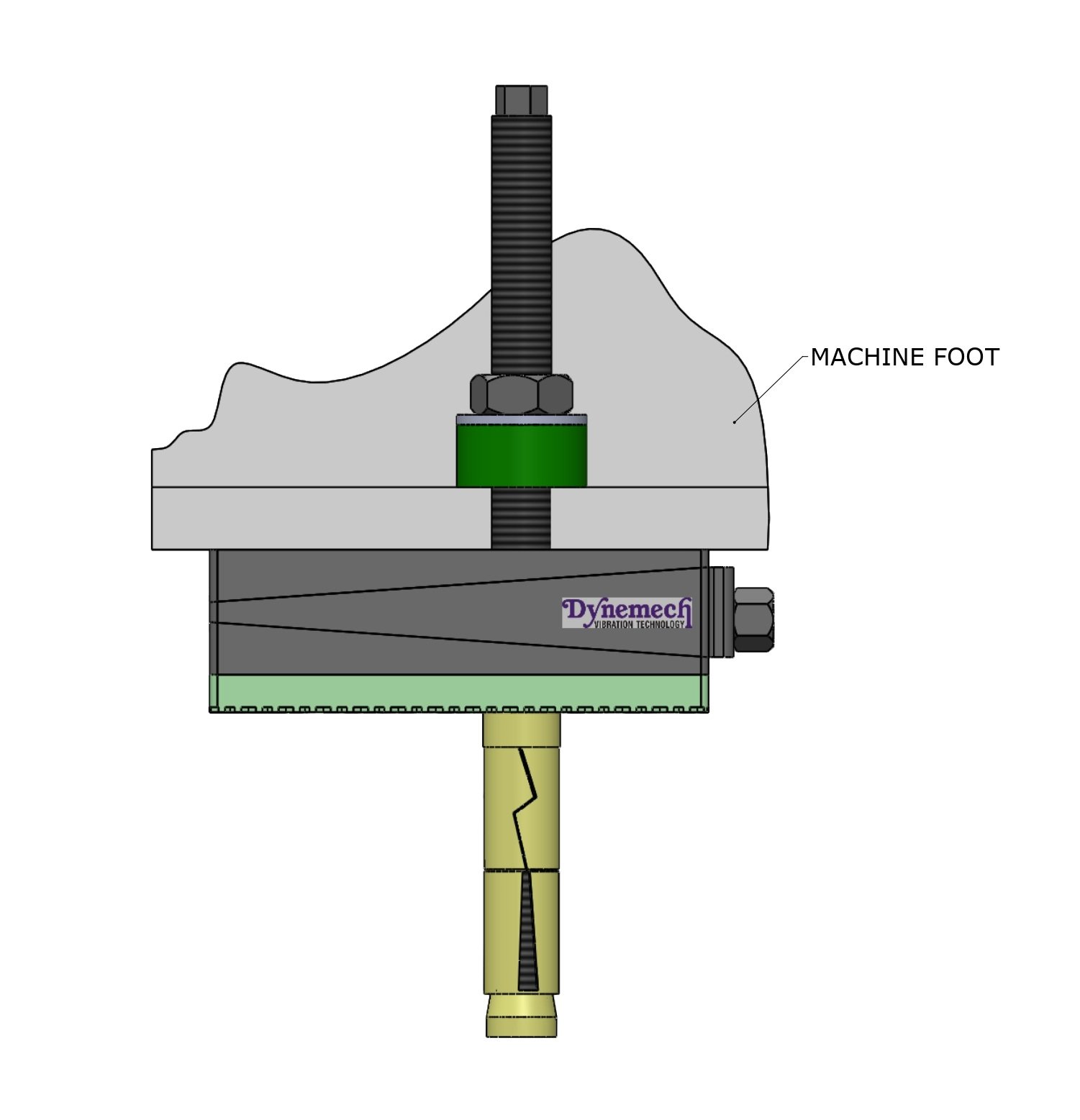

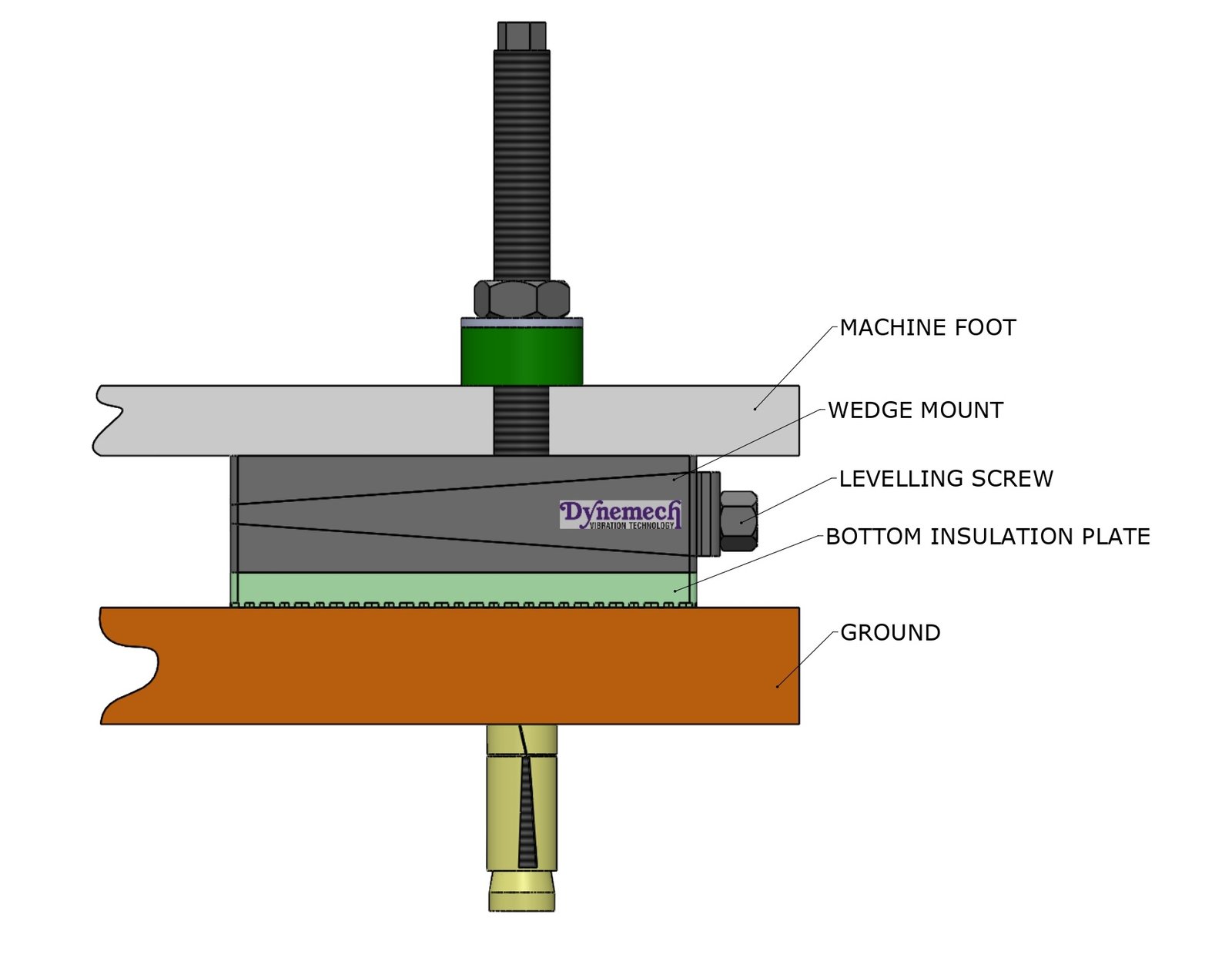

Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Load Capacity (Kg/Pc) | 1300 |

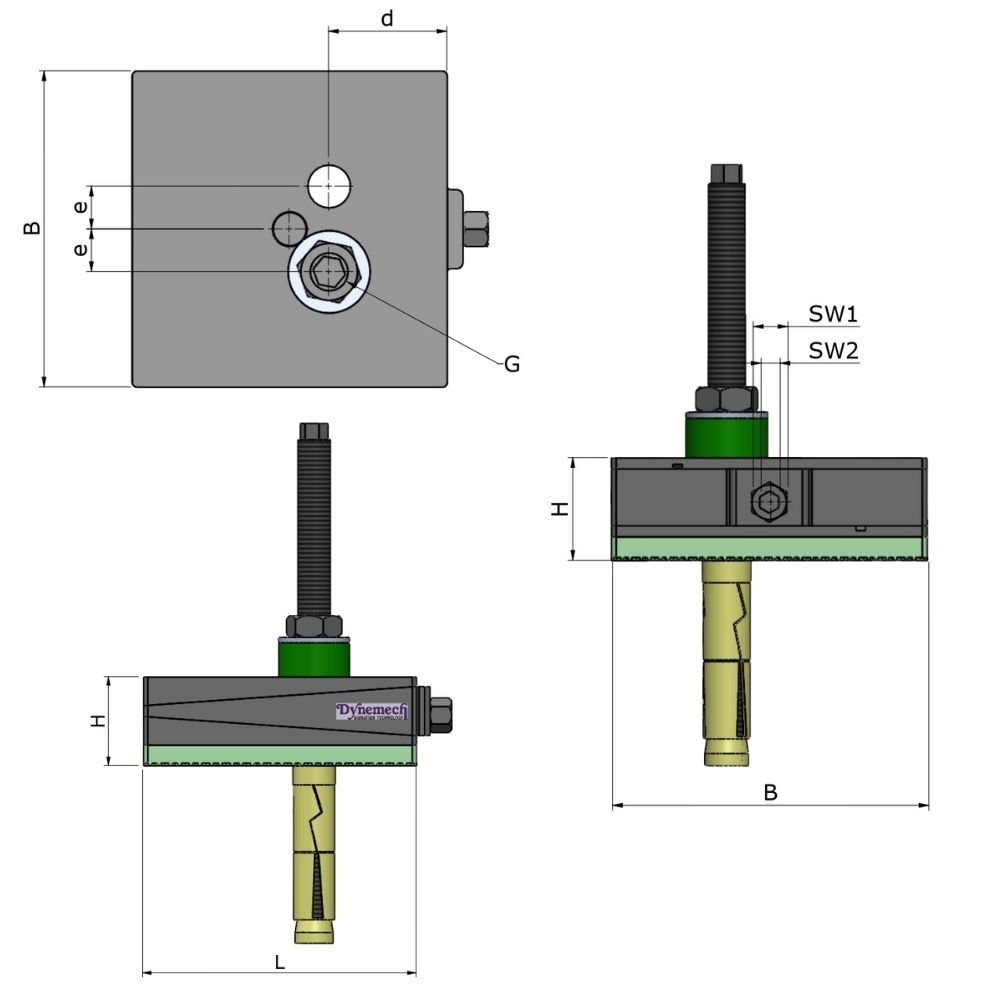

| Length L (Mm) | 115 |
| Width B (Mm) | 115 |
| Height H At Mean Position (Mm) | 93 |

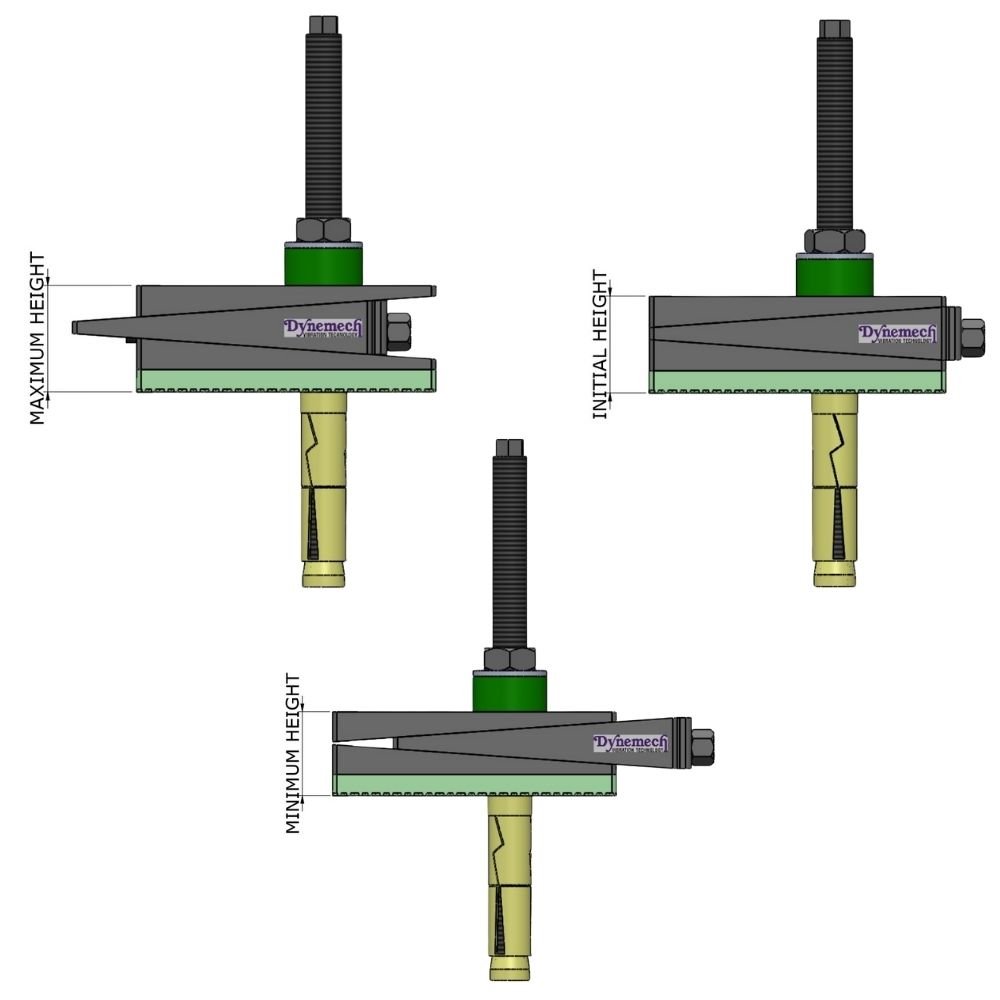

| Adjustment Range (Mm) | +4/-4 |
| Bottom Pad Type | Da2 |
| Bottom Pad Thickness (Mm) | 8 |
| Sw1 (Mm) | 19 |
| Sw2 (Mm) | 10 |
| Coeff Of Friction Against Concrete | 0.9 |
| Natural Frequency At Max Load (Hz) | 45 |
| Temperature Range (°C) | From -15 to 80 |
| Color | Dark Grey/Green |
| D (Mm) | 50 |
| E (Mm) | 24 |
| Bore G (Mm) | 22 |
