DTHOP1-25T-FG-DG

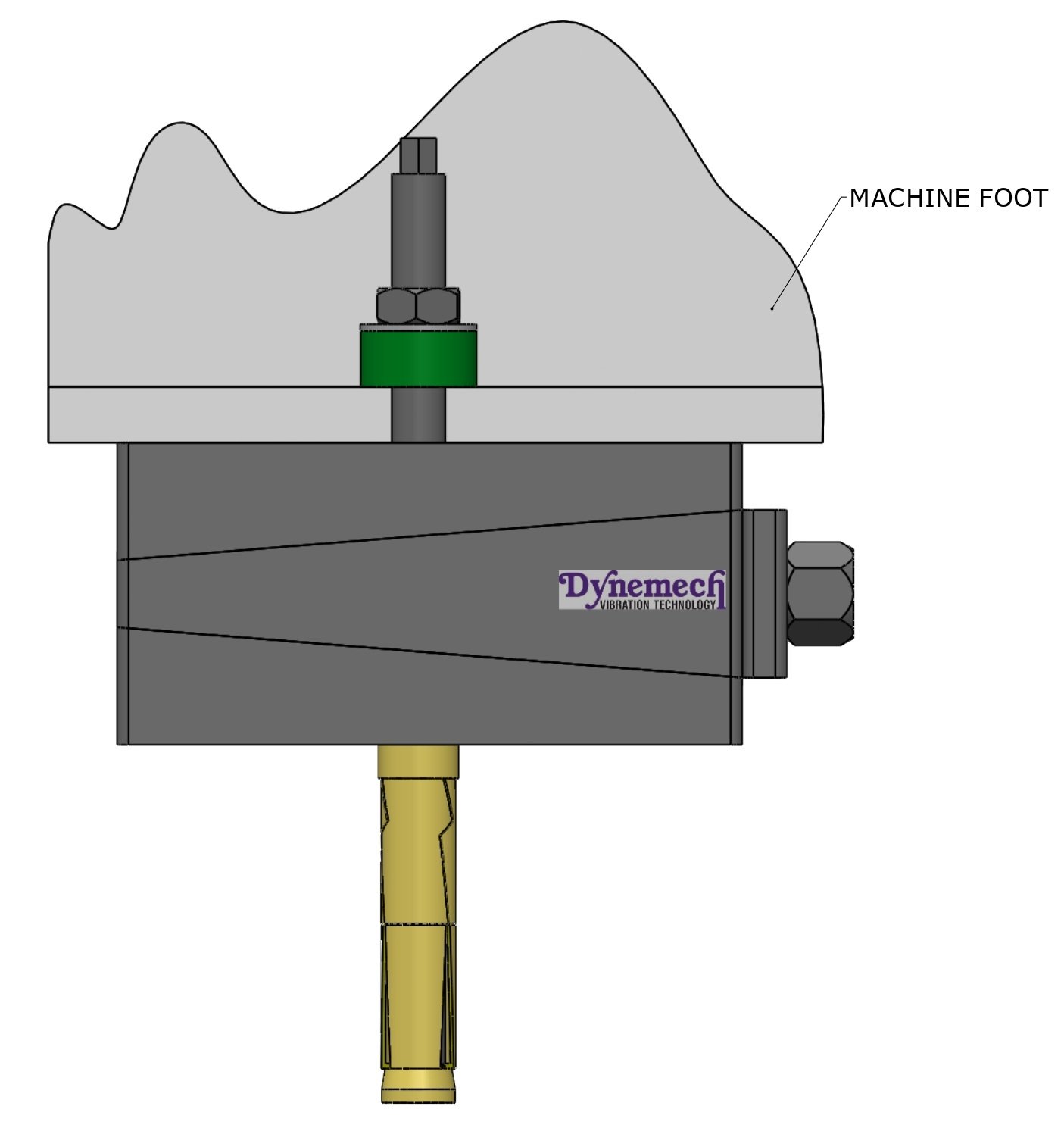

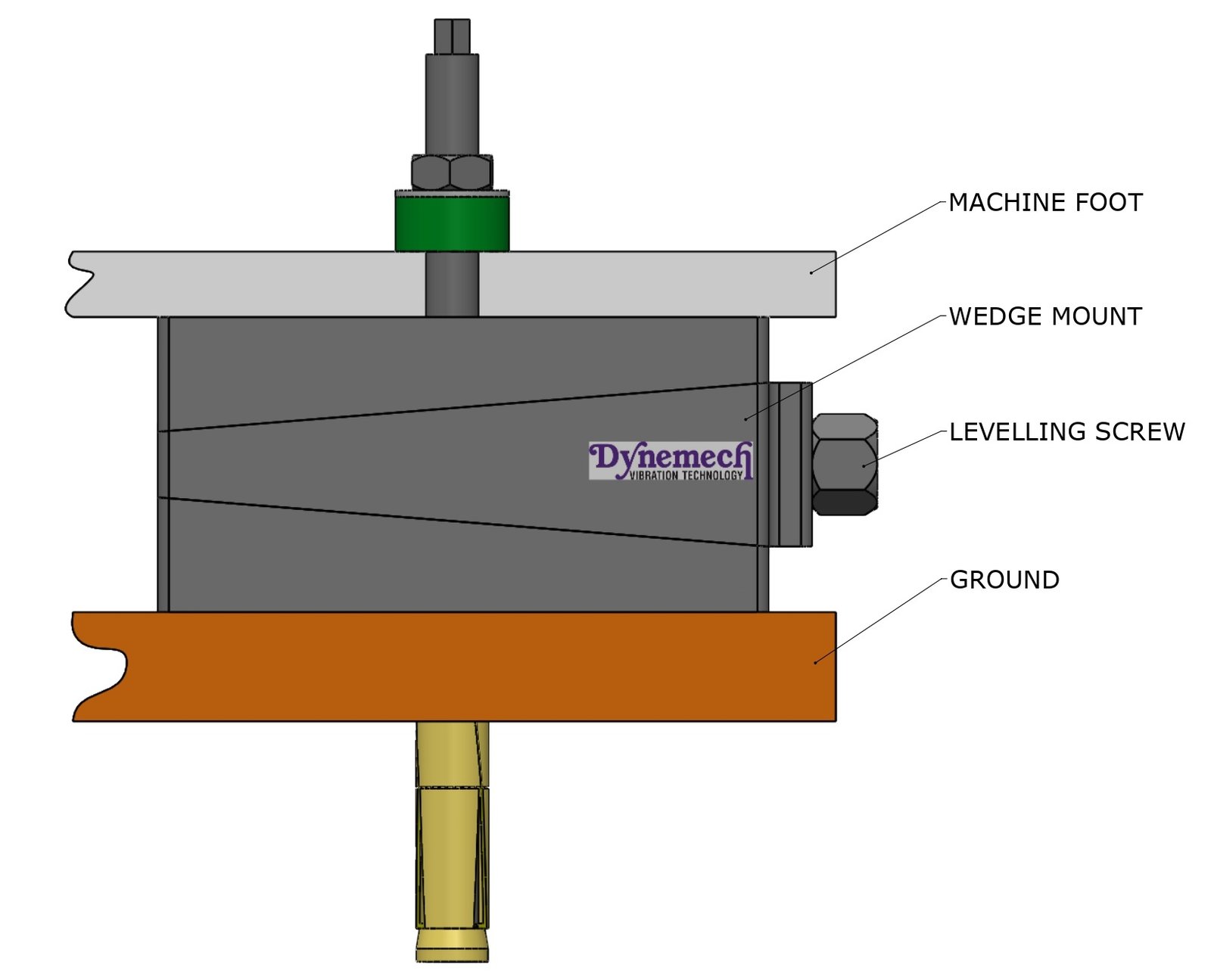

Dynemech Wedge mounts, Series DTHOP-150 mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DTHOP has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | For levelling of all Precicion Machines. |
| Load Capacity (Kg/Pc) | 13000 |

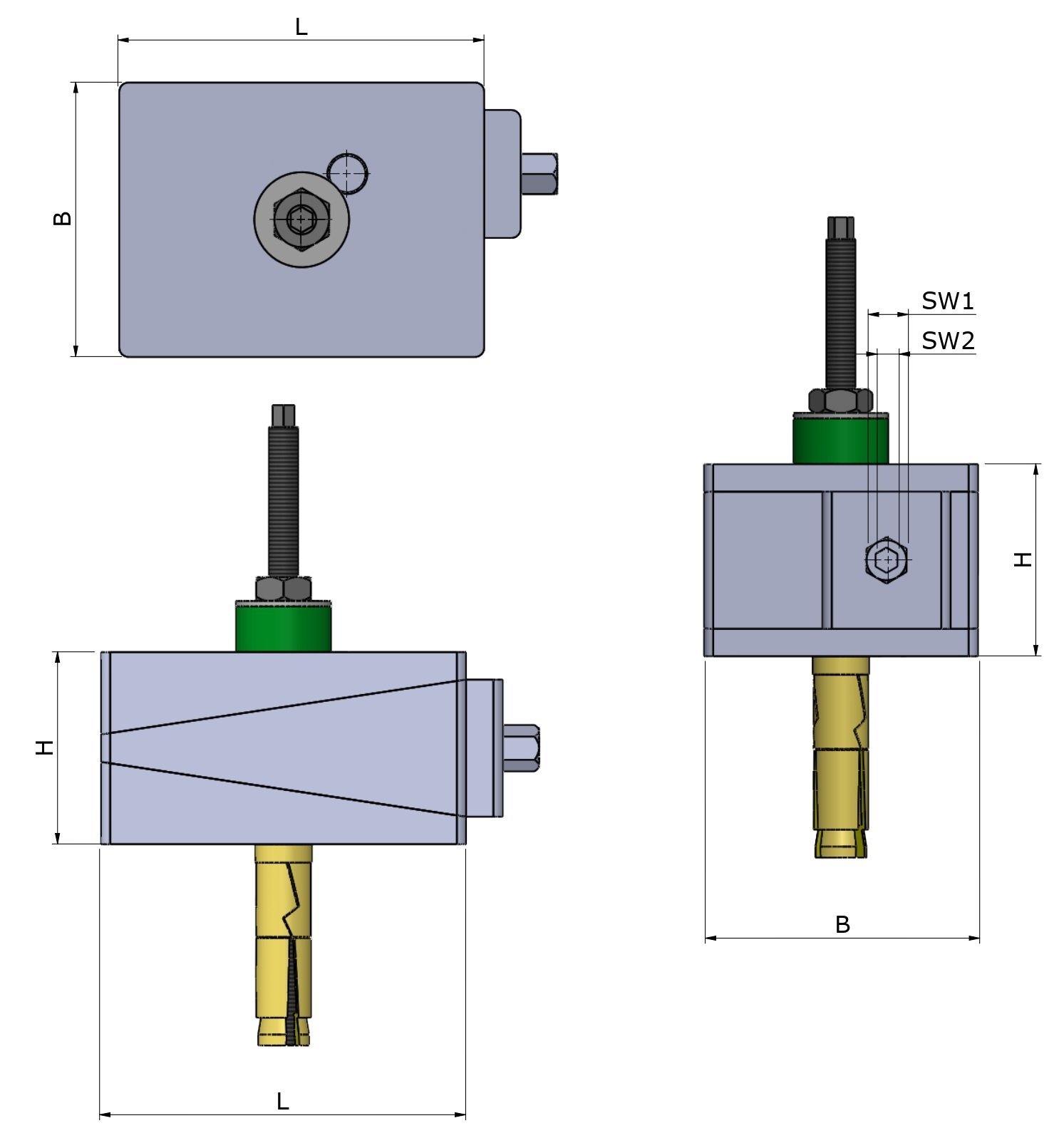

| Length L (Mm) | 200 |
| Width B (Mm) | 125 |
| Height H At Mean Position (Mm) | 135 |

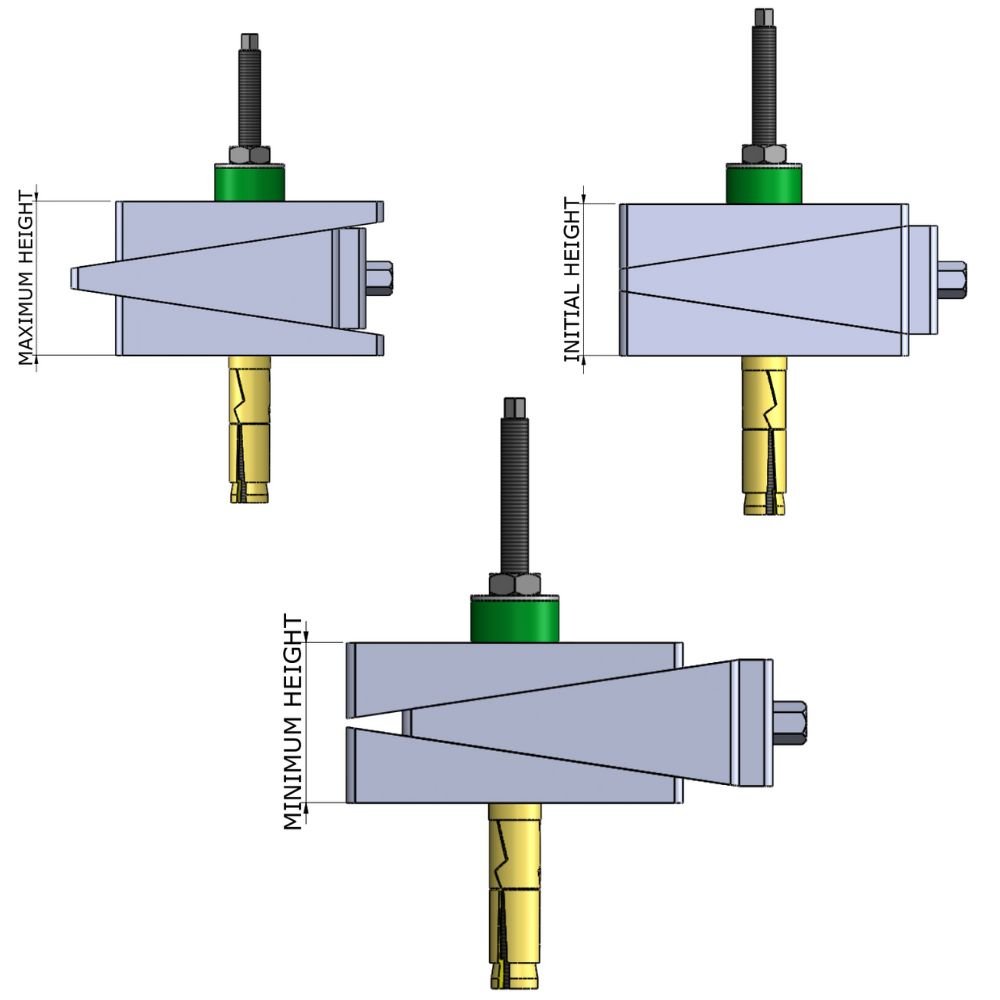

| Adjustment Range (Mm) | +8/-8 |
| Bottom Pad Type | X |
| Bottom Pad Thickness (Mm) | X |
| Sw1 (Mm) | 22 |
| Sw2 (Mm) | 12 |
| Coeff Of Friction Against Concrete | X |
| Natural Frequency At Max Load (Hz) | X |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
| Bore (Mm) | 25 |
