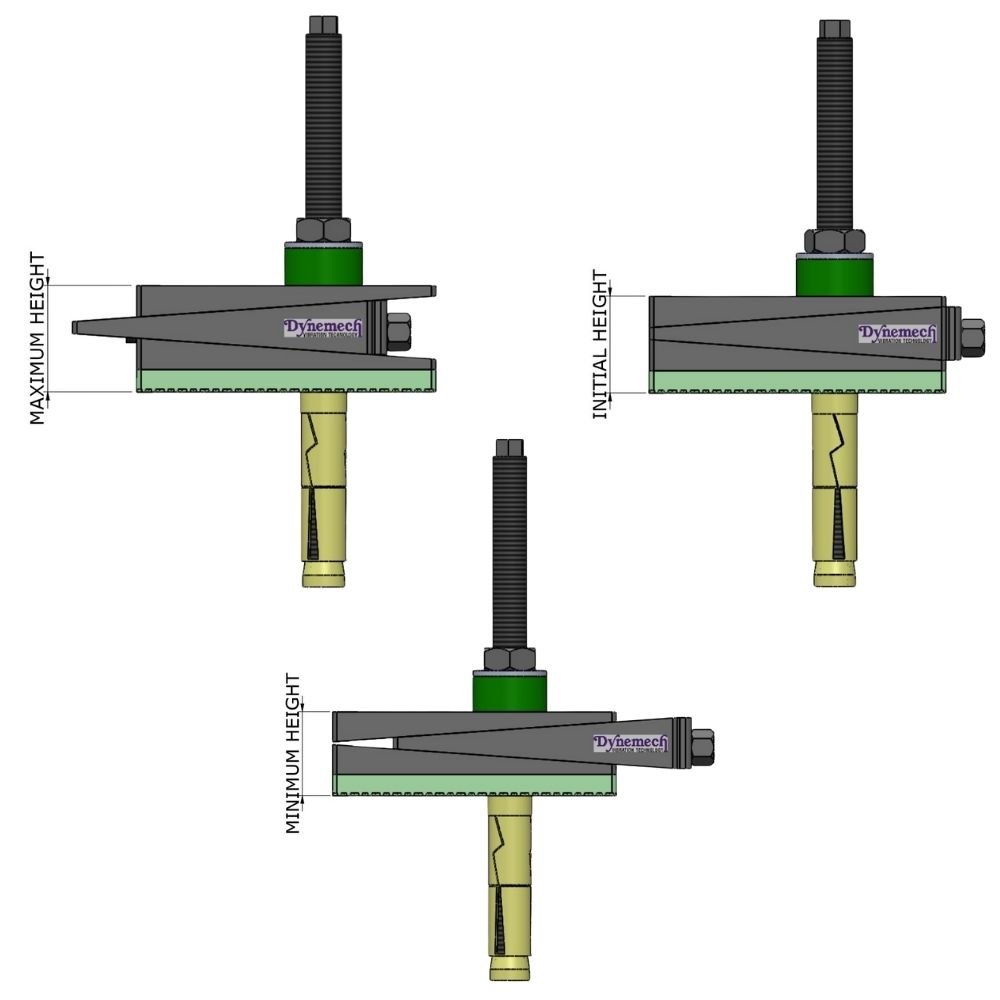

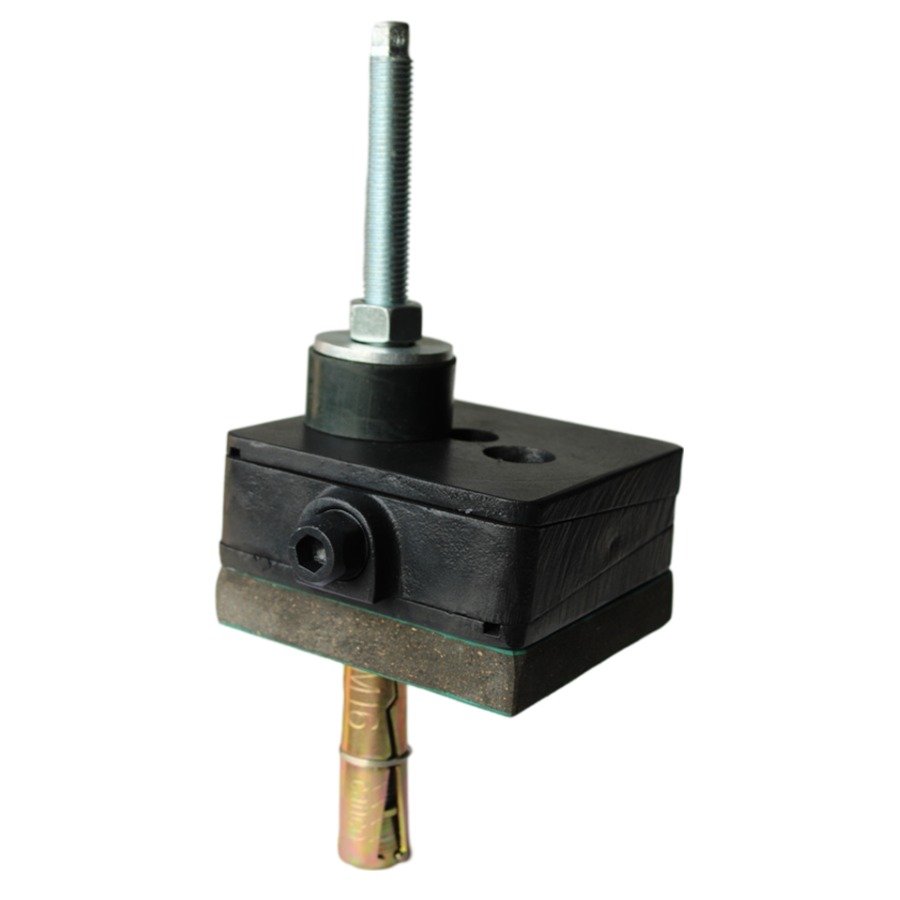

Dynemech Wedge mounts, Series DT are designed for machine tools that are top heavy or have eccentric motion or for machines which must be anchored to the groundreqquire precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
DT-s2
Description
Catalogue
Series:
DT-s2
Applications:
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm |
|---|---|---|---|
| DT0-s2-18T-FG-DG/GR | 800 | 100 | 100 |
| DT1-s2-22T-FG-DG/GR | 950 | 115 | 115 |
| DT2-s2-22T-FG-DG/GR | 1600 | 150 | 150 |
| DT3-s2-28T-FG-DG/GR | 2800 | 200 | 200 |
| DT4-s2-28T-FG-DG/GR | 3500 | 200 | 250 |
| DT5-s2-28T-FG-DG/GR | 5500 | 250 | 320 |
| DT6-s2-30T-FG-DG/GR | 8500 | 300 | 400 |
| DT7-s2-32T-FG-DG/GR | 14000 | 400 | 500 |
