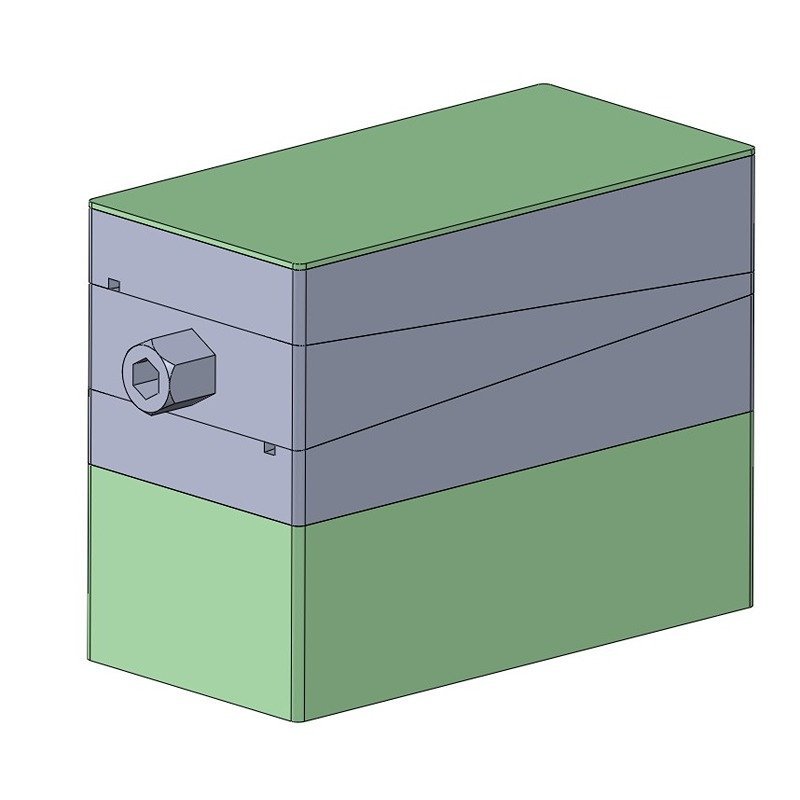

Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
8 Models
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFP1-hs4-187-A1-FG-DG | 690 | 105 | 55 | 187 | +4/-4 | Dhs4 | 50 | Da1 | 2 | 16 | 8 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP2-hs4-187-A1-FG-DG | 1300 | 150 | 75 | 187 | +5/-5 | Dhs4 | 50 | Da1 | 2 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP3-hs4-187-A1-FG-DG | 2400 | 200 | 100 | 187 | +5/-5 | Dhs4 | 50 | Da1 | 2 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP4-hs4-187-A1-FG-DG | 4800 | 200 | 200 | 187 | +6/-6 | Dhs4 | 50 | Da1 | 2 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP5-hs4-187-A1-FG-DG | 6000 | 200 | 250 | 187 | +9/-9 | Dhs4 | 50 | Da1 | 2 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP6-hs4-187-A1-FG-DG | 9600 | 250 | 320 | 187 | +9/-9 | Dhs4 | 50 | Da1 | 2 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP7-hs4-187-A1-FG-DG | 14400 | 300 | 400 | 187 | +10/-10 | Dhs4 | 50 | Da1 | 2 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFP8-hs4-187-A1-FG-DG | 24000 | 400 | 500 | 187 | +10/-10 | Dhs4 | 50 | Da1 | 2 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
