DFP6-135-FG-DG

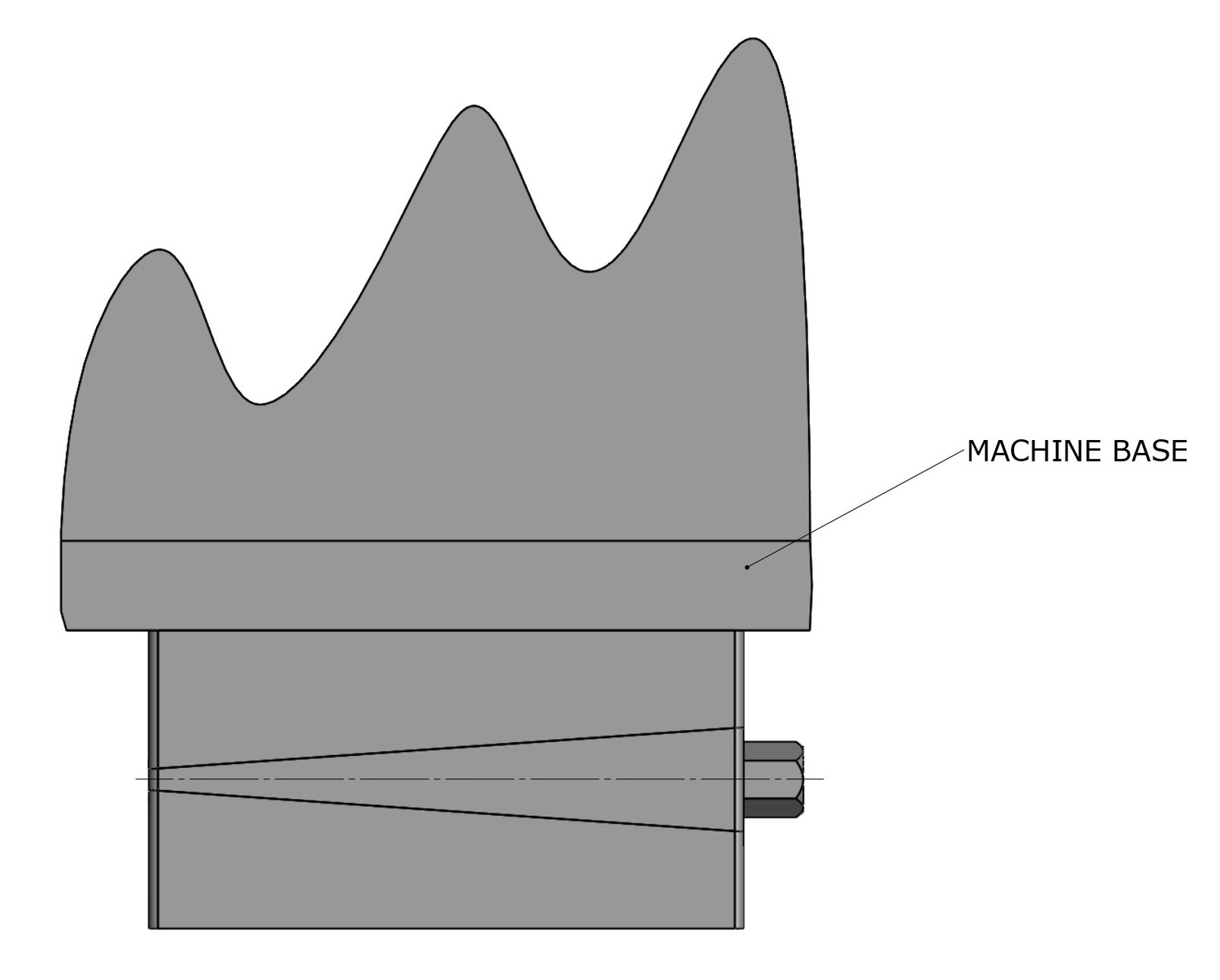

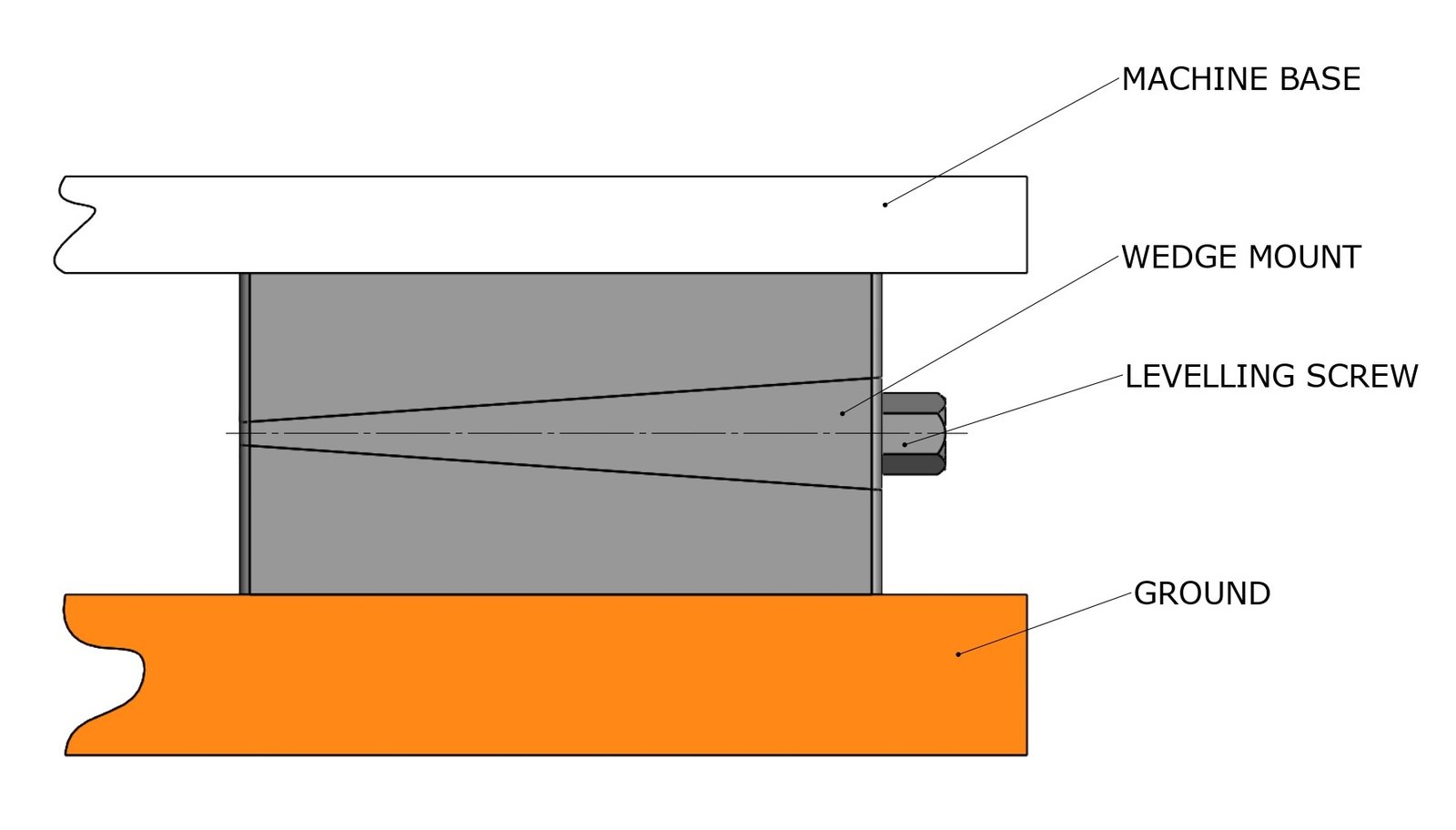

Dynemech Wedge Mounts, Series DFP-150 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 150mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | For levelling of all Precicion Machines. |
| Load Capacity (Kg/Pc) | 20000 |

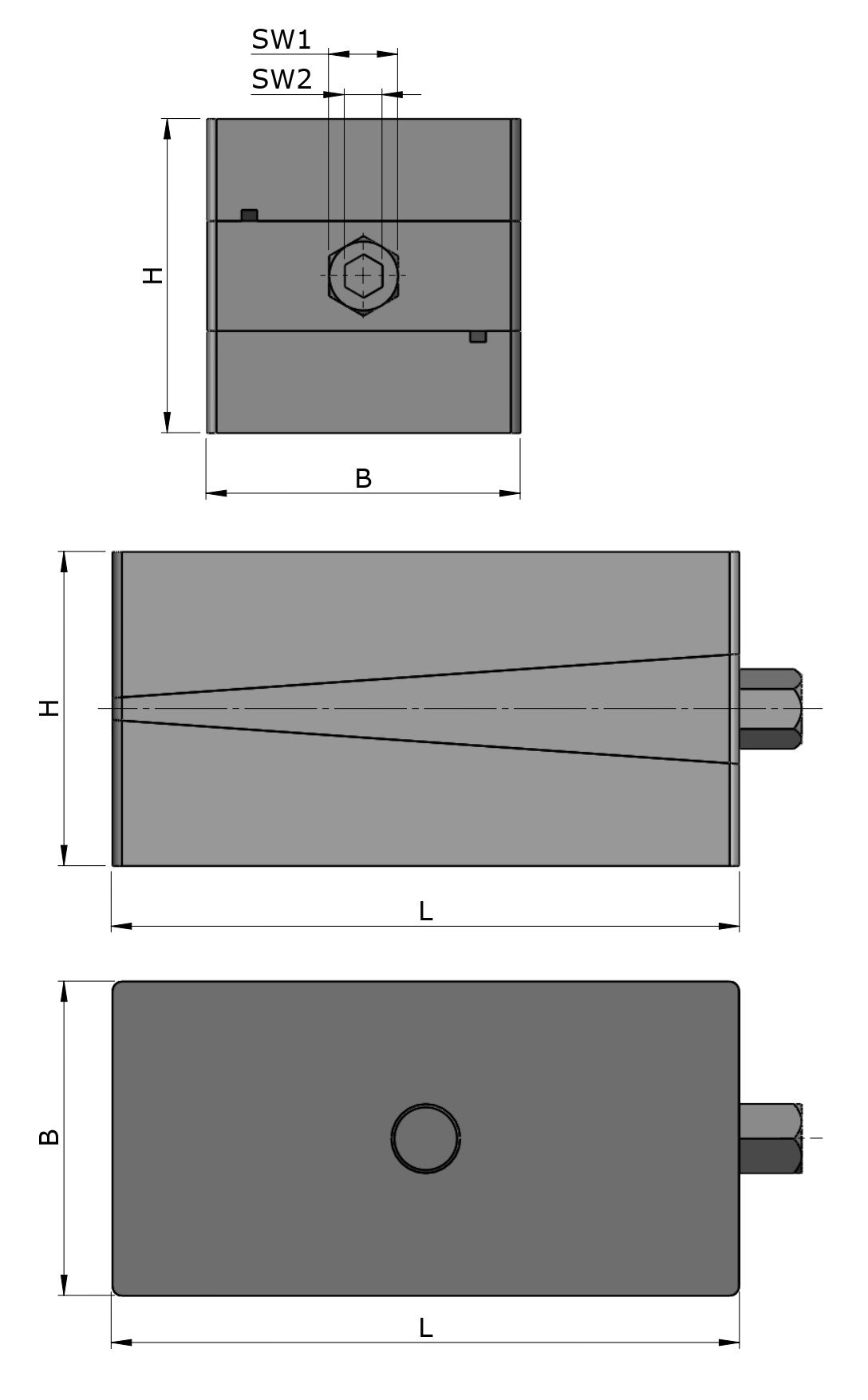

| Length L (Mm) | 250 |
| Width B (Mm) | 320 |
| Height H At Mean Position (Mm) | 135 |

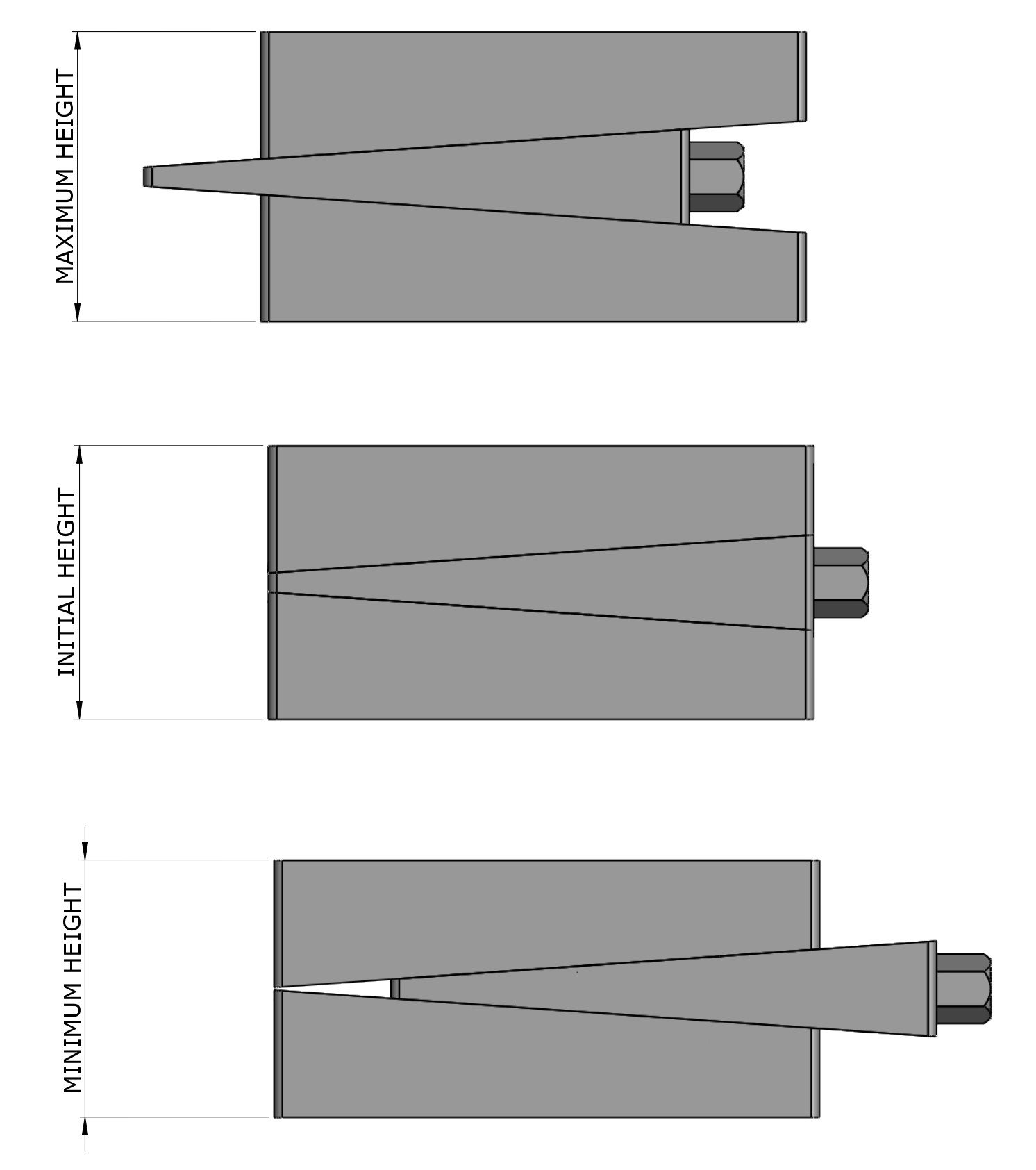

| Adjustment Range (Mm) | +9/-9 |
| Bottom Pad Type | X |
| Top Pad Type | X |
| Sw1 (Mm) | 32 |
| Sw2 (Mm) | 18 |
| Natural Frequency At Max Load (Hz) | X |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
