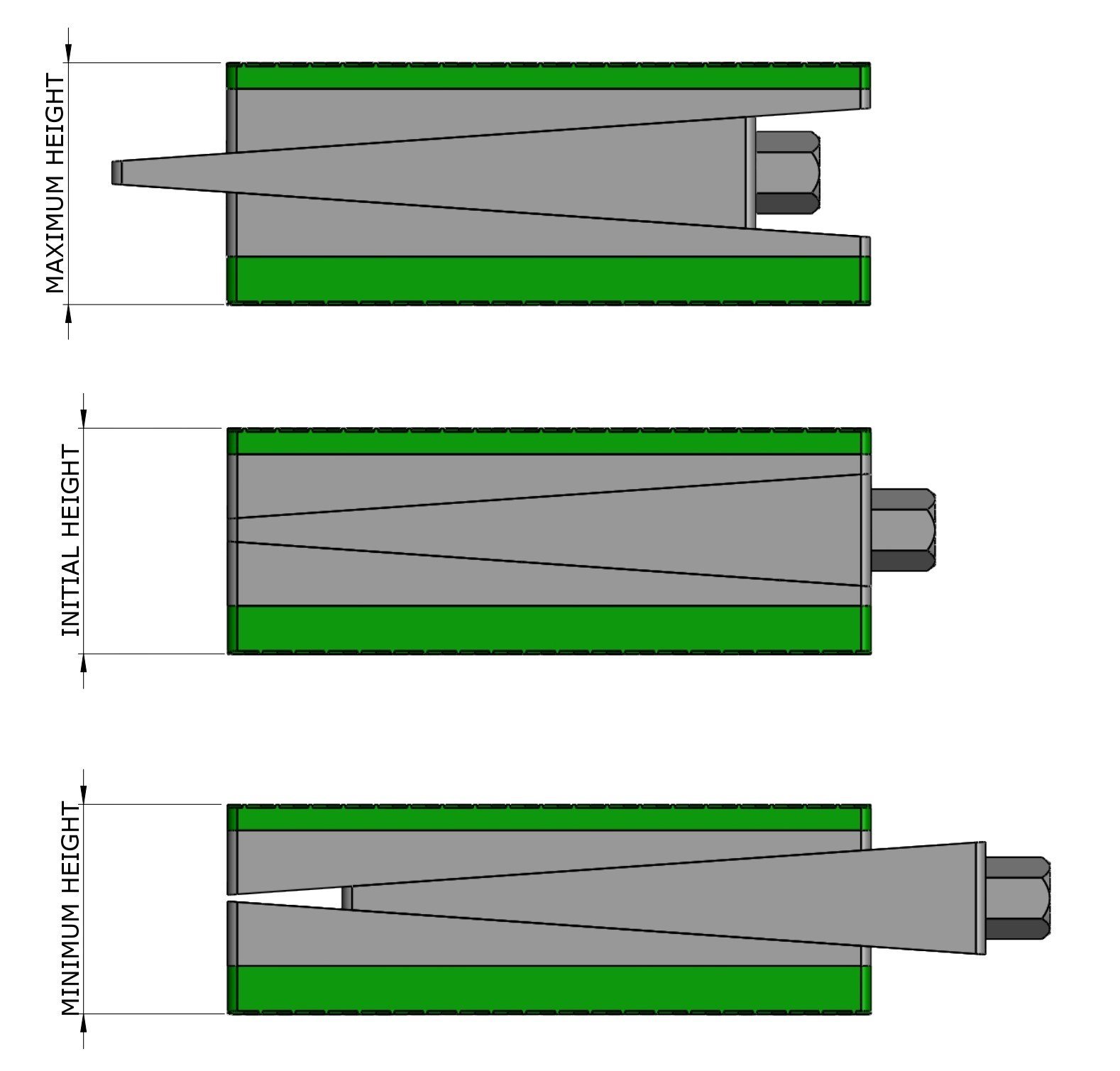

Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.
DFP-u-10-100
Description
Catalogue
Series:
DFP-u-10-100
Applications:
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
| Model | Load Capacity(Kg/pc) | Length (L) mm | Width (B) mm | Height (H) (mm) |
|---|---|---|---|---|
| DFP1-u-10-103-A2-FG-DG | 400 | 105 | 55 | 103 |
| DFP2-u-10-103-A2-FG-DG | 900 | 150 | 75 | 103 |
| DFP3-u-10-103-A2-FG-DG | 1500 | 200 | 100 | 103 |
| DFP4-u-10-103-A2-FG-DG | 3200 | 200 | 200 | 103 |
| DFP5-u-10-103-A2-FG-DG | 4000 | 200 | 250 | 103 |
| DFP6-u-10-103-A2-FG-DG | 6400 | 250 | 320 | 103 |
| DFP7-u-10-103-A2-FG-DG | 9600 | 300 | 400 | 103 |
| DFP8-u-10-103-A2-FG-DG | 16000 | 400 | 500 | 103 |
