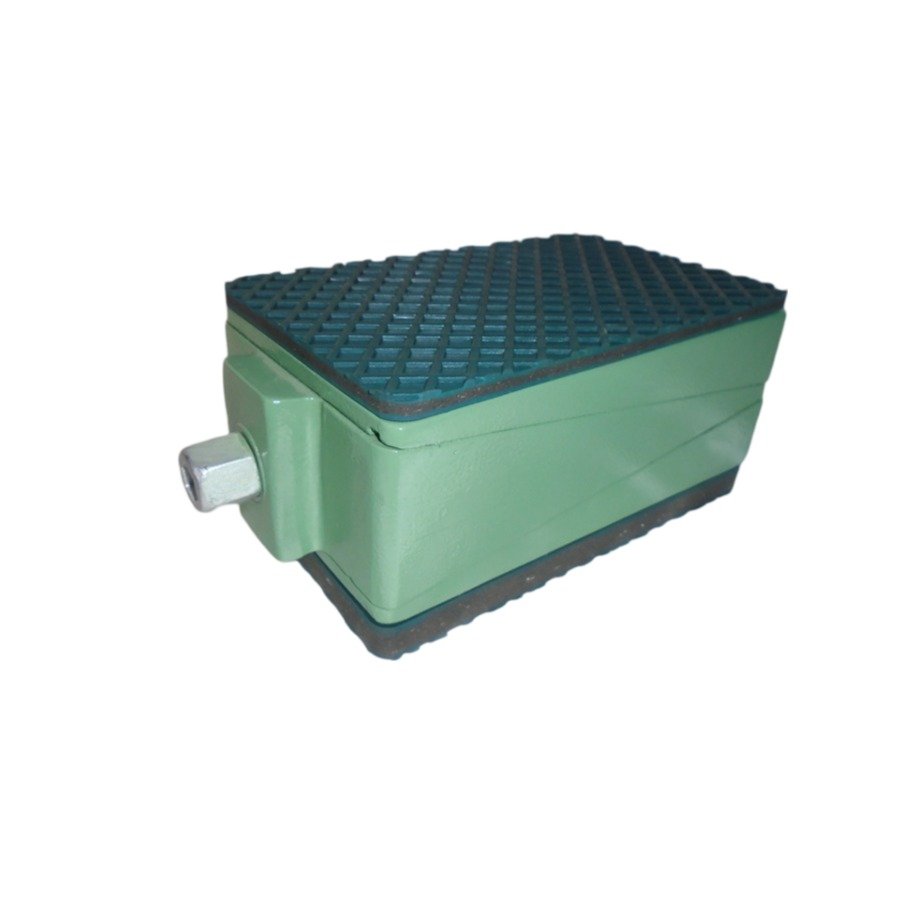

DFHP-u-10-150
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Tool room machines, plastic injection moulding machines, pressure die casting machines, shaper, printing and textile machines etc.
Documents
3 Models
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-u-10-a2-153-FG-DG | 2250 | 200 | 125 | 153 | +8/-8 | Du-10 | 10 | Da2 | 8 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DFHP2-u-10-a2-153-FG-DG | 2700 | 200 | 150 | 153 | +10/-10 | Du-10 | 10 | Da2 | 8 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DFHP3-u-10-a2-153-FG-DG | 4284 | 280 | 170 | 153 | +12.5/-12.5 | Du-10 | 10 | Da2 | 8 | 39 | 22 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
