DFHP-s1-150
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Active & Passive vibration isolation of metrology and production machines.
Documents
3 Models

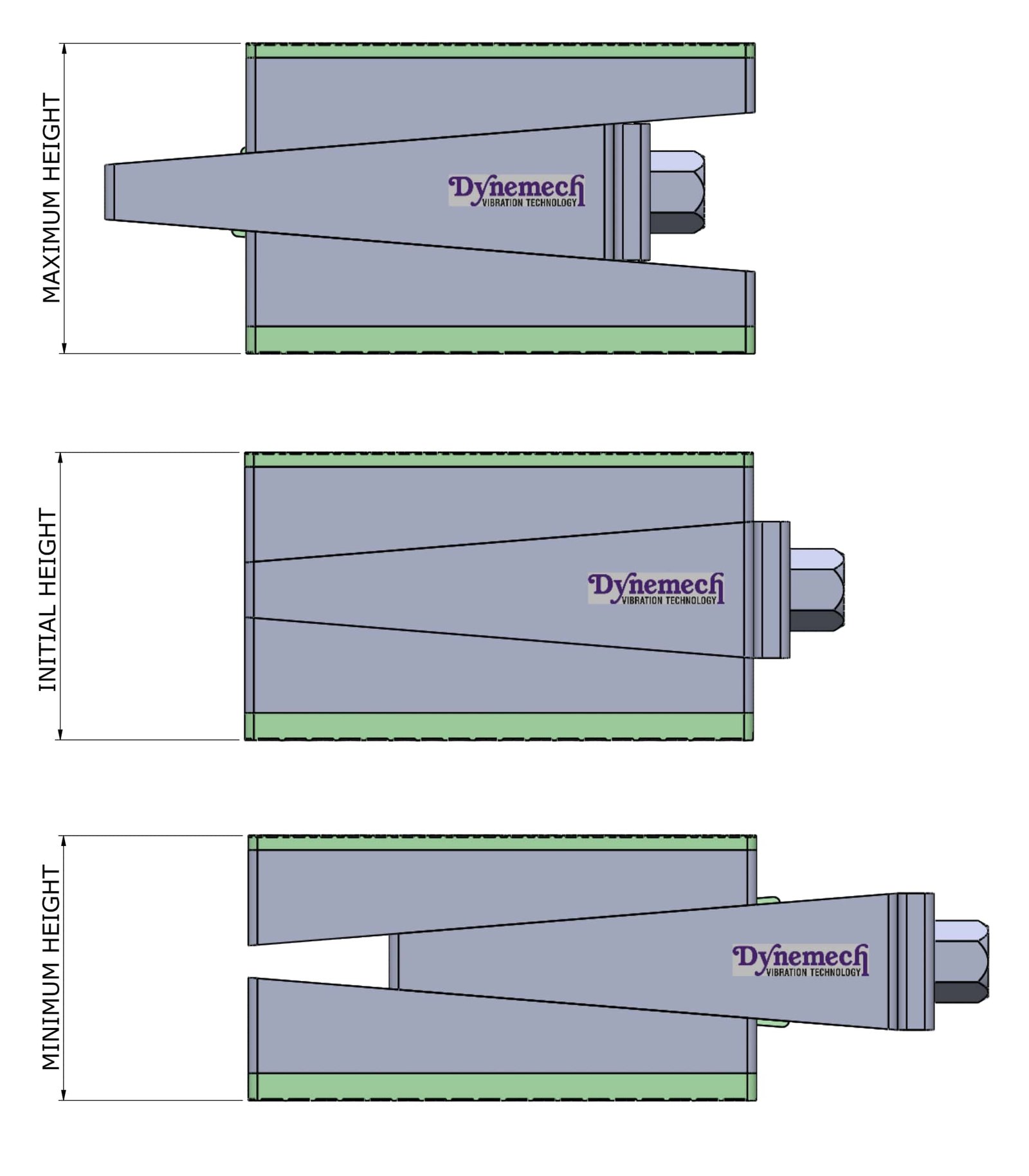

| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-s1-a1-157-FG-DG | 1250 | 200 | 125 | 157 | +8/-8 | Ds1 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFHP2-s1-a1-157-FG-DG | 1500 | 200 | 150 | 157 | +10/-10 | Ds1 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFHP3-s1-a1-157-FG-DG | 2380 | 280 | 170 | 157 | +12.5/-12.5 | Ds1 | 20 | Da1 | 2 | 39 | 22 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
