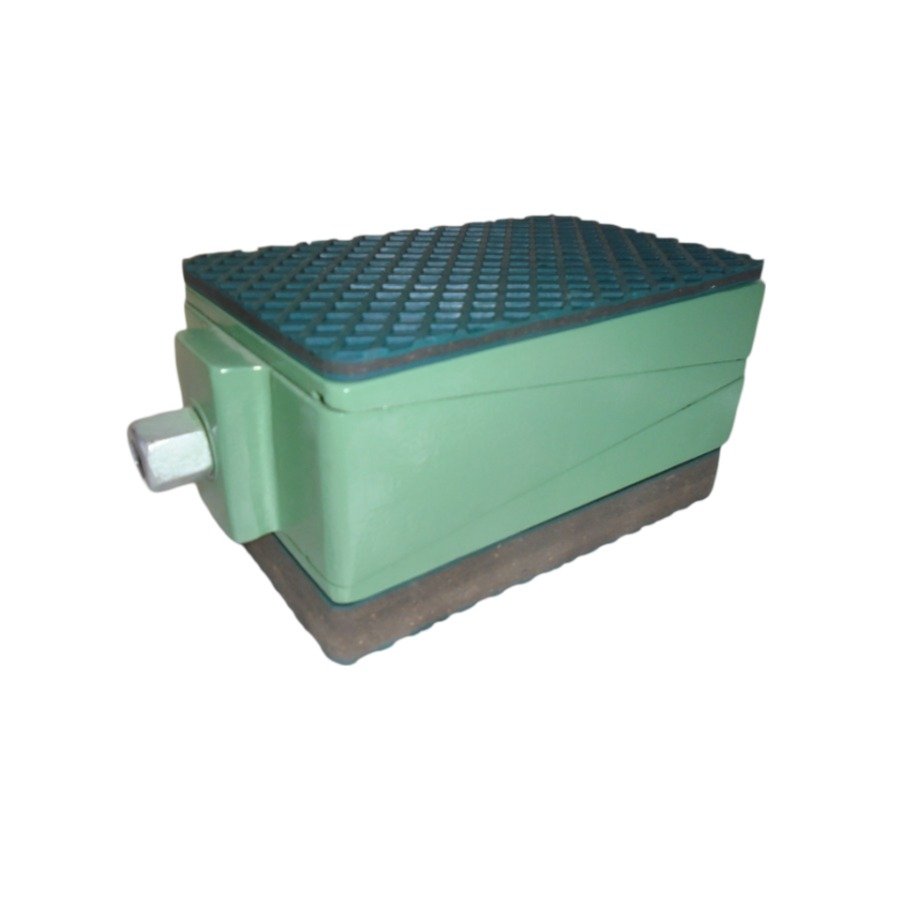

Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
DFHP1-i-a2-168-FG-DG
Model

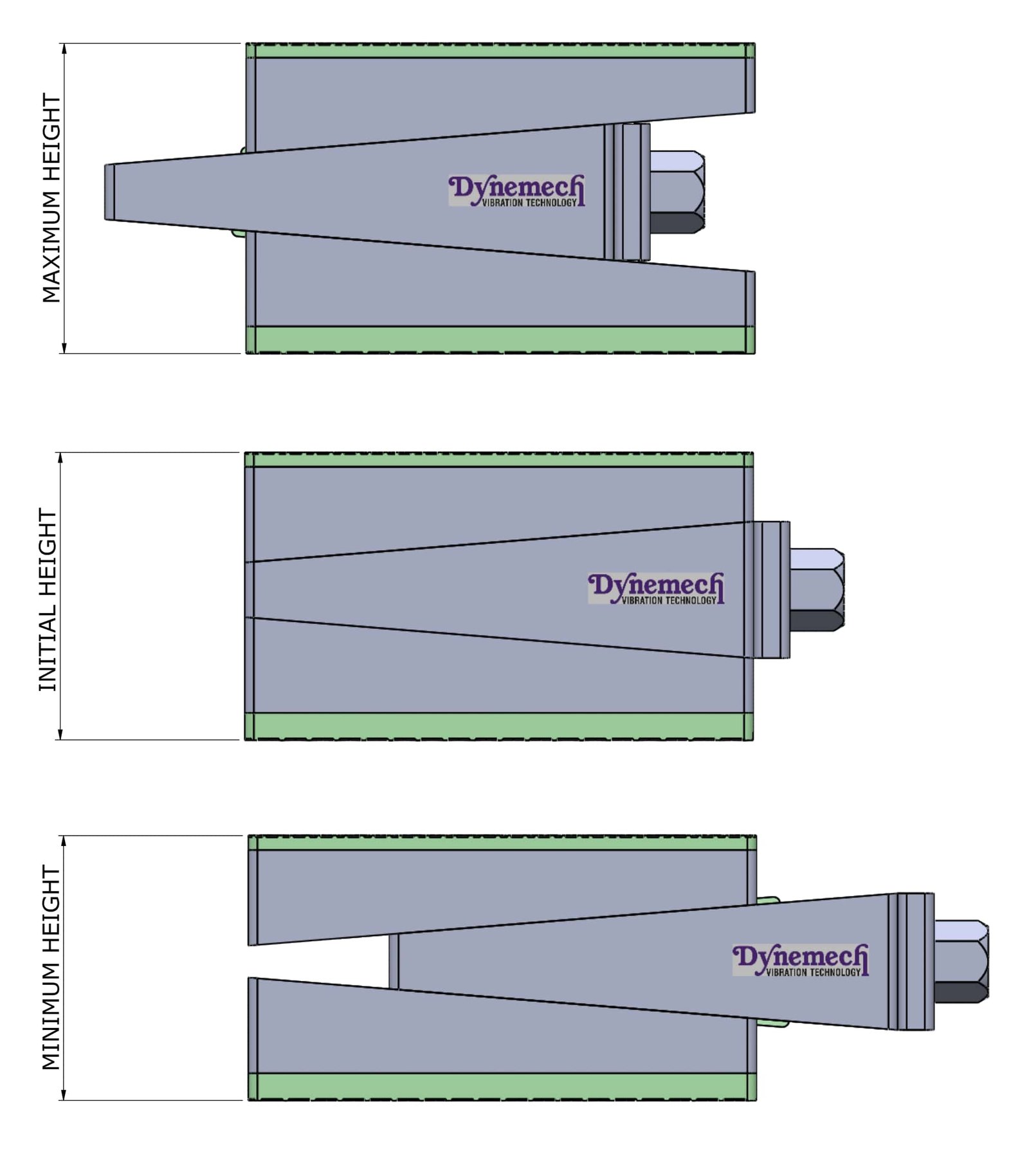

Adjustment Configuration

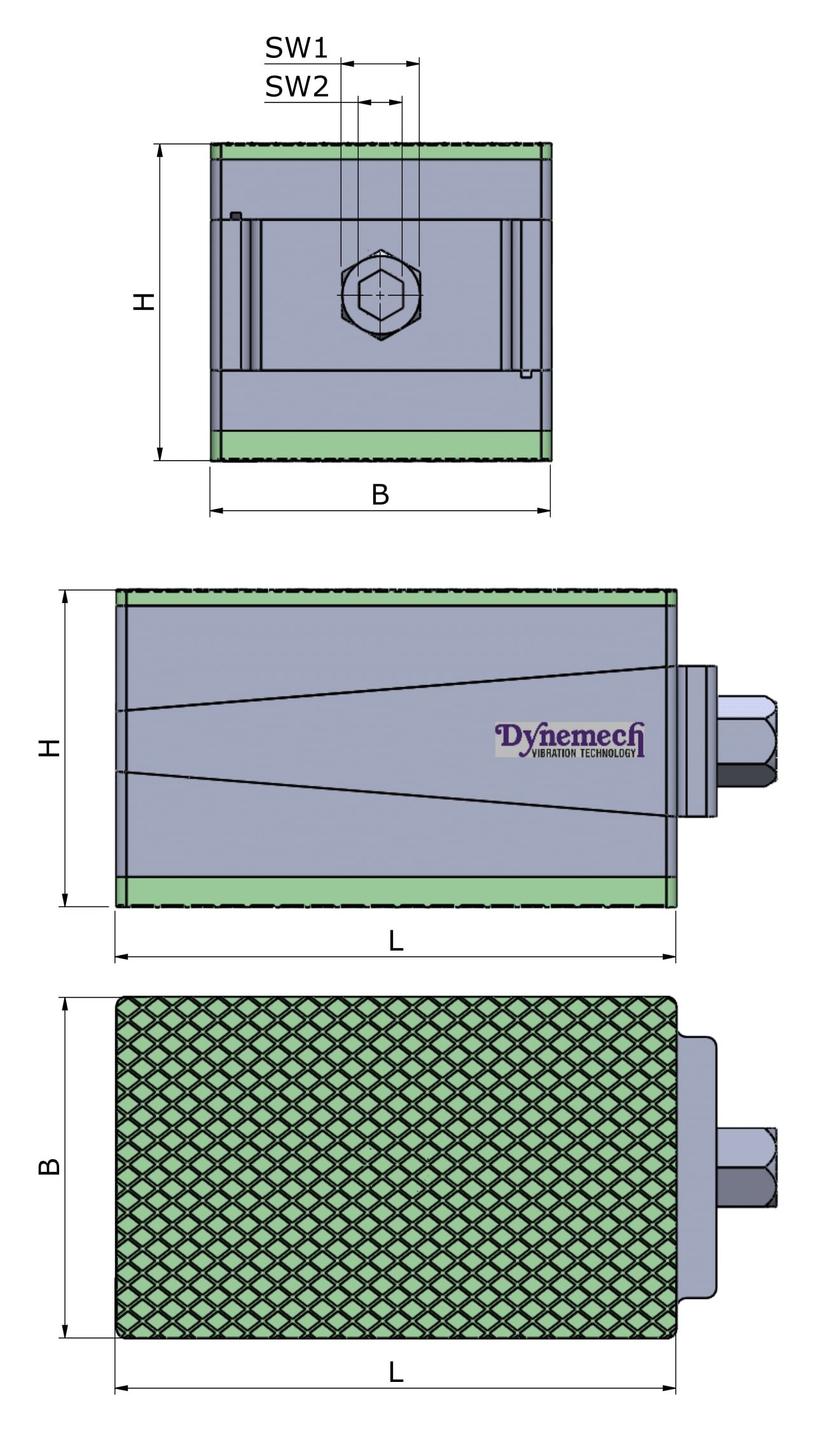

Dimensional Details

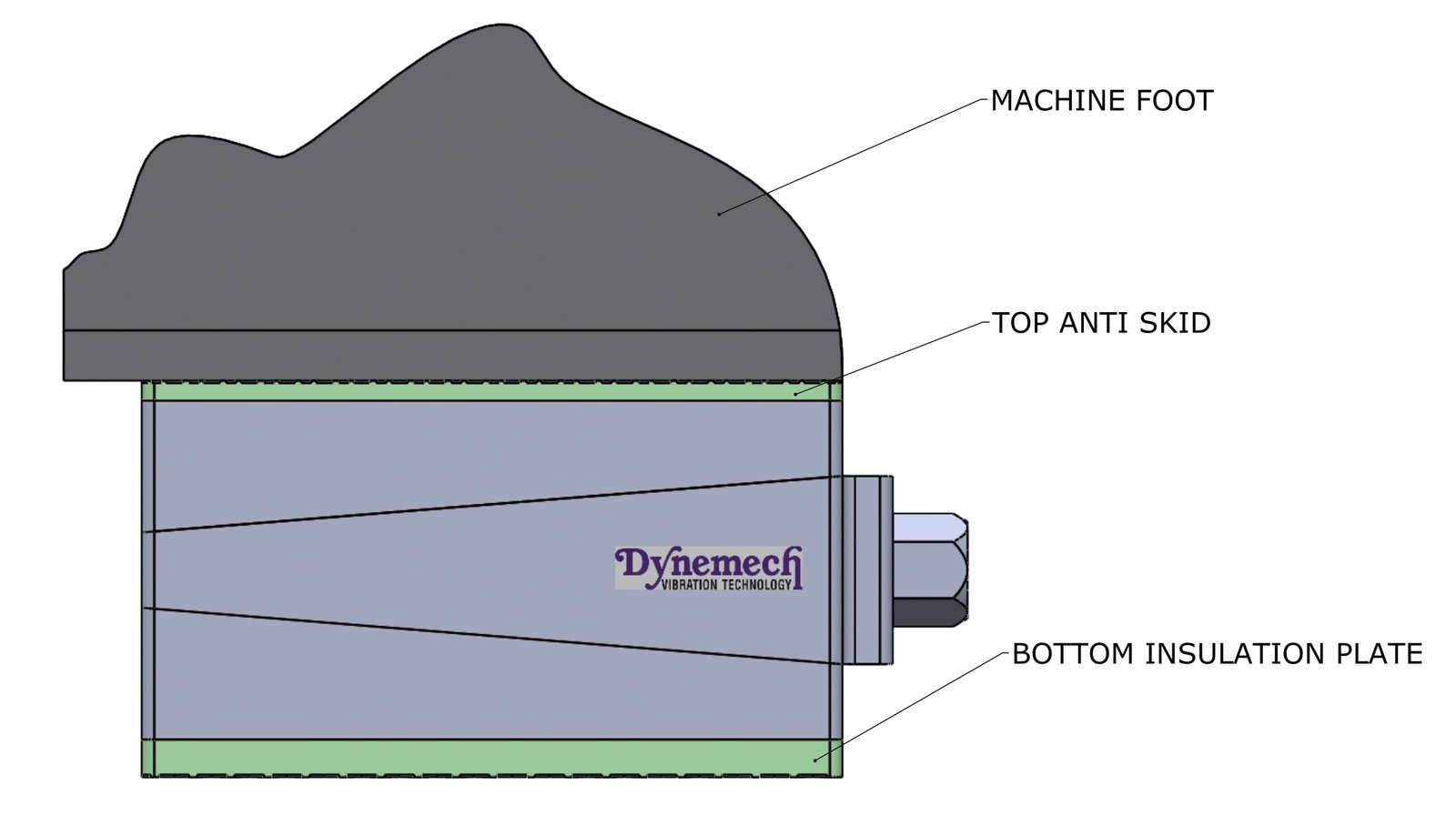

Installation 01

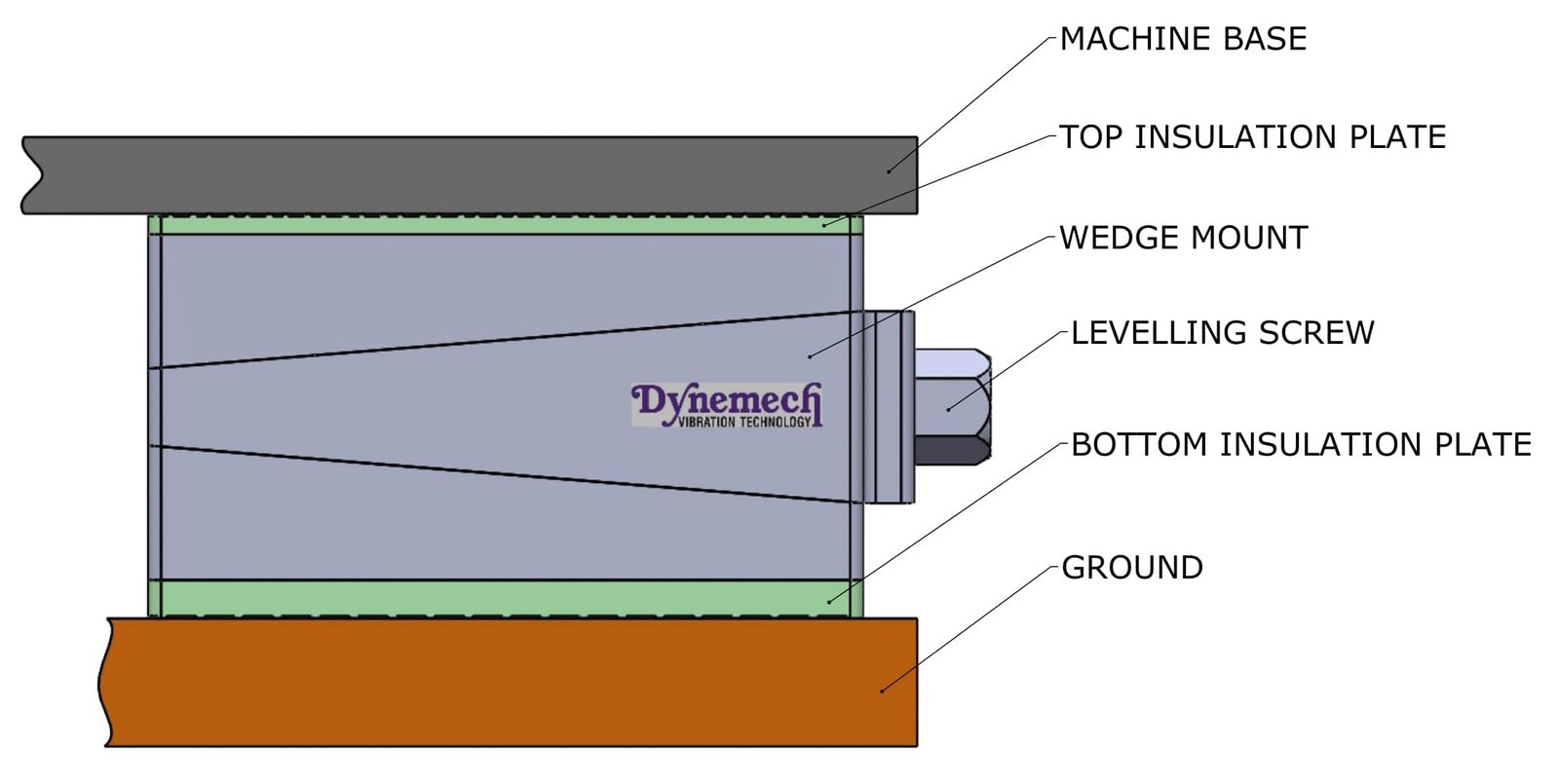

Installation 02
Description
Application:
Power Presses, Stamping Machines,
Shearing Machines, Punching Machines.
Technical Data
Model Catologue
Load Capacity Kg/pc
3500
Length (L) mm
200
Width (B) mm
125
Height (H) at mean position (mm)
168
Adjustment Range (mm)
+8/-8
Bottom pad Type
Di
Bottom pad Thickness (mm)
25
Top pad Type
Da2
Top pad Thickness (mm)
8
SW1 (mm)
22
SW2 (mm)
12
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
7
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
