Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
DF3-hs1-A2-FG-DG

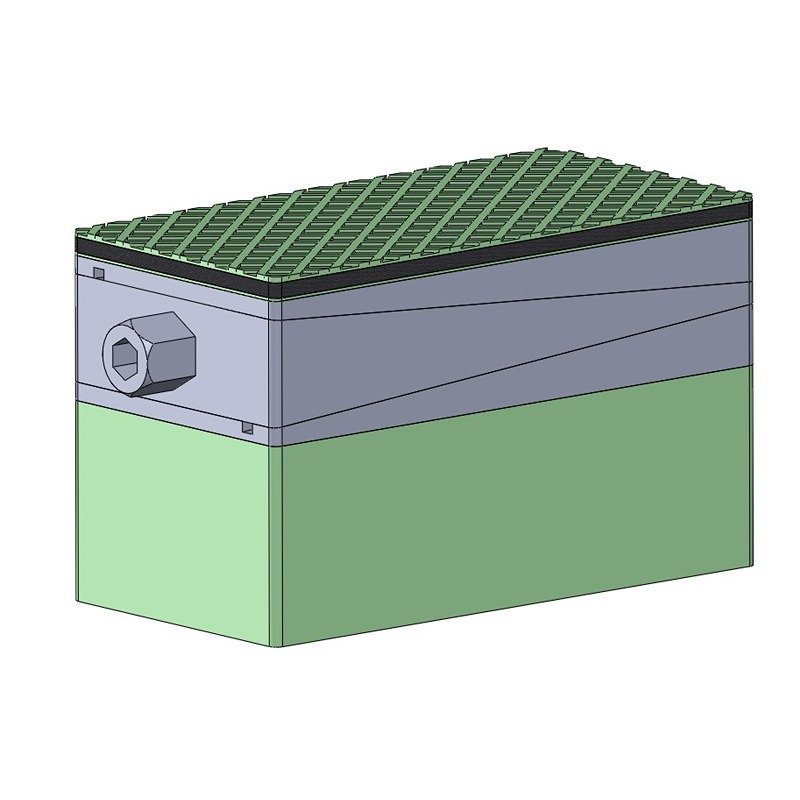

Model
Adjustment Configuration

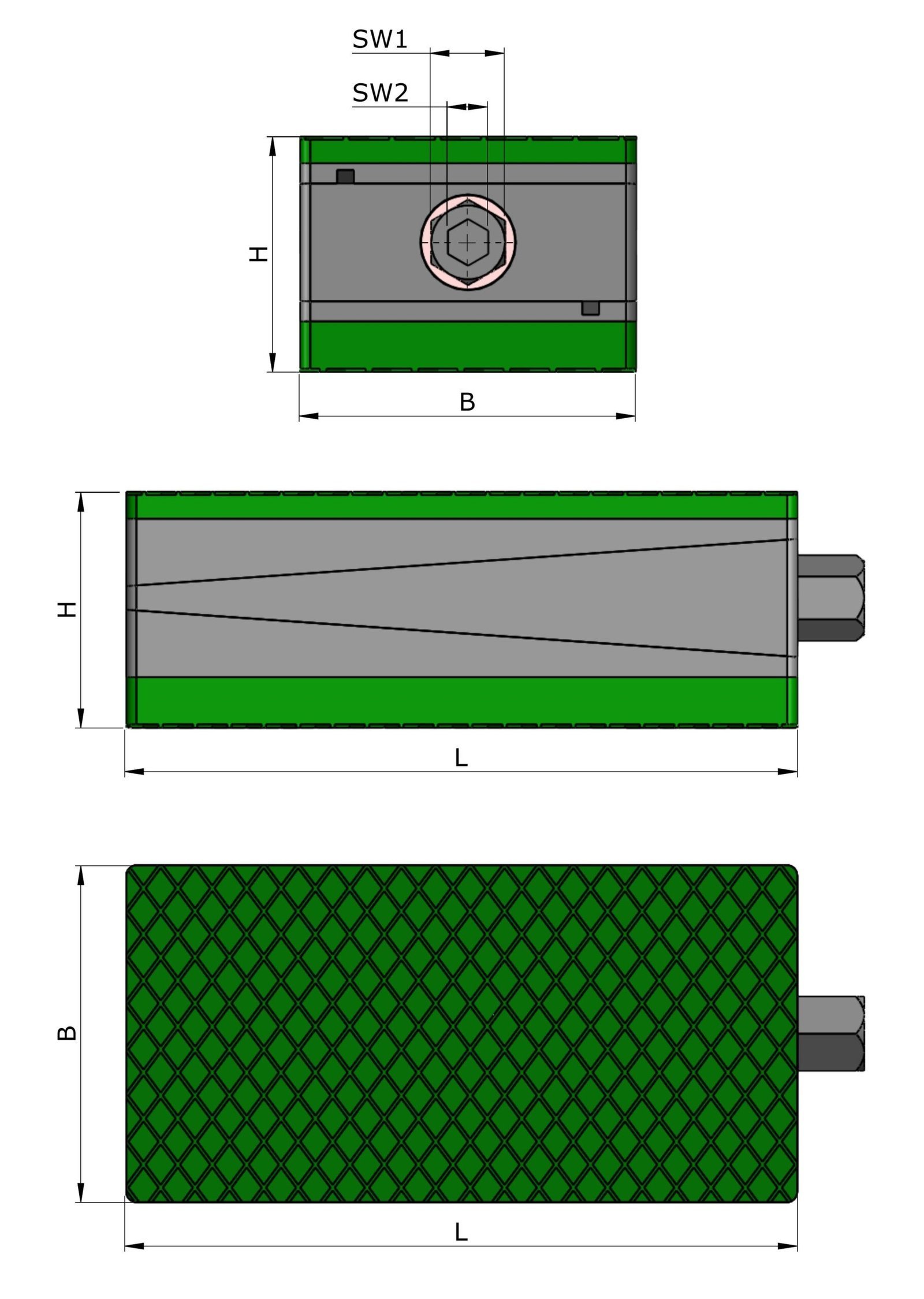

Dimensional Details

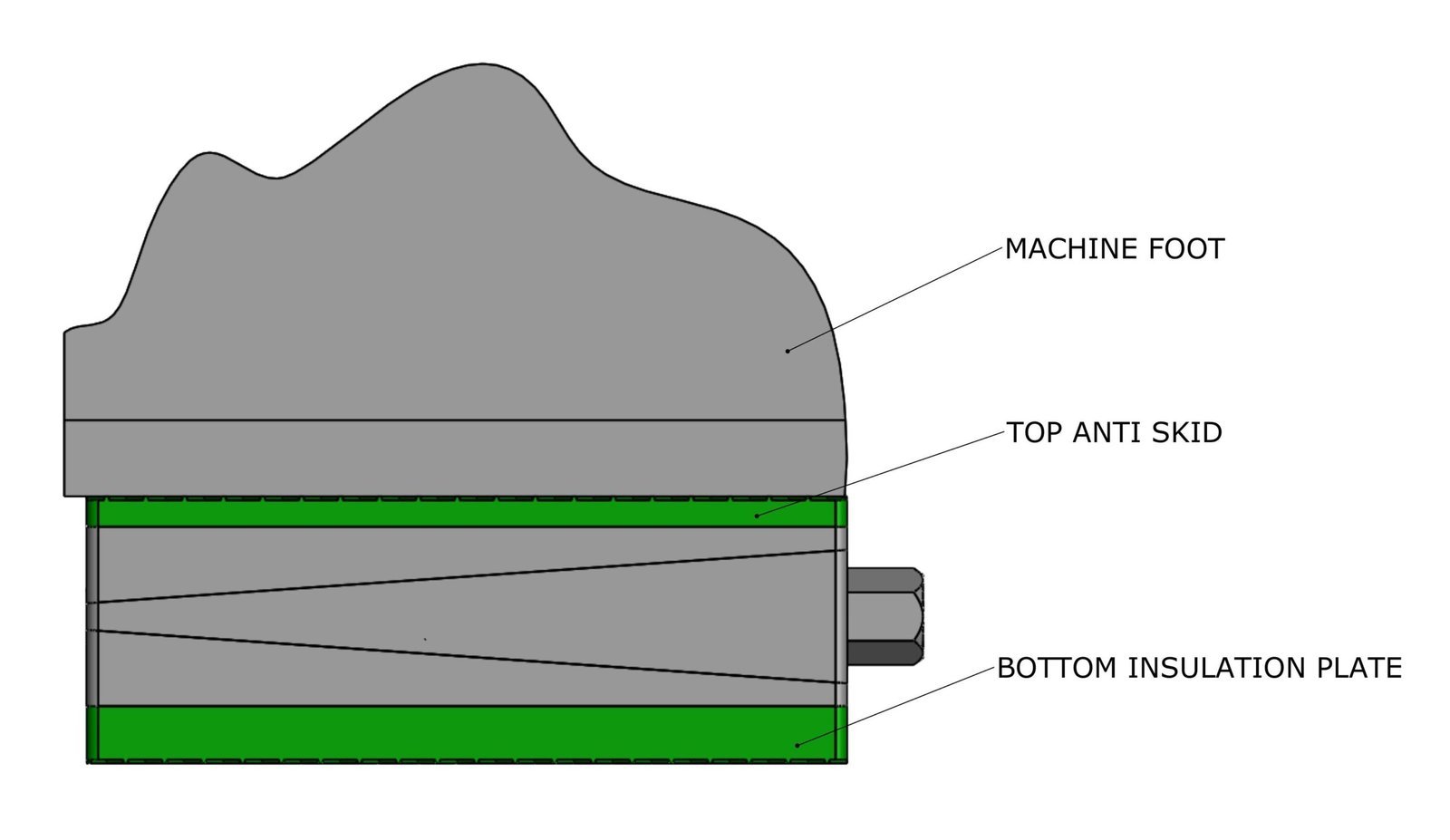

Installation 01

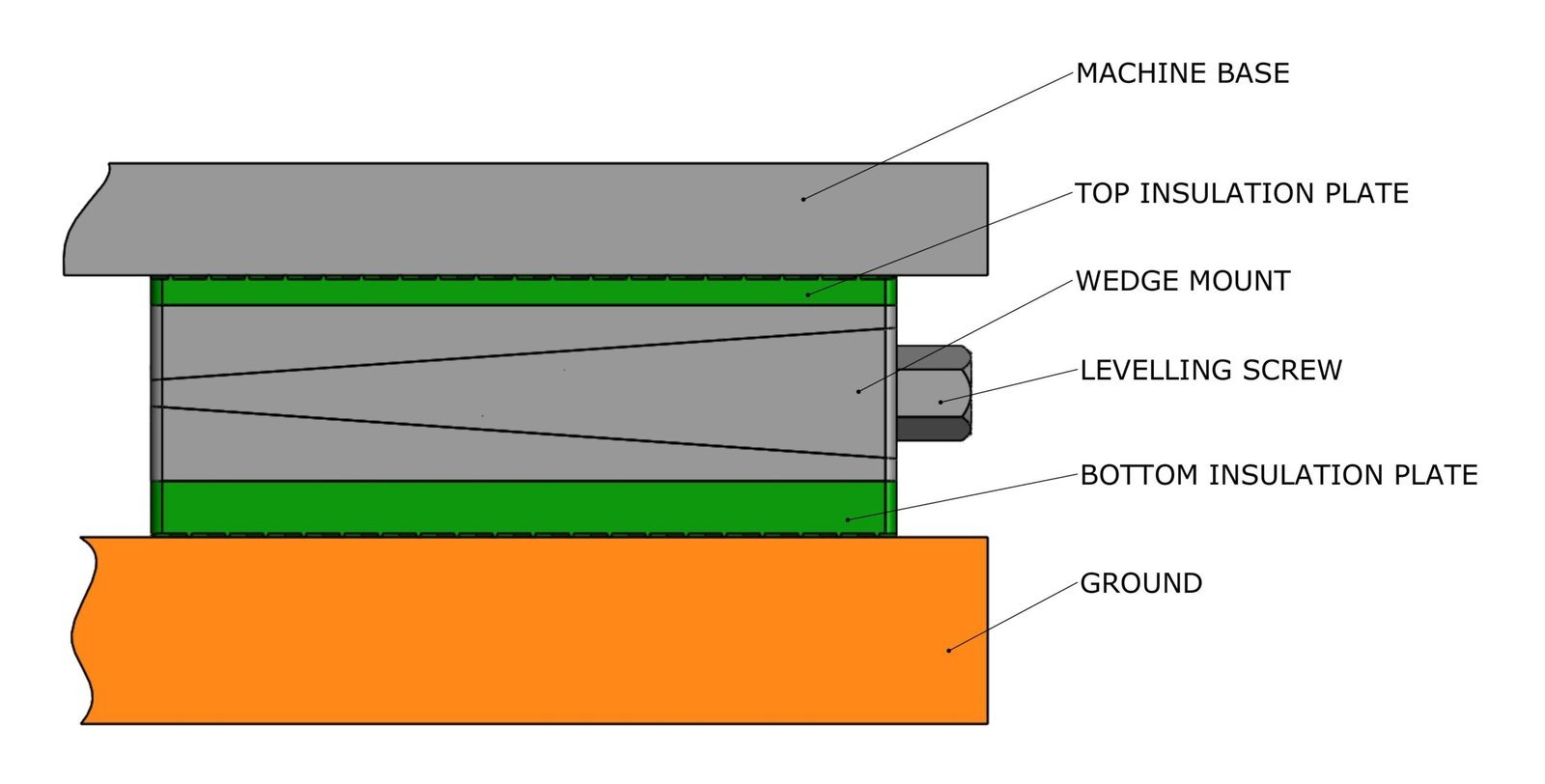

Installation 02
Description
Application:
For all heavy-duty industrial applications where high vibration isolation is required. Suitable for rotating and vertical impact generating machines.
Technical Data
Load Capacity Kg/pc
4000
Length (L) mm
200
Width (B) mm
100
Height (H) at mean position (mm)
120
Adjustment Range (mm)
+5/-5
Bottom pad Type
Dhs1
Bottom pad Thickness (mm)
65
Top pad Type
Da2
Top pad Thickness (mm)
8
SW1 (mm)
22
SW2 (mm)
12
Coeff. of Friction against Concrete
0.8
Natural Frequency at Max. Load (Hz)
6
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
