DBF6-h-A2-FG-DG
Dynemech Wedge mounts, Series DBF are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.

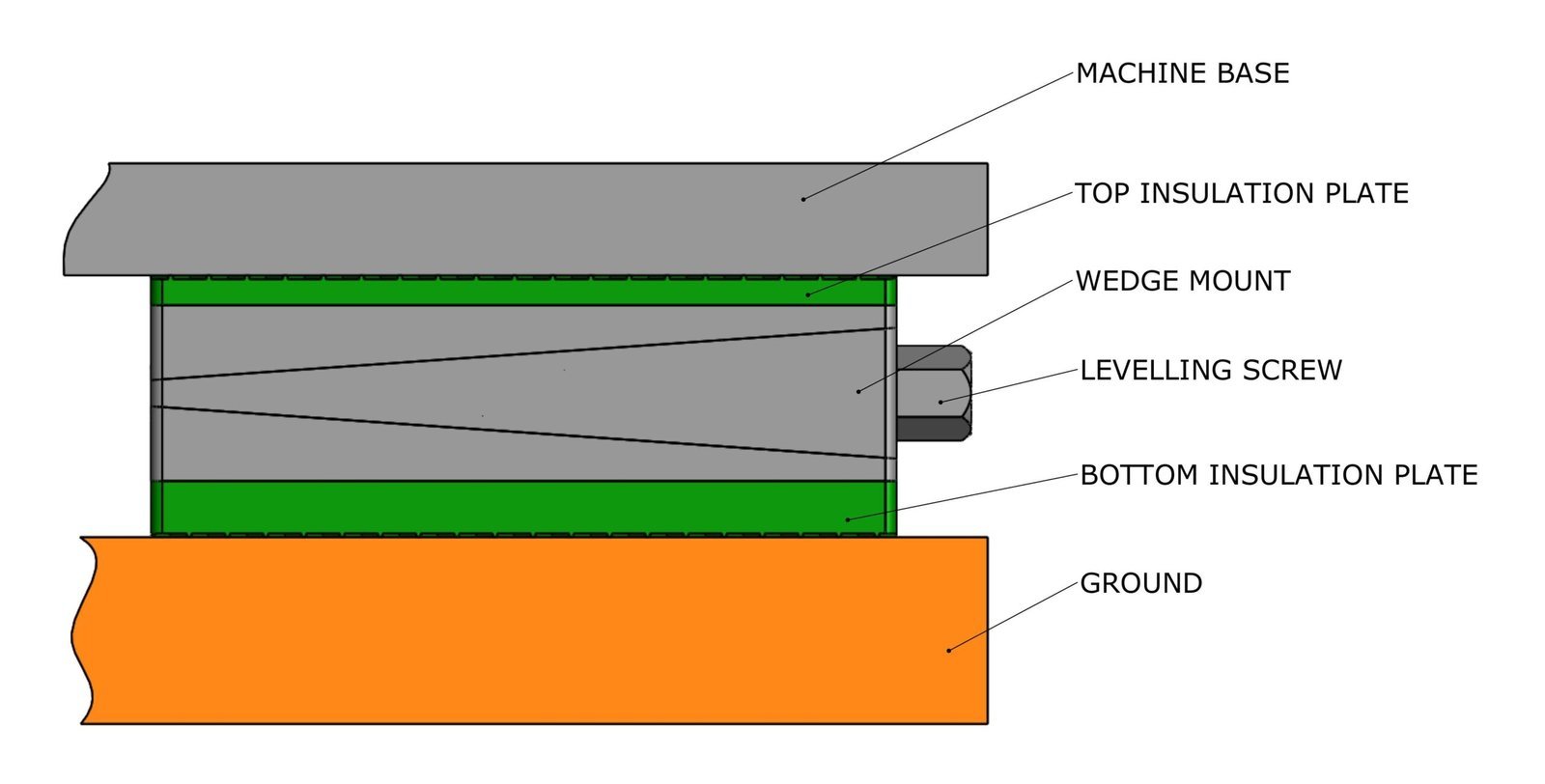

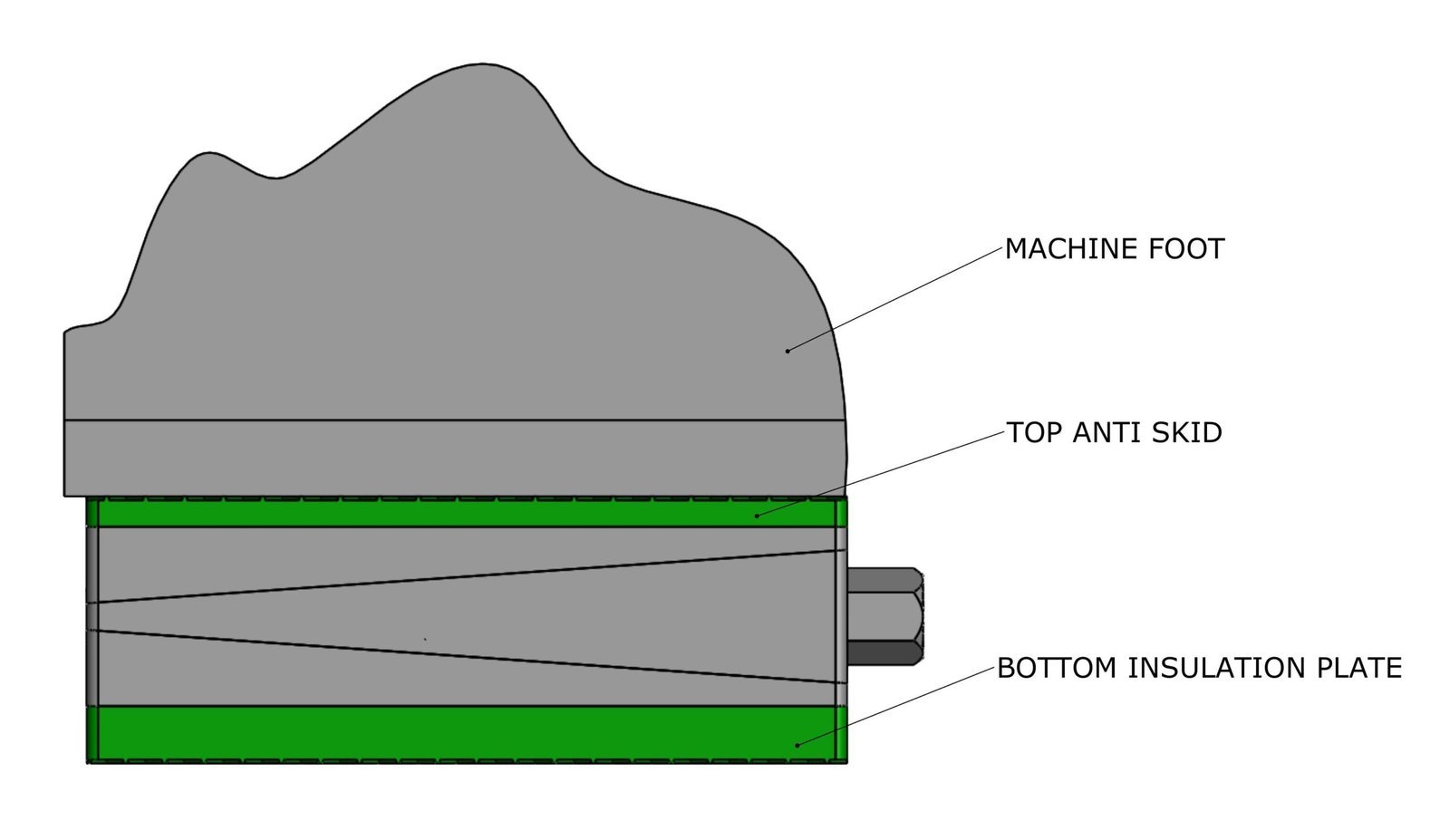

Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | Very Heavy and long bed machines, long machining centres, planners etc. |
| Load Capacity (Kg/Pc) | 24000 |

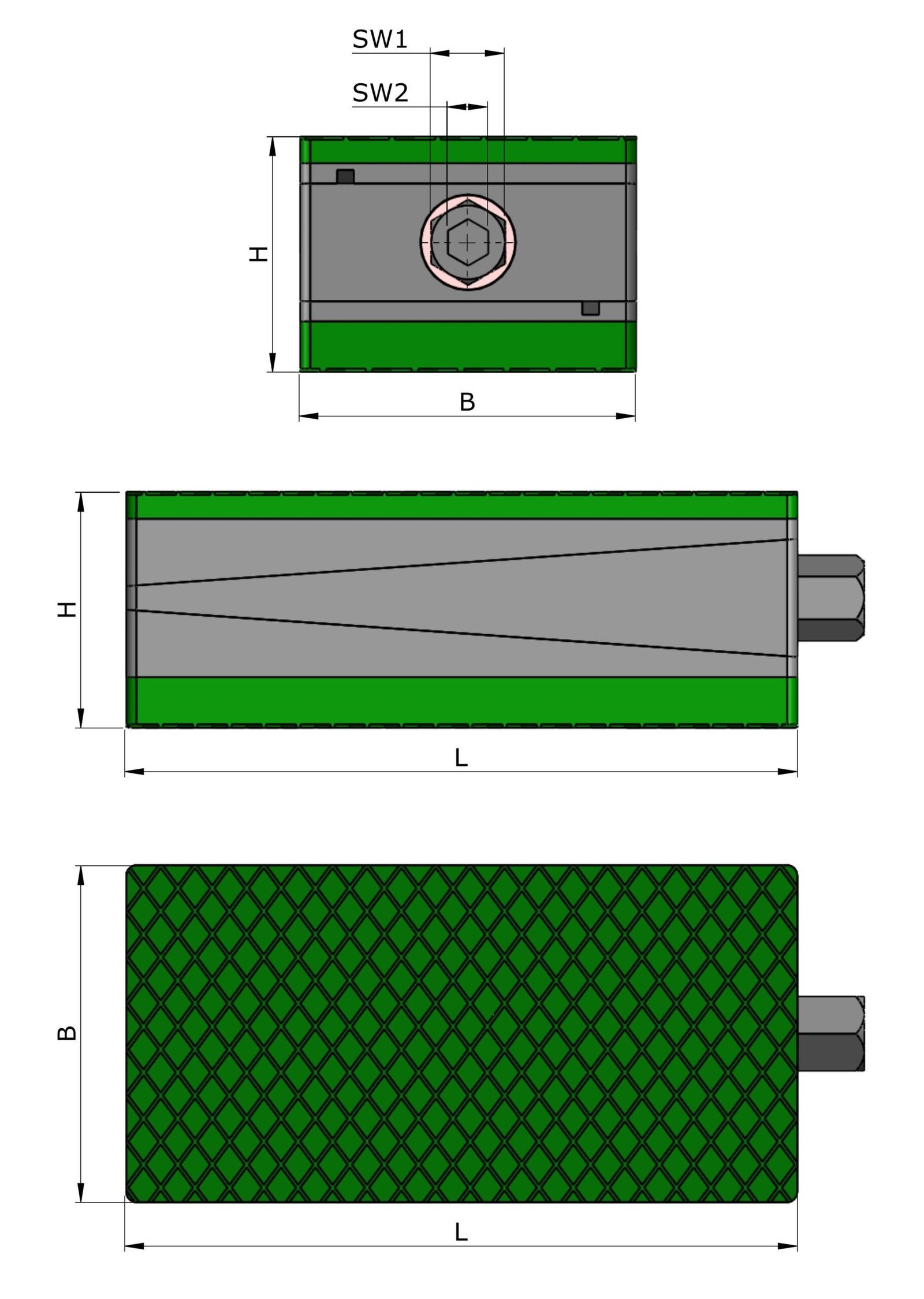

| Length L (Mm) | 250 |
| Width B (Mm) | 320 |
| Height H At Mean Position (Mm) | 98 |
| Adjustment Range (Mm) | +9/-9 |
| Bottom Pad Type | Dh |
| Bottom Pad Thickness (Mm) | 15 |
| Top Pad Type | Da2 |
| Top Pad Thickness (Mm) | 8 |
| Sw1 (Mm) | 32 |
| Sw2 (Mm) | 18 |
| Coeff Of Friction Against Concrete | 0.6 |
| Natural Frequency At Max Load (Hz) | 45 |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
