Dynemech Wedge mounts, Series DBP-100 have a height of 100mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
DBP7-85-FG-M24x3.0x200-S-Z-8-DG
Model

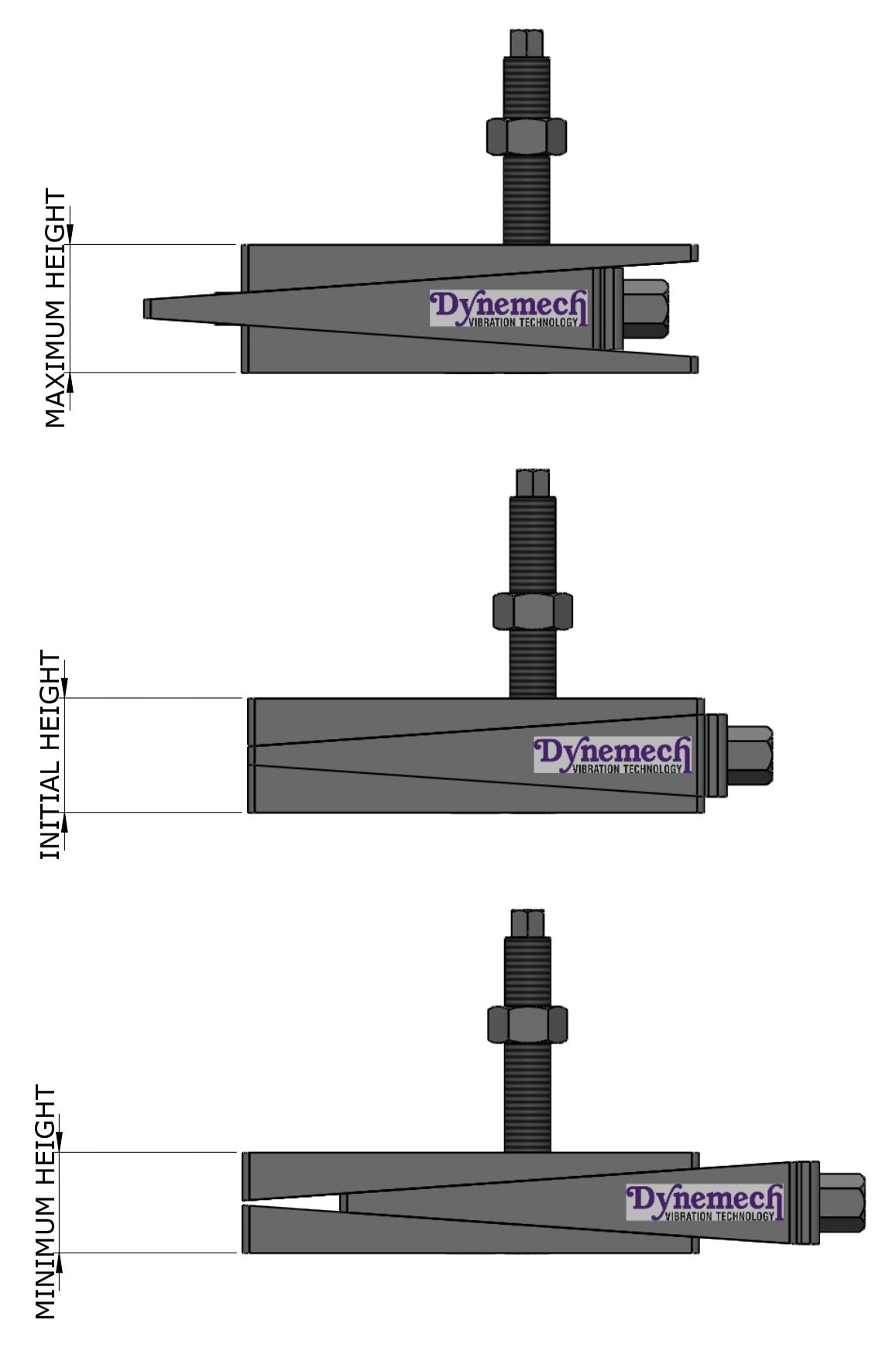

Adjustment Configuration

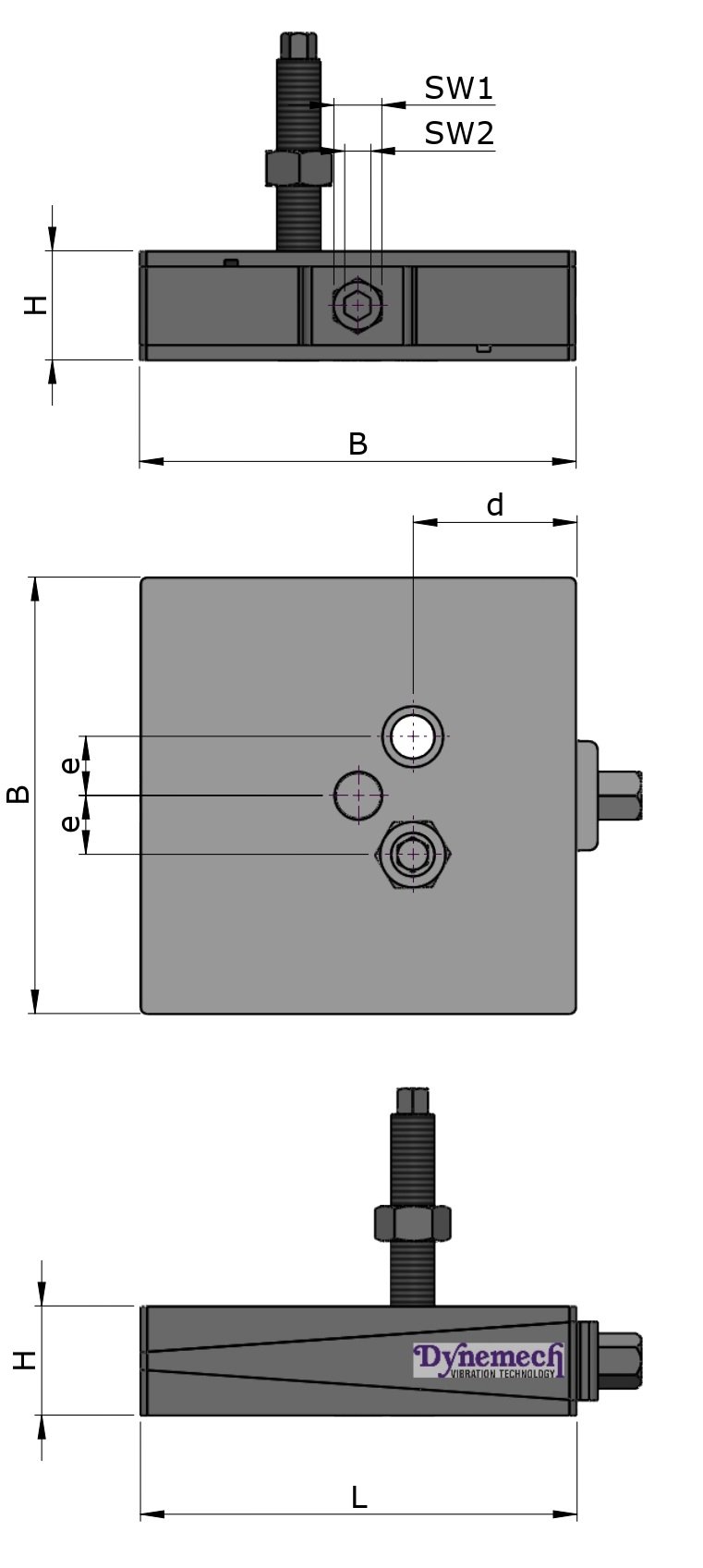

Dimensional Details

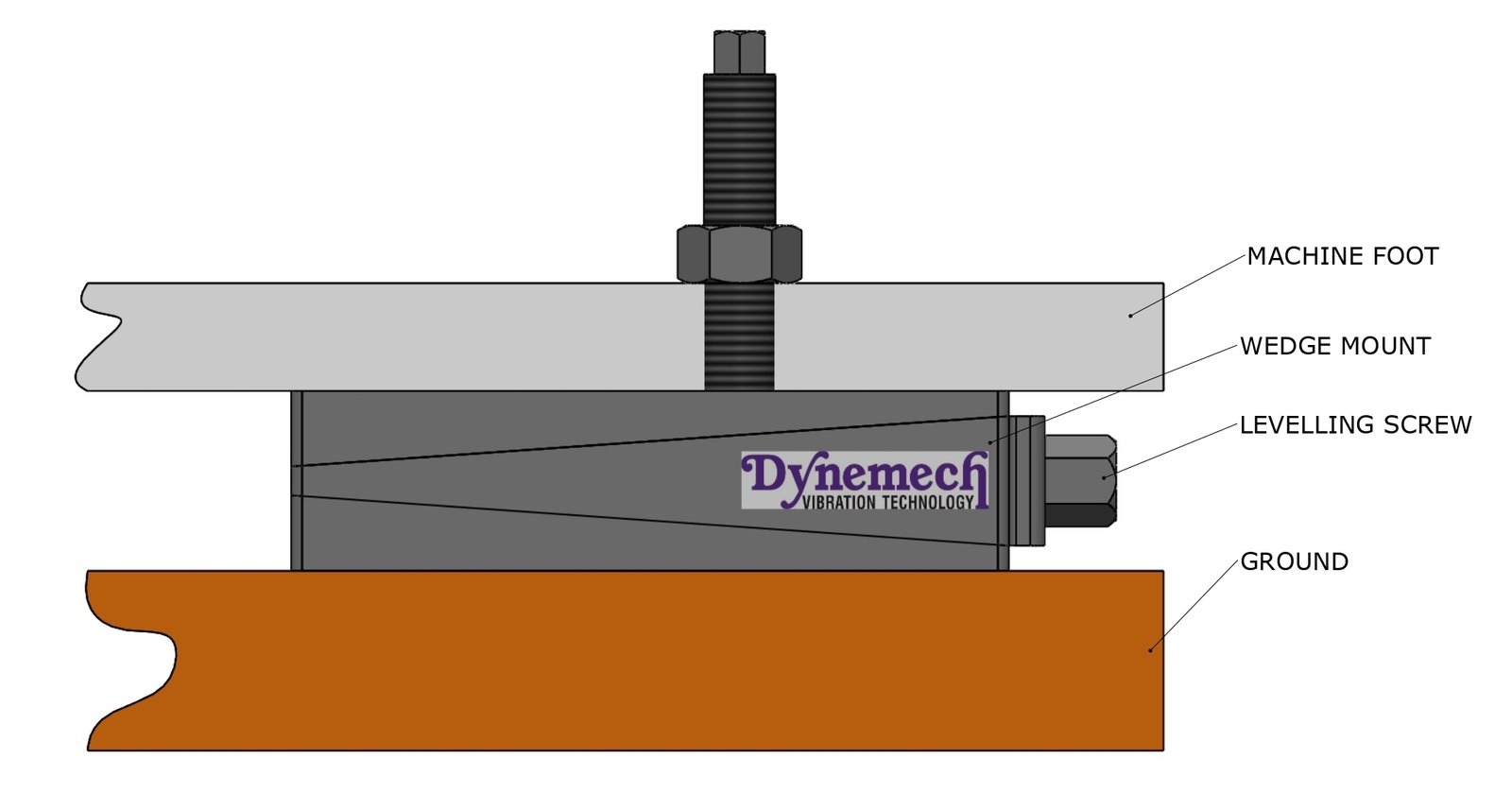

Installation 01

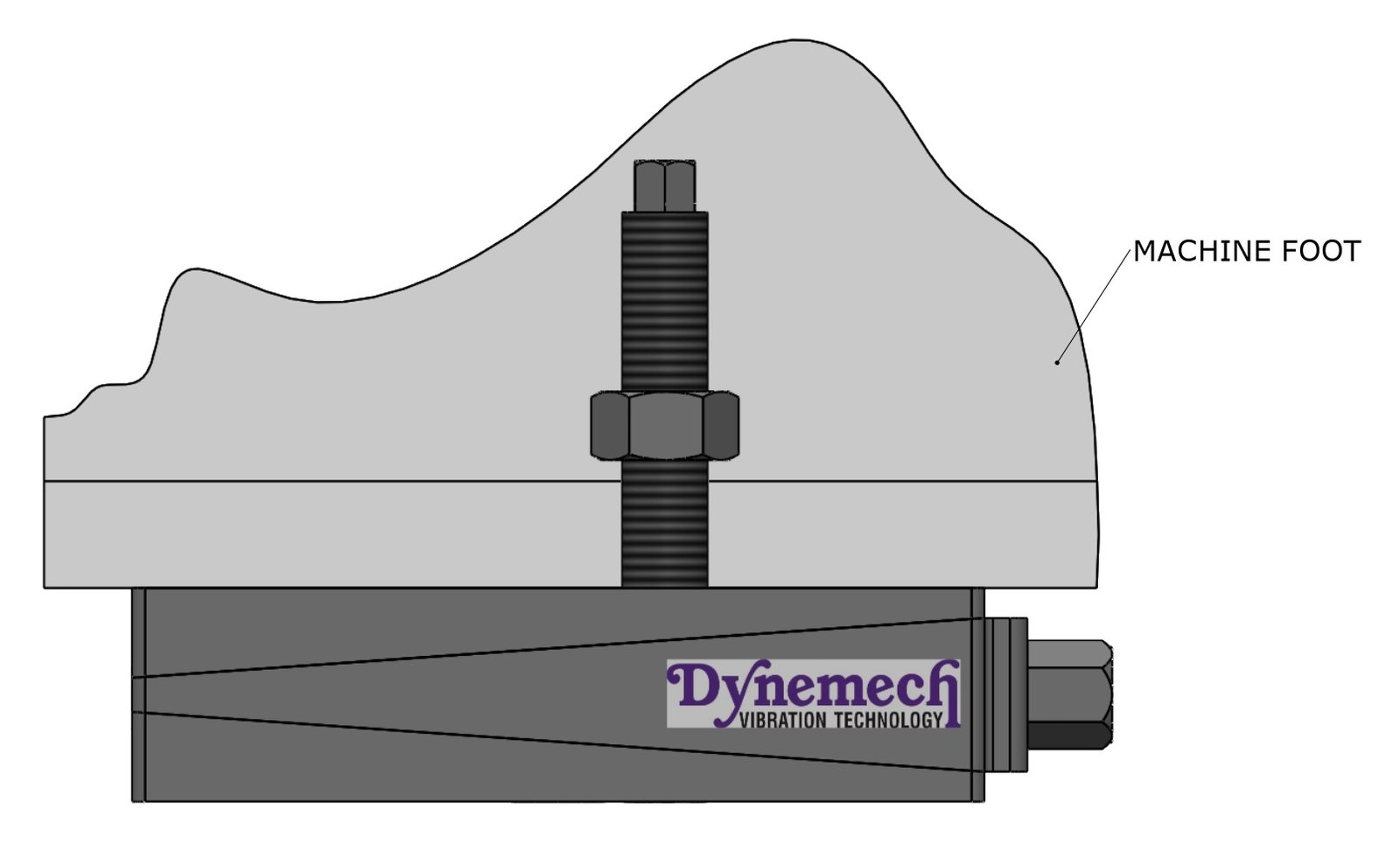

Installation 02
Description
Application:
For levelling of all Precicion Machines.
Technical Data
Load Capacity Kg/pc
52000
Length (L) mm
400
Width (B) mm
500
Height (H) at mean position (mm)
85
Adjustment Range (mm)
+10/-10
Bottom pad Type
X
d (mm)
160
Bottom pad Thickness (mm)
X
BOLT SIZE (mm)
M24
SW1 (mm)
39
SW2 (mm)
22
Coeff. of Friction against Concrete
X
Natural Frequency at Max. Load (Hz)
X
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
e (mm)
70
