Dynemech Wedge mounts, Series DBOP-100 are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
DBOP3-85-FG-S-Z-GR
Model
Adjustment Configuration

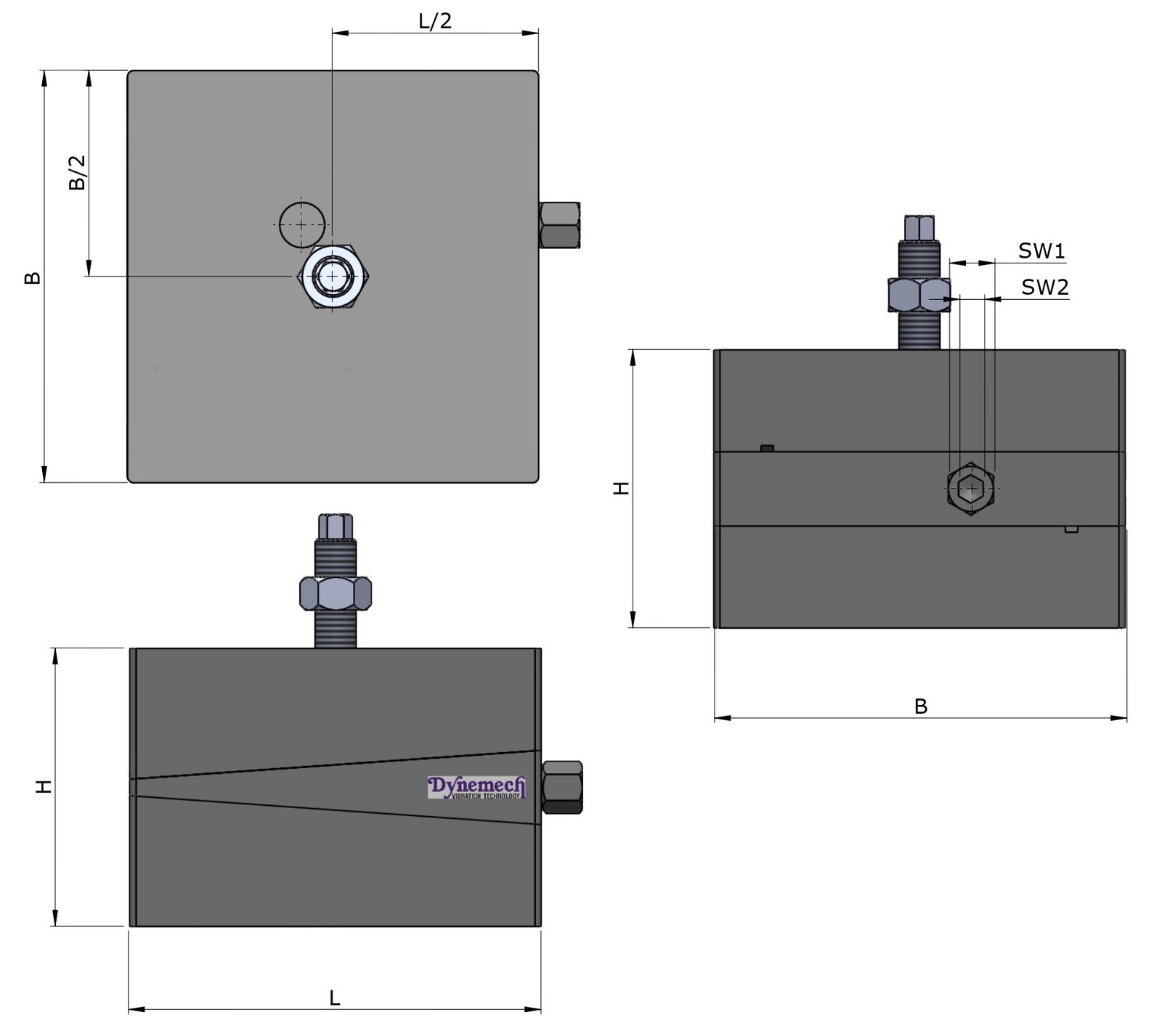

Dimensional Details

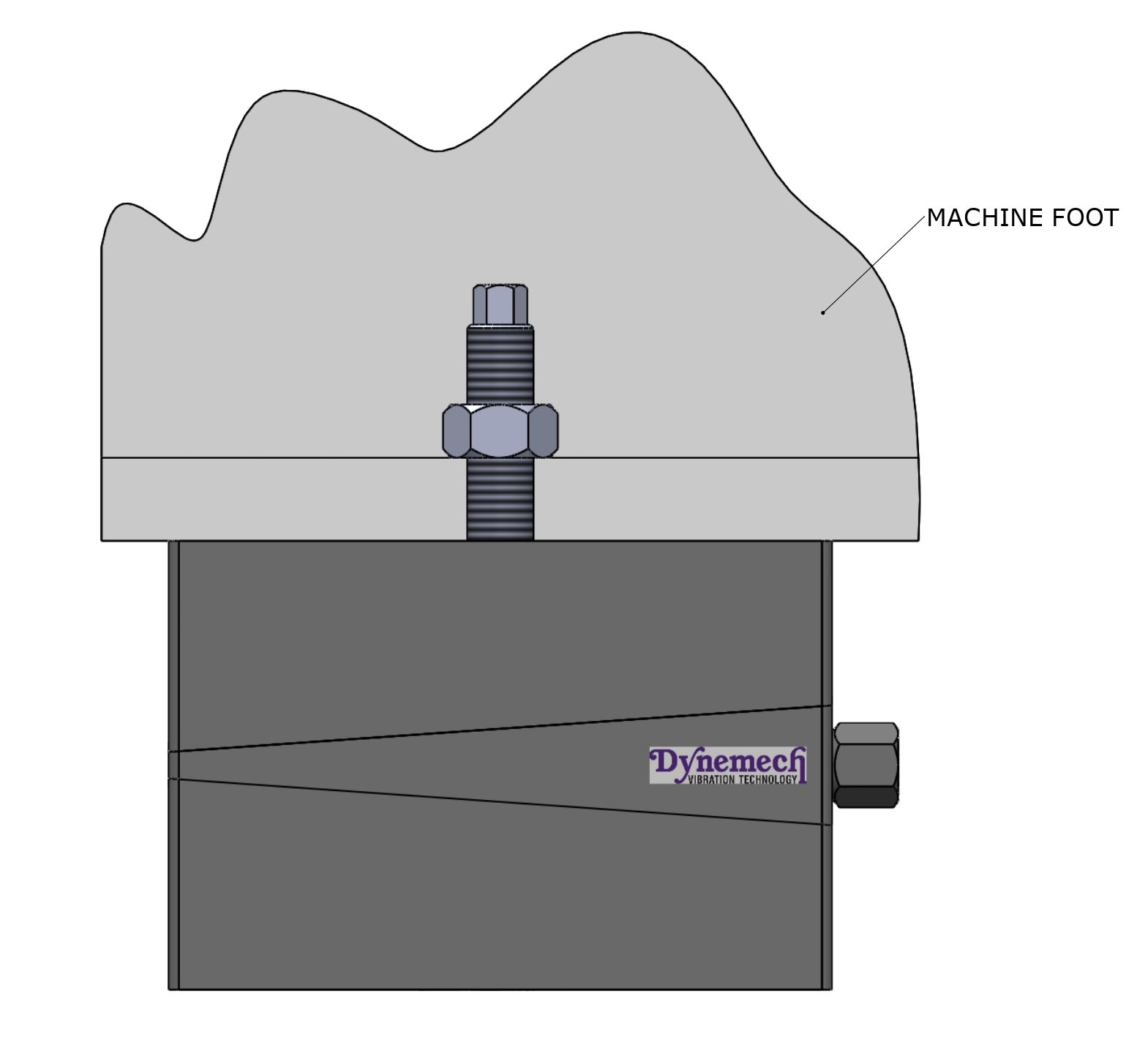

Installation 01

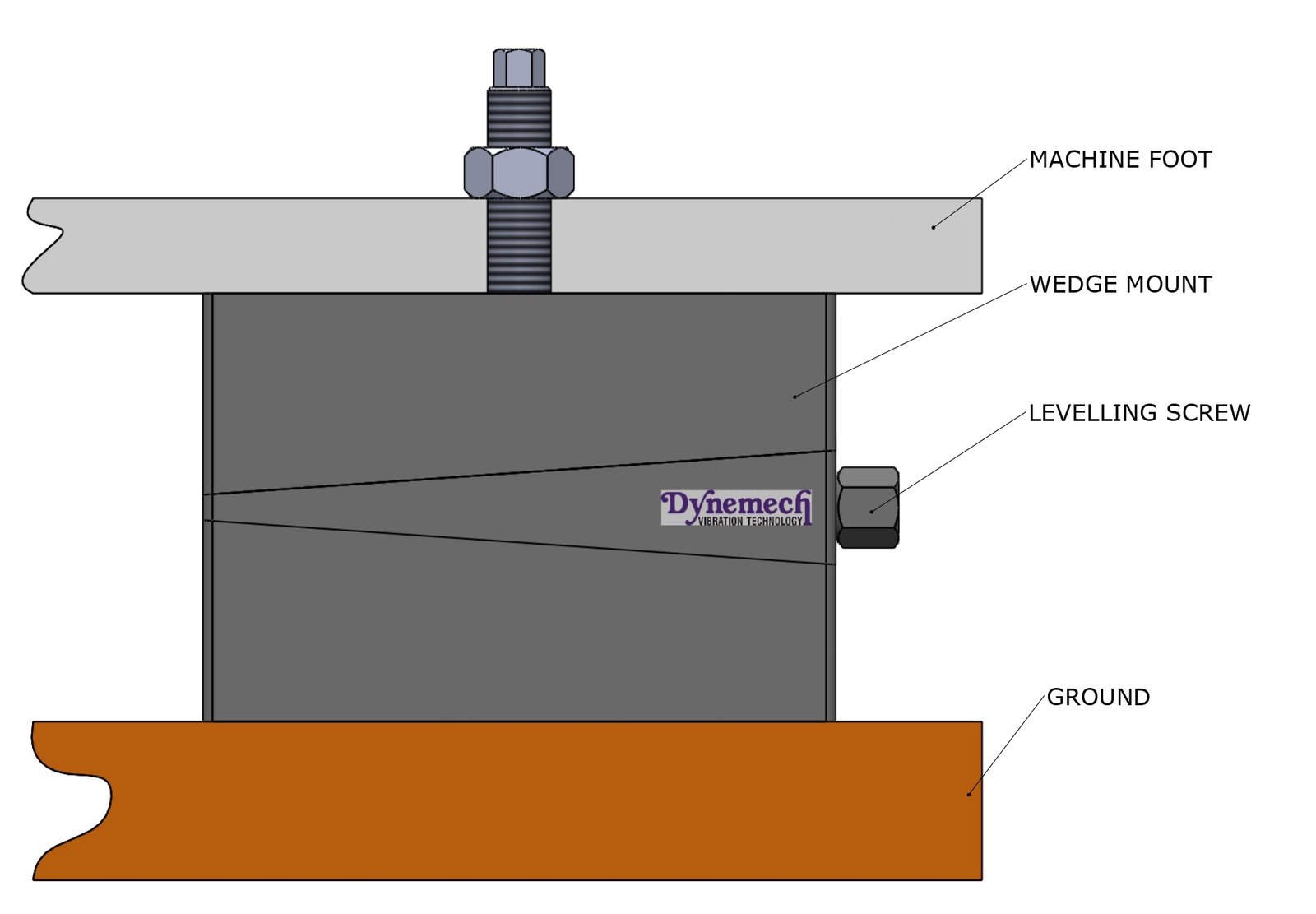

Installation 02
Description
Application:
For levelling of all Precicion Machines.
Technical Data
Load Capacity Kg/pc
10400
Length (L) mm
200
Width (B) mm
200
Height (H) at mean position (mm)
85
Adjustment Range (mm)
+6/-6
d (mm)
100
Bolt Size (mm)
M16/18/20/22/24
SW1 (mm)
22
SW2 (mm)
12
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
