DBO4-u-10-FG-S-Z-GR

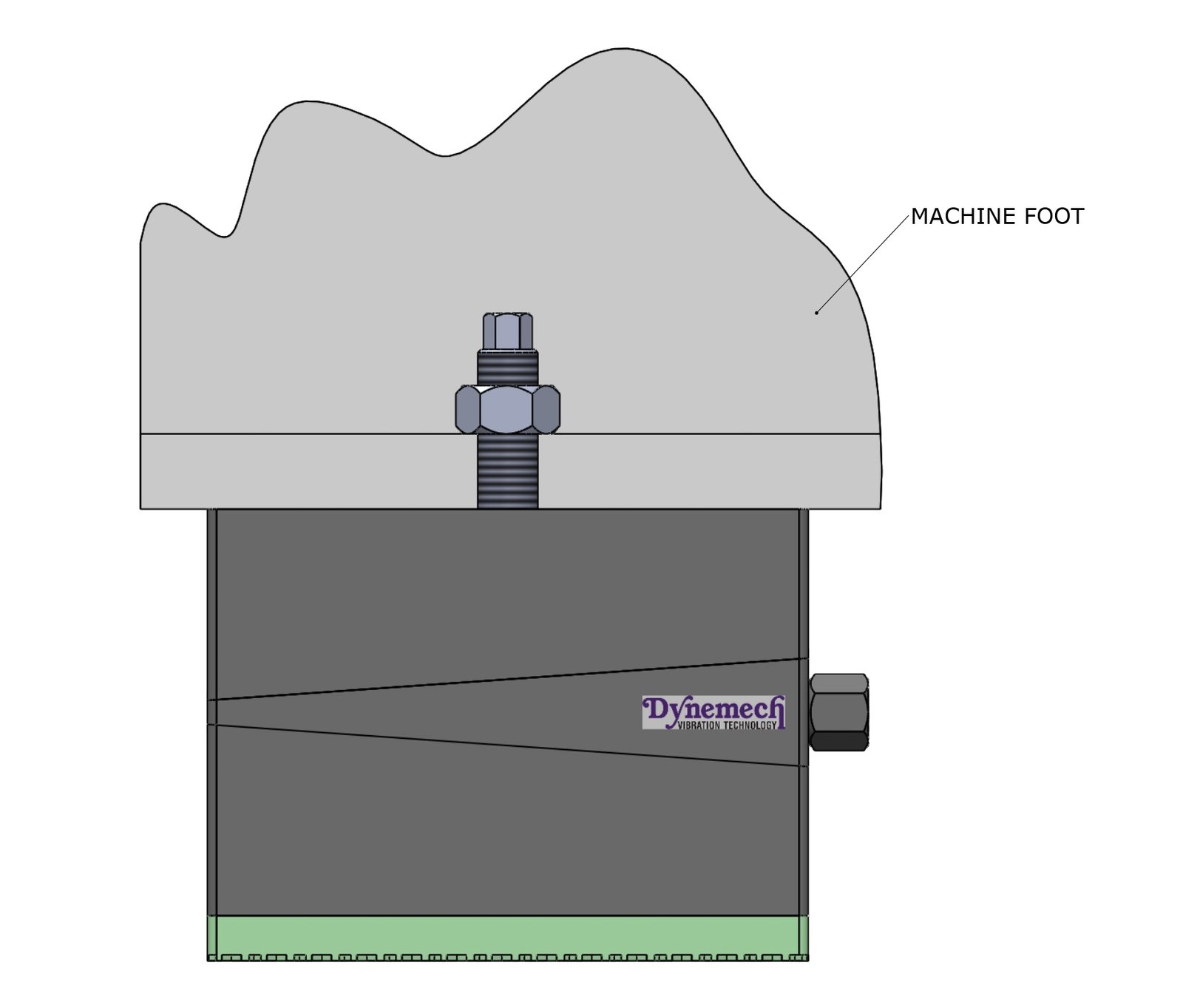

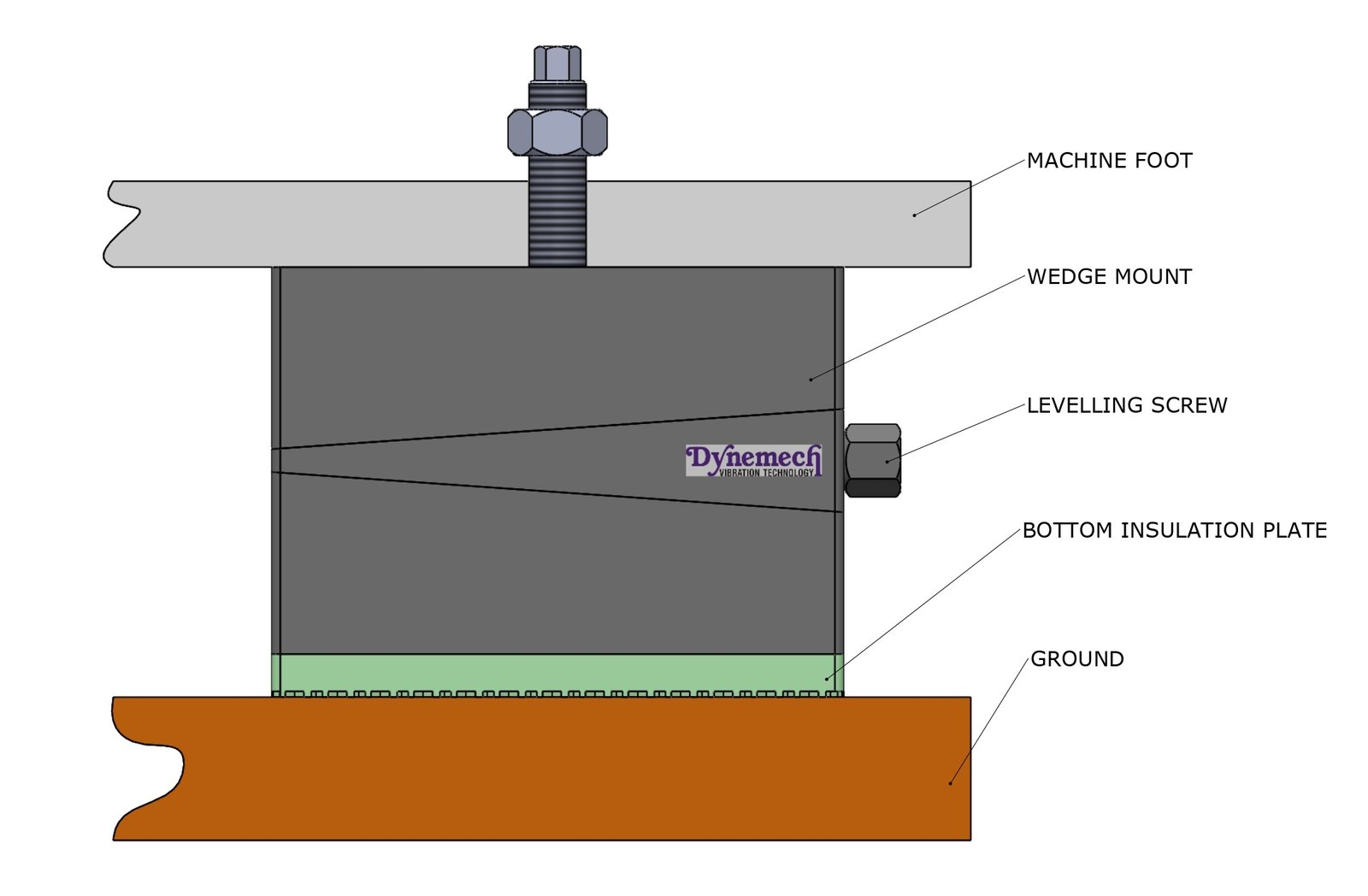

Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc. |
| Load Capacity (Kg/Pc) | 4000 |

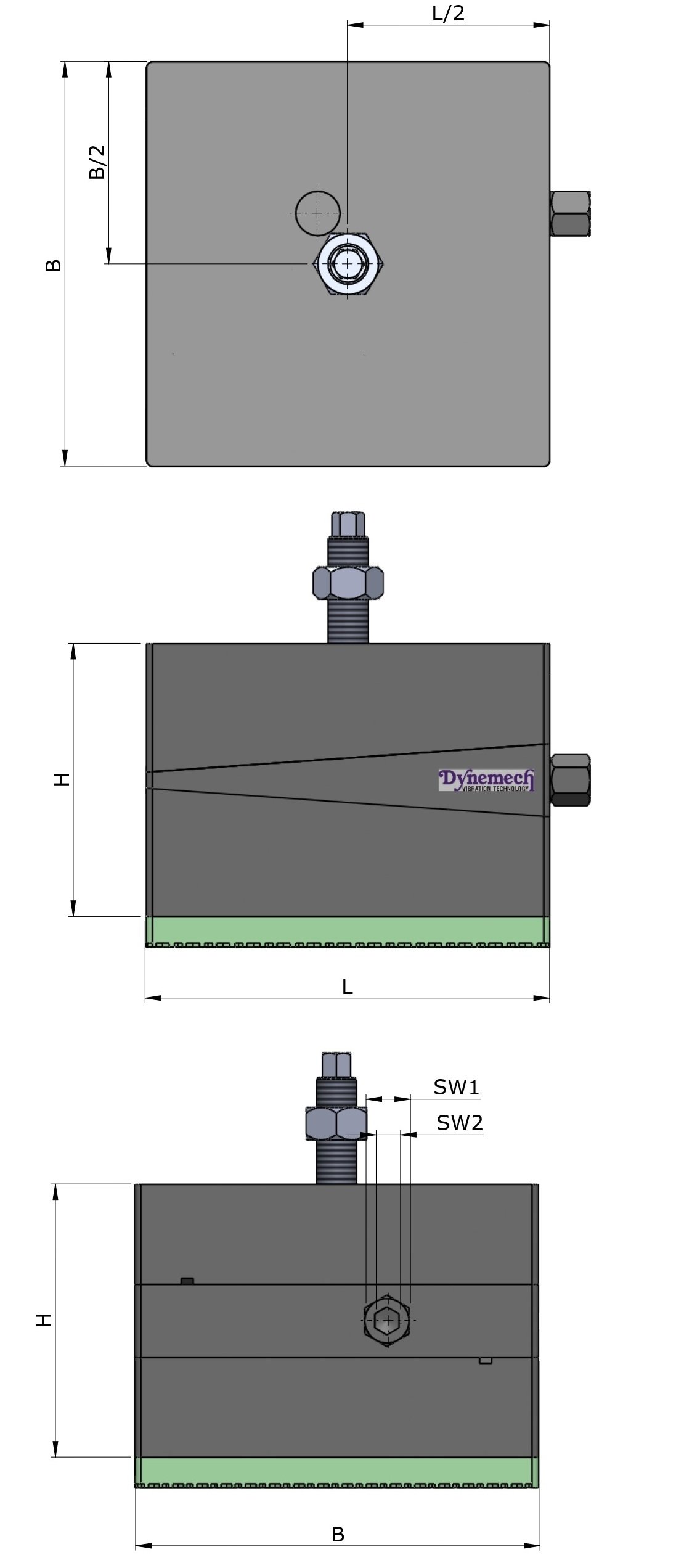

| Length L (Mm) | 200 |
| Width B (Mm) | 250 |
| Height H At Mean Position (Mm) | 80 |

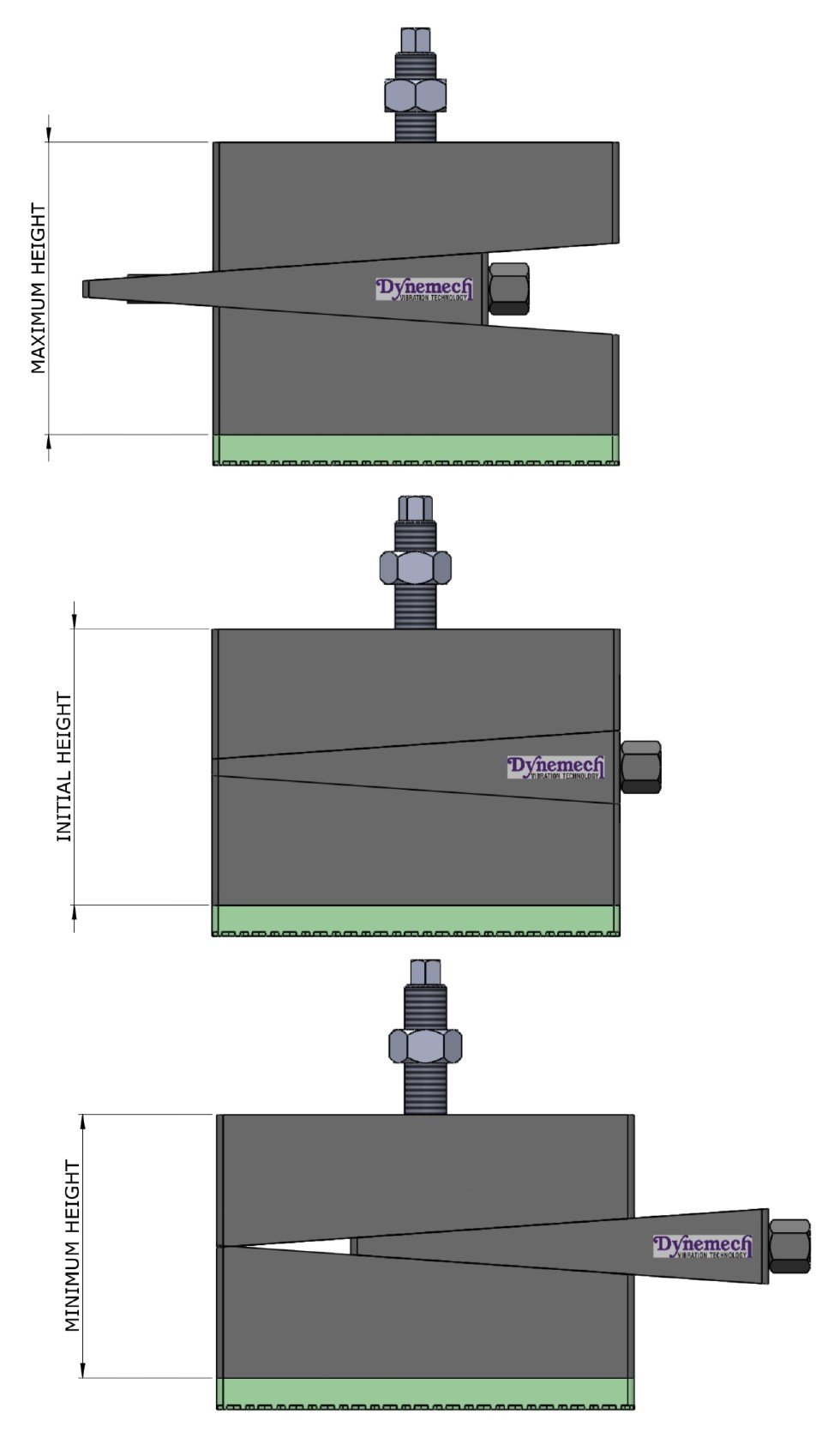

| Adjustment Range (Mm) | +9/-9 |
| Bottom Pad Type | Du-10 |
| Bottom Pad Thickness (Mm) | 10 |
| Sw1 (Mm) | 27 |
| Sw2 (Mm) | 14 |
| Coeff Of Friction Against Concrete | 0.9 |
| Natural Frequency At Max Load (Hz) | 25 |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
| Bolt Size (Mm) | M16/18/20/22/24 |
