DBO-m
Dynemech Wedge mounts, Series DBO are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Lathe Machines, Machining Centres, Milling Machines, Precision Grinding Machines, Drilling Machines, Turning Centres, Transfer Lines etc.
Documents
7 Models

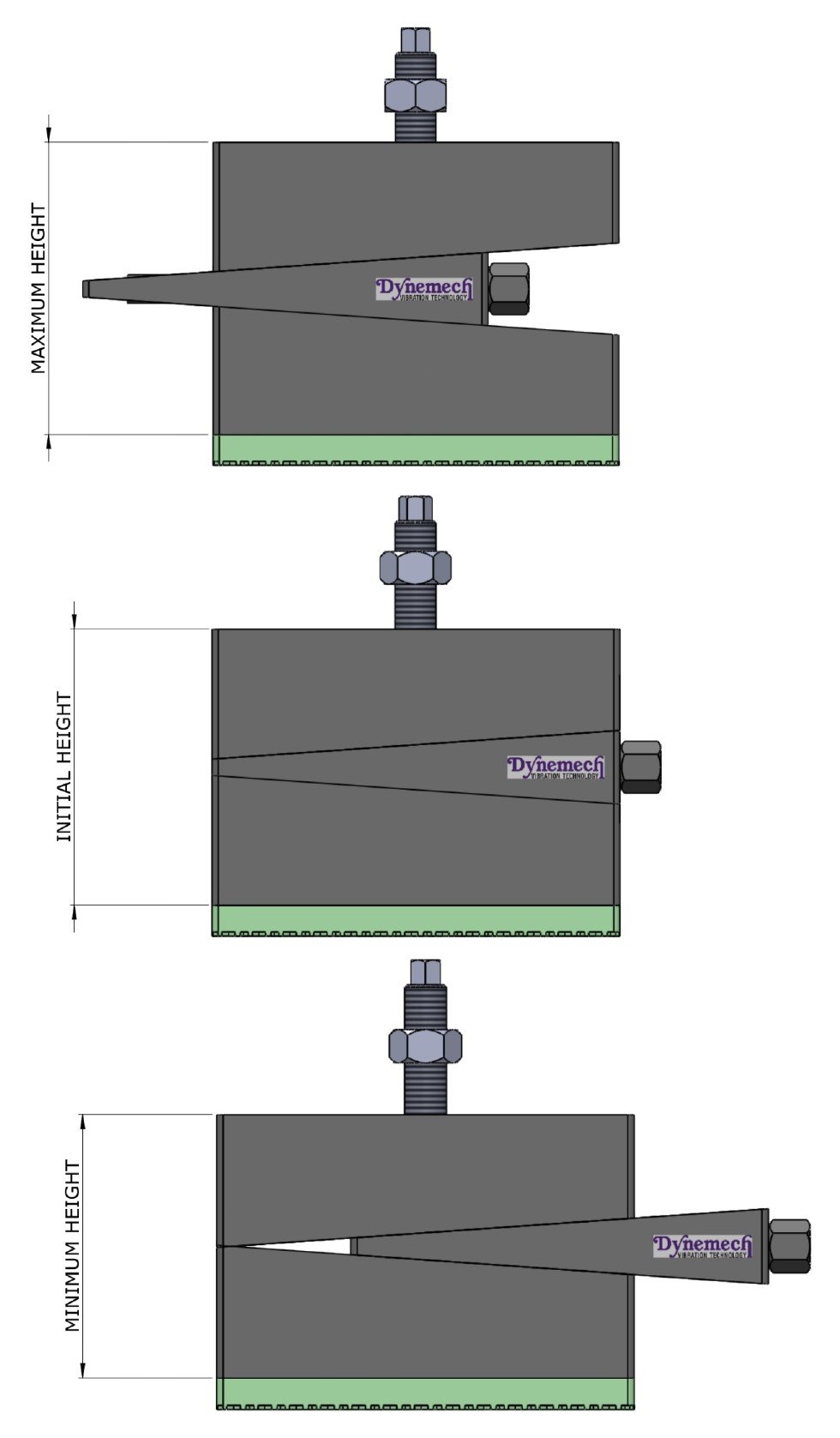

| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bolt Size (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DBO1-m-FG-S-Z-GR | 1400 | 115 | 115 | 59 | +4/-4 | Dm | 15 | 19 | 10 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO2-m-FG-S-Z-GR | 2200 | 150 | 150 | 65 | +5/-5 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO3-m-FG-S-Z-GR | 4000 | 200 | 200 | 65 | +6/-6 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO4-m-FG-S-Z-GR | 5000 | 200 | 250 | 85 | +9/-9 | Dm | 15 | 27 | 14 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO5-m-FG-S-Z-GR | 8000 | 250 | 320 | 90 | +9/-9 | Dm | 15 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO6-m-FG-S-Z-GR | 12000 | 300 | 400 | 90 | +10/-10 | Dm | 15 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
| DBO7-m-FG-S-Z-GR | 20000 | 400 | 500 | 95 | +10/-10 | Dm | 15 | 39 | 22 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | M16/18/20/22/24 |
