Dynemech Wedge mounts, Series DBHOP-150 mounts are sturdy in construction. Wedge mounts are bolted with the machine base. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces. DBHOP-150 has a height of 150mm to meet TPM requirements. Respective insulation plates are assembled to meet various applications.
DBHOP2-a2-143-M20-FG-DG
Model

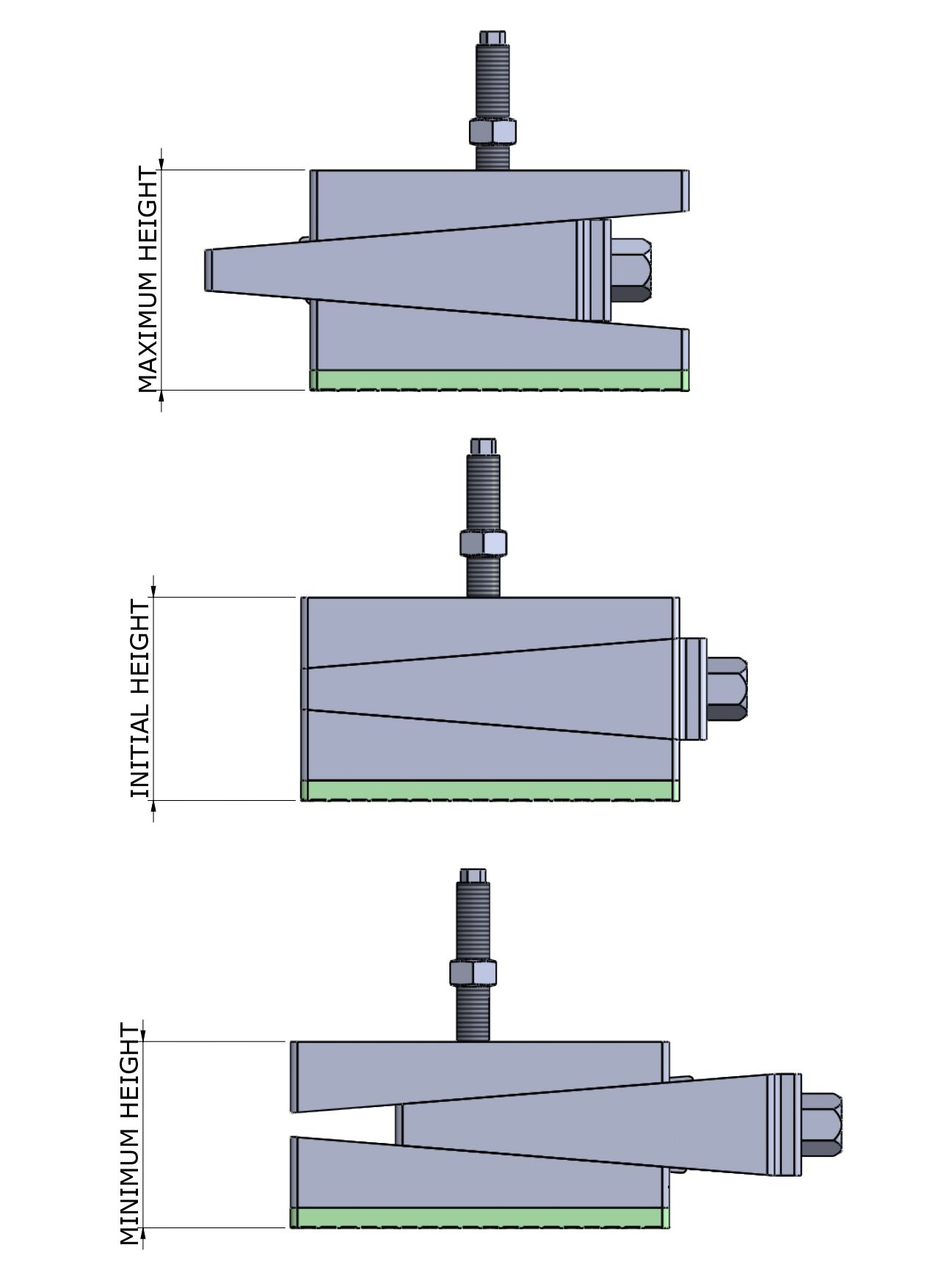

Adjustment Configuration

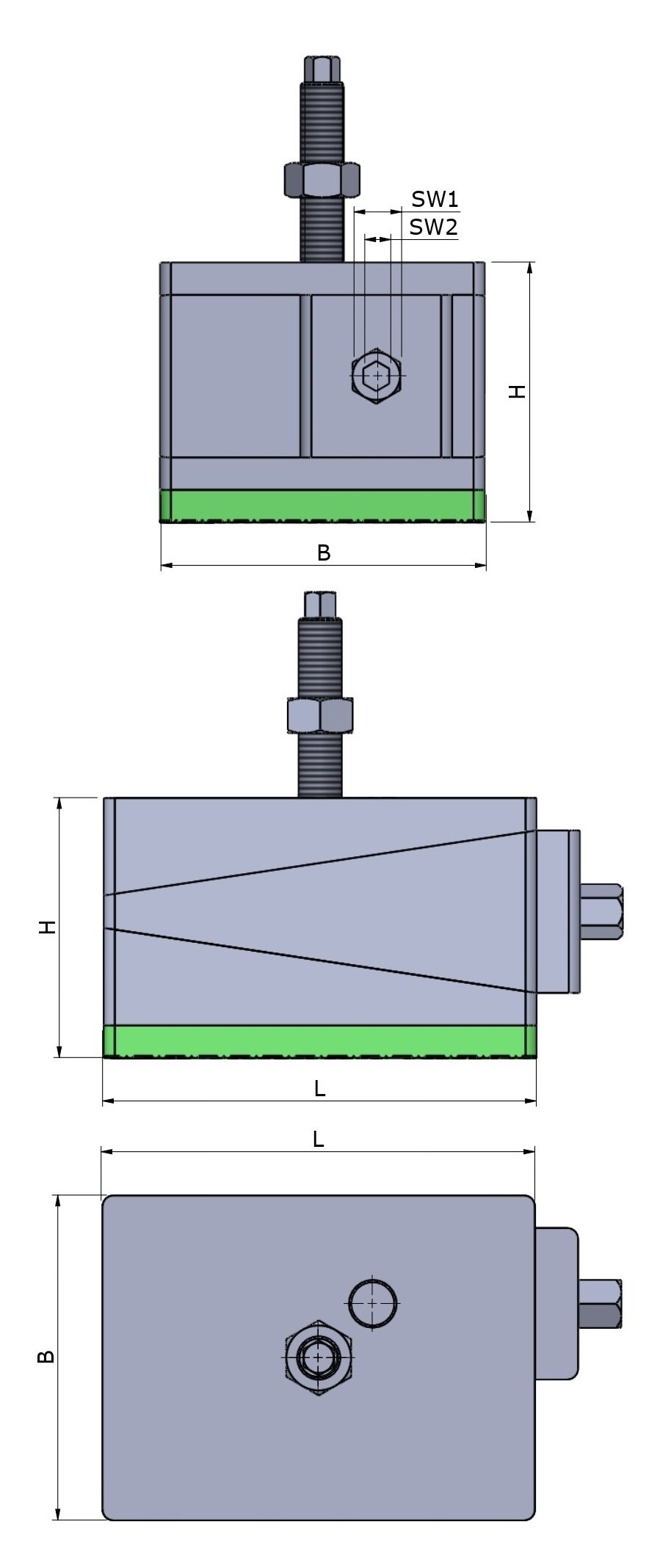

Dimensional Details

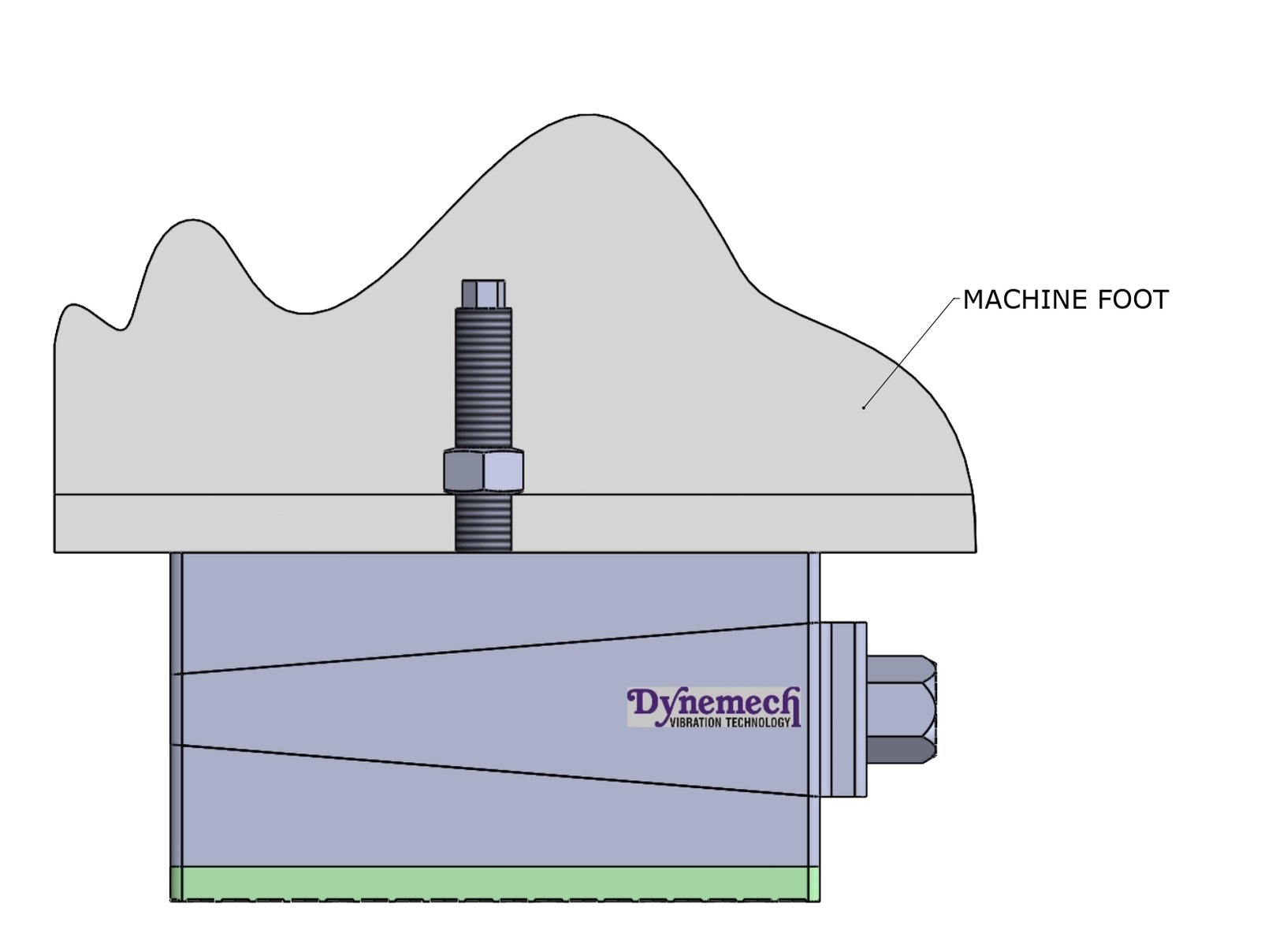

Installation 01

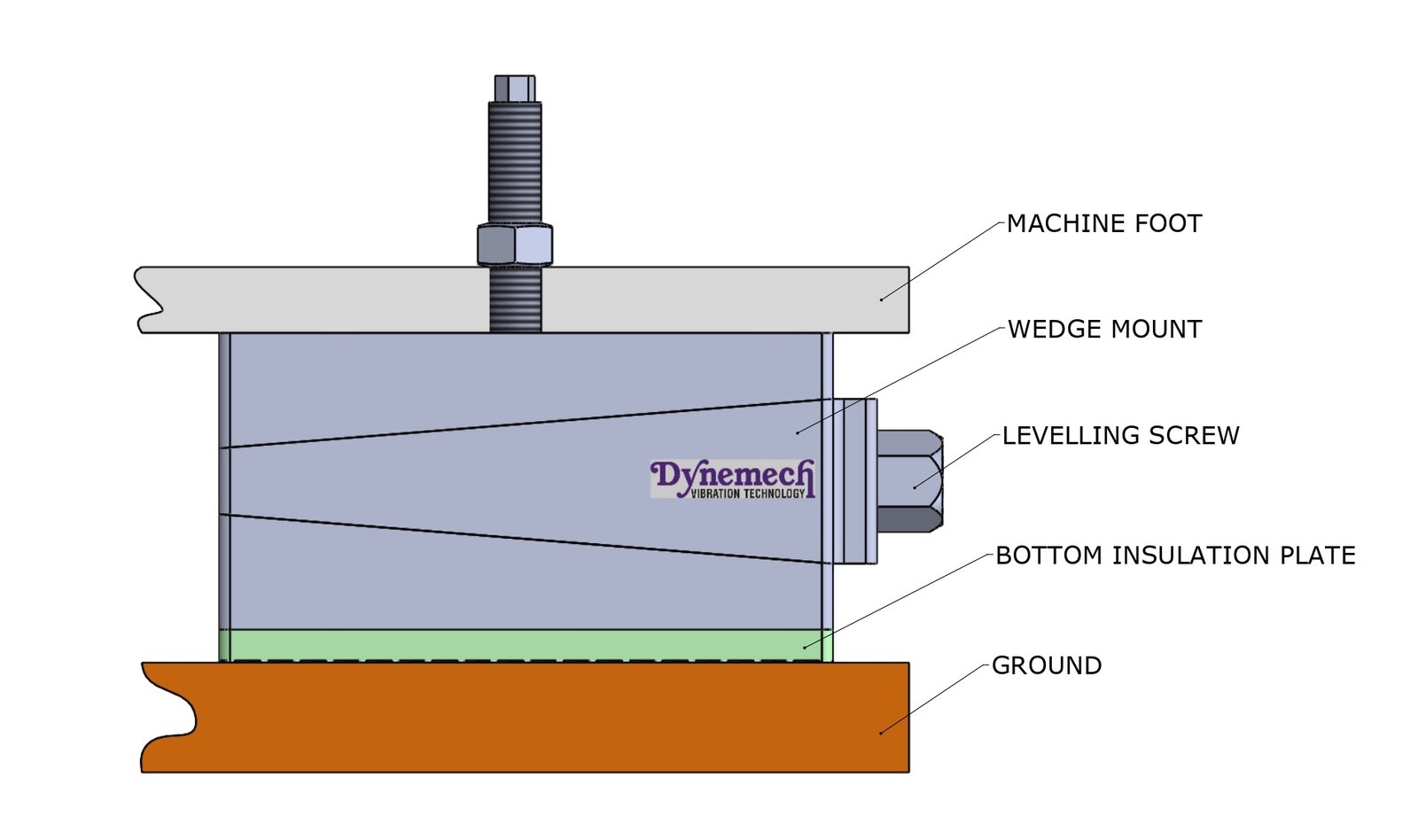

Installation 02
Description
Technical Data
Load Capacity Kg/pc
3000
Length (L) mm
200
Width (B) mm
150
Height (H) at mean position (mm)
143
Adjustment Range (mm)
+10/-10
Bottom pad Type
Da2
Bottom pad Thickness (mm)
8
BOLT SIZE (mm)
M20
SW1 (mm)
22
SW2 (mm)
12
Coeff. of Friction against Concrete
0.9
Natural Frequency at Max. Load (Hz)
45
Temperature Range (°C)
From -16 to 90
Color
Dark Grey/Green
