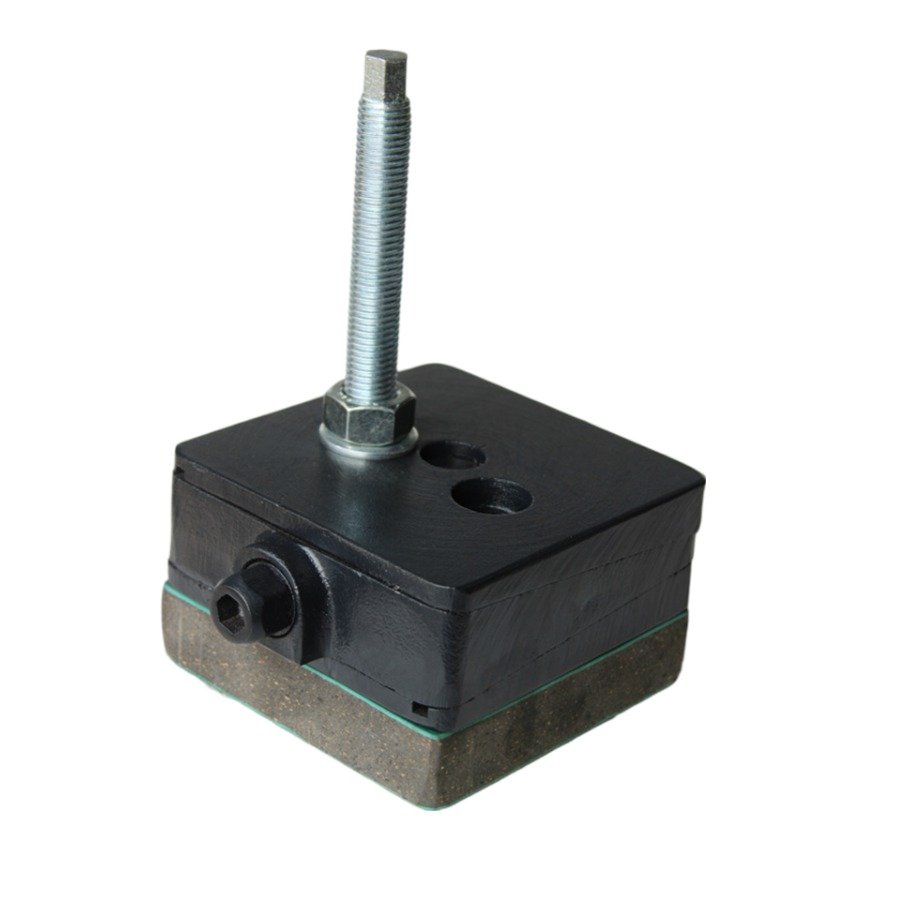

DB5-s1-FG-M24x3.0x200-S-Z-8-DG
Dynemech Wedge mounts, Series DB are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc. |
| Load Capacity (Kg/Pc) | 3500 |
| Length L (Mm) | 250 |
| Width B (Mm) | 320 |
| Height H At Mean Position (Mm) | 95 |
| Adjustment Range (Mm) | +9/-9 |
| Bottom Pad Type | Ds1 |
| Bottom Pad Thickness (Mm) | 20 |
| Sw1 (Mm) | 32 |
| Sw2 (Mm) | 18 |
| Coeff Of Friction Against Concrete | 0.8 |
| Natural Frequency At Max Load (Hz) | 15 |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
| D (Mm) | 125 |
| Bolt Size (Mm) | M24 |
| E (Mm) | 55 |
